transportability ISO 10303-239 Representation

The following sections provide a detailed description on how to represent a Transportability Data Exchange Set using ISO 10303-239 PLCS. The representation of the Transportability DEX is defined using PLCS capabilities, PLCS templates and PLCS reference data.

This description may be further tailored by specific parties by extending the reference data defined in the PLCS reference data library.

An overview of the information to be exchanged by the Transportability DEX has been described in Transportability - Business Information Overview. A more detailed definition of the type of information that can be exchanged using the Transportability DEX is provided in Transportability - Business Information Requirements.

This section contains a step by step description on how each business information requirement defined in Transportability - Business Information Requirements is to be represented in PLCS, and is organized in accordance with the business information requirements.

Transportability

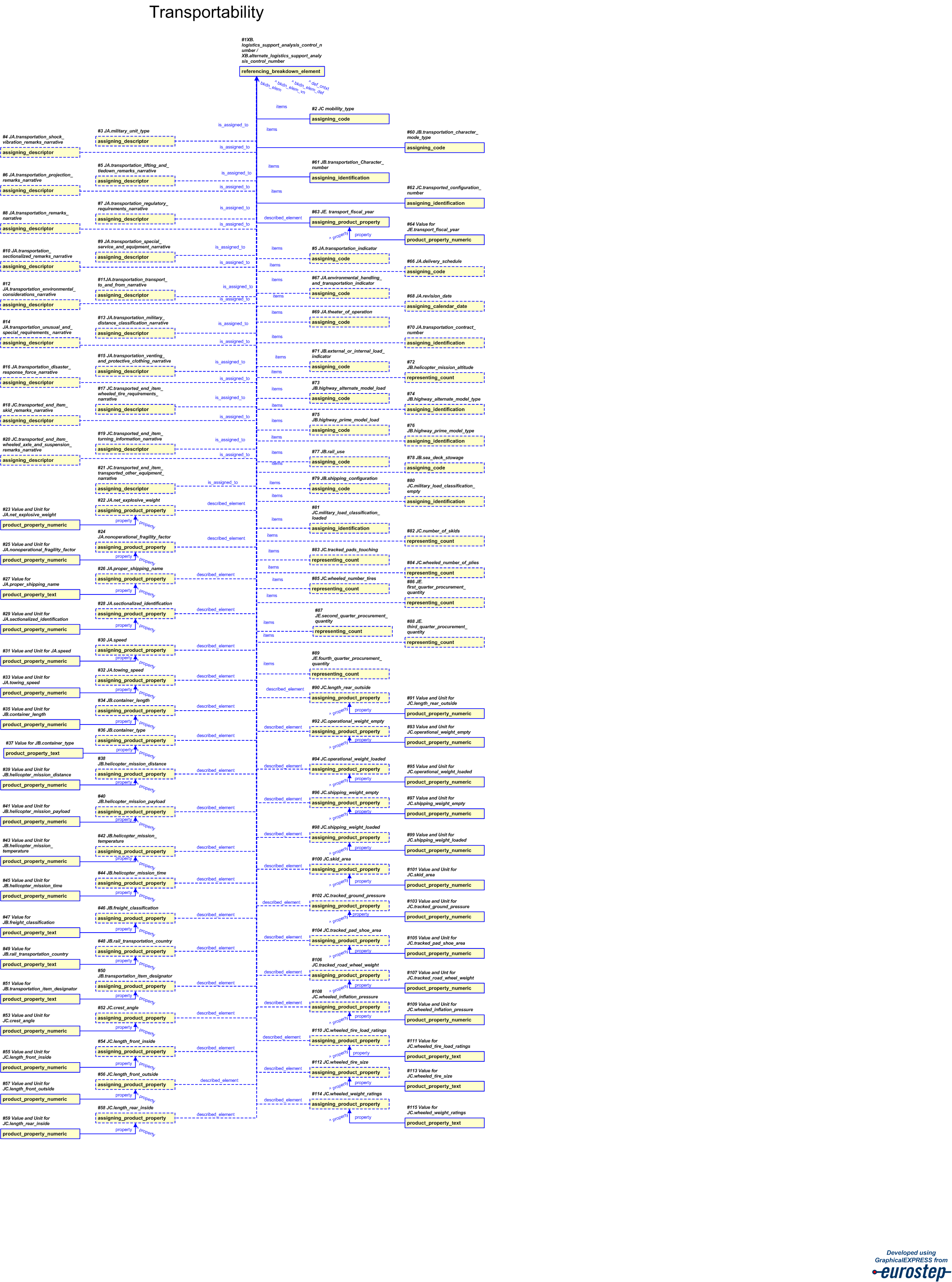

The Transportability information is described in Figure 7

Figure 7 —  Representation of the Transportability

Transportability

The basic representation of the Transportability and its identification is done in accordance with the following templates:

• assigning_calendar_date, for representation of the assignment of dates to something;
• assigning_code, for the assignment of codes to entities within a data set;
• assigning_descriptor, for remarks relating to other parts;
• assigning_identification, for identifying a specific remark;
• assigning_product_property, for assigning a named property to a product related entity instance;
• product_property_numeric, for representing a numerical value with unit for a product property;
• product_property_text, for representing a text string value for a product property;
• referencing_breakdown_element, for referencing a breakdown;
• representing_count, for representing a count of items.
• representing_part, for representation of the end item for which the breakdown is defined;

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #2 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Tracked Pad Shoe Area and Tracked Pad Shoe Area UM must either both be blank, or have entries. Tracked Ground Pressure, Tracked Road Wheel Weight, Tracked Pads Touching, Tracked Pad Shoe Area, and Tracked Pad Shoe Area UM should only be used when the Mobility Type of (B) is entered. Wheeled Inflation Pressure, Wheeled Number of Tires, Wheeled Tire Load Ratings, Wheeled Tire Size, and Wheeled Weight Ratings may also apply to tracked vehicles.
Parameter name:	Parameter value:	Parameter description:
class_name	?mobility_type?	The text representing the code.
code_class_name	[Mobility_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #3 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?military_unit_type?	The text being assigned as a descriptor.
class_name	[Military_unit_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #4 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_shock_vibration_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #5 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_lifting_and_tiedown_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #6 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_projection_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #7 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_regulatory_requirements_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #8 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #9 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_special_service_and_equipment_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #10 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_sectionalized_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #11 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_transport_to_and_from_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #12 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_environmental_considerations_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #13 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_military_distance_classification_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #14 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_unusual_and_special_requirements_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #15 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_venting_and_protective_clothing_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #16 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transportation_disaster_response_force_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #17 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transported_end_item_wheeled_tire_requirements_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #18 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transported_end_item_skid_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #19 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transported_end_item_turning_information_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #20 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transported_end_item_wheeled_axle_and_suspension_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breaddown	The entity to which the Document_assignment is assigned.

Template #21 (Figure 7): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?transported_end_item_wheeled_axle_and_suspension_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #22 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	net_explosive_weight[Net_explosive_weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #24 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	nonoperational_fragility_factor[Nonoperational_fragility_factor] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #26 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	proper_shipping_name[Proper_shipping_name] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #28 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	sectionalized_identification[Sectionalized_identification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #30 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	nonoperational_fragility_factor[Nonoperational_fragility_factor] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #32 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	towing_speed[Towing_speed] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #34 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Container Length and Container Type must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	container_length[Container_length] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #36 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Container Length and Container Type must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	container_type[Container_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #38 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator, Helicopter Mission Altitude, Helicopter Mission Distance, Helicopter Mission Payload, Helicopter Mission Temperature, Helicopter Mission Time, and External or Internal Load Indicator should only be filled out when the Transportation Character Mode Type of (B) for a helicopter is entered.
Parameter name:	Parameter value:	Parameter description:
property_class_name	helicopter_mission_distance[Helicopter_mission_distance] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #40 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator, Helicopter Mission Altitude, Helicopter Mission Distance, Helicopter Mission Payload, Helicopter Mission Temperature, Helicopter Mission Time, and External or Internal Load Indicator should only be filled out when the Transportation Character Mode Type of (B) for a helicopter is entered.
Parameter name:	Parameter value:	Parameter description:
property_class_name	helicopter_mission_payload[Helicopter_mission_payload] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #42 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator, Helicopter Mission Altitude, Helicopter Mission Distance, Helicopter Mission Payload, Helicopter Mission Temperature, Helicopter Mission Time, and External or Internal Load Indicator should only be filled out when the Transportation Character Mode Type of (B) for a helicopter is entered.
Parameter name:	Parameter value:	Parameter description:
property_class_name	helicopter_mission_temperature[Helicopter_mission_temperature] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #44 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator, Helicopter Mission Altitude, Helicopter Mission Distance, Helicopter Mission Payload, Helicopter Mission Temperature, Helicopter Mission Time, and External or Internal Load Indicator should only be filled out when the Transportation Character Mode Type of (B) for a helicopter is entered.
Parameter name:	Parameter value:	Parameter description:
property_class_name	helicopter_mission_time[Helicopter_mission_time] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #46 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	freight_classification[Freight_classification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #48 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator, Rail Use and Rail Transportation Country should only be filled out when the Transportation Character Mode Type of (E) is entered. Rail Use and Rail Transportation Country must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	rail_transportation_country[Rail_transportation_country] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #50 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator and External or Internal Load Indicator should only be used when the Transportation Character Mode Type of (A) for an aircraft is entered. External or Internal Load Indicator and Transportation Item Designator for an aircraft must either both be blank, or have entries. Transportation Item Designator, Helicopter Mission Altitude, Helicopter Mission Distance, Helicopter Mission Payload, Helicopter Mission Temperature, Helicopter Mission Time, and External or Internal Load Indicator should only be filled out when the Transportation Character Mode Type of (B) for a helicopter is entered. External or Internal Load Indicator and Transportation Item Designator for a helicopter must either both be blank, or have entries. Sea Deck Stowage and Transportation Item Designator should only be filled out when the Transportation Character Mode Type of (D) for a lighterage is entered. Sea Deck Stowage and Transportation Item Designator must either both be blank, or have entries. Transportation Item Designator, Rail Use and Rail Transportation Country should only be filled out when the Transportation Character Mode Type of (E) is entered. Sea Deck Stowage and Transportation Item Designator should only be filled out when the Transportation Character Mode Type of (F) for a ship is entered. Sea Deck Stowage and Transportation Item Designator must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	transportation_item_designator[Item_designator_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #52 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	crest_angle[Crest_angle] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #54 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	length_front_inside[Axle_length] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #56 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	length_front_outside[Axle_length] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #58 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	length_rear_inside[Axle_length] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #60 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator and External or Internal Load Indicator should only be used when the Transportation Character Mode Type of (A) for an aircraft is entered. Highway Prime Load, Highway Prime Model Type, Highway Alternate Load, and Highway Alternate Model Type should only be filled out when the Transportation Character Mode Type of (C) is entered. Sea Deck Stowage and Transportation Item Designator should only be filled out when the Transportation Character Mode Type of (D) for a lighterage is entered. Sea Deck Stowage and Transportation Item Designator should only be filled out when the Transportation Character Mode Type of (F) for a ship is entered.
Parameter name:	Parameter value:	Parameter description:
class_name	?transportation_character_mode_type?	The text representing the code.
code_class_name	[Transportation_character_mode] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #61 (Figure 7): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?transportation_character_number?	The identifier being assigned.
id_class_name	[Transportation_character_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #62 (Figure 7): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?transported_configuration_number?	The identifier being assigned.
id_class_name	[Transported_configuration_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id		The id of the External_class_library storing the @org_id_class_name.
	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #63 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	transport_fiscal_year[Fiscal_year] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #65 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: This entity can only be used if an (E or B) has been entered in the Transportation Indicator entity JA.
Parameter name:	Parameter value:	Parameter description:
class_name	?transportation_indicator?	The text representing the code.
code_class_name	[Transportation_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #66 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?delivery_schedule?	The text representing the code.
code_class_name	[Delivery_schedule] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #67 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?environmental_handling_and_transportation_indicator?	The text representing the code.
code_class_name	[Environmental_handling_and_transportation_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #68 (Figure 7): assigning_calendar_date Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
date_class_name	?revision_date?	The name of the class being used to classify the role date assignment, e.g. the start date.
date_ecl_id	[Revision_date] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The id of the External_class_library in which the @date_class_name is defined.
year	/NULL	Calendar_date year_component
month	/NULL	Calendar_date month_component
day	/NULL	Calendar_date day_component
items	breakdown	The items to which the date is assigned.

Template #69 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?theater_of_operation?	The text representing the code.
code_class_name	[Theater_of_operation] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #70 (Figure 7): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?transportation_contract_number?	The identifier being assigned.
id_class_name	[Contract_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #71 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator and External or Internal Load Indicator should only be used when the Transportation Character Mode Type of (A) for an aircraft is entered. External or Internal Load Indicator and Transportation Item Designator for an aircraft must either both be blank, or have entries. Transportation Item Designator, Helicopter Mission Altitude, Helicopter Mission Distance, Helicopter Mission Payload, Helicopter Mission Temperature, Helicopter Mission Time, and External or Internal Load Indicator should only be filled out when the Transportation Character Mode Type of (B) for a helicopter is entered. External or Internal Load Indicator and Transportation Item Designator for a helicopter must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
class_name	?external_or_internal_load_indicator?	The text representing the code.
code_class_name	[External_or_internal_load_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #73 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Highway Prime Load, Highway Prime Model Type, Highway Alternate Load, and Highway Alternate Model Type should only be filled out when the Transportation Character Mode Type of (C) is entered. Highway Alternate Model Load and Highway Alternate Model Type must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
class_name	?highway_alternate_model_load?	The text representing the code.
code_class_name	[Highway_model_load] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #74 (Figure 7): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Highway Prime Load, Highway Prime Model Type, Highway Alternate Load, and Highway Alternate Model Type should only be filled out when the Transportation Character Mode Type of (C) is entered. Highway Alternate Model Load and Highway Alternate Model Type must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
id	?highway_alternate_model_type?	The identifier being assigned.
id_class_name	[Highway_transporter_model] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #75 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Highway Prime Load, Highway Prime Model Type, Highway Alternate Load, and Highway Alternate Model Type should only be filled out when the Transportation Character Mode Type of (C) is entered. Highway Prime Model Load and Highway Prime Model Type must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
class_name	?highway_prime_model_load?	The text representing the code.
code_class_name	[Highway_model_load] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #76 (Figure 7): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Highway Prime Load, Highway Prime Model Type, Highway Alternate Load, and Highway Alternate Model Type should only be filled out when the Transportation Character Mode Type of (C) is entered. Highway Prime Model Load and Highway Prime Model Type must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
id	?highway_prime_model_type?	The identifier being assigned.
id_class_name	[Highway_transporter_model] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #77 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Transportation Item Designator, Rail Use and Rail Transportation Country should only be filled out when the Transportation Character Mode Type of (E) is entered. Rail Use and Rail Transportation Country must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
class_name	?rail_use?	The text representing the code.
code_class_name	[Rail_use] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #78 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?mobility_type?	The text representing the code.
code_class_name	[Mobility_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #79 (Figure 7): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Sea Deck Stowage and Transportation Item Designator should only be filled out when the Transportation Character Mode Type of (D) for a lighterage is entered. Sea Deck Stowage and Transportation Item Designator must either both be blank, or have entries. Sea Deck Stowage and Transportation Item Designator should only be filled out when the Transportation Character Mode Type of (F) for a ship is entered. Sea Deck Stowage and Transportation Item Designator must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
class_name	?sea_deck_stowage?	The text representing the code.
code_class_name	[Sea_deck_stowage] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown	The items to which the Class is assigned.

Template #80 (Figure 7): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Operational Weight Empty and Military Load Classification Empty must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
id	?military_load_classification_empty?	The identifier being assigned.
id_class_name	[Military_load_classification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #81 (Figure 7): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Operational Weight Loaded and Military Load Classification Loaded must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
id	?military_load_classification_loaded?	The identifier being assigned.
id_class_name	[Military_load_classification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #90 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	length_rear_outside[Axle_length] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #92 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Operational Weight Empty and Military Load Classification Empty must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	operational_weight_empty[Operational_weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #94 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Operational Weight Loaded and Military Load Classification Loaded must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	operational_weight_loaded[Operational_weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #96 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	shipping_weight_empty[Shipping_weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #98 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	shipping_weight_loaded[Shipping_weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #100 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Skid Number of Skids, Skid Area, and Skid Area UM should only be used when the Mobility Type of (A) is entered. Area and Skid Area UM must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	skid_area[Skid_area] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #102 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Tracked Ground Pressure, Tracked Road Wheel Weight, Tracked Pads Touching, Tracked Pad Shoe Area, and Tracked Pad Shoe Area UM should only be used when the Mobility Type of (B) is entered. Wheeled Inflation Pressure, Wheeled Number of Tires, Wheeled Tire Load Ratings, Wheeled Tire Size, and Wheeled Weight Ratings may also apply to tracked vehicles.
Parameter name:	Parameter value:	Parameter description:
property_class_name	tracked_ground_pressure[Tracked_ground_pressure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #104 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Tracked Pad Shoe Area and Tracked Pad Shoe Area UM must either both be blank, or have entries. Tracked Ground Pressure, Tracked Road Wheel Weight, Tracked Pads Touching, Tracked Pad Shoe Area, and Tracked Pad Shoe Area UM should only be used when the Mobility Type of (B) is entered. Wheeled Inflation Pressure, Wheeled Number of Tires, Wheeled Tire Load Ratings, Wheeled Tire Size, and Wheeled Weight Ratings may also apply to tracked vehicles.
Parameter name:	Parameter value:	Parameter description:
property_class_name	tracked_pad_shoe_area[Tracked_pad_shoe_area] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #106 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Tracked Ground Pressure, Tracked Road Wheel Weight, Tracked Pads Touching, Tracked Pad Shoe Area, and Tracked Pad Shoe Area UM should only be used when the Mobility Type of (B) is entered. Wheeled Inflation Pressure, Wheeled Number of Tires, Wheeled Tire Load Ratings, Wheeled Tire Size, and Wheeled Weight Ratings may also apply to tracked vehicles.
Parameter name:	Parameter value:	Parameter description:
property_class_name	tracked_road_wheel_weight[Weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #108 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Wheeled Inflation Pressure, Wheeled Number of Tires, Wheeled Tire Load Ratings, Wheeled Tire Size, and Wheeled Weight Ratings should be used when the Mobility Type of (C) is entered.
Parameter name:	Parameter value:	Parameter description:
property_class_name	wheeled_inflation_pressure[Wheeled_inflation_pressure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #110 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Wheeled Inflation Pressure, Wheeled Number of Tires, Wheeled Tire Load Ratings, Wheeled Tire Size, and Wheeled Weight Ratings should be used when the Mobility Type of (C) is entered.
Parameter name:	Parameter value:	Parameter description:
property_class_name	wheeled_tire_load_ratings[Wheeled_tire_load_ratings] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned

Template #112 (Figure 7): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	GEIA-STD-0007 Business Rule: Wheeled Inflation Pressure, Wheeled Number of Tires, Wheeled Tire Load Ratings, Wheeled Tire Size, and Wheeled Weight Ratings should be used when the Mobility Type of (C) is entered.
Parameter name:	Parameter value:	Parameter description:
property_class_name	wheeled_tire_size[Wheeled_tire_size] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown	The item to which the property is assigned
