| Business DEX (LOGSA009):— transportability | Date: 2010/12/23 19:41:03 Revision: 1.20 |

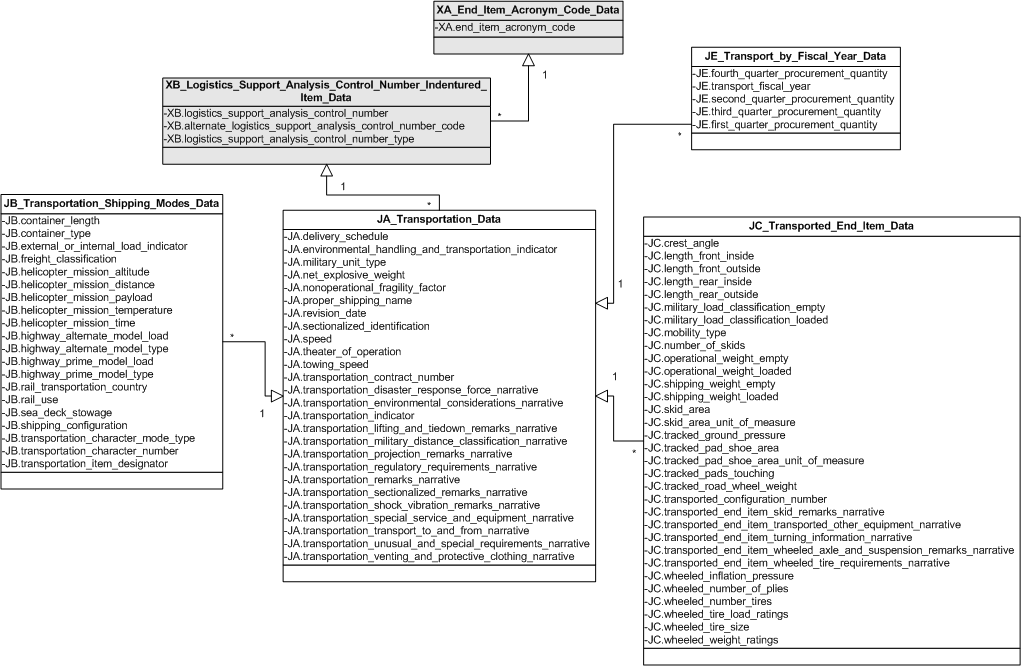

Note: Information shown in the UML class diagram illustrates information represented by the DEX. Not all the information contained in the UML class diagram is required for every data exchange.
Information shown in the UML class diagram is as follows:
Transportation identifies the transportation characteristics of the system/equipment under analysis.
Transportation Shipping Modes identifies the different possible transportation shipping modes for the system/equipment under analysis.
Transported End Item provides information pertaining to a System/EI that is to be transported.
Transport by Fiscal Year contains information about the system/equipment procurement and delivery schedule.
