provisioning_and_cataloging ISO 10303-239 Representation
The following sections provide a detailed description on how to represent a Provisioning and Cataloging
Data Exchange Set using ISO 10303-239 PLCS. The representation of the Provisioning and Cataloging DEX
is defined using PLCS capabilities, PLCS
templates and PLCS reference data.
This description may be further tailored by specific parties by extending the reference
data defined in the PLCS reference data library.
An overview of the information to be exchanged by the Provisioning and Cataloging DEX has been
described in
Provisioning and Cataloging -
Business Information Overview. A more detailed
definition of the type of information that can be exchanged using the Provisioning and Cataloging
DEX is provided in Provisioning and Cataloging
- Business Information Requirements.
This section contains a step by step description on how each business
information requirement defined in Provisioning and Cataloging - Business
Information Requirements is to be represented in PLCS, and is
organized in accordance with the business information requirements.
Information related to Provisioning and Cataloging ISO 10303-239 representation - Table of content:
The Product Breakdown information is described in Figure 5
Figure 5 — Representation of the Product Breakdown Data
| Template #1 (Figure 5): representing_part
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| part_id |
? |
The identifier of the part.
|
| part_id_class_name |
End_item_acronym_code |
The name of the class being used to classify the identifier assigned (
Identification_assignment
) to the part (i.e. the @part.id)
|
| part_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @part_id_class_name.
|
| part_org_id |
/NULL |
The name or identifier of the organization that owns the part id (@part_id).
|
| part_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
of the organization (@part_org_id) responsible for creating the part representation (@part_id).
|
| part_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier (@part_org_id).
|
| part_vn_id |
/NULL |
The identifier of the part version
|
| part_vn_id_class_name |
/NULL |
The name of the class being used to classify the identifier assigned (
Identification_assignment
) to the part version (i.e. the part_vn_id)
|
| part_vn_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
|
| part_vn_org_id |
/NULL |
The name or identifier of the organization owns the part version id.
|
| part_vn_org_id_class_name |
/NULL |
The name of the class being used to classify the identification (Identification_assignment)
of the organization responsible for providing the part version representation
|
| part_vn_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the View_definition_context instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @domain class.
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the View_definition_context instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @life_cycle_stage class.
|
| Template #2 (Figure 5): representing_breakdown
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
/NULL |
The identifier of the Breakdown.
|
| id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the breakdown. This provides the role or reason for the identification.
|
| id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @id_class_name.
|
| id_owner |
/NULL |
The name or identifier of the organization owning the id or name (@id).
|
| id_owner_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization (@id_owner). For example CAGE code, or organization name.
|
| id_owner_ecl_id |
NULL |
The id of the
External_class_library
storing the @id_owner_class_name.
|
| bkdn_type |
"Functional" or "Physical" (Subclasses of Logistics_support_analysis_control_number_type) |
The name of the class being used to classify the
Breakdown.
|
| bkdn_type_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @bkdn_type.
|
| vn_id |
NULL |
The identifier of the Breakdown_version.
|
| vn_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the breakdown version. This provides the role or reason for the identification.
|
| vn_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @vn_id_class_name.
|
| vn_id_owner |
/NULL |
The name or identifier of the organization owning the @vn_id.
|
| vn_id_owner_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
|
| vn_id_owner_ecl_id |
/NULL |
The id of the
External_class_library
storing the @vn_id_owner_class_name.
|
| of_product |
Part_view_definition |
The product that has been broken down.
|
| Template #3 (Figure 5): representing_breakdown_element
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier of the
Breakdown_element .
|
| id_class_name |
Logistics_support_analysis_control_number |
The name of the class being used to classify the
(Identification_assignment)
of the breakdown_element. This provides the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @id_class_name class.
|
| id_owner |
/NULL |
The name or identifier of the organization owning the id or name.
|
| id_owner_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization. For example CAGE code, or organization name.
|
| id_owner_ecl_id |
/NULL |
The id of the
External_class_library
storing the @id_owner_class_name class
|
| vn_id |
? |
The identifier of the
Breakdown_element_version.
|
| vn_id_class_name |
Alternate_logistics_support_analysis_control_number |
The name of the class being used to classify the identification
(Identification_assignment)
of the breakdown_element_version. This provides the role or reason for the identification.
|
| vn_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @vn_id_class_name class.
|
| vn_id_owner |
/NULL |
The name or identifier of the organization owning the version_id.
|
| vn_id_owner_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization. For example CAGE code, or organization name.
|
| vn_id_owner_ecl_id |
/NULL |
The id of the
External_class_library
storing the @vn_id_owner_class_name class
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the
View_definition_context
instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @life_cycle_stage class.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the
View_definition_context
instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @domain class.
|
| bkdn_vn |
Breakdown_version |
The Breakdown_version
of which this Breakdown_element
is a constituent.
|
| Template #4 (Figure 5): representing_product_relationship
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| relating |
Part |
The relating product.
|
| related |
Part |
The product that is being related.
|
| rel_type_name |
Variant_of |
The name of the class being used to classify the
Product_relationship.
This provides the role or reason for the relationship.
|
| rel_type_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the Class referenced by parameter @rel_type_name.
|
| Template #5 (Figure 5): representing_part
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| part_id |
? |
The identifier of the part.
|
| part_id_class_name |
Usable_on_code |
The name of the class being used to classify the identifier assigned (
Identification_assignment
) to the part (i.e. the @part.id)
|
| part_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @part_id_class_name.
|
| part_org_id |
/NULL |
The name or identifier of the organization that owns the part id (@part_id).
|
| part_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
of the organization (@part_org_id) responsible for creating the part representation (@part_id).
|
| part_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier (@part_org_id).
|
| part_vn_id |
/NULL |
The identifier of the part version
|
| part_vn_id_class_name |
/NULL |
The name of the class being used to classify the identifier assigned (
Identification_assignment
) to the part version (i.e. the part_vn_id)
|
| part_vn_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
|
| part_vn_org_id |
/NULL |
The name or identifier of the organization owns the part version id.
|
| part_vn_org_id_class_name |
/NULL |
The name of the class being used to classify the identification (Identification_assignment)
of the organization responsible for providing the part version representation
|
| part_vn_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the View_definition_context instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @domain class.
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the View_definition_context instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @life_cycle_stage class.
|
| Template #6 (Figure 5): assigning_conditional_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| para_class |
Usable_on_code_effectivity |
The name of the External_class
being used to determine the Condition_parameter type.
|
| para_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| target_items |
Breakdown_element |
The items which are the target for the assigned effectivity, i.e. the items
which are subject for restricted usage.
|
| condition_para_item |
Part_view_definition |
The item which defines the domain in which the @target_items are effective.
|
| Template #7 (Figure 5): assigning_serial_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| start_id |
?Serial_number_from? |
Identification of the first serialized item within a range of serialized items.
|
| end_id |
?Serial_number_to? |
Identification of the last serialized item within the range of serialized items.
|
| role_class_name |
Serial_number_effectivity |
The name of the class being used to classify the
effectivity assignment
(Effectivity_assignment)
This provides the role for the assignment.
|
| role_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @role_class_name.
|
| items |
Part |
The items to which the effectivity is assigned.
|
| Template #8 (Figure 5): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
System_end_item_provisioning_contract_control_number |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Breakdown_element_definition |
The items to which the identification is assigned
|
| Template #9 (Figure 5): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
System_end_item_provisioning_list_item_sequence_number |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Breakdown_element_definition |
The items to which the identification is assigned
|
| Template #10 (Figure 5): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
System_end_item_type_of_change_code |
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Breakdown_element_definition |
The items to which the
Class is assigned.
|
| Template #11 (Figure 5): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
System_end_item_quantity_per_end_item |
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Breakdown_element_definition |
The item to which the property is assigned
|
| Template #12 (Figure 5): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #13 (Figure 5): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
System_end_item_quantity_per_assembly |
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Breakdown_element_definition |
The item to which the property is assigned
|
| Template #14 (Figure 5): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #15 (Figure 5): representing_breakdown_structure
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| rel_type_name |
Overhaul_kit_next_higher_assembly |
The name of the class being used to classify the element usage
(Breakdown_element_usage)
This provides the type of breakdown structure.
|
| rel_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @rel_type_name.
|
| parent |
Breakdown_element_definition |
The immediate parent element
Breakdown_element_definition
in the breakdown structure.
|
| child |
Breakdown_element_definition |
The immediate child element
Breakdown_element_definition
in the breakdown structure.
|
| Template #16 (Figure 5): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Next_higher_assembly_provisioning_list_item_sequence_number_indicator |
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Breakdown_element_usage |
The items to which the
Class is assigned.
|
| Template #256 (Figure 5): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Overhaul_replacement_rate |
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Breakdown_element_usage |
The item to which the property is assigned
|
| Template #257 (Figure 5): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Parts Related NSN information is described in Figure 6
Figure 6 — Representation of the Parts Related NSN Data
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Parts Related information is described in Figure 7
Figure 7 — Representation for Parts Related Data
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Provisioning and Cataloging Breakdown Data information is described in Figure 8
Figure 8 — Representation of the Parts Related Data (Continued)
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Unit Price information is described in Figure 9
Figure 9 — Representation of the Unit Price Data
| Template #111 (Figure 9): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Unit_of_measure_price |
The class name corresponding to the property name.
|
| Unit_of_issue_price |
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Property_representation |
The item to which the property is assigned
|
| Template #112 (Figure 9): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #113 (Figure 9): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Price_provisioning |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Property_representation |
The items to which the External_class is assigned.
|
| Template #114 (Figure 9): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Price_concurrent_production_code |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Property_representation |
The items to which the External_class is assigned.
|
| Template #115 (Figure 9): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Price_type_of_price_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Property_representation |
The items to which the
Class is assigned.
|
| Template #116 (Figure 9): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Price_fiscal_year |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Property_representation |
The items to which the External_class is assigned.
|
| Template #117 (Figure 9): assigning_conditional_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| para_class |
Price_effectivity |
The name of the External_class
being used to determine the Condition_parameter type.
|
| para_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| target_items |
Property_representation |
The items which are the target for the assigned effectivity, i.e. the items
which are subject for restricted usage.
|
| condition_para_item |
Property_value_representation |
The item which defines the domain in which the @target_items are effective.
|
| Template #118 (Figure 9): independent_property_range
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| upper_limit |
?Price_lot_quantity_to? |
The upper limit value of the property.
The datatype must also be indicated in this parameter, e.g.
"ANY_NUMBER_VALUE(5)".
|
| lower_limit |
?Price_lot_quantity_from? |
The lower limit value of the property.
The datatype must also be indicated in this parameter, e.g.
"ANY_NUMBER_VALUE(5)".
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings
"true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
_Assigned_property |
The target of the template, i.e. the
Independent_property
(or template representing_independent_property)
to which the
Independent_property_representation
is related.
|
| Template #119 (Figure 9): representing_independent_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Price_lot_quantity |
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Packaging information is described in Figure 10
Figure 10 — Representation of the Packaging Data
| Template #120 (Figure 10): assigning_descriptor
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| descr |
? |
The text being assigned as a descriptor.
|
| class_name |
Supplemental_packaging_data |
The name of the class
(External_class)
being used to determine type of descriptor.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the class.
|
| is_assigned_to |
Part_view_definition |
The entity to which the
Document_assignment
is assigned.
|
| Template #121 (Figure 10): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Quantity_per_unit_pack
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Part_view_definition |
The item to which the property is assigned
|
| Template #122 (Figure 10): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #123 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Packaging_category_code_preservative_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #124 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Cushioning_thickness
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #125 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Cushioning_and_dunnage_material
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #126 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Packaging_category_code_fragility_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #127 (Figure 10): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Cleaning_and_dry_cleaning_procedures_suitable_process |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Part_view_definition |
The items to which the External_class is assigned.
|
| Template #128 (Figure 10): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Cleaning_and_dry_cleaning_procedures_special_requirements |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Part_view_definition |
The items to which the External_class is assigned.
|
| Template #129 (Figure 10): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Cleaning_and_dry_cleaning_procedures_none |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Part_view_definition |
The items to which the External_class is assigned.
|
| Template #130 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Wrapping_material
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #131 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Method_of_preservation_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #132 (Figure 10): assigning_document_reference
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| doc_id |
? |
The identification of the Document
being referenced.
|
| doc_id_class_name |
Special_packaging_instruction_number |
The name of the External_class that determines the type of identifier given by the
input parameter @doc_id.
|
| doc_id_ecl_id |
urn:plcs:rdl:lsa |
The identification of the
External_class_library
storing the External_class given by the input parameter @doc_id_class_name.
|
| doc_ver_id |
? |
The identification of the Document_version
being referenced.
|
| doc_ver_id_class_name |
Special_packaging_instruction_number_revision |
The name of the External_class that determines the type of identifier given by the
input parameter @doc_ver_id.
|
| doc_ver_id_ecl_id |
urn:plcs:rdl:lsa |
The identification of the
External_class_library
storing the External_class given by the input parameter @doc_ver_id_class_name.
|
| org_id |
/NULL |
The identification or name of the Organization that
"owns" the Document
and Document_version identifiers (@doc_id and @doc_ver_id).
|
| org_id_class_name |
/NULL |
The name of the External_class that determines
the type of organization identification (@org_id) being used. For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The identification of the
External_class_library
storing the External_class given by the input parameter @org_id_class_name
|
| doc_asg_class_name |
/NULL |
The name of the External_class that determines
the role of Document_assignment,
i.e. providing the role of the referenced
Document
|
| doc_asg_ecl_id |
/NULL |
The identification of the
External_class_library
storing the External_class
given by the input parameter @doc_asg_class_name.
|
| is_assigned_to |
Part_view_definition |
The items to which the referenced document is assigned.
|
| Template #133 (Figure 10): assigning_calendar_date
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| date_class_name |
Special_packaging_instruction_number_julian_date |
The name of the class being used to classify the
role date assignment, e.g. the start date.
|
| date_ecl_id |
urn:plcs:rdl:lsa |
The id of the External_class_library in which the
@date_class_name is defined.
|
| year |
?Special_packaging_instruction_number_julian_date? |
Calendar_date year_component
|
| month |
/NULL |
Calendar_date month_component
|
| day |
/NULL |
Calendar_date day_component
|
| items |
Part_view_definition |
The items to which the date is assigned.
|
| Template #134 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Military_packing_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #135 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Minimal_packing_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #136 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Optional_procedures_indicator
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #137 (Figure 10): assigning_organization
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| org_id |
? |
The name or identifier of the organization.
|
| org_id_class_name |
Packaging_data_preparer_commercial_and_government_entity |
The name of the class being used to classify the
identification
(Identification_assignment)
of the organization. This provides the role or reason for the identification. For example CAGE code.
|
| org_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_id_class_name.
|
| org_assgn_class_name |
/NULL |
The name of the class being used to classify the
assignment of the organization.
(Organization_or_person_in_organization_assignment)
This provides the role or reason for the assignment.
For example 'Owner_of'.
|
| org_assgn_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_assgn_class_name.
|
| items |
Part_view_definition |
The items to which the organization is assigned
|
| Template #138 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Preservation_material_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #139 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Special_marking_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Part_view_definition |
The items to which the
Class is assigned.
|
| Template #140 (Figure 10): representing_resource_item
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| res_item_id |
Unit Container |
Identification of the Resource_item
|
| res_item_id_class |
Resource_item_identification_code |
The name of the class used to classify the identifier (@res_item_id) and to provide the role or reason for the identification
|
| res_item_id_ecl_id |
urn:plcs:rdl:std |
The id of the External_class_library
storing the @res_item_id_class
|
| res_item_id_org_id |
|
The identifier of the Organization that "owns" the identifier.
|
| res_item_id_org_id_class |
Organization_name |
The name of the class being used to classify the identification of the
Organization. For example CAGE code.
|
| res_item_id_org_id_ecl_id |
urn:plcs:rdl:std |
The id of the External_class_library storing the
definition of the class used to classify the organization identifier.
|
| res_item_items |
Part_version |
Item that is added to the SET of resource items that realizes the resource item under consideration.
|
| Template #141 (Figure 10): assigning_resource_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Maximum_unit_pack_weight
|
The class name of the property type corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property.
|
| described_element |
Resource_item |
The item to which the property is assigned
|
| Template #142 (Figure 10): resource_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced by an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Resource_property
(or template assigning_resource_property)
to which the
Resource_property_representation
is related.
|
| Template #143 (Figure 10): assigning_resource_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Maximum_unit_pack_width
|
The class name of the property type corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property.
|
| described_element |
Resource_item |
The item to which the property is assigned
|
| Template #144 (Figure 10): resource_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced by an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Resource_property
(or template assigning_resource_property)
to which the
Resource_property_representation
is related.
|
| Template #145 (Figure 10): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Container_national_stock_number |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Resource_item |
The items to which the identification is assigned
|
| Template #146 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Unit_container_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Resource_item |
The items to which the
Class is assigned.
|
| Template #147 (Figure 10): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Not_acceptable_shipping_container |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Resource_item |
The items to which the External_class is assigned.
|
| Template #148 (Figure 10): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Packing_level_a_unit_container |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Resource_item |
The items to which the External_class is assigned.
|
| Template #149 (Figure 10): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Packing_level_b_unit_container |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Resource_item |
The items to which the External_class is assigned.
|
| Template #150 (Figure 10): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Special_considerations_unit_container |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
Resource_item |
The items to which the External_class is assigned.
|
| Template #151 (Figure 10): assigning_resource_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Maximum_unit_pack_cube
|
The class name of the property type corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property.
|
| described_element |
Resource_item |
The item to which the property is assigned
|
| Template #152 (Figure 10): resource_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced by an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Resource_property
(or template assigning_resource_property)
to which the
Resource_property_representation
is related.
|
| Template #153 (Figure 10): assigning_resource_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Maximum_unit_pack_length
|
The class name of the property type corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property.
|
| described_element |
Resource_item |
The item to which the property is assigned
|
| Template #154 (Figure 10): resource_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced by an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Resource_property
(or template assigning_resource_property)
to which the
Resource_property_representation
is related.
|
| Template #156 (Figure 10): representing_resource_item
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| res_item_id |
? |
Identification of the Resource_item
|
| res_item_id_class |
Intermediate_container |
The name of the class used to classify the identifier (@res_item_id) and to provide the role or reason for the identification
|
| res_item_id_ecl_id |
urn:plcs:rdl:lsa |
The id of the External_class_library
storing the @res_item_id_class
|
| res_item_id_org_id |
/NULL |
The identifier of the Organization that "owns" the identifier.
|
| res_item_id_org_id_class |
/NULL |
The name of the class being used to classify the identification of the
Organization. For example CAGE code.
|
| res_item_id_org_id_ecl_id |
/NULL |
The id of the External_class_library storing the
definition of the class used to classify the organization identifier.
|
| res_item_items |
Part_version |
Item that is added to the SET of resource items that realizes the resource item under consideration.
|
| Template #157 (Figure 10): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Intermediate_container_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Resource_item |
The items to which the
Class is assigned.
|
| Template #158 (Figure 10): resource_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced by an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Resource_property
(or template assigning_resource_property)
to which the
Resource_property_representation
is related.
|
| Template #159 (Figure 10): assigning_resource_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Intermediate_container_quantity
|
The class name of the property type corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property.
|
| described_element |
Resource_item |
The item to which the property is assigned
|
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Part Application information is described in Figure 11
Figure 11 — Representation of the Part Application Data
| Template #160 (Figure 11): representing_breakdown_element_realization
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| breakdown |
Breakdown_element_definition |
The breakdown item.
|
| product |
Part_view_definition |
The product item.
|
| class_name |
Breakdown_element_realization |
The name of the External_class that determines the role of the
breakdown element realization.
|
| class_ecl_id |
urn:plcs:rdl:lsa |
The identification of the
External_class_library
storing the External_class given by the input parameter @class_name.
|
| Template #161 (Figure 11): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Provisioning_list_item_sequence_number |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
View_definition_usage |
The items to which the identification is assigned
|
| Template #162 (Figure 11): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Same_as_provisioning_list_item_sequence_number |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
View_definition_usage |
The items to which the identification is assigned
|
| Template #163 (Figure 11): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Work_unit_code |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
View_definition_usage |
The items to which the identification is assigned
|
| Template #164 (Figure 11): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Provisioning_system_identifier_code |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
View_definition_usage |
The items to which the identification is assigned
|
| Template #165 (Figure 11): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Identification_number |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
View_definition_usage |
The items to which the identification is assigned
|
| Template #166 (Figure 11): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Designated_rework_point_one |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
View_definition_usage |
The items to which the identification is assigned
|
| Template #167 (Figure 11): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Designated_rework_point_two |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
View_definition_usage |
The items to which the identification is assigned
|
| Template 168 (Figure 11): assigning_descriptor
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| descr |
|
The text being assigned as a descriptor.
|
| class_name |
Provisioning_remarks |
The name of the class
(External_class)
being used to determine type of descriptor.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the class.
|
| is_assigned_to |
View_definition_usage |
The entity to which the
Document_assignment
is assigned.
|
| Template #169 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Allowance_item_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #170 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
?Item_category_code? |
The text representing the code.
|
| code_class_name |
Item_category_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #171 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Indenture_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #172 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Essentiality_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #173 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Type_of_change_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #174 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Remain_in_place_indicator
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #175 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Supression_indicator
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #176 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Source_maintenance_and_recoverability_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #177 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Line_replaceable_unit
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #178 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Maintenance_action_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #179 (Figure 11): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Unit_container_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #180 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Hardness_critical_item |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #181 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Not_hardness_critical_item |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #182 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
As_required_list_a |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #183 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
As_required_list_b |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #184 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Common_and_bulk_items_list_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #185 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Interim_suport_items_list_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #186 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Long_lead_time_items_list_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #187 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Post_conference_list_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #188 (Figure 11): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Prior_item_provisioning_list_item_sequence_number |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
View_definition_usage |
The items to which the identification is assigned
|
| Template #189 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Provisioning_parts_list_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #190 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Repairable_items_list_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #191 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Short_form_provisioning_part_list_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #192 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
System_configuration_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
| Template #193 (Figure 11): assigning_reference_data
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
Tool_and_test_equipment_list_provisioning_technical_documentation |
The name of the External_class
being used.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| items |
View_definition_usage |
The items to which the External_class is assigned.
|
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Part Application information is described in Figure 12
Figure 12 — Representation of the Part Application Data (Continued)
| Template #194 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Allowance_item_quantity
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #195 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #196 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Maintenance_replacement_rate_i
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #197 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #198 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Maintenance_replacement_rate_ii
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #199 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #200 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Maintenance_replacement_rate_modifier
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #201 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #202 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Condemined_at_depot_maintenance_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #203 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #204 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Contractor_repair_cycle_time
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #205 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #206 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Depot_shipyard_maintenance_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #207 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #208 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Depot_shipyard_repair_cycle_time
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #209 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #210 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Depot_shipyard_replacement_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #211 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #212 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Intermediate_direct_support_maintenance_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #213 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #214 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Intermediate_direct_support_repair_cycle_time
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #1215 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #216 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Intermediate_direct_support_replacement_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #217 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #218 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Intermediate_general_support_maintenance_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #219 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #220 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Intermediate_general_support_repair_cycle_time
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #221 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #222 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Intermediate_general_support_replacement_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #223 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #224 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Minimum_replacement_unit
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #225 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #226 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Maximum_allowable_operating_time
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #227 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #228 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Quantity_per_assembly
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #229 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #230 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Quantity_per_end_item
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #231 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #232 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Not_repairable_this_station
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #233 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #234 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Organizational_repair_cycle_time
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #235 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #236 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Organizational_maintenance_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #237 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #238 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Organizational_replacement_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #239 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #240 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Recommended_initial_system_stock_buy
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #241 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #242 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Recommended_minimum_system_stock_level
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #243 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #244 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Recommended_tender_load_list_quantity
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #245 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #246 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Repair_survival_rate
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #247 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #248 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Special_repair_activity_maintenance_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #249 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #250 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Special_repair_activity_repair_cycle_time
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #251 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #252 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Special_repair_activity_replacement_task_distribution
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #253 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #254 (Figure 12): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Total_quantity_recommended
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
View_definition_usage |
The item to which the property is assigned
|
| Template #255 (Figure 12): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
Numerical_representation_context |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Part Application information is described in Figure 13

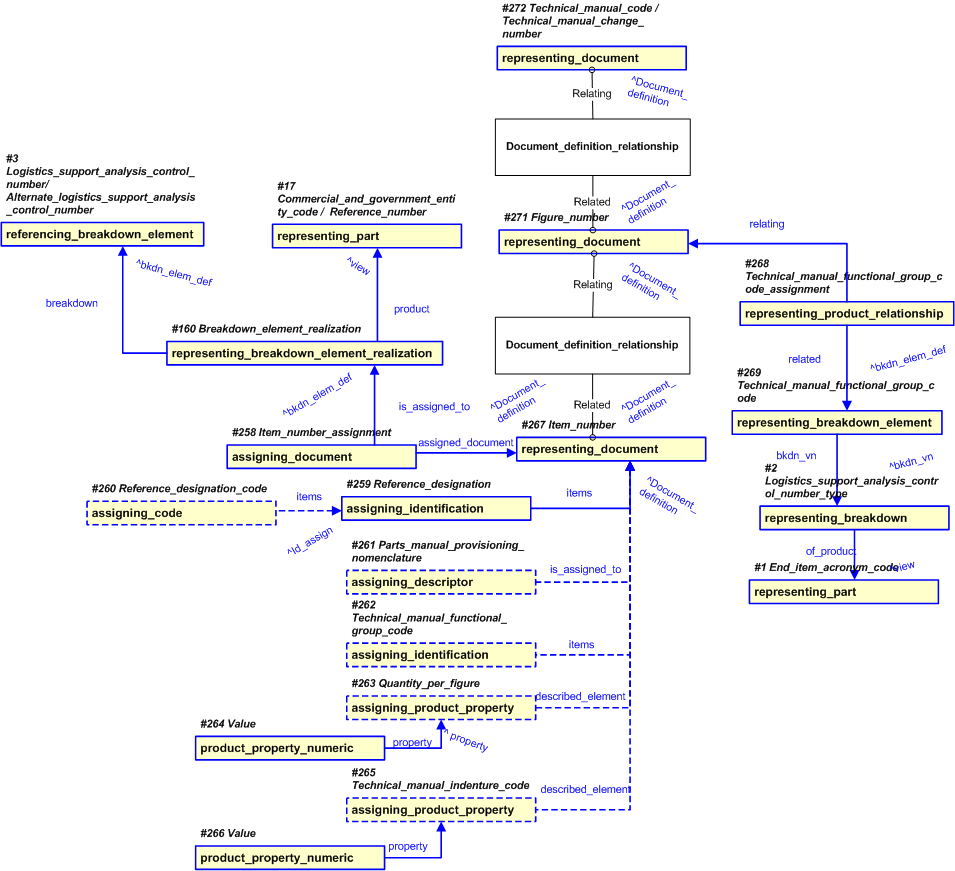

Figure 13 — Representation of the Parts Manual and Reference Designation Data
| Template #259 (Figure 13): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Reference_designation |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Document_definition |
The items to which the identification is assigned
|
| Template #260 (Figure 13): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Reference_designation_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
Identification_assignment |
The items to which the
Class is assigned.
|
| Template #261 (Figure 13): assigning_descriptor
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| descr |
? |
The text being assigned as a descriptor.
|
| class_name |
Part_manual_provisioning_nomenclature |
The name of the class
(External_class)
being used to determine type of descriptor.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the class.
|
| is_assigned_to |
Document_definition |
The entity to which the
Document_assignment
is assigned.
|
| Template #262 (Figure 13): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Technical_manual_functional_group_code |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Document_definition |
The items to which the identification is assigned
|
| Template #263 (Figure 13): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Quantity_per_figure
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Document_definition |
The item to which the property is assigned
|
| Template #264 (Figure 13): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #265 (Figure 13): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Technical_manual_indenture_code
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Document_definition |
The item to which the property is assigned
|
| Template #266 (Figure 13): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Document_definition |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #267 (Figure 13): representing_document
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| doc_id |
? |
The identifier of the
Document.
|
| doc_id_class_name |
Item_number |
The name of the class being used to classify the identification
(Identification_assignment)
of the Document. This provides the role or reason for the identification.
The identifier of the
External_class_library
that stores the class used to classify the type of identifier
|
| doc_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @doc_id_class_name.
|
| doc_org_id |
/NULL |
The name or identifier of the Organization owning the document identifier or name @doc_id.
|
| doc_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the Organization owning the identifier (@doc_org_id).
|
| doc_org_id_ecl_id |
/NULL |
The identifier of the External_class_library
storing the definition of the class used to classify the Organization identifier.
|
| doc_vn_id |
/NULL |
The identifier of the document version.
|
| doc_vn_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the the version identifier.
|
| doc_vn_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @doc_vn_id_class_name.
|
| doc_vn_org_id |
/NULL |
The name or identifier of the Organization owning the document version identifier or name @doc_vn_id.
|
| doc_vn_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the Organization owning the version identifier (@doc_vn_org_id).
|
| doc_vn_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the class used to classify the Organization identifier.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the View_definition_context instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @domain class.
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the View_definition_context instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @life_cycle_stage class.
|
| Template #268 (Figure 13): representing_product_relationship
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| relating |
Document_definition |
The relating product.
|
| related |
Breakdown_element_definition |
The product that is being related.
|
| rel_type_name |
Technical_manual_functional_group_code_assignment |
The name of the class being used to classify the
Product_relationship.
This provides the role or reason for the relationship.
|
| rel_type_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the Class referenced by parameter @rel_type_name.
|
| Template #269 (Figure 13): representing_breakdown_element
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier of the
Breakdown_element .
|
| id_class_name |
Technical_manual_functional_group_code |
The name of the class being used to classify the
(Identification_assignment)
of the breakdown_element. This provides the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @id_class_name class.
|
| id_owner |
/NULL |
The name or identifier of the organization owning the id or name.
|
| id_owner_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization. For example CAGE code, or organization name.
|
| id_owner_ecl_id |
/NULL |
The id of the
External_class_library
storing the @id_owner_class_name class
|
| vn_id |
/NULL |
The identifier of the
Breakdown_element_version.
|
| vn_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the breakdown_element_version. This provides the role or reason for the identification.
|
| vn_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @vn_id_class_name class.
|
| vn_id_owner |
/NULL |
The name or identifier of the organization owning the version_id.
|
| vn_id_owner_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization. For example CAGE code, or organization name.
|
| vn_id_owner_ecl_id |
/NULL |
The id of the
External_class_library
storing the @vn_id_owner_class_name class
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the
View_definition_context
instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @life_cycle_stage class.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the
View_definition_context
instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @domain class.
|
| bkdn_vn |
Breakdown_version |
The Breakdown_version
of which this Breakdown_element
is a constituent.
|
| Template #271 (Figure 13): representing_document
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| doc_id |
? |
The identifier of the
Document.
|
| doc_id_class_name |
Figure_number |
The name of the class being used to classify the identification
(Identification_assignment)
of the Document. This provides the role or reason for the identification.
The identifier of the
External_class_library
that stores the class used to classify the type of identifier
|
| doc_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @doc_id_class_name.
|
| doc_org_id |
/NULL |
The name or identifier of the Organization owning the document identifier or name @doc_id.
|
| doc_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the Organization owning the identifier (@doc_org_id).
|
| doc_org_id_ecl_id |
/NULL |
The identifier of the External_class_library
storing the definition of the class used to classify the Organization identifier.
|
| doc_vn_id |
/NULL |
The identifier of the document version.
|
| doc_vn_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the the version identifier.
|
| doc_vn_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @doc_vn_id_class_name.
|
| doc_vn_org_id |
/NULL |
The name or identifier of the Organization owning the document version identifier or name @doc_vn_id.
|
| doc_vn_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the Organization owning the version identifier (@doc_vn_org_id).
|
| doc_vn_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the class used to classify the Organization identifier.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the View_definition_context instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @domain class.
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the View_definition_context instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @life_cycle_stage class.
|
| Template #272 (Figure 13): representing_document
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| doc_id |
? |
The identifier of the
Document.
|
| doc_id_class_name |
Technical_manual_code |
The name of the class being used to classify the identification
(Identification_assignment)
of the Document. This provides the role or reason for the identification.
The identifier of the
External_class_library
that stores the class used to classify the type of identifier
|
| doc_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @doc_id_class_name.
|
| doc_org_id |
/NULL |
The name or identifier of the Organization owning the document identifier or name @doc_id.
|
| doc_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the Organization owning the identifier (@doc_org_id).
|
| doc_org_id_ecl_id |
/NULL |
The identifier of the External_class_library
storing the definition of the class used to classify the Organization identifier.
|
| doc_vn_id |
? |
The identifier of the document version.
|
| doc_vn_id_class_name |
Technical_manual_change_number |
The name of the class being used to classify the identification
(Identification_assignment)
of the the version identifier.
|
| doc_vn_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @doc_vn_id_class_name.
|
| doc_vn_org_id |
/NULL |
The name or identifier of the Organization owning the document version identifier or name @doc_vn_id.
|
| doc_vn_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the Organization owning the version identifier (@doc_vn_org_id).
|
| doc_vn_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the class used to classify the Organization identifier.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the View_definition_context instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @domain class.
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the View_definition_context instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @life_cycle_stage class.
|
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Part Application information is described in Figure 14
Figure 14 — Representation of the Basis of Issue Data
| Template #273 (Figure 14): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Authorized_quantity
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Part_view_definition |
The item to which the property is assigned
|
| Template #274 (Figure 14): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #275 (Figure 14): assigning_conditional_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| para_class |
Organizational_level_conditional_effectivity |
The name of the External_class
being used to determine the Condition_parameter type.
|
| para_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| target_items |
Property_value_representation |
The items which are the target for the assigned effectivity, i.e. the items
which are subject for restricted usage.
|
| condition_para_item |
Organization |
The item which defines the domain in which the @target_items are effective.
|
| Template #276 (Figure 14): representing_organization
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| org_id |
? |
The identifier or name of the organization.
|
| org_id_class_name |
Organizational_level |
The name of the class being used to classify the identification
(Identification_assignment)
of the organization. This provides the role or reason for the identification. For example CAGE code.
|
| org_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_id_class_name class.
|
| Template #277 (Figure 14): assigning_conditional_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| para_class |
End_item_range_conditional_effectivity |
The name of the External_class
being used to determine the Condition_parameter type.
|
| para_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| target_items |
Property_value_representation |
The items which are the target for the assigned effectivity, i.e. the items
which are subject for restricted usage.
|
| condition_para_item |
Property_value_representation |
The item which defines the domain in which the @target_items are effective.
|
| Template #278 (Figure 14): product_property_text
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The text value of the property.
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The property to which the text representation is assigned
|
| Template #279 (Figure 14): representing_independent_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
End_item_range |
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
The Part Application information is described in Figure 15

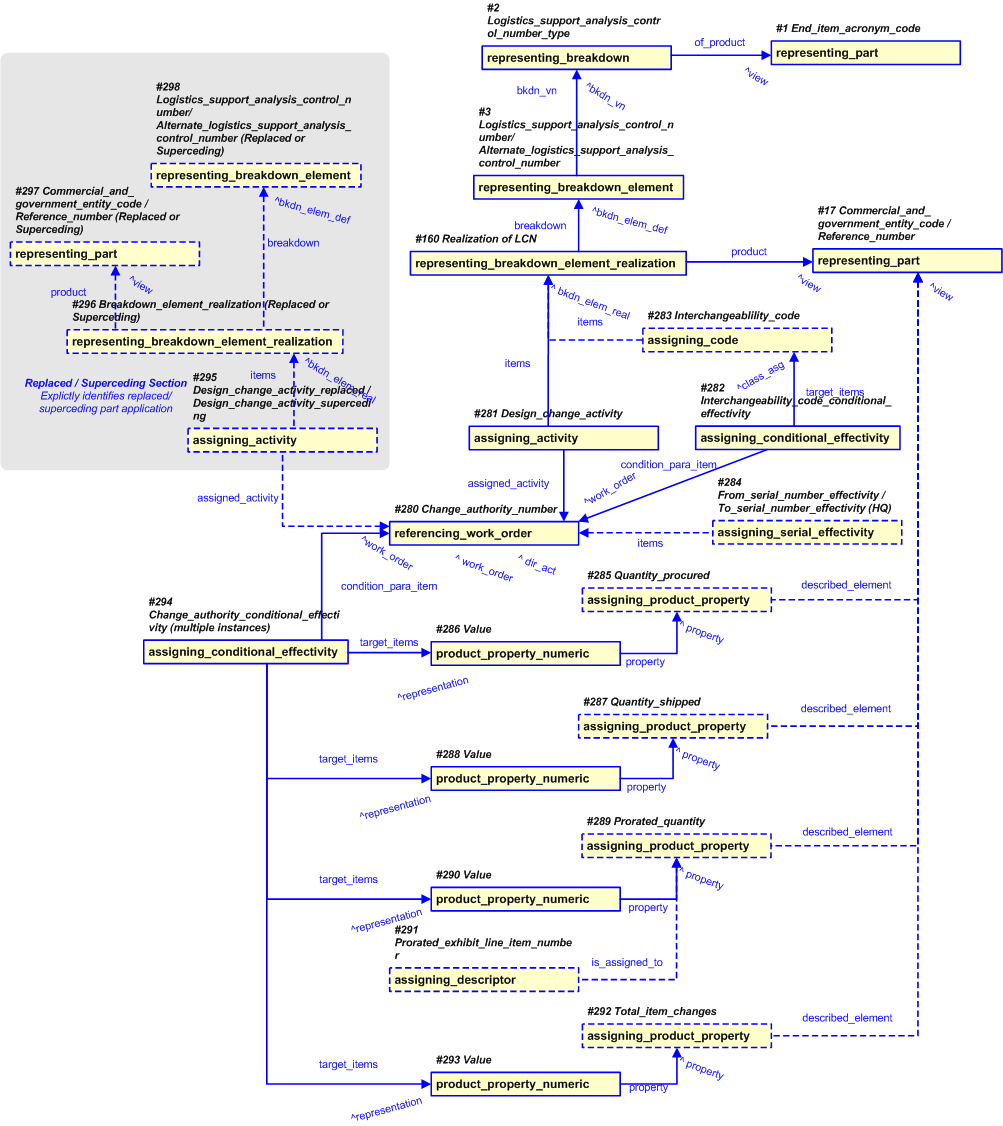

Figure 15 — Representation of the Design Change and Serial Effectivity Data
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
| Template #280 (Figure 15): referencing_work_order
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned to the
Work_order.
|
| id_class_name |
Change_authority_number |
The name of the class used to classify the identifier and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the @id_class_name class
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization. For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the @org_id_class_name class
|
| act_id |
/NULL |
The identifier of the activity
(Directed_activity)
that has been authorized by the
Work_order.
|
| act_id_class_name |
/NULL |
The name of the class used to classify the identifier in parameter @act_idand so
provide the role or reason for the identification.
|
| act_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the @act_id_class_name class
|
| act_org_id |
/NULL |
The identifier of the organization that
"owns" the version identifier.
|
| act_org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization that
"owns" the version identifier. For example CAGE code.
|
| act_org_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the @act_org_id_class_name class
|
| Template #281 (Figure 15): assigning_activity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| role_class_name |
Design_change_activity |
The class name of the External_class corresponding to the
role of the assignment, e.g.
"Activity input"
(urn:plcs:rdl:std:Activity input), or
"Activity output"
(urn:plcs:rdl:std:Activity output).
|
| role_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the External_class_library storing the
definition of the class referenced by the parameter @role_class_name.
|
| assigned_activity |
Work_order |
The activity to which the items are assigned
|
| items |
View_definition_usage |
The activity, product, individual, task_method, etc that is being assigned to
the activity.
|
| Template #282 (Figure 15): assigning_conditional_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| para_class |
Interchangeability_code_conditional_effectivity |
The name of the External_class
being used to determine the Condition_parameter type.
|
| para_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| target_items |
Classification_assignment |
The items which are the target for the assigned effectivity, i.e. the items
which are subject for restricted usage.
|
| condition_para_item |
Work_order |
The item which defines the domain in which the @target_items are effective.
|
| Template #283 (Figure 15): assigning_code
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| class_name |
? |
The text representing the code.
|
| code_class_name |
Interchangeability_code
|
The name of the class in the reference data library
(External_class)
being used to determine type of code.
|
| code_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the External_class
given in @code_class_name.
|
| items |
View_definition_usage |
The items to which the
Class is assigned.
|
| Template #284 (Figure 15): assigning_serial_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| start_id |
?From_serial_number_effectivity |
Identification of the first serialized item within a range of serialized items.
|
| end_id |
?To_serial_number_effectivity? |
Identification of the last serialized item within the range of serialized items.
|
| role_class_name |
Serial_number_effectivity_design_change |
The name of the class being used to classify the
effectivity assignment
(Effectivity_assignment)
This provides the role for the assignment.
|
| role_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @role_class_name.
|
| items |
Work_order |
The items to which the effectivity is assigned.
|
| Template #285 (Figure 15): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Quantity_procured
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Part_view_definition |
The item to which the property is assigned
|
| Template #286 (Figure 15): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
?Value? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
|
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
urn:plcs:rdl:std |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
|
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
Numerical_representation_context |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
urn:plcs:rdl:std |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
|
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #287 (Figure 15): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Quantity_shipped
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Part_view_definition |
The item to which the property is assigned
|
| Template #288 (Figure 15): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #289 (Figure 15): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Prorated_quantity
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Part_view_definition |
The item to which the property is assigned
|
| Template #290 (Figure 15): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #291 (Figure 15): assigning_descriptor
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| descr |
? |
The text being assigned as a descriptor.
|
| class_name |
Prorated_exhibit_line_item_number |
The name of the class
(External_class)
being used to determine type of descriptor.
|
| ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the class.
|
| is_assigned_to |
Assigned_property |
The entity to which the
Document_assignment
is assigned.
|
| Template #292 (Figure 15): assigning_product_property
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| property_class_name |
Total_item_changes
|
The class name corresponding to the property name.
|
| property_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @property_class_name.
|
| described_element |
Part_view_definition |
The item to which the property is assigned
|
| Template #293 (Figure 15): product_property_numeric
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| value |
? |
The value of the property. The datatype is always 'any_number_value'
and should not be registered together with the value, i.e. enter the
value as a number, without datatype.
|
| unit |
/NULL |
The name of the unit in which the value is expressed, referenced through an
External_class.
|
| unit_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the unit name referenced by the parameter @unit.
|
| si_unit |
/NULL |
Value should be set to true if the unit is a SI base unit defined by ISO, i.e.
kilogram (kg) for Mass,
second (s) for Time,
metre (m) for Displacement,
ampere (A) for Electrical current,
kelvin (K) for Temperature,
mole (mol) for Amount of substance, and
candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is
represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text
strings "true"
and "false".
|
| context |
/NULL |
The name of the class being used to classify the
Representation_context
of the property.
|
| context_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @context.
|
| property |
Assigned_property |
The target of the template, i.e. the
Assigned_property
(or template assigning_product_property)
to which the
Property_representation
is related.
|
| Template #294 (Figure 15): assigning_conditional_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| para_class |
Change_authority_number_conditional_effectivity |
The name of the External_class
being used to determine the Condition_parameter type.
|
| para_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| target_items |
Property_value_representation |
The items which are the target for the assigned effectivity, i.e. the items
which are subject for restricted usage.
|
| condition_para_item |
Work_order |
The item which defines the domain in which the @target_items are effective.
|
| Template #295 (Figure 15): assigning_activity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| role_class_name |
Design_change_activity_replaced |
The class name of the External_class corresponding to the
role of the assignment, e.g.
"Activity input"
(urn:plcs:rdl:std:Activity input), or
"Activity output"
(urn:plcs:rdl:std:Activity output).
|
| Design_change_activity_superceding |
The class name of the External_class corresponding to the
role of the assignment, e.g.
"Activity input"
(urn:plcs:rdl:std:Activity input), or
"Activity output"
(urn:plcs:rdl:std:Activity output).
|
| role_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the External_class_library storing the
definition of the class referenced by the parameter @role_class_name.
|
| assigned_activity |
Work_order |
The activity to which the items are assigned
|
| items |
View_definition_usage |
The activity, product, individual, task_method, etc that is being assigned to
the activity.
|
| Template #296 (Figure 15): representing_breakdown_element_realization
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| breakdown |
Breakdown_element_definition |
The breakdown item.
|
| product |
Part_view_definition |
The product item.
|
| class_name |
Breakdown_element_realization |
The name of the External_class that determines the role of the
breakdown element realization.
|
| class_ecl_id |
urn:plcs:rdl:lsa |
The identification of the
External_class_library
storing the External_class given by the input parameter @class_name.
|
| Template #297 (Figure 15): representing_part
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| part_id |
? |
The identifier of the part.
|
| part_id_class_name |
Reference_number
|
The name of the class being used to classify the identifier assigned (
Identification_assignment
) to the part (i.e. the @part.id)
|
| part_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @part_id_class_name.
|
| part_org_id |
/NULL |
The name or identifier of the organization that owns the part id (@part_id).
|
| part_org_id_class_name |
Commercial_and_government_entity_code |
The name of the class being used to classify the identification
of the organization (@part_org_id) responsible for creating the part representation (@part_id).
|
| part_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier (@part_org_id).
|
| part_vn_id |
/NULL |
The identifier of the part version
|
| part_vn_id_class_name |
/NULL |
The name of the class being used to classify the identifier assigned (
Identification_assignment
) to the part version (i.e. the part_vn_id)
|
| part_vn_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
|
| part_vn_org_id |
/NULL |
The name or identifier of the organization owns the part version id.
|
| part_vn_org_id_class_name |
/NULL |
The name of the class being used to classify the identification (Identification_assignment)
of the organization responsible for providing the part version representation
|
| part_vn_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the View_definition_context instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @domain class.
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the View_definition_context instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the External_class referenced by the parameter @life_cycle_stage class.
|
| Template #298 (Figure 15): representing_breakdown_element
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier of the
Breakdown_element .
|
| id_class_name |
Logistics_support_analysis_control_number
|
The name of the class being used to classify the
(Identification_assignment)
of the breakdown_element. This provides the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @id_class_name class.
|
| id_owner |
/NULL |
The name or identifier of the organization owning the id or name.
|
| id_owner_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization. For example CAGE code, or organization name.
|
| id_owner_ecl_id |
/NULL |
The id of the
External_class_library
storing the @id_owner_class_name class
|
| vn_id |
/NULL |
The identifier of the
Breakdown_element_version.
|
| vn_id_class_name |
/NULL |
The name of the class being used to classify the identification
(Identification_assignment)
of the breakdown_element_version. This provides the role or reason for the identification.
|
| vn_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @vn_id_class_name class.
|
| vn_id_owner |
? |
The name or identifier of the organization owning the version_id.
|
| vn_id_owner_class_name |
Alternate_logistics_support_analysis_control_number
|
The name of the class being used to classify the
identification of the organization. For example CAGE code, or organization name.
|
| vn_id_owner_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @vn_id_owner_class_name class
|
| life_cycle_stage |
/NULL |
The identifier of the
External_class_library
used to describe the type of life cycle stage of the
View_definition_context
instance.
|
| life_cycle_stage_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @life_cycle_stage class.
|
| domain |
/NULL |
The identifier of the
External_class_library
used to describe the type of application domain of the
View_definition_context
instance.
|
| domain_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @domain class.
|
| bkdn_vn |
Breakdown_version |
The Breakdown_version
of which this Breakdown_element
is a constituent.
|
The Design Change Usable On Code information is described in Figure 16

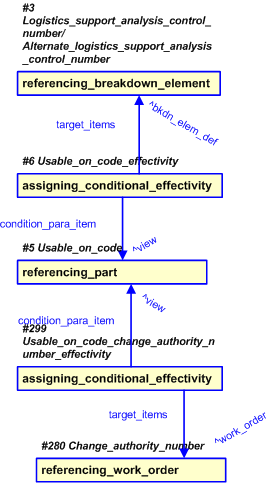

Figure 16 — Representation of the Design Change Usable On Code Data
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
| Template #299 (Figure 16): assigning_conditional_effectivity
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| para_class |
Usable_on_code_change_authority_number_effectivity |
The name of the External_class
being used to determine the Condition_parameter type.
|
| para_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
that stores the definition for the class being used.
|
| target_items |
Work_order |
The items which are the target for the assigned effectivity, i.e. the items
which are subject for restricted usage.
|
| condition_para_item |
Part_view_definition |
The item which defines the domain in which the @target_items are effective.
|
The Design Change Digital File information is described in Figure 17

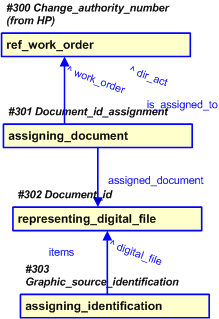

Figure 17 — Representation of the Design Change Digital File Data
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
| Template 300 (Figure 17): referencing_work_order
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned to the
Work_order.
|
| id_class_name |
Change_authority_number |
The name of the class used to classify the identifier and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the @id_class_name class
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization. For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the @org_id_class_name class
|
| act_id |
/NULL |
The identifier of the activity
(Directed_activity)
that has been authorized by the
Work_order.
|
| act_id_class_name |
/NULL |
The name of the class used to classify the identifier in parameter @act_idand so
provide the role or reason for the identification.
|
| act_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the @act_id_class_name class
|
| act_org_id |
/NULL |
The identifier of the organization that
"owns" the version identifier.
|
| act_org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization that
"owns" the version identifier. For example CAGE code.
|
| act_org_id_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the @act_org_id_class_name class
|
| Template #302 (Figure 17): representing_digital_file
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| dig_file_id |
? |
The identifier of the digital file.
|
| dig_file_id_class_name |
Document_id |
The name of the External_class
being used to classify the identifier assigned to the digital file (i.e. the @dig_file_id)
|
| dig_file_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the External_class_library storing the definition of the
External_class referenced by the parameter @dig_file_id_class_name.
|
| dig_file_org_id |
/NULL |
The name or identifier of the organization that owns the digital file id (@dig_file_id).
|
| dig_file_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
of the organization (@dig_file_org_id) responsible for creating the digital file.
|
| dig_file_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier (@dig_file_org_id).
|
| cont_data_type_class_name |
/NULL |
The name of the External_class
being used to determine the Digital_file type.
|
| cont_data_type_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class being used to determine the Digital_file type (@cont_data_type_class_name).
|
| Template #303 (Figure 17): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Graphic_source_identification |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Digital_file |
The items to which the identification is assigned
|
The Part Application information is described in Figure 18
Figure 18 — Representation of the Part Application Digital file Data
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
| Template #305 (Figure 18): representing_digital_file
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| dig_file_id |
? |
The identifier of the digital file.
|
| dig_file_id_class_name |
Document_id |
The name of the External_class
being used to classify the identifier assigned to the digital file (i.e. the @dig_file_id)
|
| dig_file_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the External_class_library storing the definition of the
External_class referenced by the parameter @dig_file_id_class_name.
|
| dig_file_org_id |
/NULL |
The name or identifier of the organization that owns the digital file id (@dig_file_id).
|
| dig_file_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
of the organization (@dig_file_org_id) responsible for creating the digital file.
|
| dig_file_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier (@dig_file_org_id).
|
| cont_data_type_class_name |
/NULL |
The name of the External_class
being used to determine the Digital_file type.
|
| cont_data_type_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class being used to determine the Digital_file type (@cont_data_type_class_name).
|
| Template #306 (Figure 18): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Graphic_source_identification |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Digital_file |
The items to which the identification is assigned
|
The Part Identification Digital File information is described in Figure 19
Figure 19 — Representation of the Part Identification Digital File Data
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
| Template #308 (Figure 19): representing_digital_file
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| dig_file_id |
? |
The identifier of the digital file.
|
| dig_file_id_class_name |
Document_id |
The name of the External_class
being used to classify the identifier assigned to the digital file (i.e. the @dig_file_id)
|
| dig_file_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the External_class_library storing the definition of the
External_class referenced by the parameter @dig_file_id_class_name.
|
| dig_file_org_id |
/NULL |
The name or identifier of the organization that owns the digital file id (@dig_file_id).
|
| dig_file_org_id_class_name |
/NULL |
The name of the class being used to classify the identification
of the organization (@dig_file_org_id) responsible for creating the digital file.
|
| dig_file_org_id_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class used to classify the organization identifier (@dig_file_org_id).
|
| cont_data_type_class_name |
/NULL |
The name of the External_class
being used to determine the Digital_file type.
|
| cont_data_type_ecl_id |
/NULL |
The identifier of the External_class_library storing the
definition of the External_class being used to determine the Digital_file type (@cont_data_type_class_name).
|
| Template #309 (Figure 19): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Graphic_source_identification |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Digital_file |
The items to which the identification is assigned
|
The Part Application information is described in Figure 20
Figure 20 — Representation of the DEX Message Data
Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table
below:
| Template #310 (Figure 20): representing_message
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| rep_msg_id |
? |
The identifier of the message.
|
| rep_msg_id_class_name |
Message_identification_code |
The name of the class being used to classify the identification
(Identification_assignment)
of the message. This provides the role or reason for the identification.
|
| rep_msg_id_ecl_id |
urn:plcs:rdl:std |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @id_class_name.
|
| rep_msg_id_owner |
/NULL |
The name or identifier of the organization owning the id or name.
|
| rep_msg_id_owner_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization. For example CAGE code, or organization name.
|
| rep_msg_id_owner_ecl_id |
/NULL |
The id of the
External_class_library
storing the @id_owner_class_name.
|
| date_class_name |
/NULL |
The name of the class being used to classify the
role date assignment, e.g. the message sending date.
|
| date_ecl_id |
/NULL |
The id of the External_class_library storing the date_class_name.
|
| year |
/NULL |
The 'year' component of: the date the data was extracted from the system and the message created.
|
| month |
/NULL |
The 'month' component of: the date the data was extracted from the system and the message created.
|
| day |
/NULL |
The 'day' component of: the date the data was extracted from the system and the message created. This can be in local
time or UTC
|
| hour |
/NULL |
The 'hour' component of: the date the data was extracted from the system and the message created. This can be in local
time or UTC.
|
| minute |
/NULL |
The 'minute' component of: the date the data was extracted from the system and the message created. This can be in local
time or UTC.
|
| second |
/NULL |
The 'second' component of: the date the data was extracted from the system and the message created. This can be in local
time or UTC
|
| sense |
/NULL |
The direction of the offset. Enumeration values: 'ahead', 'exact' or 'behind'.
|
| hour_offset |
/NULL |
The number of hours by which a time is offset from Coordinated Universal Time.
|
| minute_offset |
/NULL |
The number of minutes by which a time is offset from Coordinated Universal Time.
The value of this attribute need not be specified.
This parameter is optional. If not given, it will remain unset.
|
| ap239_id_class_name |
/NULL |
The name of the class being used to classify the
Message
as a container of ISO 10303-239 data of a given version.
The subclasses identify the version of ISO 10303-239 to which the data in the message conforms. A subclass of the
following is to be used.
|
| ap239_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @ap239_id_class_name
|
| dex_id_class_name |
/NULL |
The name of the class being used to classify the
Message
as a container of an identified DEX. The subclasses define the DEX to which the data in the message conforms. A subclass
of the following is to be used.
|
| dex_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @dex_id_class_name
|
| content |
Part_view_definition |
|
| Template #311 (Figure 20): assigning_organization
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| org_id |
? |
The name or identifier of the organization.
|
| org_id_class_name |
Sender |
The name of the class being used to classify the
identification
(Identification_assignment)
of the organization. This provides the role or reason for the identification. For example CAGE code.
|
| org_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_id_class_name.
|
| org_assgn_class_name |
/NULL |
The name of the class being used to classify the
assignment of the organization.
(Organization_or_person_in_organization_assignment)
This provides the role or reason for the assignment.
For example 'Owner_of'.
|
| org_assgn_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_assgn_class_name.
|
| items |
Message |
The items to which the organization is assigned
|
| Template #312 (Figure 20): assigning_organization
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| org_id |
? |
The name or identifier of the organization.
|
| org_id_class_name |
Receiver |
The name of the class being used to classify the
identification
(Identification_assignment)
of the organization. This provides the role or reason for the identification. For example CAGE code.
|
| org_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_id_class_name.
|
| org_assgn_class_name |
/NULL |
The name of the class being used to classify the
assignment of the organization.
(Organization_or_person_in_organization_assignment)
This provides the role or reason for the assignment.
For example 'Owner_of'.
|
| org_assgn_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_assgn_class_name.
|
| items |
Message |
The items to which the organization is assigned
|
| Template #313 (Figure 20): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
PIIN_SPIIN |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Message |
The items to which the identification is assigned
|
| Template #314 (Figure 20): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Model_or_type_number |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Message |
The items to which the identification is assigned
|
| Template #315 (Figure 20): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Control_data |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Message |
The items to which the identification is assigned
|
| Template #316 (Figure 20): assigning_organization
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| org_id |
? |
The name or identifier of the organization.
|
| org_id_class_name |
Prime_commercial_or_government_entity_code |
The name of the class being used to classify the
identification
(Identification_assignment)
of the organization. This provides the role or reason for the identification. For example CAGE code.
|
| org_id_ecl_id |
urn:plcs:rdl:lsa |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_id_class_name.
|
| org_assgn_class_name |
/NULL |
The name of the class being used to classify the
assignment of the organization.
(Organization_or_person_in_organization_assignment)
This provides the role or reason for the assignment.
For example 'Owner_of'.
|
| org_assgn_ecl_id |
/NULL |
The identifier of the
External_class_library
storing the definition of the class referenced by the parameter @org_assgn_class_name.
|
| items |
Message |
The items to which the organization is assigned
|
| Template #317 (Figure 20): assigning_identification
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| id |
? |
The identifier being assigned.
|
| id_class_name |
Submission_control_code |
The name of the class used to classify the identifier (@id) and so
provide the role or reason for the identification.
|
| id_ecl_id |
urn:plcs:rdl:lsa |
The id of the
External_class_library
storing the @id_class_name.
|
| org_id |
/NULL |
The identifier of the organization that
"owns" the identifier.
|
| org_id_class_name |
/NULL |
The name of the class being used to classify the
identification of the organization, or the organization name (@org_id). For example CAGE code.
|
| org_id_ecl_id |
/NULL |
The id of the
External_class_library
storing the @org_id_class_name.
|
| items |
Message |
The items to which the identification is assigned
|
| Template #318 (Figure 20): assigning_calendar_date
|
| Description |
|
| Parameter name: |
Parameter value: |
Parameter description: |
| date_class_name |
Date |
The name of the class being used to classify the
role date assignment, e.g. the start date.
|
| date_ecl_id |
urn:plcs:rdl:lsa |
The id of the External_class_library in which the
@date_class_name is defined.
|
| year |
? |
Calendar_date year_component
|
| month |
? |
Calendar_date month_component
|
| day |
? |
Calendar_date day_component
|
| items |
Message |
The items to which the date is assigned.
|
