support_equipment_recommendation

The following sections provide a detailed description on how to represent a Support Equipment Recommendation Data Exchange Set using ISO 10303-239 PLCS. The representation of the Support Equipment Recommendation Data DEX is defined using PLCS capabilities, PLCS templates and PLCS reference data.

This description may be further tailored by specific parties by extending the reference data defined in the PLCS reference data library.

Information related to Support Equipment Recommendation Data ISO 10303-239 representation - Table of content:

Support Equipment Properties

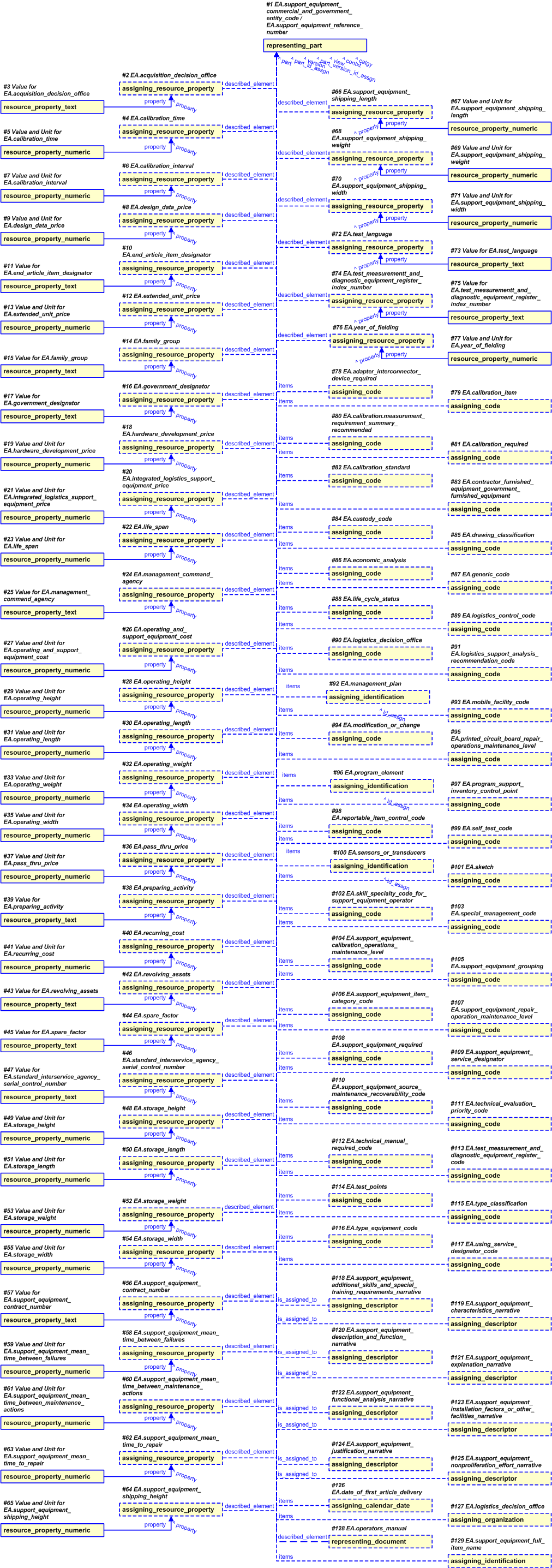

The basic representation of the Support Equipment Properties and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 5): representing_part Show template parameters Hide all template parameters Show all template parameters
Description

Template #1 (Figure 5): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #2 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #2 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	acquisition_decision_office [Acquisition_decision_office] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #3 (Figure 5): resource_property_text Show template parameters Hide all template parameters Show all template parameters
Description

Template #3 (Figure 5): resource_property_text Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The text value of the property.
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The property to which the text representation is assigned

Template #4 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #4 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	calibration_time [Calibration_time] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #5 (Figure 5): resource_property_numeric Show template parameters Hide all template parameters Show all template parameters
Description

Template #5 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #6 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #6 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	calibration_interval [Calibration_interval] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #7 (Figure 5): resource_property_numeric Show template parameters Hide all template parameters Show all template parameters
Description

Template #7 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #8 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #8 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	design_data_price [Price] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #9 (Figure 5): resource_property_numeric Show template parameters Hide all template parameters Show all template parameters
Description

Template #9 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #10 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #10 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	end_article_item_designator [Item_designator_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #11 (Figure 5): resource_property_text Show template parameters Hide all template parameters Show all template parameters
Description

Template #11 (Figure 5): resource_property_text Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The text value of the property.
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The property to which the text representation is assigned

Template #12 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #12 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	extended_unit_price [Price] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #13 (Figure 5): resource_property_numeric Show template parameters Hide all template parameters Show all template parameters
Description

Template #13 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #14 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #14 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	family_group [Family_group] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #15 (Figure 5): resource_property_text Show template parameters Hide all template parameters Show all template parameters
Description

Template #15 (Figure 5): resource_property_text Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The text value of the property.
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The property to which the text representation is assigned

Template #16 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #16 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	government_designator [Government_designator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #17 (Figure 5): resource_property_text Show template parameters Hide all template parameters Show all template parameters
Description

Template #17 (Figure 5): resource_property_text Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The text value of the property.
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The property to which the text representation is assigned

Template #18 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #18 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	hardware_development_price [Price] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #19 (Figure 5): resource_property_numeric Show template parameters Hide all template parameters Show all template parameters
Description

Template #19 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #20 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #20 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	integrated_logistics_support_equipment_price [Price] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #21 (Figure 5): resource_property_numeric Show template parameters Hide all template parameters Show all template parameters
Description

Template #21 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #22 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #22 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	life_span[Life_span] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #23 (Figure 5): resource_property_numeric Show template parameters Hide all template parameters Show all template parameters
Description

Template #23 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #24 (Figure 5): assigning_resource_property Show template parameters Hide all template parameters Show all template parameters
Description

Template #24 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	management_command_agency [Managing_command_agency] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #25 (Figure 5): resource_property_text Show template parameters Hide all template parameters Show all template parameters
Description

Template #26 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	operating_and_support_cost [Cost] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #27 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #28 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	operating_height [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #29 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #30 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	operating_length [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #31 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #32 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	operating_weight [Weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #33 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #34 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	operating_width [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #35 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #36 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	pass_thru_price [Price] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #37 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #38 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	preparing_activity [Preparing_activity] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #40 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	recurring_cost [Cost] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #41 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #42 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	revolving_assets [Revolving_assets] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #44 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	spare_factor [Spare_factor] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #46 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	standard_interservice_agency_serial_control_number [Standard_interservice_agency_serial_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #48 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	storage_height [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #49 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #50 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	storage_length [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #51 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #52 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	storage_weight [Weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #53 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #54 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	storage_width [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #55 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #56 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_contract_number [Contract_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #58 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_mean_time_between_failure [Mean_time_between_failures] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #59 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #60 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_mean_time_between_maintenance_actions [Mean_time_between_maintenance_actions] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #61 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #62 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_mean_time_to_repair [Mean_time_to_repair] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #63 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #64 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_shipping_height [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #65 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #66 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_shipping_length [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #67 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #68 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_shipping_weight [Weight] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #69 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #70 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: If entries exist for Operating Dimensions or Weight, Storage Dimensions or Weight, or Support Equipment Shipping Dimensions or Weight, their respective units of measure must have entries also.
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_shipping_width [Linear_measure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #71 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #72 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	test_language [Test_language] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #74 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	test_measurement_and_diagnostic_equipment_register_index_number [Test_measurement_and_diagnostic_equipment_register_index_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #76 (Figure 5): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	year_of_fielding [Year] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #77 (Figure 5): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #78 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?adapter_interconnector_device_required?	The text representing the code.
code_class_name	[Adapter_interconnector_device_required] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #79 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?calibration_item?	The text representing the code.
code_class_name	[Calibration_item] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #80 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?calibration_measurement_requirement_summary_recommended?	The text representing the code.
code_class_name	[Calibration_measurement_requirement_summary_recommended] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #81 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?calibration_required?	The text representing the code.
code_class_name	[Calibration_required] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #82 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?calibration_standard?	The text representing the code.
code_class_name	[Calibration_standard] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #83 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?contractor_furnished_equipment_government_furnished_equipment?	The text representing the code.
code_class_name	[Contractor_furnished_equipment_government_furnished_equipment] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #84 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?custody_code?	The text representing the code.
code_class_name	[Custody_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #85 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?drawing_classification?	The text representing the code.
code_class_name	[Drawing_classification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #86 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?economic_analysis?	The text representing the code.
code_class_name	[Economic_analysis] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #87 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?generic_code?	The text representing the code.
code_class_name	[Generic_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #88 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?life_cycle_status?	The text representing the code.
code_class_name	[Life_cycle_status] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #89 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_control_code?	The text representing the code.
code_class_name	[Logistics_control_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #90 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_decision_office?	The text representing the code.
code_class_name	[Logistics_decision_office] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #91 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_support_analysis_recommendation_code?	The text representing the code.
code_class_name	[Logistics_support_analysis_recommendation_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #92 (Figure 5): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?management_plan?	The identifier being assigned.
id_class_name	[Management_plan] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #93 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?mobile_facility_code?	The text representing the code.
code_class_name	[Mobile_facility_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #94 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?modification_or_change?	The text representing the code.
code_class_name	[Modification_or_change] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #95 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?printed_circuit_board_repair_operations_maintenance_level?	The text representing the code.
code_class_name	[Operations_and_maintenance_level_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #96 (Figure 5): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?program_element?	The identifier being assigned.
id_class_name	[Program_element] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #97 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?program_support_inventory_control_point?	The text representing the code.
code_class_name	[Program_support_inventory_control_point] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #98 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reportable_item_control_code?	The text representing the code.
code_class_name	[Reportable_item_control_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #99 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?self_test_code?	The text representing the code.
code_class_name	[Self_test_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #100 (Figure 5): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?sensors_or_transducers?	The identifier being assigned.
id_class_name	[Sensors_or_transducers] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #101 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?sketchs?	The text representing the code.
code_class_name	[Sketch] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #102 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?skill_specialty_code_for_support_equipment_operator?	The text representing the code.
code_class_name	[Skill_specialty_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #103 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?special_management_code?	The text representing the code.
code_class_name	[Special_management_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #104 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_calibration_operations_maintenance_level?	The text representing the code.
code_class_name	[Operations_and_maintenance_level_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #105 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_grouping?	The text representing the code.
code_class_name	[Support_equipment_grouping] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #106 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_item_category_code?	The text representing the code.
code_class_name	[Item_category_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #107 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_repair_operations_maintenance_level?	The text representing the code.
code_class_name	[Operations_and_maintenance_level_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #108 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_required?	The text representing the code.
code_class_name	[Support_equipment_required] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #109 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_service_designator?	The text representing the code.
code_class_name	[Service_designator_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #110 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_source_maintenance_recoverability_code?	The text representing the code.
code_class_name	[Source_maintenance_recoverability_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #111 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?technical_evaluation_priority_code?	The text representing the code.
code_class_name	[Technical_evaluation_priority_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #112 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?technical_manual_required_code?	The text representing the code.
code_class_name	[Technical_manual_required_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #113 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?test_measurement_and_diagnostic_equipment_register_code?	The text representing the code.
code_class_name	[Test_measurement_and_diagnostic_equipment_register_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #114 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?test_points?	The text representing the code.
code_class_name	[Test_points] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #115 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?type_classification?	The text representing the code.
code_class_name	[Type_classfication] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #116 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?type_equipment_code?	The text representing the code.
code_class_name	[Type_equipment_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #117 (Figure 5): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?using_service_designator_code?	The text representing the code.
code_class_name	[Using_service_designator_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #118 (Figure 5): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?support_equipment_additional_skills_and_special_training_requirements_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

Template #119 (Figure 5): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?support_equipment_characteristics_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

Template #120 (Figure 5): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?support_equipment_description_and_function_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

Template #121 (Figure 5): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?support_equipment_explanation_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

Template #122 (Figure 5): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?support_equipment_functional_analysis_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

Template #123 (Figure 5): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?support_equipment_installation_factors_or_other_facilities_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

Template #124 (Figure 5): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?support_equipment_justification_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

Template #125 (Figure 5): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?support_equipment_nonproliferation_effort_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

Template #126 (Figure 5): assigning_calendar_date Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
date_class_name	?date_of_first_article_delivery?	The name of the class being used to classify the role date assignment, e.g. the start date.
date_ecl_id	[Date] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The id of the External_class_library in which the @date_class_name is defined.
year	/NULL	Calendar_date year_component
month	/NULL	Calendar_date month_component
day	/NULL	Calendar_date day_component
items	part	The items to which the date is assigned.

Template #127 (Figure 5): assigning_organization Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
org_id	?logistics_decision_office?	The name or identifier of the organization.
org_id_class_name	[Logistics_decision_office] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the organization. This provides the role or reason for the identification. For example CAGE code.
org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_id_class_name.
org_assgn_class_name		The name of the class being used to classify the assignment of the organization. (Organization_or_person_in_organization_assignment) This provides the role or reason for the assignment. For example 'Owner_of'.
org_assgn_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_assgn_class_name.
items	part	The items to which the organization is assigned

Template #128 (Figure 5): representing_document Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
doc_id	?operators_manual?	The identifier of the Document.
doc_id_class_name	[Operators_manual] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the Document. This provides the role or reason for the identification. The identifier of the External_class_library that stores the class used to classify the type of identifier
doc_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @doc_id_class_name.
doc_org_id	/NULL	The name or identifier of the Organization owning the document identifier or name @doc_id.
doc_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the Organization owning the identifier (@doc_org_id).
doc_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class used to classify the Organization identifier.
doc_vn_id	/NULL	The identifier of the document version.
doc_vn_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the the version identifier.
doc_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @doc_vn_id_class_name.
doc_vn_org_id	/NULL	The name or identifier of the Organization owning the document version identifier or name @doc_vn_id.
doc_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the Organization owning the version identifier (@doc_vn_org_id).
doc_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class used to classify the Organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.

Template #129 (Figure 5): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?support_equipment_full_item_name?	The identifier being assigned.
id_class_name	[Support_equipment_full_item_name] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Support Equipment Other Properties

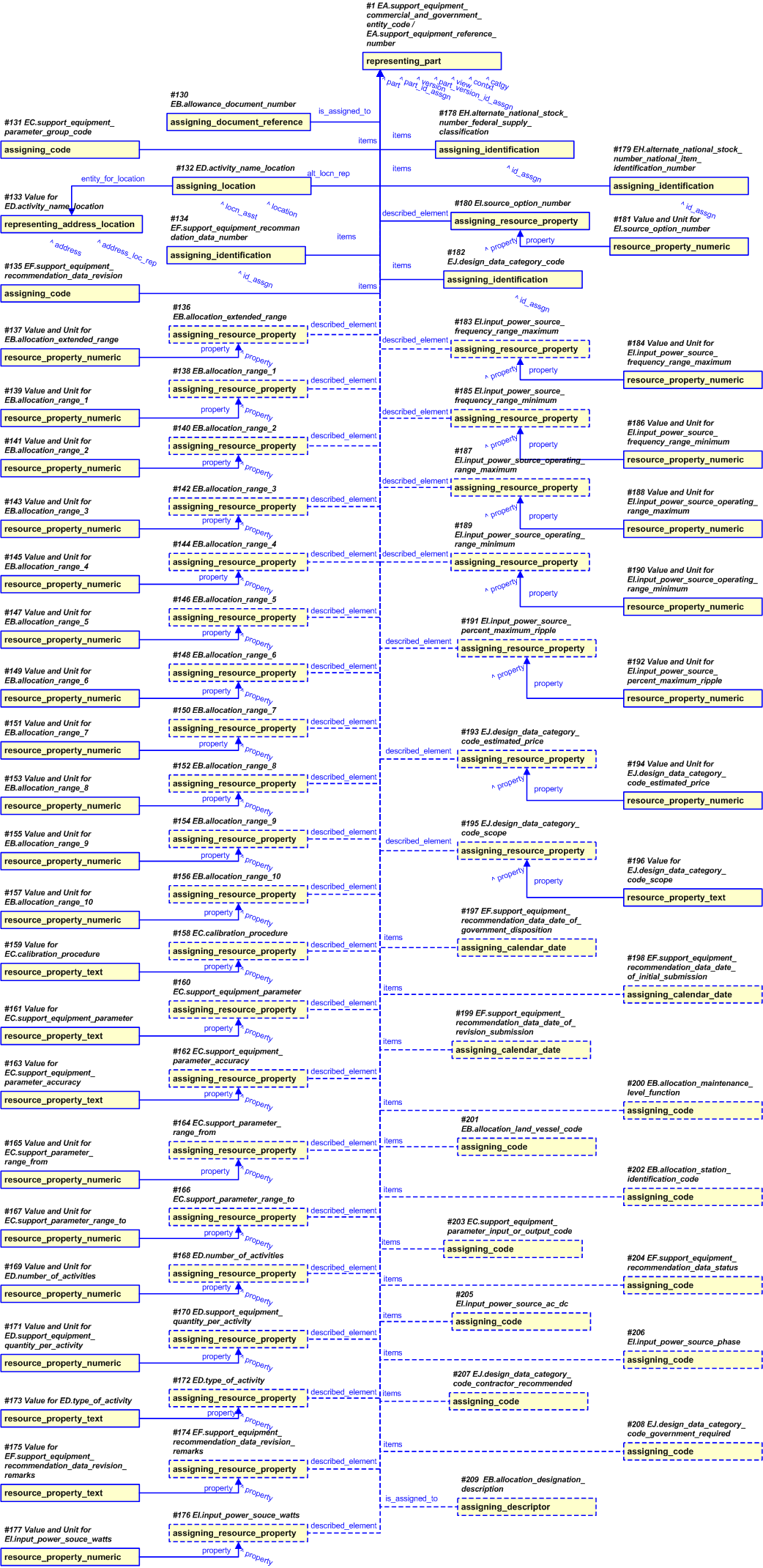

The basic representation of the Support Equipment Other Properties and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 6): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #130 (Figure 6): assigning_document_reference Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
doc_id	?allowance_document_number?	The identification of the Document being referenced.
doc_id_class_name	[Allowance_document_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class that determines the type of identifier given by the input parameter @doc_id.
doc_id_ecl_id	urn:plcs:rdl:lsa	The identification of the External_class_library storing the External_class given by the input parameter @doc_id_class_name.
doc_ver_id	/NULL	The identification of the Document_version being referenced.
doc_ver_id_class_name	/NULL	The name of the External_class that determines the type of identifier given by the input parameter @doc_ver_id.
doc_ver_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_ver_id_class_name.
org_id	/NULL	The identification or name of the Organization that "owns" the Document and Document_version identifiers (@doc_id and @doc_ver_id).
org_id_class_name	/NULL	The name of the External_class that determines the type of organization identification (@org_id) being used. For example CAGE code.
org_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @org_id_class_name
doc_asg_class_name	/NULL	The name of the External_class that determines the role of Document_assignment, i.e. providing the role of the referenced Document
doc_asg_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_asg_class_name.
is_assigned_to	part	The items to which the referenced document is assigned.

Template #131 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_parameter_group_code?	The text representing the code.
code_class_name	[Parameter_group_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template 132 (Figure 6): assigning_location Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
la_class_name	activity_name_location	The type of class used to classify the location assignment and so provide the role or reason for the assignment.
la_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the la_class_name class
loc_id	unknown	The location identifier being assigned.
loc_id_class_name	Location_identification_code	The name of the class used to classify the location identifier and so provide the role or reason for the location
loc_id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the loc_id_class_name class
loc_org_id		The name or identifier of the organization responsible for the location representation
loc_org_id_class_name	Organization_name	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for the location representation
loc_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class used to classify the organization identifier.
entity_for_location		The entities to which the location may be assigned
alt_locn_rep		The alternative representations to which the location may be assigned. It may be used together with this template by using the reference parameter ^location and its attribute alt_locn_rep: ^location.alt_locn_rep

Template 133 (Figure 6): representing_address_location Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
address_id	Uknown	The identifier of this address location
address_type_code	Address_based_location_identification_code	The class name of the corresponding to the address id
address_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @address_class_name.
name	/NULL	The name or identifier of the address. Parameter is optional.
street_number	/NULL	The number of a location on a street. . Parameter is optional.
street	/NULL	The name of a street. Parameter is optional.
postal_box	/NULL	The number of a postal box. Parameter is optional.
town	/NULL	The name of a town. Parameter is optional.
region	/NULL	The name or identifier of a region. Parameter is optional.
postal_code	/NULL	The code that is used by the country's postal service. Parameter is optional.
country	/NULL	The name of a country. Parameter is optional.
internal_location	/NULL	An organization-defined address for internal mail delivery. Parameter is optional.
facsimile_number	/NULL	The number to which facsimiles may be sent. Parameter is optional.
telephone_number	/NULL	The number at which telephone calls may be received. Parameter is optional.
electronic_mail_address	/NULL	The electronic address to which electronic mail may be sent. Parameter is optional.
telex_number	/NULL	The number where telex messages may be received. Parameter is optional.
url	/NULL	The text that specifies the Uniform Resource Locator associated with the address. Parameter is optional.

Template #134 (Figure 6): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?support_equipment_recommendation_data_number?	The identifier being assigned.
id_class_name	[Support_equipment_recommendation_data_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #135 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_recommendation_data_revision?	The text representing the code.
code_class_name	[Revision] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #136 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_extended_range [Allocation_extended_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #137 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #138 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_1 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #139 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #140 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_2 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #141 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #142 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_3 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #143 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #144 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_4 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #145 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #146 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_5 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #147 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #148 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_6 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #149 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #150 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_7 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #151 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #152 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_8 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #153 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #154 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_9 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #155 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #156 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	allocation_range_10 [Allocation_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #157 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #158 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	calibration_procedure [Calibration_procedure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #160 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_parameter [Parameter] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #162 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_parameter_accuracy [Parameter_accuracy] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #164 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_parameter_range_from [Parameter_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #165 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #166 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_parameter_range_to [Parameter_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #167 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #168 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	number_of_activities [Number_of_activities] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #169 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #170 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_quantity_per_activity [Quantity_per_activity] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #171 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #172 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	type_of_activity [Type_of_activity] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #174 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_recommendation_data_revision_remarks [Support_equipment_recommendation_data_revision_remarks] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #176 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	input_power_source_watts [Input_power_source_watts] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #177 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #178 (Figure 6): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?federal_supply_classification?	The identifier being assigned.
id_class_name	[Federal_supply_classification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #179 (Figure 6): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?national_item_identification_number?	The identifier being assigned.
id_class_name	[National_item_identification_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #180 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	source_option_number[Source_option_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #181 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #182 (Figure 6): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?design_data_category_code?	The identifier being assigned.
id_class_name	[Design_data_category_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #183 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	input_power_source_frequency_range_maximum [Input_power_source_frequency_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #184 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #185 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	input_power_source_frequency_range [Input_power_source_frequency_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #186 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #187 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	input_power_source_operating_range_maximun [Input_power_source_operating_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #188 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #189 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	input_power_source_operating_range_minimum [Input_power_source_operating_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #190 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #191 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	input_power_source_percent_maximum_ripple [Input_power_source_percent_maximum_ripple] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #192 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #193 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	design_data_category_code_estimated_price [Price] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #194 (Figure 6): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #195 (Figure 6): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	design_data_category_code_scope [Design_data_category_code_scope] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #197 (Figure 6): assigning_calendar_date Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
date_class_name	?support_equipment_recommendation_data_date_of_government_disposition?	The name of the class being used to classify the role date assignment, e.g. the start date.
date_ecl_id	[Date] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The id of the External_class_library in which the @date_class_name is defined.
year	/NULL	Calendar_date year_component
month	/NULL	Calendar_date month_component
day	/NULL	Calendar_date day_component
items	part	The items to which the date is assigned.

Template #198 (Figure 6): assigning_calendar_date Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
date_class_name	?support_equipment_recommendation_data_date_of_initial_submission?	The name of the class being used to classify the role date assignment, e.g. the start date.
date_ecl_id	[Date] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The id of the External_class_library in which the @date_class_name is defined.
year	/NULL	Calendar_date year_component
month	/NULL	Calendar_date month_component
day	/NULL	Calendar_date day_component
items	part	The items to which the date is assigned.

Template #199 (Figure 6): assigning_calendar_date Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
date_class_name	?support_equipment_recommendation_data_date_of_revision_submission?	The name of the class being used to classify the role date assignment, e.g. the start date.
date_ecl_id	[Revision_date] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The id of the External_class_library in which the @date_class_name is defined.
year	/NULL	Calendar_date year_component
month	/NULL	Calendar_date month_component
day	/NULL	Calendar_date day_component
items	part	The items to which the date is assigned.

Template #200 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?allocation_maintenance_level_function?	The text representing the code.
code_class_name	[Allocation_maintenance_level_function] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #201 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?allocation_land_vessel_code?	The text representing the code.
code_class_name	[Allocation_land_vessel_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #202 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?allocation_station_identification_code?	The text representing the code.
code_class_name	[Allocation_station_identification_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #203 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_parameter_input_or_output_code?	The text representing the code.
code_class_name	[Parameter_input_or_output_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #204 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_recommendation_data_status?	The text representing the code.
code_class_name	[Support_equipment_recommendation_data_status] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:std	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #205 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?input_power_source_ac_dc?	The text representing the code.
code_class_name	[Input_power_source_ac_dc] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #206 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?input_power_source_phase?	The text representing the code.
code_class_name	[Input_power_source_phase] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #207 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?design_data_category_code_contractor_recommended?	The text representing the code.
code_class_name	[Design_data_category_code_contractor_recommended] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #208 (Figure 6): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?design_data_category_code_government_required?	The text representing the code.
code_class_name	[Design_data_category_code_government_required] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #209 (Figure 6): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?allocation_designation_description?	The text being assigned as a descriptor.
class_name	[Task_remarks] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

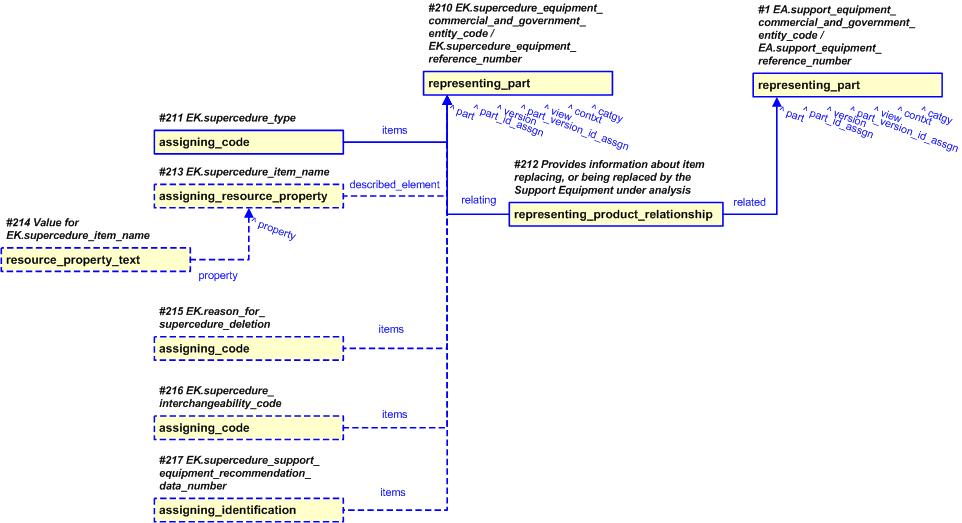

Support Equipment Supercedure

The basic representation of the Support Equipment Supercedure and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 7): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #210 (Figure 7): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #211 (Figure 7): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?supercedure_type?	The text representing the code.
code_class_name	[Supercedure_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #213 (Figure 7): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	supercedure_item_name [Item_name] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

Template #215 (Figure 7): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reason_for_supercedure_deletion?	The text representing the code.
code_class_name	[Reason_for_supercedure_deletion] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #216 (Figure 7): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?interchangeability_code?	The text representing the code.
code_class_name	[Interchangeability_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #217 (Figure 7): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?supercedure_support_equipment_recommendation_data_number?	The identifier being assigned.
id_class_name	[Support_equipment_recommendation_data_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Support Equipment Integrate Category

The basic representation of the support Equipment Integrate Category and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 8): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #218 (Figure 7): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?integrated_logistics_support_requirement_category_code?	The text representing the code.
code_class_name	[Integrated_logistics_support_requirement_category_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #219 (Figure 8): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	integrated_logistics_support_requirement_category_code_estimated_price [Price] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	external_class	The item to which the property is assigned

Template #220 (Figure 8): resource_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #221 (Figure 8): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	integrated_logistics_support_requirement_category_code_scope [Design_data_category_code_scope] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	external_class	The item to which the property is assigned

Template #223 (Figure 8): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?integrated_logistics_support_requirement_category_code_contractor_recommended?	The text representing the code.
code_class_name	[Design_data_category_code_contractor_recommended] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	external_class	The items to which the Class is assigned.

Template #224 (Figure 8): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?integrated_logistics_support_requirement_category_code_government_required?	The text representing the code.
code_class_name	[Design_data_category_code_government_required] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	External_class	The items to which the Class is assigned.

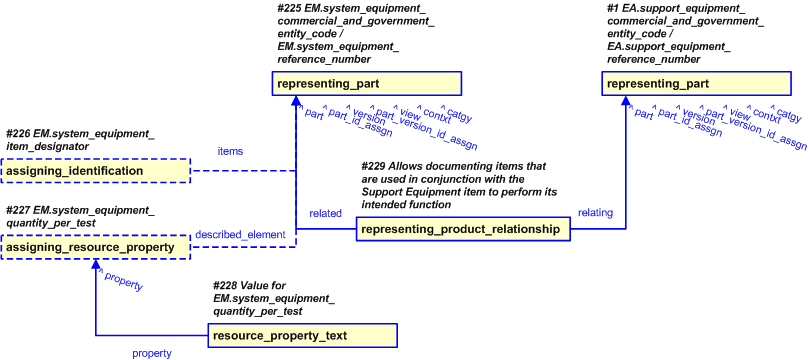

System Equipment

The basic representation of the System Equipment and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 9): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #225 (Figure 9): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #226 (Figure 9): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?system_equipment_item_designator?	The identifier being assigned.
id_class_name	[Item_designator_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #227 (Figure 9): assigning_resource_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_item_quantity_per_task [Quantity_per_task] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the property type corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element	part	The item to which the property is assigned

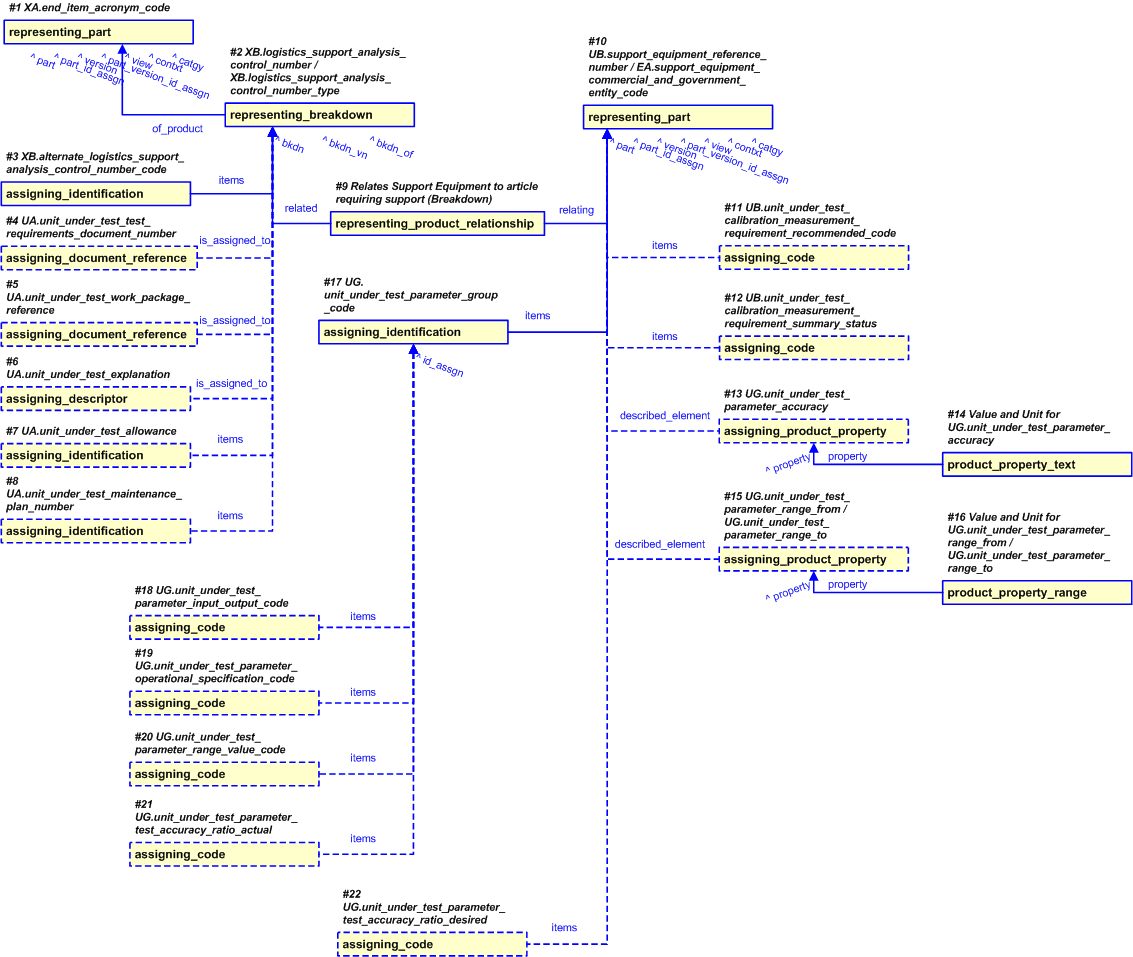

Unit Under Test Support Equipment

The basic representation of the Unit Under Test Support Equipment and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 10): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #2 (Figure 10): representing_breakdown Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?logistics_support_analysis_control_number?	The identifier of the Breakdown.
id_class_name	[Logistics_support_analysis_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name.
id_owner	/NULL	The name or identifier of the organization owning the id or name (@id).
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@id_owner). For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name.
bkdn_type	?logistics_support_analysis_control_number_type? [Logistics_support_analysis_control_number_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Breakdown.
bkdn_type_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @bkdn_type.
vn_id	?alternate_logistics_support_analysis_control_number_code?	The identifier of the Breakdown_version.
vn_id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown version. This provides the role or reason for the identification.
vn_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name.
vn_id_owner	/NULL	The name or identifier of the organization owning the @vn_id.
vn_id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
vn_id_owner_ecl_id		The id of the External_class_library storing the @vn_id_owner_class_name.
of_product	part_view_definition	The product that has been broken down.

Template #3 (Figure 10): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?alternate_logistics_support_analysis_control_number_code?	The identifier being assigned.
id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #4 (Figure 10): assigning_document_reference Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
doc_id	?unit_under_test_test_requirements_document_number?	The identification of the Document being referenced.
doc_id_class_name	unit_under_test_test_requirements_document_number [Test_requirements_document_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class that determines the type of identifier given by the input parameter @doc_id.
doc_id_ecl_id	urn:plcs:rdl:lsa	The identification of the External_class_library storing the External_class given by the input parameter @doc_id_class_name.
doc_ver_id	/NULL	The identification of the Document_version being referenced.
doc_ver_id_class_name	/NULL	The name of the External_class that determines the type of identifier given by the input parameter @doc_ver_id.
doc_ver_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_ver_id_class_name.
org_id	/NULL	The identification or name of the Organization that "owns" the Document and Document_version identifiers (@doc_id and @doc_ver_id).
org_id_class_name	/NULL	The name of the External_class that determines the type of organization identification (@org_id) being used. For example CAGE code.
org_id_ecl_id	urn:plcs:rdl:std	The identification of the External_class_library storing the External_class given by the input parameter @org_id_class_name
doc_asg_class_name	/NULL	The name of the External_class that determines the role of Document_assignment, i.e. providing the role of the referenced Document
doc_asg_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_asg_class_name.
is_assigned_to	breakdown	The items to which the referenced document is assigned.

Template #5 (Figure 10): assigning_document_reference Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
doc_id	?unit_under_test_work_package_reference?	The identification of the Document being referenced.
doc_id_class_name	[Unit_under_test_work_package_reference] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class that determines the type of identifier given by the input parameter @doc_id.
doc_id_ecl_id	urn:plcs:rdl:lsa	The identification of the External_class_library storing the External_class given by the input parameter @doc_id_class_name.
doc_ver_id	/NULL	The identification of the Document_version being referenced.
doc_ver_id_class_name	/NULL	The name of the External_class that determines the type of identifier given by the input parameter @doc_ver_id.
doc_ver_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_ver_id_class_name.
org_id	/NULL	The identification or name of the Organization that "owns" the Document and Document_version identifiers (@doc_id and @doc_ver_id).
org_id_class_name	/NULL	The name of the External_class that determines the type of organization identification (@org_id) being used. For example CAGE code.
org_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @org_id_class_name
doc_asg_class_name	/NULL	The name of the External_class that determines the role of Document_assignment, i.e. providing the role of the referenced Document
doc_asg_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_asg_class_name.
is_assigned_to	breakdown	The items to which the referenced document is assigned.

Template #6 (Figure 10): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?unit_under_test_explanation?	The text being assigned as a descriptor.
class_name	unit_under_test_explanation [Unit_under_test_explanation_data] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown	The entity to which the Document_assignment is assigned.

Template #7 (Figure 10): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?unit_under_test_allowance?	The identifier being assigned.
id_class_name	unit_under_test_allowance [Allowance_document_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #8 (Figure 10): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?unit_under_test_maintenance_plan_number?	The identifier being assigned.
id_class_name	unit_under_test_maintenance_plan_number [Maintenance_plan_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #10 (Figure 10): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?support_equipment_reference_number?	The identifier of the part.
part_id_class_name	support_equipment_reference_number [Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?support_equipment_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	support_equipment_commercial_and_government_entity_code [Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #11 (Figure 10): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?unit_under_test_calibration_measurement_requirement_recommended_code?	The text representing the code.
code_class_name	[Calibration_measurement_requirement_recommended_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #12 (Figure 10): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?unit_under_test_calibration_measurement_requirement_summary_status?	The text representing the code.
code_class_name	[Calibration_measurement_requirement_summary_status] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #13 (Figure 10): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	unit_under_test_parameter_accuracy [Parameter_accuracy] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #15 (Figure 10): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	unit_under_test_parameter_range_from / unit_under_test_parameter_range_to [Parameter_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #16 (Figure 10): product_property_range Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
upper_limit	unit_under_test_parameter_ range_to [Parameter_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The upper limit value of the property. The datatype is always 'any_number_value' and should not be registered together with the value i.e. enter the value as a number, without the datatype.
lower_limit	unit_under_test_parameter_ range_from [Parameter_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The lower limit value of the property. The datatype is always 'any_number_value' and should not be registered together with the value i.e. enter the value as a number, without the datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #17 (Figure 10): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?unit_under_test_parameter_group_code?	The identifier being assigned.
id_class_name	[Parameter_group_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #18 (Figure 10): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?unit_under_test_parameter_input_output_code?	The text representing the code.
code_class_name	[Parameter_input_or_output_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #19 (Figure 10): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?unit_under_test_parameter_operational_specification_code?	The text representing the code.
code_class_name	[Unit_under_test_parameter_operational_specification_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #20 (Figure 10): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?unit_under_test_parameter_range_value_code?	The text representing the code.
code_class_name	[Parameter_range_or_value_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #21 (Figure 10): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?unit_under_test_parameter_test_accuracy_ratio_actual?	The text representing the code.
code_class_name	[Parameter_test_accuracy_ratio] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #22 (Figure 10): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?unit_under_test_parameter_test_accuracy_ratio_desired?	The text representing the code.
code_class_name	[Parameter_test_accuracy_ratio] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

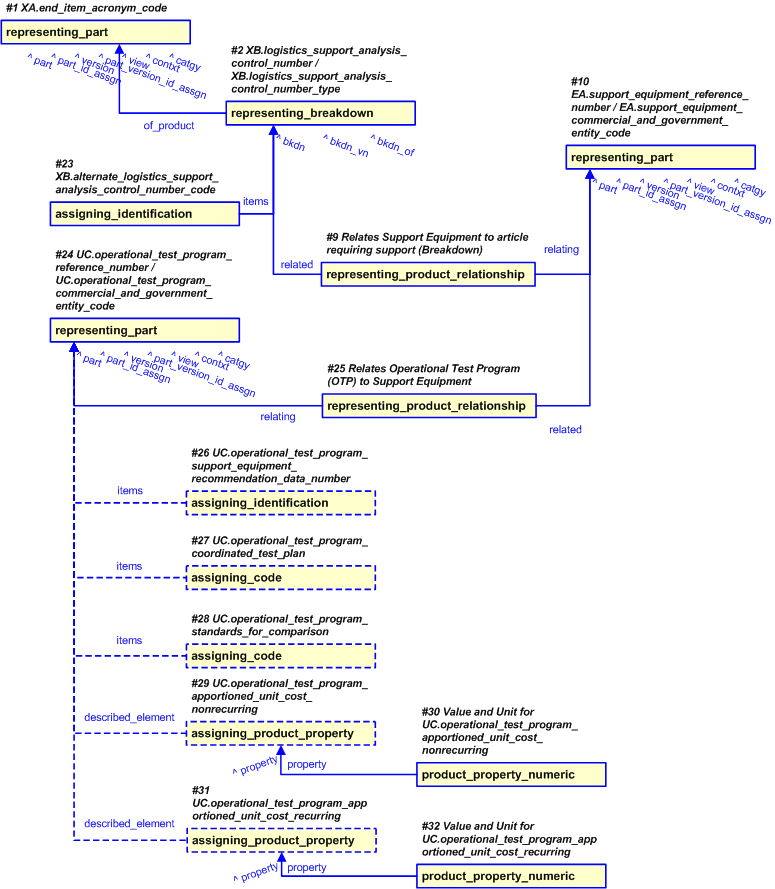

Operational Test Program

The basic representation of the Operational Test Program and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 11): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id		The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	Organization_name	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #2 (Figure 11): representing_breakdown Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?logistics_support_analysis_control_number?	The identifier of the Breakdown.
id_class_name	[Logistics_support_analysis_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name.
id_owner	/NULL	The name or identifier of the organization owning the id or name (@id).
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@id_owner). For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name.
bkdn_type	?logistics_support_analysis_control_number_type? [Logistics_support_analysis_control_number_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Breakdown.
bkdn_type_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @bkdn_type.
vn_id	?alternate_logistics_support_analysis_control_number_code?	The identifier of the Breakdown_version.
vn_id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown version. This provides the role or reason for the identification.
vn_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name.
vn_id_owner	/NULL	The name or identifier of the organization owning the @vn_id.
vn_id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
vn_id_owner_ecl_id	/NULL	The id of the External_class_library storing the @vn_id_owner_class_name.
of_product	Part_view_definition	The product that has been broken down.

Template #10 (Figure 11): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?support_equipment_reference_number?	The identifier of the part.
part_id_class_name	support_equipment_reference_number [Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?support_equipment_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	[Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #23 (Figure 11): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?alternate_logistics_support_analysis_control_number_code?	The identifier being assigned.
id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdownt	The items to which the identification is assigned

Template #24 (Figure 11): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?operational_test_program_reference_number?	The identifier of the part.
part_id_class_name	[Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?operational_test_program_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	[Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #26 (Figure 11): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?operational_test_program_support_equipment_recommendation_data_number?	The identifier being assigned.
id_class_name	[Support_equipment_recommendation_data_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #27 (Figure 11): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?operational_test_program_coordinated_test_plan?	The text representing the code.
code_class_name	[Operational_test_program_coordinated_test_plan] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #28 (Figure 11): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?operational_test_program_standards_for_comparison?	The text representing the code.
code_class_name	[Operational_test_program_standards_for_comparison] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #29 (Figure 11): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	operational_test_program_apportioned_unit_cost_nonrecurring [Unit_cost] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #30 (Figure 11): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #31 (Figure 11): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	operational_test_program_apportioned_unit_cost_recurring [Unit_cost] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #32 (Figure 11): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

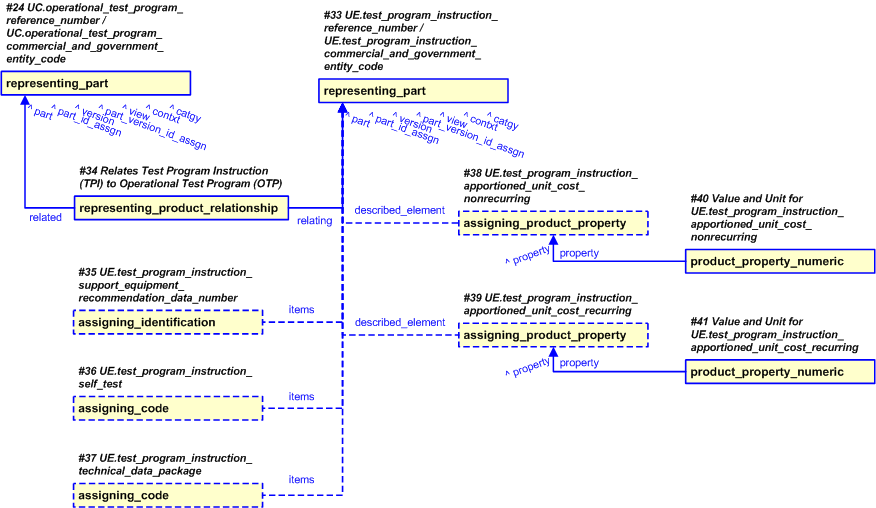

Test Program Instruction

The basic representation of the Test Program Instruction and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #24 (Figure 12): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?operational_test_program_reference_number?	The identifier of the part.
part_id_class_name	operational_test_program_reference_number [Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?operational_test_program_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	operational_test_program_commercial_and_government_entity_code [Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #33 (Figure 12): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?test_program_instruction_reference_number?	The identifier of the part.
part_id_class_name	[Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?test_program_instruction_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	test_program_instruction_commercial_and_government_entity_code [Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #34 (Figure 12): representing_product_relationship Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
relating	part	The relating product.
related	part	The product that is being related.
rel_type_name		The name of the class being used to classify the Product_relationship. This provides the role or reason for the relationship.
rel_type_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the Class referenced by parameter @rel_type_name.

Template #35 (Figure 12): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?test_program_instruction_support_equipment_recommendation_data_number?	The identifier being assigned.
id_class_name	[Support_equipment_recommendation_data_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id		The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #36 (Figure 12): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?test_program_instruction_self_test?	The text representing the code.
code_class_name	[Self_test_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #37 (Figure 12): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?test_program_instruction_technical_data_package?	The text representing the code.
code_class_name	[Test_program_instruction_technical_data_package] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #38 (Figure 12): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	test_program_instruction_apportioned_unit_cost_nonrecurring [Unit_cost] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #39 (Figure 12): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #40 (Figure 12): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	test_program_instruction_apportioned_unit_cost_recurring [Unit_cost] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #41 (Figure 12): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Unit Under Test Fault Isolated Replaceable Unit

The Unit Under Test Fault Isolated Replaceable Unit information is described in Figure 13

The basic representation of the Unit Under Test Fault Isolated Replaceable Unit and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

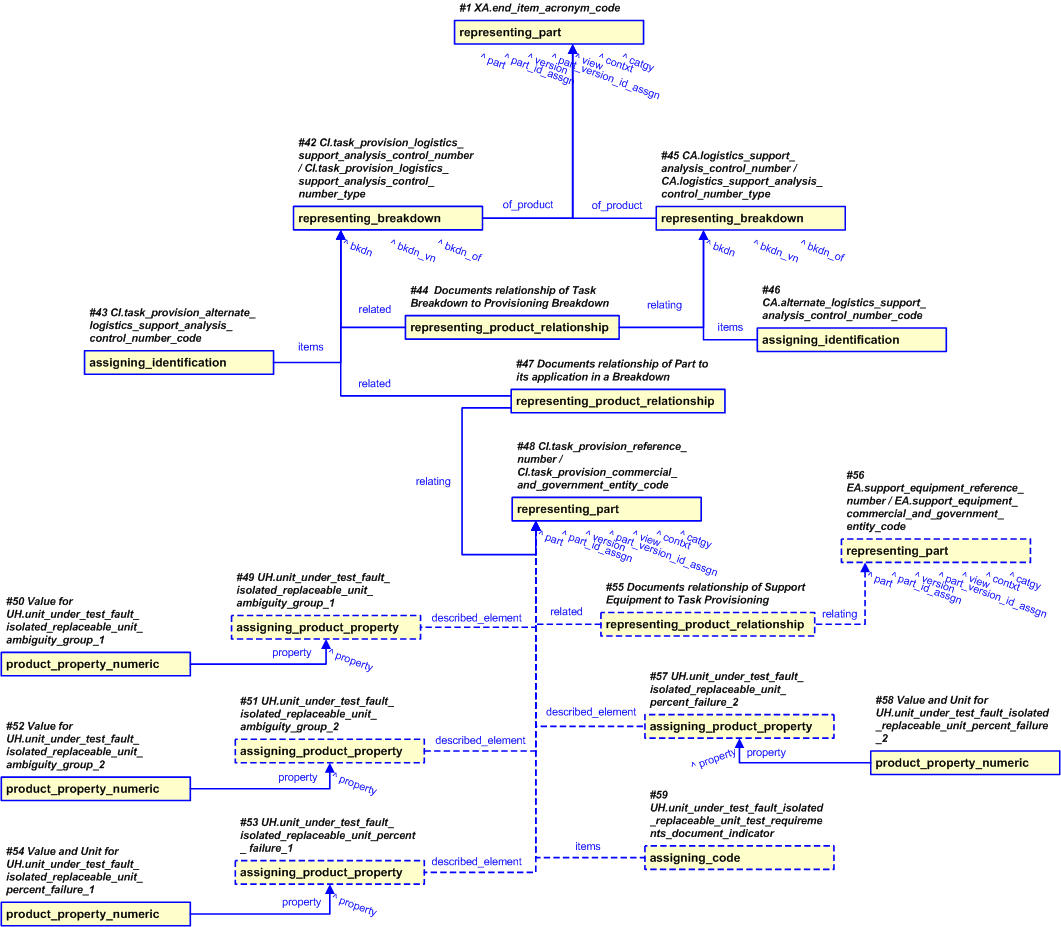

Template #1 (Figure 13): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #42 (Figure 13): representing_breakdown Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?task_provision_logistics_support_analysis_control_number?	The identifier of the Breakdown.
id_class_name	[Logistics_support_analysis_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name.
id_owner	/NULL	The name or identifier of the organization owning the id or name (@id).
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@id_owner). For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name.
bkdn_type	?ltask_provision_ogistics_support_analysis_control_number_type? [Logistics_support_analysis_control_number_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Breakdown.
bkdn_type_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @bkdn_type.
vn_id	?task_provision_alternate_logistics_support_analysis_control_number_code?	The identifier of the Breakdown_version.
vn_id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown version. This provides the role or reason for the identification.
vn_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name.
vn_id_owner	/NULL	The name or identifier of the organization owning the @vn_id.
vn_id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
vn_id_owner_ecl_id	/NULL	The id of the External_class_library storing the @vn_id_owner_class_name.
of_product	Part_view_definition	The product that has been broken down.

Template #43 (Figure 13): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?Task_provision_alternate_logistics_support_analysis_control_number_code?	The identifier being assigned.
id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #44 (Figure 13): representing_product_relationship Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
relating	breakdown	The relating product.
related	breakdown	The product that is being related.
rel_type_name		The name of the class being used to classify the Product_relationship. This provides the role or reason for the relationship.
rel_type_ecl_id		The identifier of the External_class_library storing the definition of the Class referenced by parameter @rel_type_name.

Template #45 (Figure 13): representing_breakdown Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?logistics_support_analysis_control_number?	The identifier of the Breakdown.
id_class_name	[Logistics_support_analysis_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name.
id_owner	/NULL	The name or identifier of the organization owning the id or name (@id).
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@id_owner). For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name.
bkdn_type	?logistics_support_analysis_control_number_type? [Logistics_support_analysis_control_number_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Breakdown.
bkdn_type_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @bkdn_type.
vn_id	?alternate_logistics_support_analysis_control_number_code?	The identifier of the Breakdown_version.
vn_id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown version. This provides the role or reason for the identification.
vn_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name.
vn_id_owner	/NULL	The name or identifier of the organization owning the @vn_id.
vn_id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
vn_id_owner_ecl_id	/NULL	The id of the External_class_library storing the @vn_id_owner_class_name.
of_product	Part_view_definition	The product that has been broken down.

Template #46 (Figure 13): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?alternate_logistics_support_analysis_control_number_code?	The identifier being assigned.
id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #48 (Figure 13): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?task_provision_reference_number?	The identifier of the part.
part_id_class_name	[Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?tasl_provision_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	[Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #49 (Figure 13): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	unit_under_test_fault_isolated_replaceable_unit_ambiguity_group_1 [Fault_isolation_ambiguity_group] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #50 (Figure 13): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #51 (Figure 13): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	unit_under_test_fault_isolated_replaceable_unit_ambiguity_group_2 [Fault_isolation_ambiguity_group] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #52 (Figure 13): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #53 (Figure 13): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	unit_under_test_fault_isolated_replaceable_unit_percent_failure_1 [Fault_isolation_percent_failure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #54 (Figure 13): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #56 (Figure 13): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?support_equipment_reference_number?	The identifier of the part.
part_id_class_name	[Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?support_equipment_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	[Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #57 (Figure 13): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	unit_under_test_fault_isolated_replaceable_unit_percent_failure_2 [Fault_isolation_percent_failure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #58 (Figure 13): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #59 (Figure 13): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?unit_under_test_fault_isolated_replaceable_unit_test_requirements_document_indicator?	The text representing the code.
code_class_name	[Unit_under_test_fault_isolated_replaceable_unit_test_requirements_document_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Unit Under Test Support Equipment Adapter Interconnector Device

The Unit Under Test Support Equipment Adapter Interconnector Device information is described in Figure 14

The basic representation of the Unit Under Test Support Equipment Adapter Interconnector Device and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

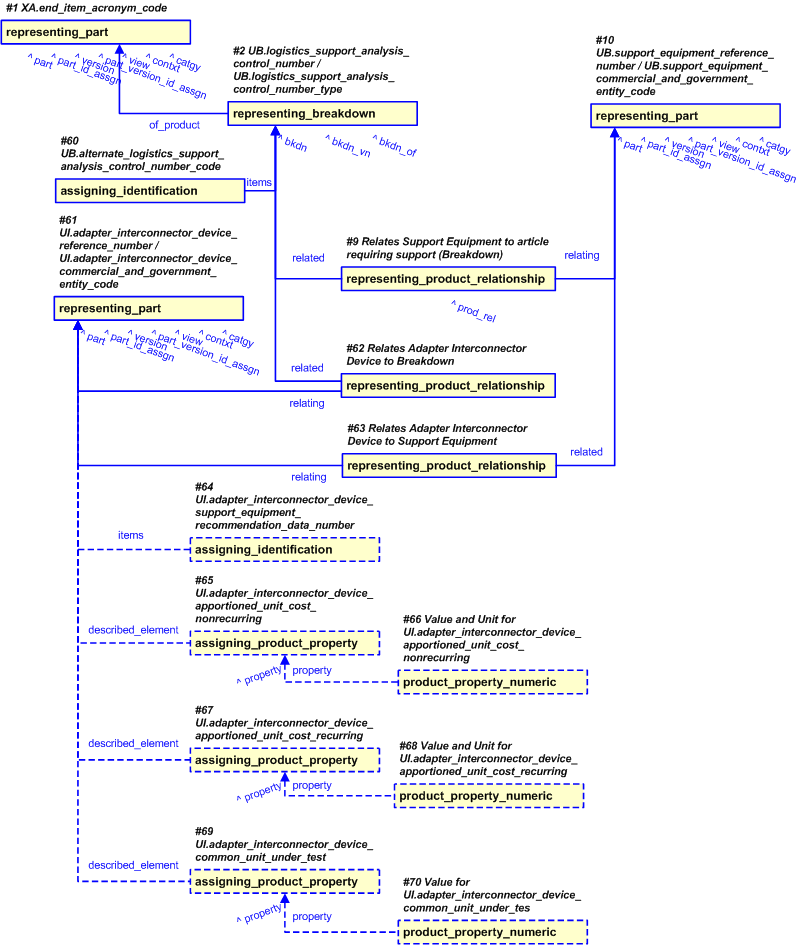

Template #1 (Figure 14): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #2 (Figure 14): representing_breakdown Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?logistics_support_analysis_control_number?	The identifier of the Breakdown.
id_class_name	[Logistics_support_analysis_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name.
id_owner	/NULL	The name or identifier of the organization owning the id or name (@id).
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@id_owner). For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name.
bkdn_type	?logistics_support_analysis_control_number_type? [Logistics_support_analysis_control_number_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Breakdown.
bkdn_type_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @bkdn_type.
vn_id	?alternate_logistics_support_analysis_control_number_code?	The identifier of the Breakdown_version.
vn_id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown version. This provides the role or reason for the identification.
vn_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name.
vn_id_owner	/NULL	The name or identifier of the organization owning the @vn_id.
vn_id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
vn_id_owner_ecl_id	/NULL	The id of the External_class_library storing the @vn_id_owner_class_name.
of_product	Part_view_definition	The product that has been broken down.

Template #10 (Figure 14): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?support_equipment_reference_number?	The identifier of the part.
part_id_class_name	[Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?support_equipment_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	[Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #60 (Figure 14): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?alternate_logistics_support_analysis_control_number_code?	The identifier being assigned.
id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #61 (Figure 14): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?adapter_interconnector_device_reference_number?	The identifier of the part.
part_id_class_name	[Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?adapter_interconnector_device_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	[Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #64 (Figure 14): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?adapter_interconnector_device_support_equipment_recommendation_data_number?	The identifier being assigned.
id_class_name	[Support_equipment_recommendation_data_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #65 (Figure 14): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	adapter_interconnector_device_apportioned_unit_cost_nonrecurring [Unit_cost] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #66 (Figure 14): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #67 (Figure 14): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	adapter_interconnector_device_apportioned_unit_cost_recurring [Unit_cost] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #68 (Figure 14): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #69 (Figure 14): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	adapter_interconnector_device_common_unit_under_test [Common_unit_under_test] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Template #70 (Figure 14): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Unit Under Test Support Equipment Automatic Test Equipment

The Unit Under Test Support Equipment Automatic Test Equipment information is described in Figure 15

The basic representation of the Unit Under Test Support Equipment Automatic Test Equipment and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

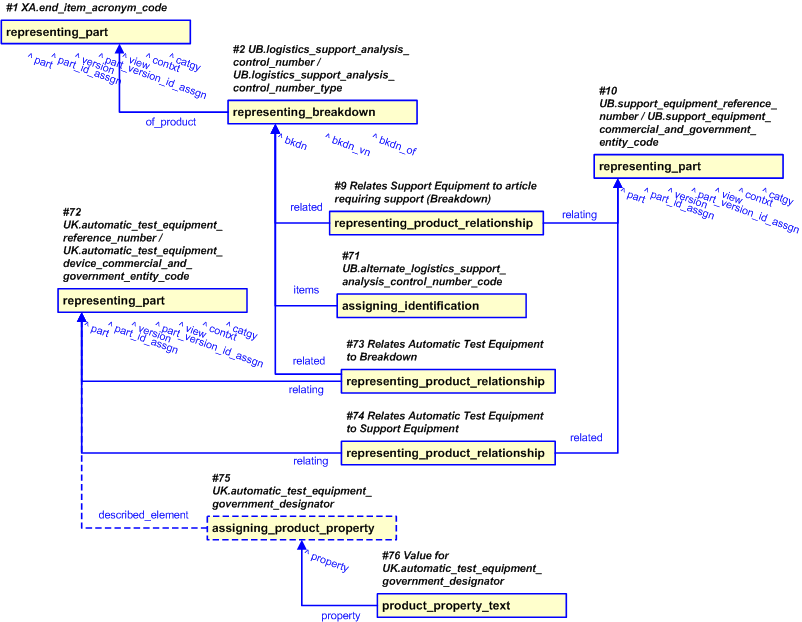

Template #1 (Figure 15): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	/NULL	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #2 (Figure 15): representing_breakdown Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?logistics_support_analysis_control_number?	The identifier of the Breakdown.
id_class_name	[Logistics_support_analysis_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name.
id_owner	/NULL	The name or identifier of the organization owning the id or name (@id).
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@id_owner). For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name.
bkdn_type	?logistics_support_analysis_control_number_type? [Logistics_support_analysis_control_number_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Breakdown.
bkdn_type_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @bkdn_type.
vn_id	?alternate_logistics_support_analysis_control_number_code?	The identifier of the Breakdown_version.
vn_id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown version. This provides the role or reason for the identification.
vn_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name.
vn_id_owner	/NULL	The name or identifier of the organization owning the @vn_id.
vn_id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
vn_id_owner_ecl_id	/NULL	The id of the External_class_library storing the @vn_id_owner_class_name.
of_product	Part_view_definition	The product that has been broken down.

Template #10 (Figure 15): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?support_equipment_reference_number?	The identifier of the part.
part_id_class_name	support_equipment_reference_number [Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?support_equipment_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	automatic_test_equipment_commercial_and_government_entity_code [Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #71 (Figure 15): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?alternate_logistics_support_analysis_control_number_code?	The identifier being assigned.
id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	breakdown	The items to which the identification is assigned

Template #72 (Figure 15): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?automatic_test_equipment_reference_number?	The identifier of the part.
part_id_class_name	automatic_test_equipment_reference_number [Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?automatic_test_equipment_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	automatic_test_equipment_commercial_and_government_entity_code [Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id		The identifier of the part version
part_vn_id_class_name	Version_identification_code	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #75 (Figure 15): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_item_quantity_per_task [Quantity_per_task] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	part	The item to which the property is assigned

Support Equipment Item Unit Under Test Parameter Group

The Support Equipment Item Unit Under Test Parameter Group information is described in Figure 16

The basic representation of the Support Equipment Item Unit Under Test Parameter Group and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

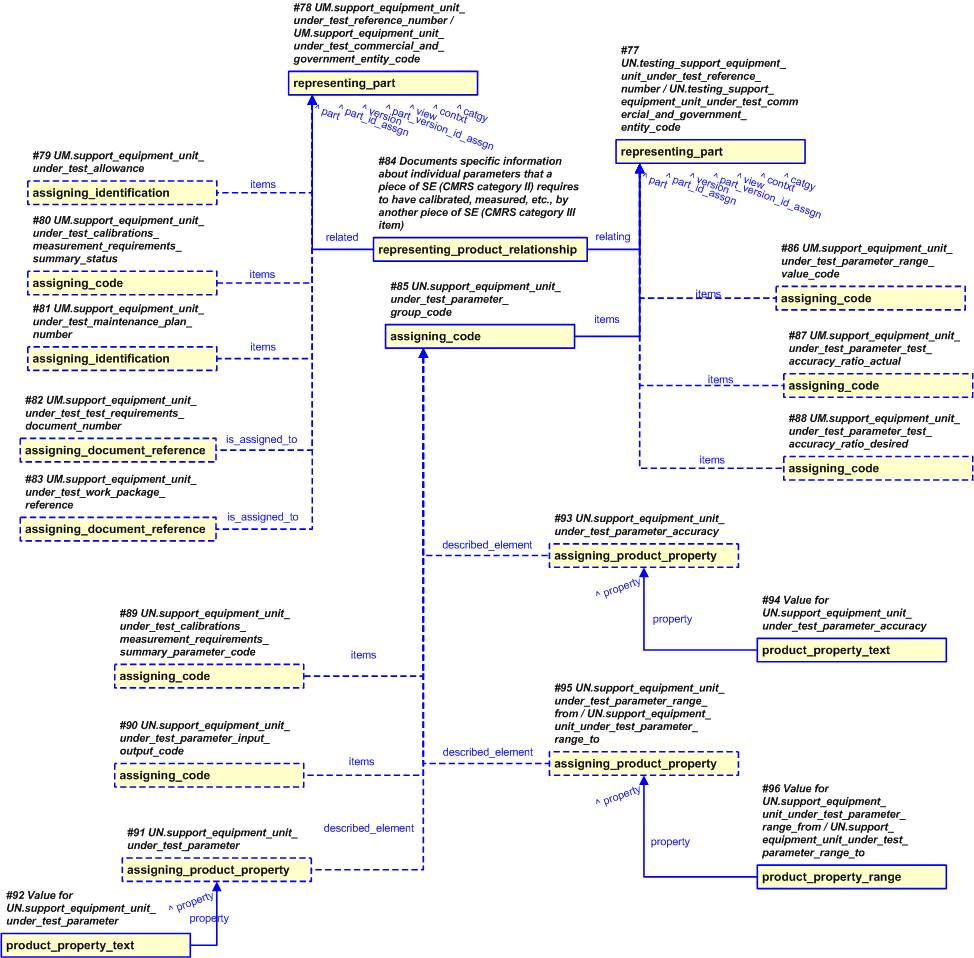

Template #77 (Figure 16): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?support_equipment_unit_under_test_reference_number?	The identifier of the part.
part_id_class_name	support_equipment_unit_under_test_reference_number [Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?support_equipment_unit_under_test_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	support_equipment_unit_under_test_commercial_and_government_entity_code [Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #78 (Figure 16): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?testing_support_equipment_unit_under_test_reference_number?	The identifier of the part.
part_id_class_name	[Reference_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id	?testing_support_equipment_unit_under_test_commercial_and_government_entity_code?	The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name	[Commercial_and_government_entity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id	/NULL	The identifier of the part version
part_vn_id_class_name	/NULL	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id	/NULL	The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #79 (Figure 16): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?support_equipment_unit_under_test_allowance?	The identifier being assigned.
id_class_name	[Allowance_document_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #80 (Figure 16): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_unit_under_test_calibrations_measurement_requirements_summary_status?	The text representing the code.
code_class_name	[Calibration_measurement_requirement_summary_status] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #81 (Figure 16): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?support_equipment_unit_under_test_maintenance_plan_number?	The identifier being assigned.
id_class_name	[Maintenance_plan_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id	/NULL	The identifier of the organization that "owns" the identifier.
org_id_class_name	/NULL	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	/NULL	The id of the External_class_library storing the @org_id_class_name.
items	part	The items to which the identification is assigned

Template #82 (Figure 16): assigning_document_reference Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
doc_id	?support_equipment_unit_under_test_test_requirements_document_number?	The identification of the Document being referenced.
doc_id_class_name	[Test_requirements_document_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class that determines the type of identifier given by the input parameter @doc_id.
doc_id_ecl_id	urn:plcs:rdl:lsa	The identification of the External_class_library storing the External_class given by the input parameter @doc_id_class_name.
doc_ver_id	/NULL	The identification of the Document_version being referenced.
doc_ver_id_class_name		The name of the External_class that determines the type of identifier given by the input parameter @doc_ver_id.
doc_ver_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_ver_id_class_name.
org_id	/NULL	The identification or name of the Organization that "owns" the Document and Document_version identifiers (@doc_id and @doc_ver_id).
org_id_class_name	/NULL	The name of the External_class that determines the type of organization identification (@org_id) being used. For example CAGE code.
org_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @org_id_class_name
doc_asg_class_name	/NULL	The name of the External_class that determines the role of Document_assignment, i.e. providing the role of the referenced Document
doc_asg_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_asg_class_name.
is_assigned_to	part	The items to which the referenced document is assigned.

Template #83 (Figure 16): assigning_document_reference Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
doc_id	?support_equipment_unit_under_test_work_package_reference?	The identification of the Document being referenced.
doc_id_class_name	[Unit_under_test_work_package_reference] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class that determines the type of identifier given by the input parameter @doc_id.
doc_id_ecl_id	urn:plcs:rdl:lsa	The identification of the External_class_library storing the External_class given by the input parameter @doc_id_class_name.
doc_ver_id	/NULL	The identification of the Document_version being referenced.
doc_ver_id_class_name	/NULL	The name of the External_class that determines the type of identifier given by the input parameter @doc_ver_id.
doc_ver_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_ver_id_class_name.
org_id	/NULL	The identification or name of the Organization that "owns" the Document and Document_version identifiers (@doc_id and @doc_ver_id).
org_id_class_name	/NULL	The name of the External_class that determines the type of organization identification (@org_id) being used. For example CAGE code.
org_id_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @org_id_class_name
doc_asg_class_name	/NULL	The name of the External_class that determines the role of Document_assignment, i.e. providing the role of the referenced Document
doc_asg_ecl_id	/NULL	The identification of the External_class_library storing the External_class given by the input parameter @doc_asg_class_name.
is_assigned_to	part	The items to which the referenced document is assigned.

Template #85 (Figure 16): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_unit_under_test_parameter_group_code?	The text representing the code.
code_class_name	[Parameter_group_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:std	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #86 (Figure 16): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_unit_under_test_parameter_range_value_code?	The text representing the code.
code_class_name	[Parameter_test_accuracy_ratio] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:std	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #87 (Figure 16): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_unit_under_test_parameter_test_accuracy_ratio_actual?	The text representing the code.
code_class_name	[Parameter_test_accuracy_ratio] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:std	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #88 (Figure 16): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_unit_under_test_parameter_test_accuracy_ratio_desired?	The text representing the code.
code_class_name	[Parameter_test_accuracy_ratio] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:std	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #89 (Figure 16): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_unit_under_test_calibrations_measurement_requirements_summary_parameter_code?	The text representing the code.
code_class_name	[Calibration_measurement_requirement_summary_parameter_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:std	The id of the External_class_library that stores the External_class given in @code_class_name.
items	class	The items to which the Class is assigned.

Template #90 (Figure 16): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_equipment_unit_under_test_parameter_input_output_code?	The text representing the code.
code_class_name	[Parameter_input_or_output_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:std	The id of the External_class_library that stores the External_class given in @code_class_name.
items	class	The items to which the Class is assigned.

Template #91 (Figure 16): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_unit_under_test_parameter [Parameter_test_accuracy_ratio] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #93 (Figure 16): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_unit_under_test_parameter_accuracy [Parameter_accuracy] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #95 (Figure 16): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	support_equipment_unit_under_test_parameter_range_from / support_equipment_unit_under_test_parameter_range_to [Parameter_range] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #96 (Figure 16): product_property_range Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
upper_limit	support_equipment_unit_under_test_parameter_range_from	The upper limit value of the property. The datatype is always 'any_number_value' and should not be registered together with the value i.e. enter the value as a number, without the datatype.
lower_limit	support_equipment_unit_under_test_parameter_range_to	The lower limit value of the property. The datatype is always 'any_number_value' and should not be registered together with the value i.e. enter the value as a number, without the datatype.
unit	/NULL	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	/NULL	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	/NULL	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

support_equipment_recommendation_data ISO 10303-239 Representation
