2410_form ISO 10303-239 Representation

DA 2410 mapped to ISO 10303-239

The following sections describe how the information contained in the DA 2410 form is represented (mapped) using ISO 10303-239.

The information captured by the form has been summarized in the previous sections. Figure 9 summarizes this information and shows an abstract view of the ISO 10303-239 PLCS constructs that represent the information.

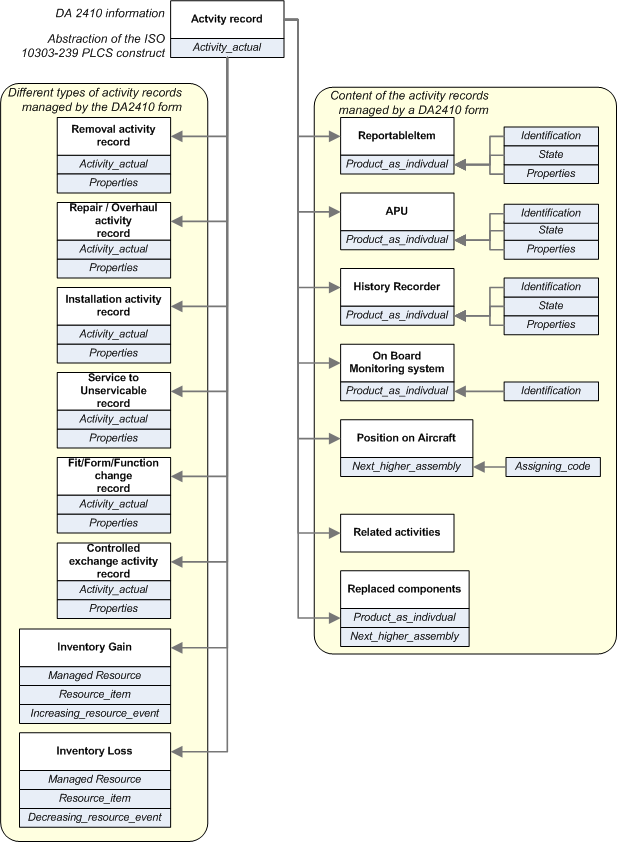

The diagram shows the different types of activity that are recorded on a DA2410 form, such installation, removal etc, and the associated information that is recorded as a result of the activity, such as the identification of the reportable item on which the work was done (the reportable item), the APU lifing measurements and so on.

This high level view of the ISO 10303-239 PLCS representation is detailed in the following sections.

Figure 9 —  Information recorded by DA Form 2410

Activity Record

The DA 2410 form is a record of an activity that has been carried out. It is therefore represented in ISO 10303-239 PLCS by an Activity_actual - a representation of an activity that has occurred. The use of an Activity_actual is described in the capability C032: representing_activity and shown in Figure 10 below.

The DA2410 is used to report on a number of different maintenance activities, as summarized in Figure 9. These are:

• Removal/Evacuation;
• Repair/Overhaul;
• Installation;
• Serviceable to Unserviceable;
• Fit/Form/Function change;
• Controlled exchange;
• Inventory gain;
• Inventory loss.

These activities are all represented by Activity_actual. The different types of activities recorded by a DA2410form are distinguished by using reference data (See capability C010: assigning_reference_data for details on the use of reference data) to classify the Activity_actual.

The Activity_actual representing the different types of DA2410 activities recorded by the form may be classified as follows:

• [DA2410Form-Removal]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  - the classification of the Activity_actual recording an activity to remove a reportable item;
• [DA2410Form-Overhaul]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  - the classification of the Activity_actual recording an overhaul activity.
• [DA2410Form-Installation]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  - the classification of the Activity_actual recording an installation activity.
• [DA2410Form-Servicability_change]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  - the classification of the Activity_actual recording a reportable item being changed from serviceable to unserviceable.
• [DA2410Form-Fit_form_function_change]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  - the classification of the Activity_actual recording a Form/Fit/Function change of the reportable item, resulting in a cnage in PN, NSN and/or S/N.
• [DA2410Form-Controlled_exchange]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  - the classification of the Activity_actual recording a Removal of Serviceable Items for Controlled Exchange.
• [DA2410Form-InventoryGain]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  - the classification of the Activity_actual recording a gain to the inventory;
• [DA2410Form-InventoryLoss]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  - the classification of the Activity_actual recording a loss to the inventory.

The Activity_actual is identified by the DA2410 control number. This is represented by an Identification_assignment. This is described in the capability C001: assigning_identifiers and the template: assigning_identification. The identifier is classified as a: "Activity identification code" (urn:plcs:rdl:std:Activity identification code)

The Activity_actual is "characterized" by the date when the activity was performed and by whom. Properties such as the time taken to perform the activity are also recorded.

The Activity_actual is related to the items identified on the form, such as the reportable item, the APU, the parts replaced etc, by instances of Applied_activity_assignments. Each role of each instance is provided by classification. The use of Applied_activity_assignment is detailed in the template assigning_activity .

The Activity_actual is also related to an Activity_method representing the process description, or the method, that was used when performing the activity. The DA2410 form do not identify the method used, so "PAM738_751_method" is used for all types of activities.

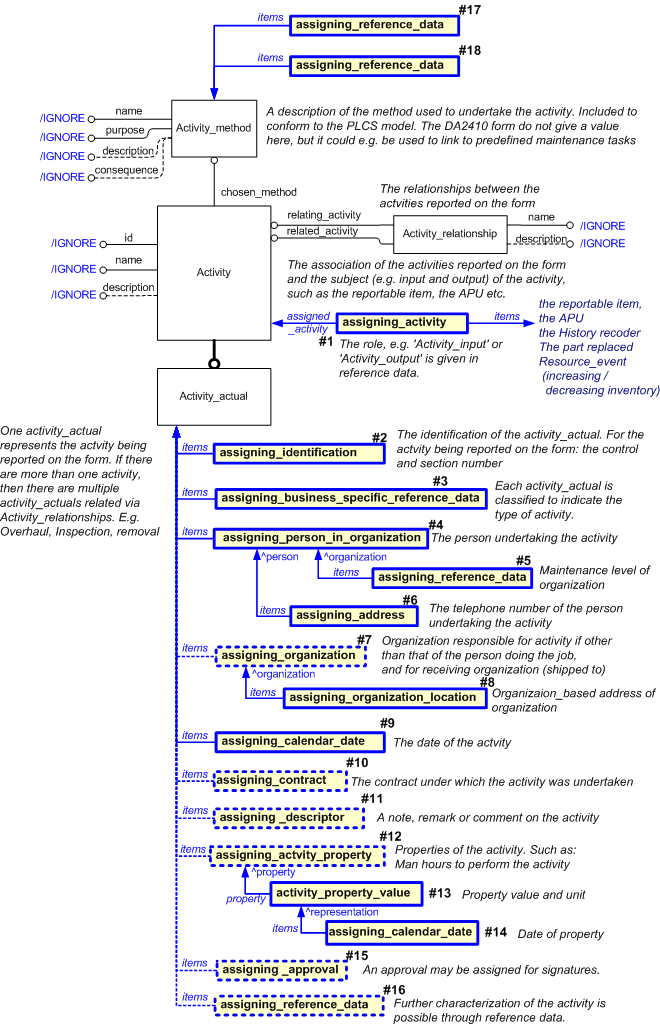

An EXPRESS-G diagram showing how the Activity_actual is used to represent the activity record is shown in Figure 10 below. The diagram also shows the templates that are required.

Figure 10 —  EXPRESS-G diagram for recording a form

The following templates are used in the diagram and represent the various blocks on the DA2410 form:

Template #1 (Figure 10): assigning_activity Hide template parametersHide all template parametersShow all template parameters
Description	The association of the activities reported on the form and the subject (e.g. input and output) of the activity, such as the Reportable item, the APU etc.
Parameter name:	Parameter value:	Parameter description:
role_class_name	Where the activity is related to a reportable item use: [Activity_input_Reportable_item] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the role of the assignment, e.g. "Activity input" (urn:plcs:rdl:std:Activity input), or "Activity output" (urn:plcs:rdl:std:Activity output).
	Where the activity is related to an APU, use: [Activity_input_APU] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the role of the assignment, e.g. "Activity input" (urn:plcs:rdl:std:Activity input), or "Activity output" (urn:plcs:rdl:std:Activity output).
	Where the activity is related to a History recorder use: [Activity_input_History_recorder] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the role of the assignment, e.g. "Activity input" (urn:plcs:rdl:std:Activity input), or "Activity output" (urn:plcs:rdl:std:Activity output).
	Where the activity is related to an On Board Monitoring System use: [Activity_input_On_board_monitoring_system] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the role of the assignment, e.g. "Activity input" (urn:plcs:rdl:std:Activity input), or "Activity output" (urn:plcs:rdl:std:Activity output).
	Where the activity is related to an inventory gain or loss use: "Activity output" (urn:plcs:rdl:std:Activity output)	The class name of the External_class corresponding to the role of the assignment, e.g. "Activity input" (urn:plcs:rdl:std:Activity input), or "Activity output" (urn:plcs:rdl:std:Activity output).
role_ecl_id	For items being input/output to the activity, use: "'urn:plcs:rdl:pam738_751'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @role_class_name.
	For inventory gain and loss, use: "'urn:plcs:rdl:std'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @role_class_name.
assigned_activity	Activity_actual	The activity being reported on the DA 2410 Form.
items	For Reportable item, APU, History recorder and On Board Monitoring System use: Product_as_realized	The activity, product, individual, task_method, etc that is being assigned to the activity.
	For inventory gain: Increasing_resource_event	The activity, product, individual, task_method, etc that is being assigned to the activity.
	For inventory loss: Decreasing_resource_event	The activity, product, individual, task_method, etc that is being assigned to the activity.

Template #3 (Figure 10): assigning_business_specific_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	A classification of the type of activity that is being reported by the DA 2410 form.
Parameter name:	Parameter value:	Parameter description:
class_name	Where the activity being reported is an Overhaul, use: [DA2410Form-Overhaul] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
	Where the activity being reported is a Removal use: [DA2410Form-Removal] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
	Where the activity being reported is a Installation use: [DA2410Form-Installation] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
	Where the activity being reported is a Servicability change use: [DA2410Form-Servicability_change] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
	Where the activity being reported is a Fit/Form/Function change use: [DA2410Form-Fit_form_function_change] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
	Where the activity being reported is a Gain to inventory, use: [DA2410Form-InventoryGain] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
	Where the activity being reported is a Loss to inventory, use: [DA2410Form-InventoryLoss] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the business_specific External_class_library that stores the class.
plcs_class_name	"Activity actual" (urn:plcs:rdl:std:Activity actual)	The name of the first plcs superclass encountered in the plsc standard reference data library (External_class) when traversing the class hierarchy for the assigned business specific (External_class).
items	Activity_actual	The activity that is being reported on by the DA2410 form, represented as an Activity_actual.

Template #4 (Figure 10): assigning_person_in_organization Hide template parametersHide all template parametersShow all template parameters
Description	Identification of the person completing the reporting of the activity.
Parameter name:	Parameter value:	Parameter description:
person_id Error T6: assigning_person_in_organization does not have a parameter person_id	Block 36 PID, and Block 40 PID, and Block 71 PID
person_id_class_name Error T6: assigning_person_in_organization does not have a parameter person_id_class_name	[PID] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
person_id_ecl_id Error T6: assigning_person_in_organization does not have a parameter person_id_ecl_id	"'urn:plcs:rdl:pam738_751'"
last_name	"/NULL" [Mandatory value unknown, not provided by DA2410 form]	the last name (surname) of the person doing the approval
person_role_class_name	"Creator of" (urn:plcs:rdl:std:Creator of)	The name of the class being used to classify the person assignment () This provides the role for the assignment.
person_role_ecl_id	"'urn:plcs:rdl:std'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @person_role_class_name class.
org_id	Block 34 UIC, and Block 41 UIC, and Block 64 UIC	The identifier (UIC) of the organization in which the person completing the reporting of the activity work.
	Block 34 CAGE code (for contractor), and Block 41 CAGE code (for contractor), and Block 64 CAGE code (for contractor)	The identifier (CAGE code) of the contractor organization in which the person completing the reporting of the activity work.
	If organization of person is unknown: "/NULL"	If the organization in which the person completing the reporting of the activity work is unknown, enter "/NULL" for any Block.
org_id_class_name	[UIC] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class - Unit Identification Code (UIC) - being used to classify the identification (Identification_assignment) of the organization. This provides the role or reason for the identification.
	"CAGE code" (urn:plcs:rdl:std:CAGE code) for contractors	The name of the class ( "CAGE code" (urn:plcs:rdl:std:CAGE code)) being used to classify the identification (Identification_assignment) of the contractor's organization. This provides the role or reason for the identification.
	[Unknown_organization] Error RDL1: The class Unknown_organization does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	If organization is unknown.
org_id_ecl_id	"'urn:plcs:rdl:pam738_751'" for organizations identified with UIC.	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_id_class_name class.
	"'urn:plcs:rdl:std'" for organizations (contractors) identified with CAGE code.	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_id_class_name class.
	"'urn:plcs:rdl:pam738_751'" if organization is unknown.	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_id_class_name class.
items	Activity_actual	The activity to which the person is assigned. This is the activity that is being reported on by the DA2410 form represented as a Activity_actual.

Template #5 (Figure 10): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Maintenance level of organization unit
Parameter name:	Parameter value:	Parameter description:
class_name	Block 32, 46 and 62: [Maintenance_level] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The Maintenance Level ("O" for AVUM, "F" for AVIM, "D" for Depot) of the unit/activity doing the removal.
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the External_class_library that stores the definition for the class being used.
items	The Organization entity instantiated by the template assigning_person_in_organization.	The items to which the External_class is assigned.

Template #6 (Figure 10): assigning_address Hide template parametersHide all template parametersShow all template parameters
Description	Address of person
Parameter name:	Parameter value:	Parameter description:
address_class_name	[Business_address] Error RDL1: The class Business_address does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the address. This provides the type of address, for example 'office_address'.
address_ecl_id	"'urn:plcs:rdl:pam738_751'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @address_class_name.
telephone_number	Block 36 Telephone number, and Block 40 Telephone number, and Block 71 Telephone number	The number at which telephone calls may be received. Parameter is optional.
located_pers_org	The Person entity instantiated by the template assigning_person_in_organization.	The items to which the address is assigned

Template #7 (Figure 10): assigning_organization Hide template parametersHide all template parametersShow all template parameters
Description	This template is used to identify an organization without also identifying a person. It should also be used to identify the organization responsible for the activity, if other than the organization employing/responsible for the person doing the work or reporting the activity.
Parameter name:	Parameter value:	Parameter description:
org_id	Block 34 UIC or CAGE code (for contractor), and Block 41 UIC or CAGE code (for contractor), and Block 64 UIC or CAGE code (for contractor)	The identifier (UIC or CAGE code) of the organization, if other than the organization to which the person doing the activity and/or completing the reporting of the activity belongs. Otherwise use template #4 assigning_person_in_organization.
	Block 74 UIC or CAGE code (for contractor)	The identifier (UIC or CAGE code) of the receiving organization, to which the item was shipped.
org_id_class_name	[UIC] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml or, if contractor, "CAGE code" (urn:plcs:rdl:std:CAGE code)	The name of the class being used to classify the identification (Identification_assignment) of the organization. This provides the role or reason for the identification. Unit Identification Code (UIC), or for contractors, the "CAGE code" (urn:plcs:rdl:std:CAGE code).
org_id_ecl_id	"'urn:plcs:rdl:pam738_751'" or, for CAGE code, "'urn:plcs:rdl:std'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_id_class_name.
org_assgn_class_name	"Organization type" (urn:plcs:rdl:std:Organization type) For inventory loss activities use "Receiver of" (urn:plcs:rdl:std:Receiver of) to indicate the organization receiving a reportable item.	The name of the class being used to classify the assignment of the organization. (Organization_or_person_in_organization_assignment) This provides the role or reason for the assignment. For example 'Receiving_organization'.
org_assgn_ecl_id	"'urn:plcs:rdl:pam738_751'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_assgn_class_name.
items	Activity_actual	The DA2410 form to which the person is assigned, represented as a Activity_actual.

Template #8 (Figure 10): Error T7: assigning_organization_location does not exist in capability: representing_location assigning_organization_location Show template parametersHide all template parametersShow all template parameters
Description	Organization-based location (address) of receiving organization

Template #8 (Figure 10): Error T7: assigning_organization_location does not exist in capability: representing_location assigning_organization_location Hide template parametersHide all template parametersShow all template parameters
Description	Organization-based location (address) of receiving organization
Parameter name:	Parameter value:	Parameter description:
la_class_name Error T6: assigning_organization_location does not have a parameter la_class_name	[Shipping_address] Error RDL1: The class Shipping_address does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml
la_ecl_id Error T6: assigning_organization_location does not have a parameter la_ecl_id	"'urn:plcs:rdl:pam738_751'"
loc_id Error T6: assigning_organization_location does not have a parameter loc_id	Block 72 SHIPPED TO	The name of the DRMO, the service, agency, department or MAP country that the item was shipped to.
loc_id_class_name Error T6: assigning_organization_location does not have a parameter loc_id_class_name	"Organization name" (urn:plcs:rdl:std:Organization name)
loc_id_ecl_id Error T6: assigning_organization_location does not have a parameter loc_id_ecl_id	"'urn:plcs:rdl:std'"
org_name Error T6: assigning_organization_location does not have a parameter org_name	"US Army"
org_name_class Error T6: assigning_organization_location does not have a parameter org_name_class	"Organization name" (urn:plcs:rdl:std:Organization name)
org_name_ecl_id Error T6: assigning_organization_location does not have a parameter org_name_ecl_id	"'urn:plcs:rdl:std'"
loc_val Error T6: assigning_organization_location does not have a parameter loc_val	Block 73 LOCATION	The address of the DRMO, the service, agency, department or MAP country that the item was shipped to.
loc_id_type Error T6: assigning_organization_location does not have a parameter loc_id_type	"Location identification code" (urn:plcs:rdl:std:Location identification code)
loc_id_type_ecl_id Error T6: assigning_organization_location does not have a parameter loc_id_type_ecl_id	"'urn:plcs:rdl:std'"

Template #11 (Figure 10): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description	The remarks block is represented by assigning_descriptor.
Parameter name:	Parameter value:	Parameter description:
descr	Block REMARKS	The text being assigned as a descriptor.
class_name	[Comment] Error RDL1: The class Comment does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	"'urn:plcs:rdl:std'"	The id of the External_class_library that stores the class.
is_assigned_to	Activity_actual	The entity to which the Document_assignment is assigned.

Template #12 (Figure 10): Error T7: assigning_activity_property does not exist in capability: assigning_process_properties assigning_activity_property Show template parametersHide all template parametersShow all template parameters
Description	Assignment of properties to the activity. This template assigns the property name, while template #13 activity_property_value Error T1: DEX activity_property_value not in Dexlib assigns the value and unit to a property instantiated by this template.

Template #12 (Figure 10): Error T7: assigning_activity_property does not exist in capability: assigning_process_properties assigning_activity_property Hide template parametersHide all template parametersShow all template parameters
Description	Assignment of properties to the activity. This template assigns the property name, while template #13 activity_property_value Error T1: DEX activity_property_value not in Dexlib assigns the value and unit to a property instantiated by this template.
Parameter name:	Parameter value:	Parameter description:
property_class_name Error T6: assigning_activity_property does not have a parameter property_class_name	[Man_hours_to_remove] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , or [Man_hours_to_repair_or_overhaul] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , or [Man_hours_to_install] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
property_ecl_id Error T6: assigning_activity_property does not have a parameter property_ecl_id	"'urn:plcs:rdl:pam738_751'"
described_element Error T6: assigning_activity_property does not have a parameter described_element	Activity_actual

Template #13 (Figure 10): Error T7: activity_property_value does not exist in capability: representing_properties_numerically activity_property_value Show template parametersHide all template parametersShow all template parameters
Description	Assigning the value and unit to an activity property.

Template #13 (Figure 10): Error T7: activity_property_value does not exist in capability: representing_properties_numerically activity_property_value Hide template parametersHide all template parametersShow all template parameters
Description	Assigning the value and unit to an activity property.
Parameter name:	Parameter value:	Parameter description:
value Error T6: activity_property_value does not have a parameter value	Block 35 (assigned to [Man_hours_to_remove] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml ) Block 42 (assigned to [Man_hours_to_repair_or_overhaul] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml ) Block 65 (assigned to [Man_hours_to_install] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml )
unit_class_name Error T6: activity_property_value does not have a parameter unit_class_name	For Block 35, 42 and 65: [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml
unit_ecl_id Error T6: activity_property_value does not have a parameter unit_ecl_id	"'urn:plcs:rdl:pam738_751'"
rep_class_name Error T6: activity_property_value does not have a parameter rep_class_name	"PAM738-751context"
rep_ecl_id Error T6: activity_property_value does not have a parameter rep_ecl_id	"'urn:plcs:rdl:pam738_751'"
property Error T6: activity_property_value does not have a parameter property	The Activity_property entity instantiated by the template assigning_activity_property Error T1: DEX assigning_activity_property not in Dexlib .

Template #15 (Figure 10): assigning_approval Hide template parametersHide all template parametersShow all template parameters
Description	Any signature that is required should be represented as an approval.
Parameter name:	Parameter value:	Parameter description:
person_id Error T6: assigning_approval does not have a parameter person_id	Block 36 PID, and Block 40 PID, and Block 71 PID
person_id_class_name Error T6: assigning_approval does not have a parameter person_id_class_name	[PID] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
person_id_ecl_id Error T6: assigning_approval does not have a parameter person_id_ecl_id	"'urn:plcs:rdl:pam738_751'"
last_name Error T6: assigning_approval does not have a parameter last_name	"/NULL" [Mandatory value is not known, not provided in DA2410 form]
org_id Error T6: assigning_approval does not have a parameter org_id	Block 34 UIC, and Block 41 UIC, and Block 64 UIC	The identifier (UIC) of the organization in which the approving person work.
	Block 34 CAGE code (for contractor), and Block 41 CAGE code (for contractor), and Block 64 CAGE code (for contractor)	The identifier (CAGE code) of the contractor organization in which the approving person work.
org_id_class_name Error T6: assigning_approval does not have a parameter org_id_class_name	[UIC] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (Unit Identification Code [UIC] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml ) being used to classify the identification (Identification_assignment) of the organization. This provides the role or reason for the identification.
	"CAGE code" (urn:plcs:rdl:std:CAGE code) for contractors	The name of the class ( "CAGE code" (urn:plcs:rdl:std:CAGE code)) being used to classify the identification (Identification_assignment) of the contractor's organization. This provides the role or reason for the identification.
org_id_ecl_id Error T6: assigning_approval does not have a parameter org_id_ecl_id	"'urn:plcs:rdl:pam738_751'" for organizations identified with UIC.
	"'urn:plcs:rdl:std'" for organizations (contractors) identified with CAGE code.
items	Activity_actual	The items to which the approval is assigned

Template #16 (Figure 10): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Further characterization of the activity is possible through external reference data, e.g. an Enhanced Special Repair Activity
Parameter name:	Parameter value:	Parameter description:
class_name	For Block 48: [SRA_ESRA] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the External_class_library that stores the definition for the class being used.
items	Activity_actual	The items to which the External_class is assigned.

Template #17 (Figure 10): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Name of Activity_method. The Activity_method is not given by the DA2410 form, but the process is governed by PAM738_751, so a fixed value is used here.
Parameter name:	Parameter value:	Parameter description:
class_name	'[PAM738_751_method] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the External_class_library that stores the definition for the class being used.
items	Activity_method	The items to which the External_class is assigned.

Template #18 (Figure 10): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Purpose of the Activity_method. The Activity_method is not given by the DA2410 form, but the process is governed by PAM738_751, so a fixed value is used here.
Parameter name:	Parameter value:	Parameter description:
class_name	[Aviation_maintenance] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the External_class_library that stores the definition for the class being used.
items	Activity_method	The items to which the External_class is assigned.

Reportable item identification

The subject of the activity that is recorded on the DA 2410 form is referred to as the reportable item. It is normally the aircraft or component on the aircraft on which the activity was undertaken. It is a physical product, therefore is represented in ISO 10303-239 PLCS by a Product_as_individual. This is described in the capability C045: representing_product_as_individual.

The reportable item is identified on the DA 2410 form by the part number, serial number, NSN number, part name and the CAGE code of the organization that manufactured the part.

The serial number is the identification of the Product_as_individual and is represented by an Identification_assignment classified as "Serial identification code" (urn:plcs:rdl:std:Serial identification code).

Each Product_as_individual has a version, represented by a Product_as_realized and identified by an Identification_assignment

The part number identifies the part type or design from which the reportable item was manufactured. In ISO 10303-239 PLCS the part type is represented by a Part (For details see the capability C002: representing_parts) which is identified by the part number. The identification is represented by an Identification_assignment assigned to the Part. (For details of identification, see the capability: C001: assigning_identifiers and the template: C001: assigning_identifiers). The identifiers are classified as a: "Part identification code" (urn:plcs:rdl:std:Part identification code) and "NATO Stock number" (urn:plcs:rdl:std:NATO Stock number).

The NSN is a classification of the fit, form and function, or interchangeability of the part, therefore the NSN is treated as a classification of the part. This is represented by the template: assigning_code.

A link is maintained between the representation of an actual product, (Product_as_individual) and the part type or design which is represented by a Part by instantiating a Product_design_to_individual.

The manufacturing organization is represented by assigning (Organization_or_person_in_organization_assignment) an Organization to the Product_as_individual. The assignment is classified as "Manufacturer of" (urn:plcs:rdl:std:Manufacturer of) to indicate that the organization is the manufacturer of the part.

The DA 2410 form does not record the Unique Identification (UID) (http://www.acq.osd.mil/dpap/UID/) of a reportable item. If a UID is present, it is treated as an identification represented in ISO 10303-239 PLCS by the assignment of an identification to the Product_as_individual representing the reportable item. The Identification_assignment is classified as [UID]
Error RDL1: The class UID does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml
. For details of identification, see the capability: C001: assigning_identifiers and the template: C001: assigning_identifiers.

The reportable_item is related back to the Activity_actual that represents the DA 2410 form by an instance of Applied_activity_assignments classified as [Activity_input_Reportable_item]
Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
. The use of Applied_activity_assignment is detailed in the template assigning_activity.

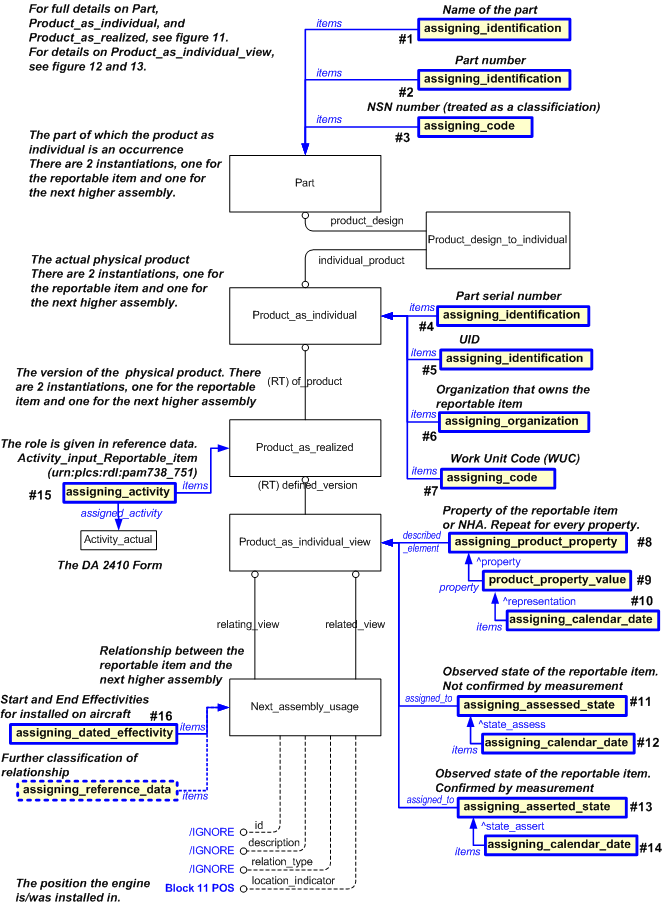

An EXPRESS-G diagram showing how the reportable item is identified is shown below.

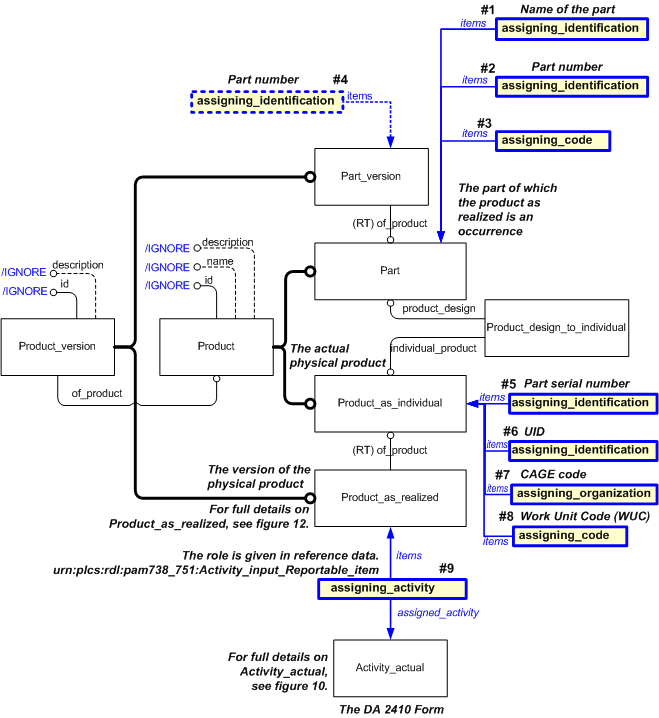

Figure 11 —  EXPRESS-G diagram for identifying reportable item

The following templates are used in the diagram and represent the various blocks on the DA2410 form:

Template #1 (Figure 11): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	The item name, NOMENCLATURE (the name of the part).
Parameter name:	Parameter value:	Parameter description:
id	Block 1 NOMENCLATURE	The identifier being assigned.
	For Next Higher Assembly: Block 20 REMOVED FROM (NOMEN NHA), and Block 50 INSTALLED ON (NOMEN NHA)	The identifier being assigned.
	For Aircraft Model: Block 30 ACFT MODEL, and Block 60 ACFT MODEL	The identifier being assigned.
	For failing subcomponent: Block 49d NOMENCLATURE	The identifier being assigned.
id_class_name	"Part name" (urn:plcs:rdl:std:Part name)	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @id_class_name.
org_id	"/NULL" NOTE    The DA 2410 form only provides a part name, number and serial number. It does not provide the organization that assigned them. Hence /NULL is used. The use of a UID with an associated organization will resolve this.	The identifier or name of the organization that "owns" the identifier.
org_id_class_name	[Unknown_organization] Error RDL1: The class Unknown_organization does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	Since organization is unknown.
org_id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the org_id_class_name class items.
items	Part	The part that is being identified by name (and reported on by the DA2410 form), represented as a Part.

Template #2 (Figure 11): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	The Part number (identifier) of the item.
Parameter name:	Parameter value:	Parameter description:
id	Block 3 PART NUMBER	The identifier being assigned.
	For Next Higher Assembly: Block 22 PART NUMBER (NHA), and Block 52 PART NUMBER (NHA)	The identifier being assigned.
	For failing subcomponent: Block 49e PART NUMBER	The identifier being assigned.
	For new part number: Block 68 NEW PN	Assign a assigning_calendar_date to the old Part Number Identification_assignment with class_name = "Date actual end" (urn:plcs:rdl:std:Date actual end), and assign a assigning_calendar_date to this new Part Number identification_assignment with id_class_name = "Date actual start" (urn:plcs:rdl:std:Date actual start).
id_class_name	"Part identification code" (urn:plcs:rdl:std:Part identification code)	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @id_class_name.
org_id	"/NULL" NOTE    The DA 2410 form only provides a part name, number and serial number. It does not provide the organization that assigned them. Hence /NULL is used. The use of a UID with an associated organization will resolve this.	The identifier or name of the organization that "owns" the identifier.
org_id_class_name	[Unknown_organization] Error RDL1: The class Unknown_organization does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	Since organization is unknown.
org_id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the org_id_class_name class items.
items	Part	The part that is being identified (and reported on by the DA2410 form), represented as a Part.

Template #4 (Figure 11): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	Software version for the item entered in Block 1, when required by TB 1-1500-341-01.
Parameter name:	Parameter value:	Parameter description:
id	Block 19 VERSION	The identifier being assigned.
id_class_name	"Version identification code" (urn:plcs:rdl:std:Version identification code)	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @id_class_name.
org_id	"/NULL" NOTE    The DA 2410 form only provides a part name, number and serial number. It does not provide the organization that assigned them. Hence /NULL is used. The use of a UID with an associated organization will resolve this.	The identifier or name of the organization that "owns" the identifier.
org_id_class_name	[Unknown_organization] Error RDL1: The class Unknown_organization does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	Since organization is unknown.
org_id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the org_id_class_name class items.
items	Part_version	The part version of the software, represented as a Part_version.

Template #5 (Figure 11): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	The serial number of the item.
Parameter name:	Parameter value:	Parameter description:
id	Block 4 SERIAL NUMBER	The identifier being assigned.
	For Next Higher Assembly: Block 23 SERIAL NUMBER (NHA), and Block 53 SERIAL NUMBER (NHA)	The identifier being assigned.
	For the History Recorder: Block 28 HISTORY RECORDER S/N, and Block 58 HISTORY RECORDER S/N	The identifier being assigned.
	For Aircraft: Block 31 ACFT S/N, and Block 61 ACFT S/N	The identifier being assigned.
	For failing subcomponent: Block 49f SERIAL NUMBER	The identifier being assigned.
	For a New Serial Number: Block 69 NEW SN	The identifier being assigned.
id_class_name	"Serial identification code" (urn:plcs:rdl:std:Serial identification code)	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @id_class_name.
org_id	"/NULL" NOTE    The DA 2410 form only provides a part name, number and serial number. It does not provide the organization that assigned them. Hence /NULL is used. The use of a UID with an associated organization will resolve this.	The identifier or name of the organization that "owns" the identifier.
org_id_class_name	[Unknown_organization] Error RDL1: The class Unknown_organization does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	Since organization is unknown.
org_id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the org_id_class_name class items.
items	Product_as_individual	The individual product that is being identified (and reported on by the DA2410 form), represented as a Product_as_individual.

Template #6 (Figure 11): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	The UID (Unified Identifier) of the item.
Parameter name:	Parameter value:	Parameter description:
id	The UID code [not on DA Form 2410]	The identifier being assigned.
id_class_name	[UID] Error RDL1: The class UID does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the External_class_library storing the @id_class_name.
org_id	UIC or CAGE code of UID owner.	The identifier or name of the organization that owns the UID.
org_id_class_name	[UIC] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml or "CAGE code" (urn:plcs:rdl:std:CAGE code)	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	"'urn:plcs:rdl:pam738_751'" or "'urn:plcs:rdl:std'"	The id of the External_class_library storing the @org_id_class_name.
items	Product_as_individual	The individual product that is being identified (and reported on by the DA2410 form), represented as a Product_as_individual.

Template #8 (Figure 11): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Applicable Work Unit Code.
Parameter name:	Parameter value:	Parameter description:
class_name	Block 14 WUC	The text representing the code.
code_class_name	[Work_unit_code] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	Product_as_individual	The individual product to which the WUC is being assigned, represented as a Product_as_individual.

The use of template #9 assigning_activity in Figure 11 is identical to, and described in, template table: Template #1(Figure 10).

Properties of the Reportable item

The DA2410 form records a number of properties of the reportable item, such as the aircraft hours, the hours since last repair. These are represented as properties in ISO 10303-239 PLCS and are described in the capabilities C076: assigning_product_properties, C079: representing_properties_numerically and detailed in the templates assigning_product_property and product_property_value
Error T1: DEX product_property_value not in Dexlib
.

The template assigning_product_property is used to assign a named property to the product. The name of the property is provided by reference data. The template product_property_value
Error T1: DEX product_property_value not in Dexlib
is used to represent the value of the property and its unit. The units are represented by reference data.

In ISO 10303-239 PLCS properties on a product are specified in a given context or view on a version of product, for example, the design cost properties would be represented in the design view. The context dependent view of a version Product_as_realized is represented by Product_as_individual_view and an associated context represented by a View_definition_context. The context is classified according to the life cycle view and application domain. For the DA2410 form the life cycle view is "Support stage" (urn:plcs:rdl:std:Support stage) and the application domain is "Product life cycle support" (urn:plcs:rdl:std:Product life cycle support)

An EXPRESS-G diagram showing how properties on reportable on a reportable item are represented is shown below in Figure 12.

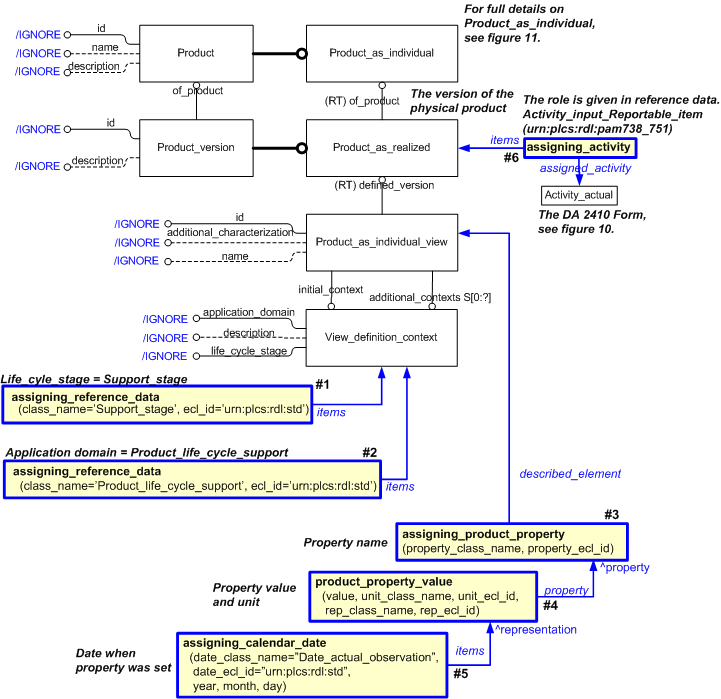

Figure 12 —  EXPRESS-G diagram for properties on reportable item

The following templates are used in the diagram and represent the various blocks on the DA2410 form:

Template #3 (Figure 12): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Properties can be assigned to individual products through this template. The value of the property is given in template table: Template #4(Figure 12).
Parameter name:	Parameter value:	Parameter description:
property_class_name	For Block 6: [Number_previous_overhauls] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 7: [Time_since_last_installed] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 8: [Time_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 9: [Time_since_overhaul] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 12: [Hot_section_factors] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 13: [Meter_hour_readings] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 15a: [LCF1] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 15b: [LCF2] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 15c: [TTI] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 15d: [Cumulative_operating_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 16: [Number_starts_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 17: [Hours_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 18: [Number_starts_since_overhauled] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 24 and Block 54: [Aircraft_hours_property] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , or if NHA is not the Aircraft: [NHA_operating_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 25 and Block 55: [NHA_cumulative_counts_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 26 and Block 56: [APU_start_meter] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 27 and Block 57: [APU_hour_meter] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 29 and Block 59: [History_recorder_reading] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
	For Block 49g: [Cumulative_counts_hours_last_depot_repair] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"'urn:plcs:rdl:pam738_751'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	Product_as_individual_view	The item to which the property is assigned

Template #4 (Figure 12): Error T7: product_property_value does not exist in capability: representing_properties_numerically product_property_value Show template parametersHide all template parametersShow all template parameters
Description	Used to assign property values to properties instantiated e.g. in the template assigning_product_property. Property values are assumed to have been assigned at the same date as the Product_as_realized has been given. If this is not the case, a specific date should be assigned to the property value through the use of template assigning_calendar_date.

Template #4 (Figure 12): Error T7: product_property_value does not exist in capability: representing_properties_numerically product_property_value Hide template parametersHide all template parametersShow all template parameters
Description	Used to assign property values to properties instantiated e.g. in the template assigning_product_property. Property values are assumed to have been assigned at the same date as the Product_as_realized has been given. If this is not the case, a specific date should be assigned to the property value through the use of template assigning_calendar_date.
Parameter name:	Parameter value:	Parameter description:
value Error T6: product_property_value does not have a parameter value	Block 6 PREV O/H	The value of the property [Number_previous_overhauls] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 7 TIME SINCE LAST INST (HRS)	The value of the property [Time_since_last_installed] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 8 TIME SINCE NEW (HRS)	The value of the property [Time_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 9 TIME SINCE OVERHAUL (HRS)	The value of the property [Time_since_overhaul] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 12 HSF	The value of the property [Hot_section_factors] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 13 METER HRS	The value of the property [Meter_hour_readings] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 15a COMPONENT CUMULATIVE COUNT/HOURS; LCF 1	The value of the property [LCF1] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 15b COMPONENT CUMULATIVE COUNT/HOURS; LCF 2	The value of the property [LCF2] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 15c COMPONENT CUMULATIVE COUNT/HOURS; TTI	The value of the property [TTI] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 15d COMPONENT CUMULATIVE COUNT/HOURS; OP HOURS	The value of the property [Cumulative_operating_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 16 APU SSN	The value of the property [Number_starts_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 17 APU HRS	The value of the property [Hours_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 18 APU SSO	The value of the property [Number_starts_since_overhauled] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 24 HOURS (NHA), and Block 54 HOURS (NHA)	The value of the property [Aircraft_hours_property] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , or if NHA is not the Aircraft [NHA_operating_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , in template table: Template #3(Figure 12)
	Block 25 NHA CUMULATIVE COUNTS/HOURS, and Block 55 NHA CUMULATIVE COUNTS/HOURS	The value of the property [NHA_cumulative_counts_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 26 APU START METER, and Block 56 APU START METER	The value of the property [APU_start_meter] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 27 APU HOUR METER, and Block 57 APU HOUR METER	The value of the property [APU_hour_meter] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 29 HISTORY RECORDER READING, and Block 59 HISTORY RECORDER READING	The value of the property [History_recorder_reading] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	Block 49g CUMULATIVE COUNTS/hours LAST DEPOT REPAIR	The value of the property [Cumulative_counts_hours_last_depot_repair] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
unit_class_name Error T6: product_property_value does not have a parameter unit_class_name	For Block 6: [Count] Error RDL1: The class Count does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Number_previous_overhauls] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 7: [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Time_since_last_installed] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 8: [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Time_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 9: [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Time_since_overhaul] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 12: [Hot_section_factor_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Hot_section_factors] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 13: [Hour_meter_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Meter_hour_readings] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 15a: [LCF1_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [LCF1] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 15b: [LCF2_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [LCF2] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 15c: [TTI_count] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [TTI] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 15d: [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Cumulative_operating_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 16: [Engine_starts] Error RDL1: The class Engine_starts does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Number_starts_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 17: [Aircraft_hour] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Hours_since_new] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 18: [Engine_starts] Error RDL1: The class Engine_starts does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Number_starts_since_overhauled] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 24: [Aircraft_hour] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml or [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml , and Block 54: [Aircraft_hour] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml or [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit [Aircraft_hour] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml corresponding to the property [Aircraft_hours_property] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , or if NHA is not the Aircraft: the unit [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml corresponding to the property [NHA_operating_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , in template table: Template #3(Figure 12)
	For Block 25: [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml , and Block 55: [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [NHA_cumulative_counts_hours] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 26: [APU_start_meter_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , and Block 56: [APU_start_meter_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [APU_start_meter] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 27: [Hour_meter_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , and Block 57: [Hour_meter_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [APU_hour_meter] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 29: [History_recorder_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml , and Block 59: [History_recorder_unit] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [History_recorder_reading] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
	For Block 49G: [hour] Error RDL1: The class hour does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The unit corresponding to the property [Cumulative_counts_hours_last_depot_repair] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml in template table: Template #3(Figure 12)
unit_ecl_id Error T6: product_property_value does not have a parameter unit_ecl_id	"'urn:plcs:rdl:pam738_751'"
rep_class_name Error T6: product_property_value does not have a parameter rep_class_name	"PAM738-751context"
rep_ecl_id Error T6: product_property_value does not have a parameter rep_ecl_id	"'urn:plcs:rdl:pam738_751'"
property Error T6: product_property_value does not have a parameter property	The Assigned_property entity instantiated by the template assigning_product_property.

The use of template #6 assigning_activity in Figure 12 is identical to, and described in, template table: Template #1(Figure 10).

States of the Reportable item

The DA2410 form records a number of states of the reportable item and the next higher assembly, such as the fault state of the reportable item and the serviceability state.

In ISO 10303-239 PLCS a distinction is made between states that a product could possibly be in, the set of all fault states for example, and the actual state that a product is in. These are referred to defined states and observed states respectively and are represented by State_definition and State_observed.

An observed state is related to the defined state (State_definition), of which it is an occurrence, by State_assessment and State_assertion.

The State_assessment indicates that an assumption has been made that something, such as a Product_as_realized, is in a state (State_observed) that resembles the state defined by the State_definition.

The State_assertion is used to assert that, based on evidence such as measurements, something, such as a Product_as_realized, is in a state (State_observed) that is equal to the state defined by the State_definition.

The representations of defined and observed states are described in the capabilities C007: representing_state_type and C041: representing_state_observed. The representation of an assessed state is detailed in the template assigning_assessed_state and the representation of an asserted state is detailed in the template assigning_asserted_state.

An EXPRESS-G diagram showing how the state of the reportable item is identified is shown below.

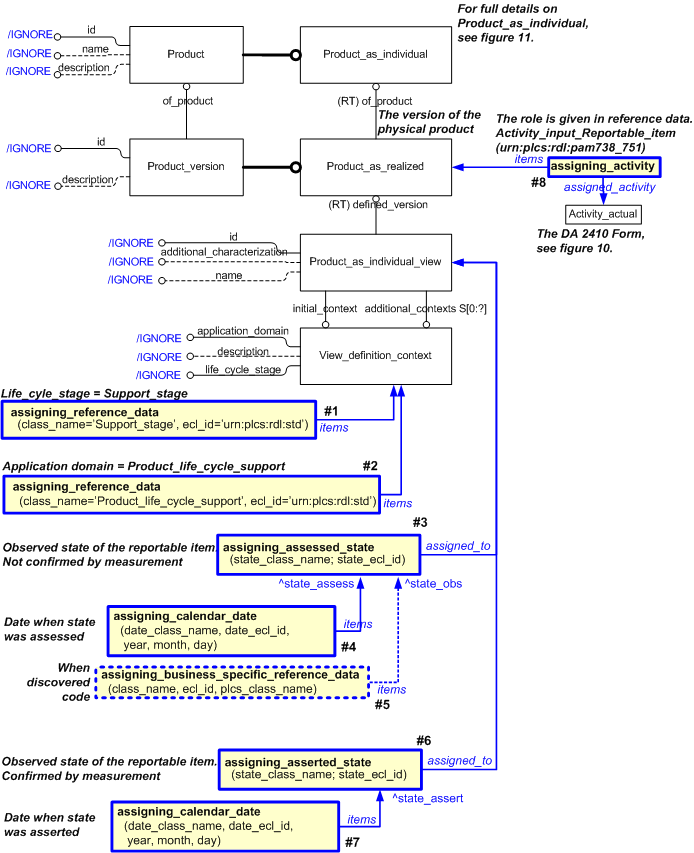

Figure 13 —  EXPRESS-G diagram for state on reportable item

The following templates are used in the diagram and represent the various blocks on the DA2410 form.

The use of template #1 assigning_reference_data in Figure 13 is identical to, and described in, template table: Template #1(Figure 12).

The use of template #2 assigning_reference_data in Figure 13 is identical to, and described in, template table: Template #2(Figure 12).

Template #3 (Figure 13): assigning_assessed_state Hide template parametersHide all template parametersShow all template parameters
Description	An assessed state of an item, expressed in terms of State_definition (e.g. failure code).
Parameter name:	Parameter value:	Parameter description:
state_class_name	For Block 10 FAILURE CODE: [Failure_code] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the State_definition name.
	For Block 43 INSPECTION AND ACTION CODES: [Inspection_and_action_codes] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the State_definition name.
	For Block 37: [Malfunction_code] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the State_definition name.
state_ecl_id	"'urn:plcs:rdl:pam738_751'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @state_class_name.
assigned_to	Product_as_individual_view	The activity, product, individual, task_method, etc to which the state is assigned

Template #5 (Figure 13): assigning_business_specific_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Encoding of when the state (fault) was discovered.
Parameter name:	Parameter value:	Parameter description:
class_name	For Block 38 WHEN DISCOVERED: [When_discovered_codes] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the business_specific External_class_library that stores the class.
plcs_class_name	[State_context] Error RDL1: The class State_context does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the first plcs superclass encountered in the plsc standard reference data library (External_class) when traversing the class hierarchy for the assigned business specific (External_class).
items	Activity_actual	The activity that is being reported on by the DA2410 form, represented as an Activity_actual.

Template #6 (Figure 13): assigning_asserted_state Hide template parametersHide all template parametersShow all template parameters
Description	An assertion (verification) of a state of an item, expressed in terms of State_definition (e.g. failure code).
Parameter name:	Parameter value:	Parameter description:
state_class_name	For Block 47 ACTUAL FAILURE CODE: [Failure_code] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the State_definition name.
	For Block 49a FAIL CODE: [Failure_code] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The class name of the External_class corresponding to the State_definition name.
state_ecl_id	"'urn:plcs:rdl:pam738_751'"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @state_class_name.
assigned_to	Product_as_individual_view	The activity, product, individual, task_method, etc to which the state is assigned

The use of template #8 assigning_activity in Figure 13 is identical to, and described in, template table: Template #1(Figure 10).

APU, History recorder, On Board Monitoring System

The DA2410 form also provides details of the Auxiliary Power Unit, History recorder, On Board Monitoring System on the aircraft. These are treated like any other products therefore represented by instances of Product_as_individuals as described in Reportable item identification. Properties are represented by instances of Assigned_property as described in Properties of the Reportable item. These two sections also contain more detailed information about the APU, History recorder, and the On Board Monitoring System.

The APU, History recorder, and the On Board Monitoring System are related back to the Activity_actual that represents the DA 2410 form by an instance of Applied_activity_assignments classified as:

• [Activity_input_APU]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  for the APU;
• [Activity_input_History_recorder]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  for the History recorder";
• [Activity_input_On_board_monitoring_system]
  Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml
  for the on board monitoring system.

The use of Applied_activity_assignment is detailed in the template assigning_activity.

Installation/Removal position on the Aircraft

The DA2410 form specifies the position of the reportable item on the aircraft by referring to the next higher assembly from which the reportable item is removed. The next higher assembly is treated like any other product and is therefore represented by instances of Product_as_individuals as described in Reportable item identification.

The relationship between the reportable item and the next higher assembly is represented by a Next_assembly_usage This is described in the capability representing_product_as_realized_assembly
Error C1: Capability representing_product_as_realized_assembly not in dex_index.xml
.

The reportable item can be installed or removed from a series of aircraft. The dates when the installation / removal occurs is represented by dated effectivities (Dated_effectivity) applied to the Next_assembly_usage. This gives the start and end date for which the Next_assembly_usage. is valid. In other words the date of installation / removal. The use of effectivities is described in the capability C006: assigning_effectivity and the assignment of a dated effectivity is detailed in the template assigning_dated_effectivity.

An EXPRESS-G diagram showing how the position of the reportable item on the aircraft is represented is shown below in Figure 14.

Figure 14 —  EXPRESS-G diagram for installation/removal position on aircraft

The following templates are used in the diagram and represent the various blocks on the DA2410 form.

The use of template #1 assigning_identification in Figure 14 is identical to, and described in, template table: Template #1(Figure 11).

The use of template #2 assigning_identification in Figure 14 is identical to, and described in, template table: Template #2(Figure 11).

The use of template #3 assigning_code in Figure 14 is identical to, and described in, template table: Template #3(Figure 11).

The use of template #4 assigning_identification in Figure 14 is identical to, and described in, template table: Template #5(Figure 11).

The use of template #5 assigning_identification in Figure 14 is identical to, and described in, template table: Template #6(Figure 11).

The use of template #6 assigning_organization in Figure 14 is identical to, and described in, template table: Template #7(Figure 11).

The use of template #7 assigning_code in Figure 14 is identical to, and described in, template table: Template #8(Figure 11).

The use of template #8 assigning_product_property in Figure 14 is identical to, and described in, template table: Template #3(Figure 12).

The use of template #9 product_property_value
Error T1: DEX product_property_value not in Dexlib
in Figure 14 is identical to, and described in, template table: Template #4(Figure 12).

The use of template #10 assigning_calendar_date in Figure 14 is identical to, and described in, template table: Template #5(Figure 12).

The use of template #11 assigning_assessed_state in Figure 14 is identical to, and described in, template table: Template #3(Figure 13).

The use of template #12 assigning_calendar_date in Figure 14 is identical to, and described in, template table: Template #4(Figure 12).

The use of template #13 assigning_asserted_state in Figure 14 is identical to, and described in, template table: Template #5(Figure 13).

The use of template #14 assigning_calendar_date in Figure 14 is identical to, and described in,
Error template_table: template table referenced by figure_id=prop_expg instance=
6 does not exist
template table: Template #6(Figure 12).

The use of template #15 assigning_activity in Figure 14 is identical to, and described in, template table: Template #1(Figure 10).

Replaced Parts

The DA2410 form provides details of the parts that were replaced during a repair/overhaul cycle. (Blocks 49).

Activities to be performed on a product are frequently defined as tasks or maintenance procedures. These are developed as part of the support solution for a product. These tasks specifications provide a structured description of how to perform a maintenance activity and detail the resources that are required. In ISO 10303-239 PLCS tasks are represented by Task_element_assignment described in C015: representing_task and the resources required to perform the task are represented by Resource_item as described in C052: representing_resource. The actual resource that was used to perform the task is represented by Resource_as_realized as described in C085: representing_resource_as_realized. The DA2410 reports on the activity undertaken, it does not make any reference to either the task or the resources. It simply lists the parts that were replaced during an activity. This could be represented in ISO 10303-239 PLCS by assigning the Activity_actual to the representation of the replaced parts. However, in order to enable the representation of the tasks and resources at some stage, it is recommended that the replaced parts are represented by Resource_as_realized and Resource_item as shown in Figure 15.

The Resource_item represents a resource - something that is required to perform a task. For example tools or spare parts. The Resource_as_realized represents the actual resource that was used during the activity, a particular part - the parts that were replaced.

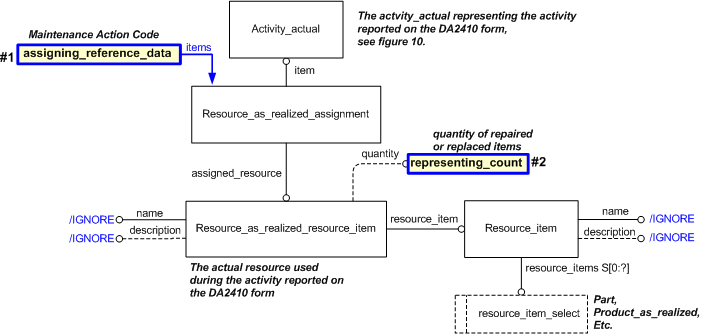

Figure 15 —  EXPRESS-G diagram for recording parts used

The following templates are used in the diagram and represent the various blocks on the DA2410 form:

Template #1 (Figure 15): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	The correct Maintenance Action Code for each failing item.
Parameter name:	Parameter value:	Parameter description:
class_name	For Block 49c ACT: [Maintenance_action_codes] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the External_class_library that stores the definition for the class being used.
items	Resource_as_realized_assignment	The items to which the External_class is assigned.

Note:
Mapping of Block 49a is described in template table: Template #3(Figure 13).
Mapping of Block 49d is described in template table: Template #1(Figure 11).
Mapping of Block 49e is described in template table: Template #2(Figure 11).
Mapping of Block 49f is described in template table: Template #5(Figure 11).
Mapping of Block 49g is described in template table: Template #3(Figure 12) and template table: Template #4(Figure 12).

Change of Part Number, Serial Number, and NSN

During repair or overhaul, an item may be given a new Part Number, Serial Number and NSN code. Typically when a change is made to the fit, form or functionality. In order to track the reportable item through life, it is important to maintain a history of the identifiers that have been assigned to the reportable item. This is represented by assigning multiple identifiers to the reportable item and using dated effectivity (applicability) to determine which of the Part Number, Serial Number, and NSN identifiers are applicable at any moment in time.

The use of effectivities is described in the capability C006: assigning_effectivity and the assignment of a dated effectivity is detailed in the template assigning_dated_effectivity.

An EXPRESS-G diagram showing how the changes to Part Number, Serial Number and NSN codes is represented shown below in Figure 16.

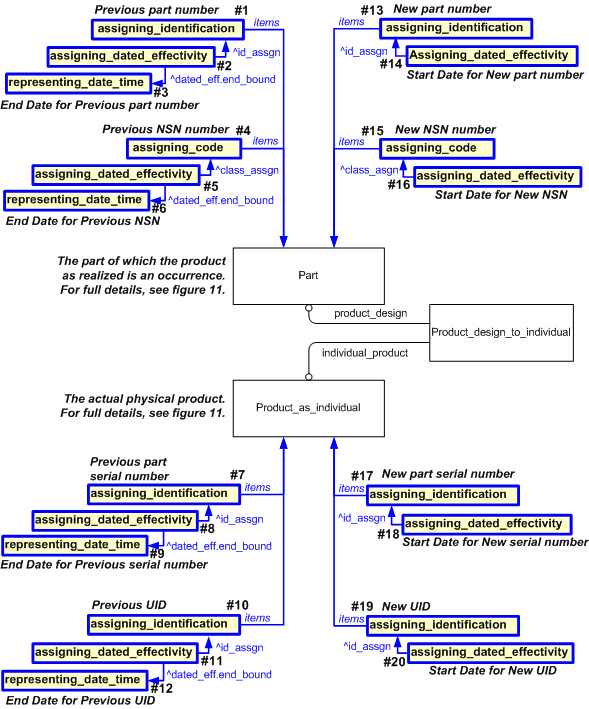

Figure 16 —  EXPRESS-G diagram for new PN, SN and NSN

The following templates are used in the diagram and represent the various blocks on the DA2410 form.

The use of template #1 assigning_identification in Figure 16 is identical to, and described in, template table: Template #2(Figure 11).

Template #2 assigning_dated_effectivity in Figure 16 should not be instantiated when assigning an end date to the effectivity. Instead, the relevant existing dated effectivity should be extended with the end date, as described in template table: Template #3(Figure 16) below.

The use of template #4 assigning_code in Figure 16 is identical to, and described in, template table: Template #3(Figure 11).

Template #5 assigning_dated_effectivity in Figure 16 should not be instantiated when assigning an end date to the effectivity. Instead, the relevant existing dated effectivity should be extended with the end date, as described in template table: Template #6(Figure 16) below.

The use of template #7 assigning_identification in Figure 16 is identical to, and described in, template table: Template #5(Figure 11).

Template #8 assigning_dated_effectivity in Figure 16 should not be instantiated when assigning an end date to the effectivity. Instead, the relevant existing dated effectivity should be extended with the end date, as described in template table: Template #9(Figure 16) below.

The use of template #10 assigning_identification in Figure 16 is identical to, and described in, template table: Template #6(Figure 11).

Template #11 assigning_dated_effectivity in Figure 16 should not be instantiated when assigning an end date to the effectivity. Instead, the relevant existing dated effectivity should be extended with the end date, as described in template table: Template #12(Figure 16) below.

The use of template #13 assigning_identification in Figure 16 is identical to, and described in, template table: Template #2(Figure 11).

The use of template #15 assigning_code in Figure 16 is identical to, and described in, template table: Template #3(Figure 11).

The use of template #17 assigning_identification in Figure 16 is identical to, and described in, template table: Template #5(Figure 11).

The use of template #19 assigning_identification in Figure 16 is identical to, and described in, template table: Template #6(Figure 11).

Inventory Gain and Loss

The DA2410 form specifies that a reportable item has been added to or removed from the inventory. The action of reporting this event, the DA 2410 form, is represented in ISO 10303-239 PLCS by an instantiation of an Activity_actual as previously described in Activity Record.

In ISO 10303-239 PLCS a distinction is made between, actual products, such as an aircraft or engine, products that can be used as a resource to do a task and products that are managed in an inventory.

A product that is managed in an inventory is represented by a Managed_resource which refers the resource that is being managed, represented by a Resource_item. The Resource_item identifies a product type or actual product that is required for a particular task. In this case, the Resource_item links to the Product_as_individuals representing the reportable item, as described in Reportable item identification.

ISO 10303-239 PLCS represents the event of increasing or decreasing the inventory by an instantiation of a Increasing_resource_event or Decreasing_resource_event respectively. Each resource event is linked back to the Activity_actual by an instance of Applied_activity_assignment. The use of Applied_activity_assignment is detailed in the template assigning_activity.

An EXPRESS-G diagram showing how the inventory event is represented is shown below.

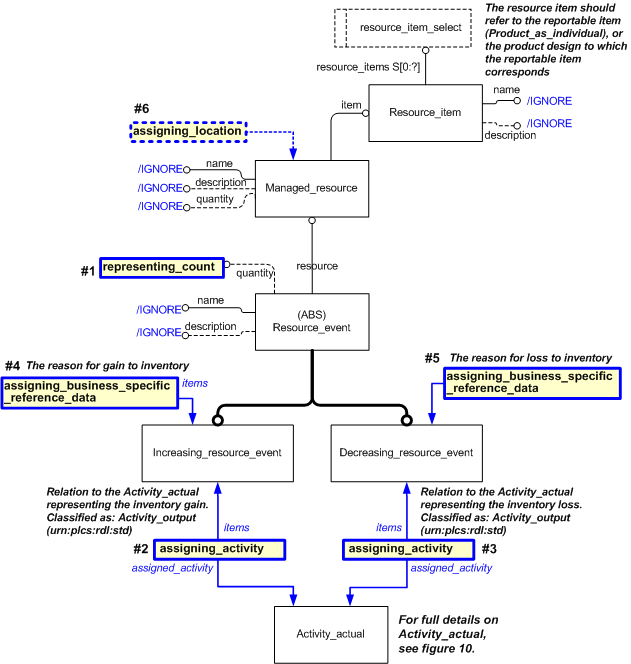

Figure 17 —  EXPRESS-G diagram for representing inventory events

The following templates are used in the diagram and represent the various blocks on the DA2410 form.

The use of template #2 assigning_activity in Figure 17 is identical to, and described in, template table: Template #1(Figure 10).

The use of template #3 assigning_activity in Figure 17 is identical to, and described in, template table: Template #1(Figure 10).

Template #4 (Figure 17): assigning_business_specific_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Block 44 - The reason for the gains to the inventory
Parameter name:	Parameter value:	Parameter description:
class_name	[Equipment_gain_codes] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the business_specific External_class_library that stores the class.
plcs_class_name	"Increasing resource event" (urn:plcs:rdl:std:Increasing resource event)	The name of the first plcs superclass encountered in the plsc standard reference data library (External_class) when traversing the class hierarchy for the assigned business specific (External_class).
items	Increasing_resource_event	The items to which the External_class is assigned.

Template #5 (Figure 17): assigning_business_specific_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Block 66 - The reason for the loss to the inventory
Parameter name:	Parameter value:	Parameter description:
class_name	[Equipment_loss_codes] Error RDL4: The URI urn:plcs:rdl:pam738_751 is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the business specific reference data library (External_class) being used to classify something
ecl_id	"'urn:plcs:rdl:pam738_751'"	The id of the business_specific External_class_library that stores the class.
plcs_class_name	"Decreasing resource event" (urn:plcs:rdl:std:Decreasing resource event)	The name of the first plcs superclass encountered in the plsc standard reference data library (External_class) when traversing the class hierarchy for the assigned business specific (External_class).
items	Decreasing_resource_event	The items to which the External_class is assigned.

Example instantiations

The following sections show some examples of the DA2410 forms and the corresponding ISO 10303-239 instantiations that represent them.

Example DA 2410 - Installation

The following example shows the information recorded on a DA 2410 to record the installation of a component on an aircraft. The example form is given in Table 1 and a corresponding DA2410 XML file (../examples/1_18_2006_10_58_05_AM_98C3.xml) is provided.

Table 1 — DA 2410 form: Example

The following instance diagrams show the templates and entities that need to instantiated to represent the DA 2410 form shown in Table 1.

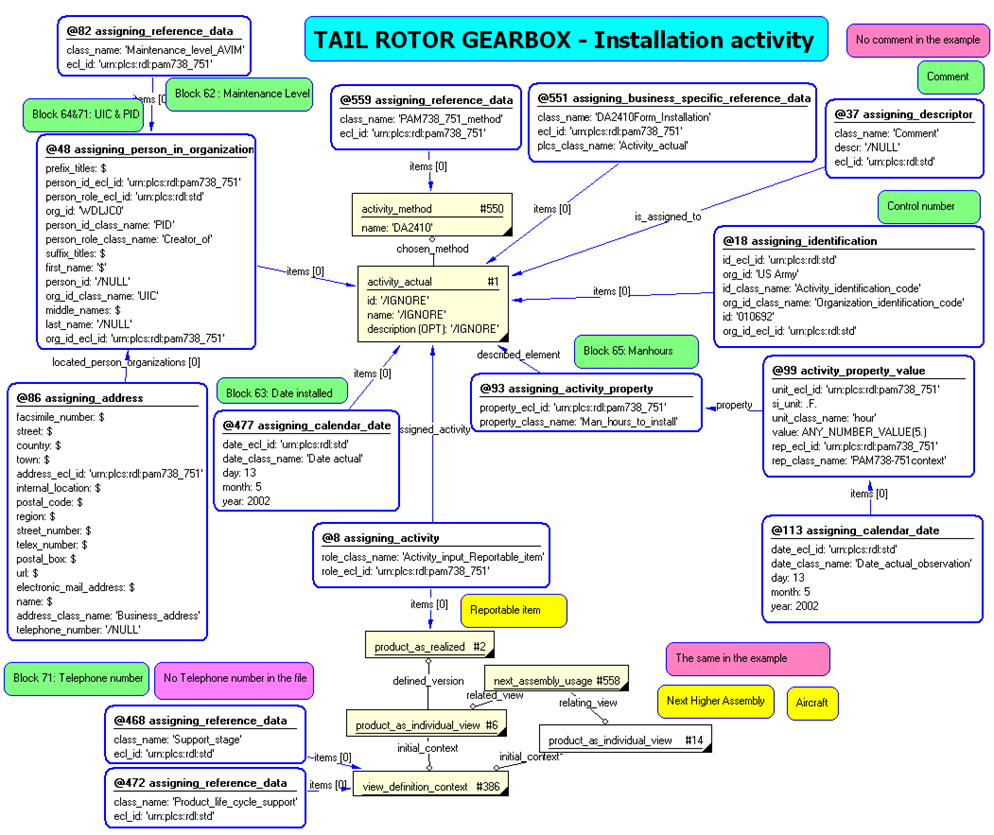

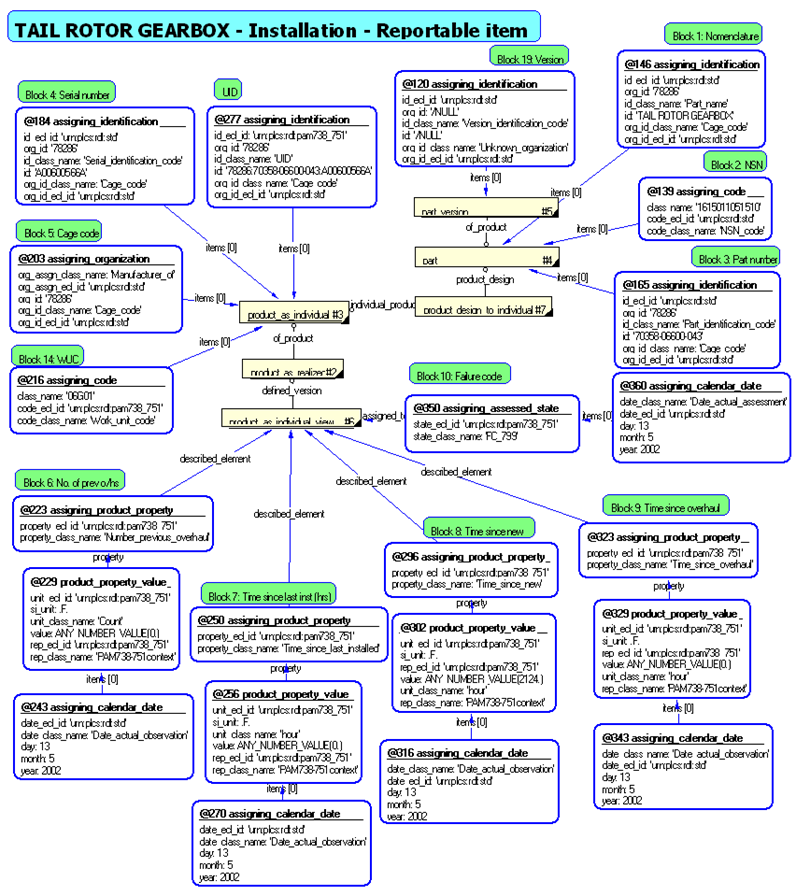

Figure 18 shows the entities and templates instantiated to represent the record of the installation activity. In addition properties of the activity, such as the time take to perform the activity is also shown.

Figure 18 —   Instantiation diagram for reporting on the installation activity: Activity

Figure 19 shows the entities and templates instantiated to represent the reportable item.

Figure 19 —   Instantiation diagram for reporting on the installation activity: Item

Figure 20 shows the entities and templates instantiated to represent position of the reportable item on the aircraft.

Figure 20 —   Instantiation diagram for reporting on the installation activity: Position

Example DA 2410 - Removal

The following example shows the information recorded on a DA 2410 to record the removal of a component from an aircraft. The example form is given in Table 2 and a corresponding DA2410 XML file (../examples/1_18_2006_10_58_05_AM_152C1.xml) is provided.

Table 2 — DA 2410 form: Example

The following instance diagrams show the templates and entities that need to instantiated to represent the DA 2410 form shown in Table 2.

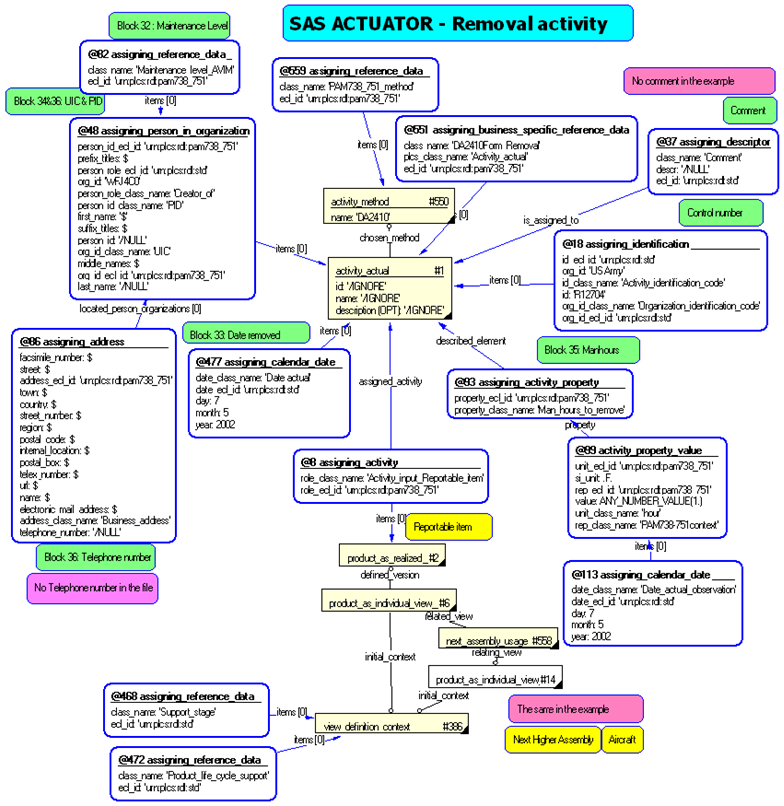

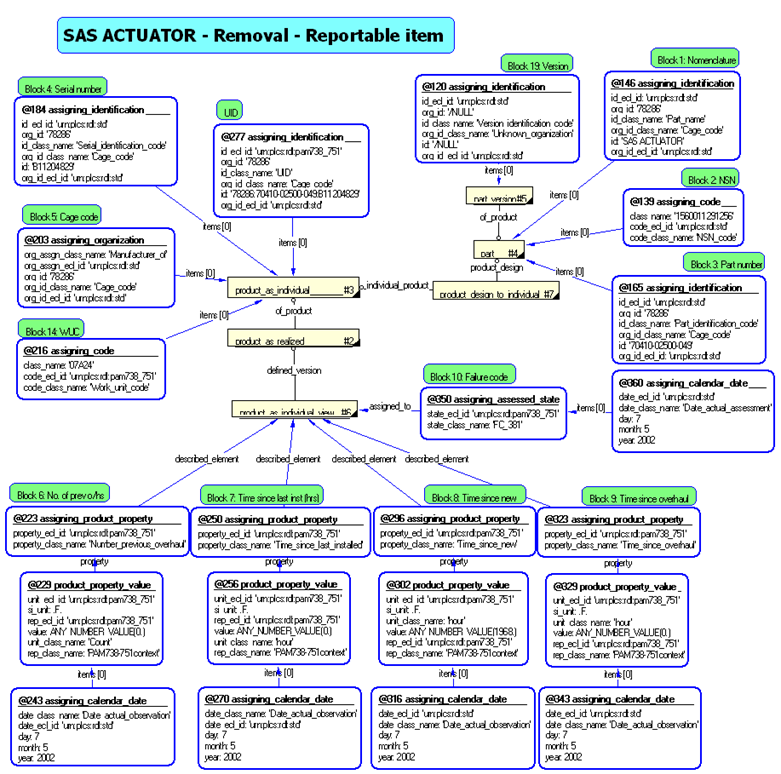

Figure 21 shows the entities and templates instantiated to represent the record of the removal activity. In addition properties of the activity, such as the time take to perform the activity is also shown.

Figure 21 —   Instantiation diagram for reporting on the removal activity: Activity

Figure 22 shows the entities and templates instantiated to represent the reportable item.

Figure 22 —   Instantiation diagram for reporting on the removal activity: Item

Figure 23 shows the entities and templates instantiated to represent position of the reportable item on the aircraft.

Figure 23 —   Instantiation diagram for reporting on the removal activity: Position

© OASIS 2010 — All rights reserved
