2410_form Business Information Overview
Each of the Inventory and Maintenance activities requires a different subset of
the DA 2410 form to be completed. The information required by each
activity is summarized diagrammatically in the following
sections. Each diagram has been derived from the information provided
in
Army Pamphlet 738-751
(http://www.armedforces.net/Detailed/21027.html)
and shows how the information on
the form (the numbered grey boxes in the diagram represent the numbered
blocks on the DA2140 form) has been functionally grouped to support the activity.
The ISO
10303-239 constructs that are required to represent this information
is then described the subsequent section.
The groupings of information captured by the form are:
- Activity Record
-
A record of the activity being reported. In the following
diagrams, this is the central orange block.
The mapping of an Activity Record to ISO 10303-239 PLCS is described
in Activity Record.
- Activity properties
-
Properties of the activity such as man hours to complete.
The mapping of an Activity properties to ISO 10303-239 PLCS is described
in Activity Record.
- Activity characterization
-
Characterization of the activity such as who undertook the activity
and when.
The mapping of an Activity characterization to ISO 10303-239 PLCS is described
in Activity Record.
- Reportable item
-
The product that was subject of the activity being reported.
The mapping of a Reportable item to ISO 10303-239 PLCS is described
in Reportable item identification.
- Properties of the Reportable item
-
The properties, such as lifing information, of the product that was subject of the activity being reported.
The mapping of the properties of the Reportable item to ISO 10303-239 PLCS is described
in Properties of the Reportable item.
- States of the Reportable item
-
The states, such as failure state, of the product that was subject of the activity being reported.
The mapping of the states of the Reportable item to ISO 10303-239 PLCS is described
in States of the Reportable item.
- Part replaced
-
A list of the parts that have been replaced during the maintenance
activity.
The mapping of the parts replaced to ISO 10303-239 PLCS is described
in Replaced Parts.
- APU
-
The auxiliary power unit of the aircraft to which the reportable
item was fitted.
The mapping of an APU to ISO 10303-239 PLCS is described
in APU, History recorder, On Board Monitoring System.
- History recorder
-
The history recorder of the aircraft.
The mapping of a history recorder to ISO 10303-239 PLCS is described
in APU, History recorder, On Board Monitoring System.
- On board monitoring system
-
The aircraft on board monitoring system,
The mapping of an on board monitoring system to ISO 10303-239 PLCS is described
in APU, History recorder, On Board Monitoring System.
- Related activities
-
Additional activities that were undertaken as part of the
overall activity, such as:
-
overhaul activity;
-
removal activity;
-
installation activity.
The mapping of an Activity Record to ISO 10303-239 PLCS is described
in Activity Record.
- Aircraft activity
-
The activity that the aircraft was engaged in when fault occurred.
The mapping of an Activity Record to ISO 10303-239 PLCS is described
in .
-
Position on aircraft
-
The position in which the reportable item was installed or removed
from the aircraft.
The mapping of an to ISO 10303-239 PLCS is described
in Installation/Removal position on the Aircraft.
-
Inventory gain
-
Reportable item added to inventory.
The mapping of an Inventory gain to ISO 10303-239 PLCS is described
in Inventory Gain and Loss.
-
Inventory loss
-
Reportable item removed from inventory.
The mapping of an Inventory loss to ISO 10303-239 PLCS is described
in Inventory Gain and Loss.
The information required to support the activity is shown in
Figure 1 below.

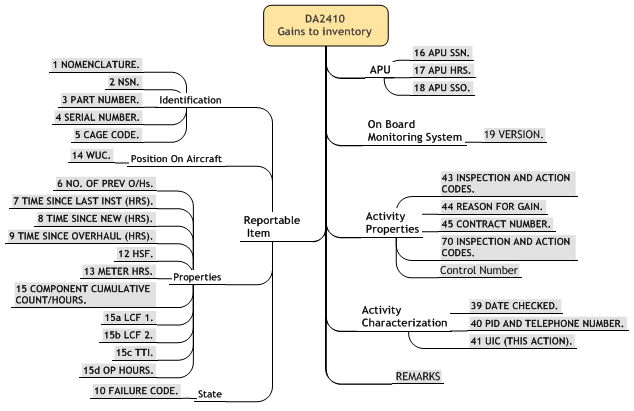

Figure 1 — Gains To Inventory
The information required to support the activity is shown in
Figure 2 below.

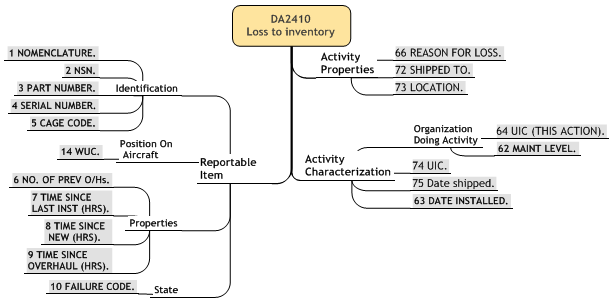

Figure 2 — Loss to inventory
The information required to support the activity is shown in
Figure 3 below.

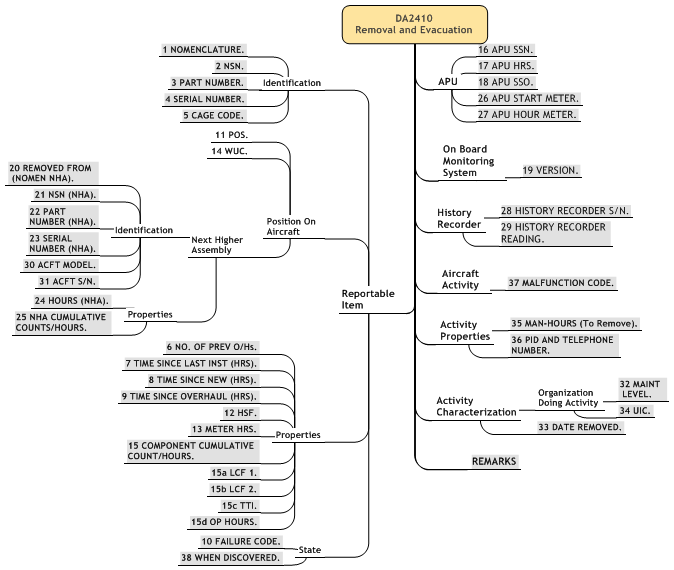

Figure 3 — Removal and evacuation
The information required to support the activity is shown in
Figure 4 below.

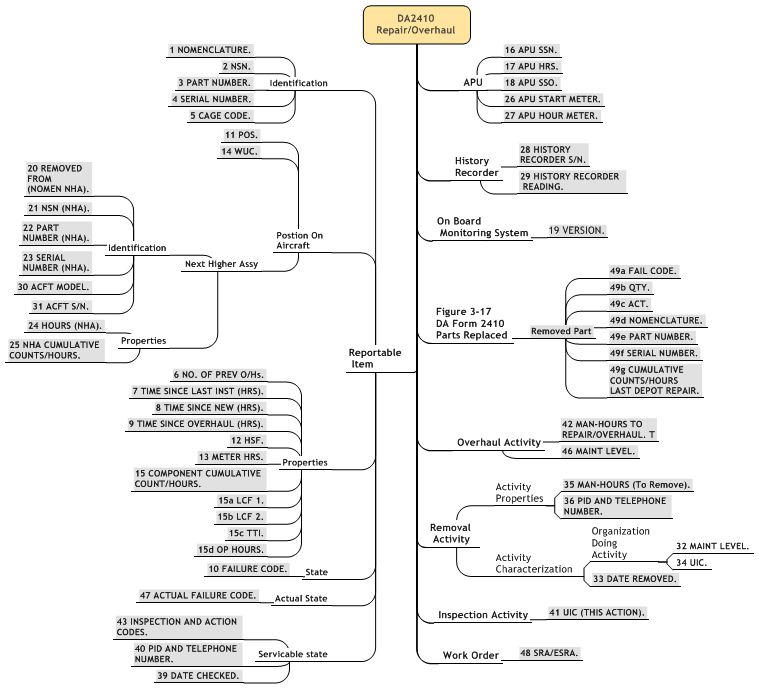

Figure 4 — Repair / Overhaul
The information required to support the activity is shown in
Figure 5 below.

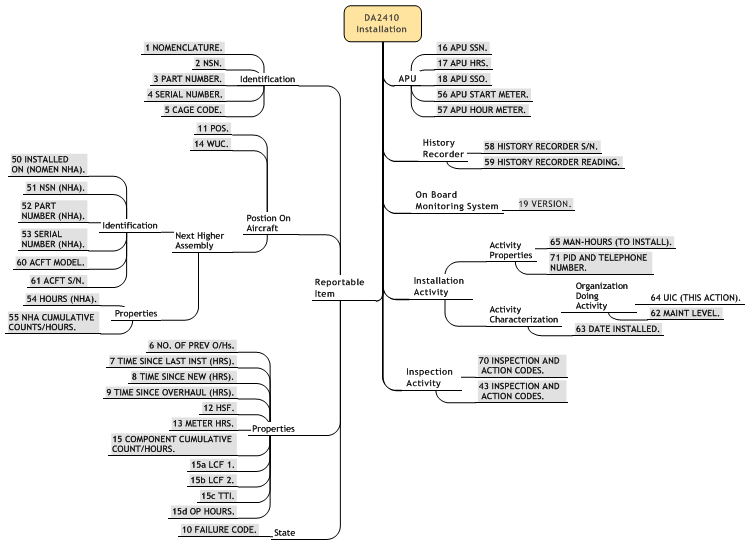

Figure 5 — Installation
The information required to support the activity is shown in
Figure 6 below.

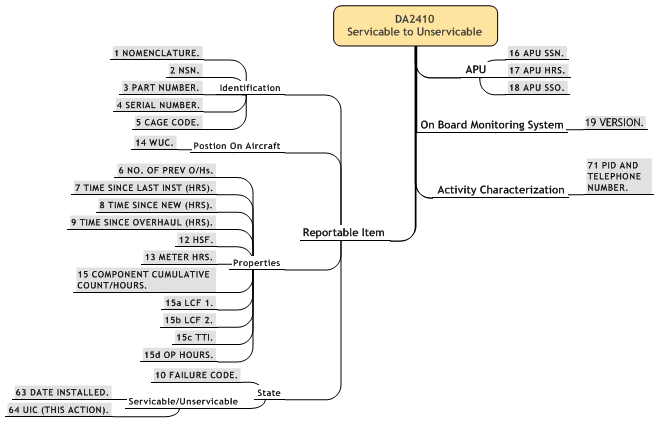

Figure 6 — Changes from Serviceable to Unserviceable Status for Uninstalled Items
The information required to support the activity is shown in
Figure 7 below.

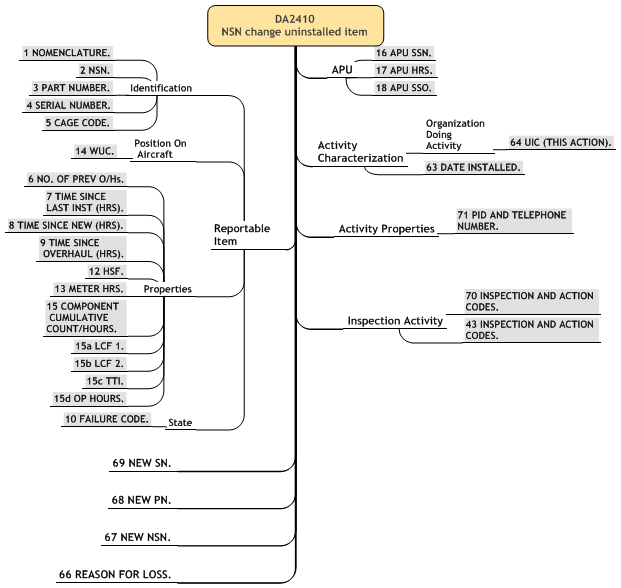

Figure 7 — PN, NSN, S/N Change
The information required to support the activity is shown in
Figure 8 below.

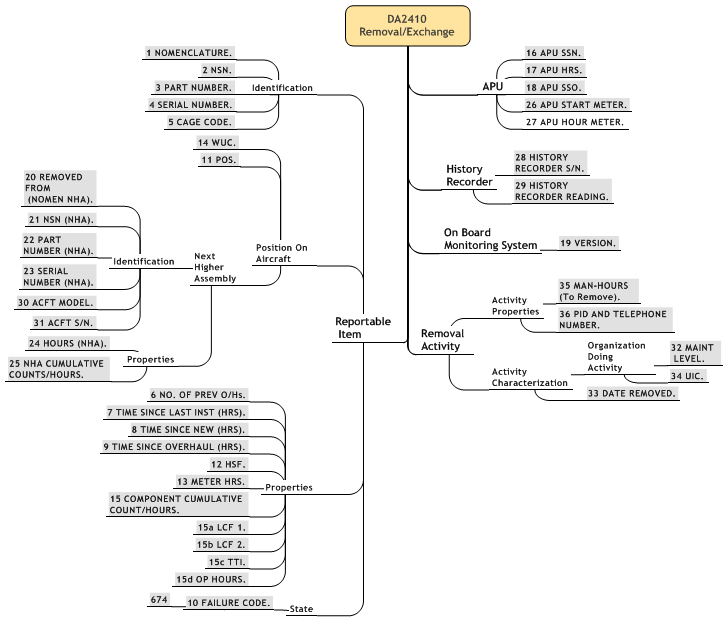

Figure 8 — Removal of Serviceable Items for Controlled Exchange
