The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.
This section summarizes the mappings of the business objects to the corresponding templates. A diagrammatic representation of the AP239 templates used is shown below in Figure 2.
NOTE To improve understanding of the diagram, not all of the templates referenced in the table are shown.
|
Business Object |
Business Object Definition |
Business Templates |
|---|---|---|
| Supply Items List | The UK_Defence has a requirement to represent a list of supply items that are managed by the supply chain. | UK_Defence.supply_items_list |
| Supply Items List | The UK_Defence has a requirement to represent the identifier of a list of supply items that is managed by the supply chain. | UK_Defence.supply_items_list.id |
| Supply Items List | The UK_Defence has a requirement to represent the name of a list of supply items that is managed by the supply chain. | UK_Defence.supply_items_list.name |
| Supply Items List | The UK_Defence has a requirement to represent a description of the type of supply list that is managed by the supply chain. | UK_Defence.supply_items_list.type |
| Supply Items List | The UK_Defence has a requirement to represent the identification of an item within the list of supply items that is managed by the supply chain. | UK_Defence.supply_items_list.supply_list_item -> UK_Defence.item_of_supply |
| Item of Supply | The UK_Defence has a requirement to represent an item that is managed by the supply chain. | UK_Defence.item_of_supply |
| Item of Supply | The UK_Defence has a requirement to represent the identifier of an item that is managed by the supply chain. | UK_Defence.item_of_supply.Id |
| Item of Supply | The UK_Defence has a requirement to represent the name of an item that is managed by the supply chain. | UK_Defence.item_of_supply.name |
| Item of Supply | The UK_Defence has a requirement to represent the weight of the item that is managed by the supply chain. | UK_Defence.item_of_supply.weight_value |
| Item of Supply | The UK_Defence has a requirement to represent the denomination of quantity for the item that is managed by the supply chain. | UK_Defence.item_of_supply.denomination_of_quantity_value |
| Item of Supply | The UK_Defence has a requirement to represent the dimensions for the item that is managed by the supply chain. |
UK_Defence.item_of_supply.dimension_length_value and UK_Defence.item_of_supply.dimension_breadth_value and UK_Defence.item_of_supply.dimension_height_value |
| Item of Supply | The UK_Defence has a requirement to represent the shelf life for the item that is managed by the supply chain. | UK_Defence.item_of_supply.shelf_life_value |
| Item of Supply | The UK_Defence has a requirement to represent the specification of the item that is managed by the supply chain. |
UK_Defence.item_of_supply.specification -> UK_Defence.product_specification and/or UK_Defence.item_of_supply.specification <- UK_Defence.related_nato_specification -> UK_Defence.nato_item_of_supply_specification |
| Parts List | The UK_Defence has a requirement to represent a list of parts that may not be managed by the supply chain. | UK_Defence.parts_list |
| Parts List | The UK_Defence has a requirement to represent the identifier of a list of parts that may not be managed by the supply chain. | UK_Defence.parts_list.id |
| Parts List | The UK_Defence has a requirement to represent a description of the list of parts that may not be managed by the supply chain. | UK_Defence.parts_list.description |
| Parts List | The UK_Defence has a requirement to represent the name given to the list of parts that may not be managed by the supply chain. | UK_Defence.parts_list.name |
| Parts List | The UK_Defence has a requirement to represent the identification of individuals within the list of parts that may not be managed by the supply chain. | UK_Defence.parts_list.list_item -> UK_Defence.product_design |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the specification for a codified item of supply, identified by its Nato Stock Number (NSN). The specification includes the information required to configure and manage the MoD supply. | UK_Defence.nato_item_of_supply_specification |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the Class of Store assigned to the codified item of supply. | UK_Defence.nato_item_of_supply_specification.class_of_store |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the Class Code assigned to the codified item of supply. | UK_Defence.nato_item_of_supply_specification.class_code |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent a description given to the codified item of supply. | UK_Defence.nato_item_of_supply_specification.description |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the Item Identification Number (IIN), for a codified item of supply. | UK_Defence.nato_item_of_supply_specification.item_identification_number |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the name given to the codified item of supply. | UK_Defence.nato_item_of_supply_specification.name |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the 13-digit National Codification Bureau (NCB) given to the codified item of supply. | UK_Defence.nato_item_of_supply_specification.national_code |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the 13-digit Nato Stock Number (NSN) given to the codified item of supply. | UK_Defence.nato_item_of_supply_specification.nato_stock_number |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the 4-digit Nato Supply Class (NSC) given to the codified item of supply. | UK_Defence.nato_item_of_supply_specification.nato_supply_class |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the 2-digit Nato Supply Group (NSG) given to the codified item of supply. | UK_Defence.nato_item_of_supply_specification.nato_supply_group |
| Nato Item of Supply Specification | The UK_Defence has a requirement to represent the owner of the Nato Item of Supply Specification. | UK_Defence.nato_item_of_supply_specification.source_organization |
| Product Design | This information object represents the information about a Product Design. | UK_Defence.product_design |
| Product Specification | This information object represents the information about a Product Specification. | UK_Defence.product_specification |
| Location | This information object defines a location. | UK_Defence.location |
| Person | This information object represents the information describing a human being. This represents the information describing a human being. | UK_Defence.person |
| Organization | This information object represents an organized body, project, programme or society, which may or may not be a legal entity. | UK_Defence.organization |
| Document | This information object represents reference material that follows a formal change approval mechanism. | UK_Defence.document |
| Document Association | This information object represents the association of a Document with another information object | UK_Defence.document_association |
| Record | This information object represents the permanent statement for preserving the memory or knowledge of facts, activities or events. | UK_Defence.record |
| Message | This information object represents a communicated statement of events, activities, or outcomes that have taken place. | UK_Defence.message |
| Contract | This information object represents a written or spoken agreement that is enforceable by law. | UK_Defence.contract |
Table 2 — Business Objects to Template Mapping table

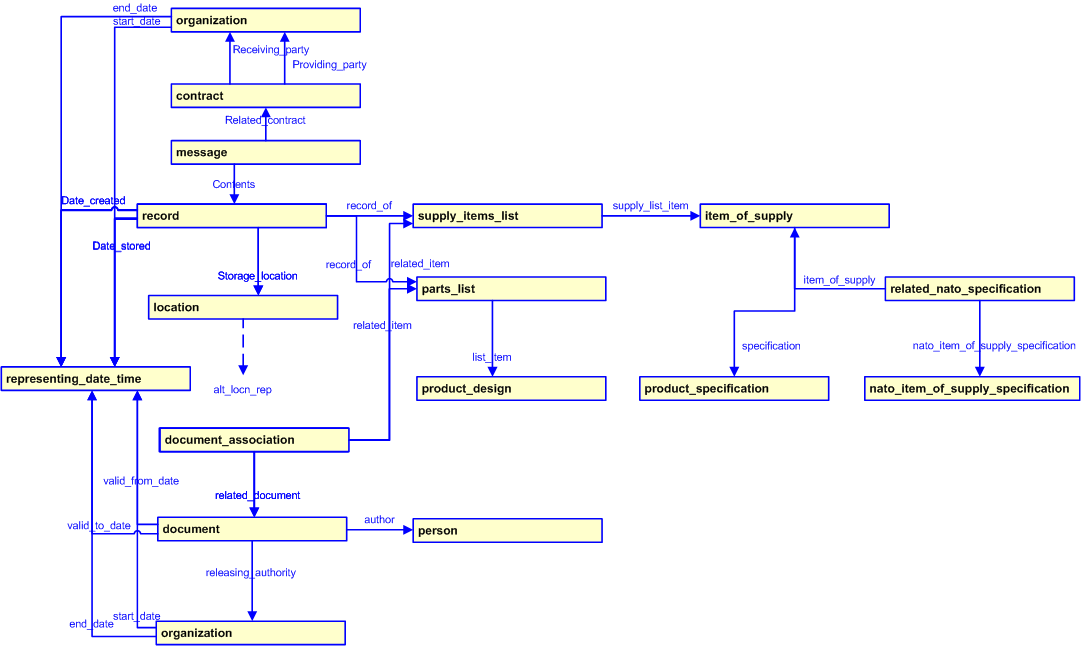

The key templates that this DEX comprises and the interrelations between those templates are illustrated below:
