| Business DEX (uk_defence002):— item_of_supply_codification | Date: 2009/04/16 15:50:40 Revision: 1.8 |
The information requirements table for the Item of Supply Codification DEX and corresponding business objects are provided below:
|
Information requirement |
Business Object(s) |
|---|---|
| The UK_Defence has a requirement to represent a list of supply items that are managed by the supply chain. | Supply Items List |
| The UK_Defence has a requirement to represent the identifier of a list of supply items that is managed by the supply chain. | Supply Items List |
| The UK_Defence has a requirement to represent the name of a list of supply items that is managed by the supply chain. | Supply Items List |
| The UK_Defence has a requirement to represent a description of the type of supply list that is managed by the supply chain. | Supply Items List |
| The UK_Defence has a requirement to represent the identification of an item within the list of supply items that is managed by the supply chain. | Supply Items List -> Item of Supply |
| The UK_Defence has a requirement to represent an item that is managed by the supply chain. | Item of Supply |
| The UK_Defence has a requirement to represent the identifier of an item that is managed by the supply chain. | Item of Supply |
| The UK_Defence has a requirement to represent the name of an item that is managed by the supply chain. | Item of Supply |
| The UK_Defence has a requirement to represent the weight of the item that is managed by the supply chain. | Item of Supply |
| The UK_Defence has a requirement to represent the denomination of quantity for the item that is managed by the supply chain. | Item of Supply |
| The UK_Defence has a requirement to represent the dimensions for the item that is managed by the supply chain. | Item of Supply |
| The UK_Defence has a requirement to represent the shelf life for the item that is managed by the supply chain. | Item of Supply |
| The UK_Defence has a requirement to represent the specification of the item that is managed by the supply chain. | Item of Supply -> Product Specification and/or Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent a list of parts that may not be managed by the supply chain. | Parts List |
| The UK_Defence has a requirement to represent the identifier of a list of parts that may not be managed by the supply chain. | Parts List |
| The UK_Defence has a requirement to represent a description of the list of parts that may not be managed by the supply chain. | Parts List |
| The UK_Defence has a requirement to represent the name given to the list of parts that may not be managed by the supply chain. | Parts List |
| The UK_Defence has a requirement to represent the identification of individuals within the list of parts that may not be managed by the supply chain. | Parts List -> Product Design |
| The UK_Defence has a requirement to represent the specification for a codified item of supply, identified by its Nato Stock Number (NSN). The specification includes the information required to configure and manage the MoD supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the Class Code assigned to the codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the Class of Store assigned to the codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent a description given to the codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the Item Identification Number (IIN), for a codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the name given to the codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the 13-digit National Codification Bureau (NCB) given to the codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the 13-digit Nato Stock Number (NSN) given to the codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the 4-digit Nato Supply Class (NSC) given to the codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the 2-digit Nato Supply Group (NSG) given to the codified item of supply. | Nato Item of Supply Specification |
| The UK_Defence has a requirement to represent the owner of the Nato Item of Supply Specification. | Nato Item of Supply Specification |
Table 1 — Mapping Information Objects to Requirements

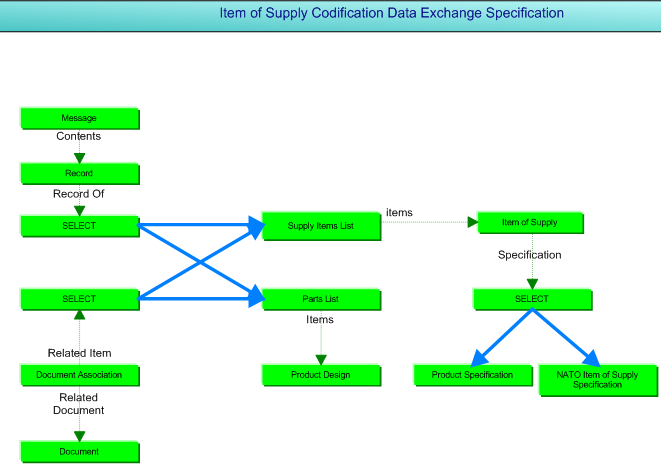

In terms of business objects, these information requirements are modelled as shown below in Figure 1.
NOTE For clarity, not all of the dependent business objects - those that will make the model referentially complete - have been included on the diagram.
