The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.
This section summarizes the mappings of the business objects to the corresponding templates. A diagrammatic representation of the AP239 templates used is shown below in Figure 2.
NOTE To improve understanding of the diagram, not all of the templates referenced in the table are shown.
|
Business Object |
Business Object Definition |
Business Templates |
|---|---|---|
| Resource Demand | This information object describes how to represent a demand for resources. This may be to support a specific activity, or for an anticipated but unspecified need. | UK_Defence.resource_demand |
| Utility Demand | This information object describes how to represent the demand for a utility or a type of utility, for the purpose of carrying out an activity over a period | UK_Defence.utility_demand |
| Organizational Unit | This information object describes how to represent an organization that is identified by a Unit Identification Number (UIN). Units have a planned or actual base location in which it may be deployed at specific times. | UK_Defence.organizational_unit UK_Defence.organizational_unit_non_standard_location UK_Defence.identifier |
| Utility Type | This information object describes how to represent a type of utility, which may be referenced as a required resource for a task. | UK_Defence.utility_type |
| Facility | This information object describes how to represent an installation providing one or more functional capabilities necessary to provide support to one or more equipment programmes. | UK_Defence.facility |
| Location | This information object defines a location. | UK_Defence.location |
| Person | This information object represents the information describing a human being. This represents the information describing a human being. | UK_Defence.person |
| Organization | This information object represents an organized body, project, programme or society, which may or may not be a legal entity. | UK_Defence.organization |
| Document | This information object represents reference material that follows a formal change approval mechanism. | UK_Defence.document |
| Document Association | This information object represents the association of a Document with another information object | UK_Defence.document_association |
| Message | This information object represents a communicated statement of events, activities, or outcomes that have taken place. | UK_Defence.message |
| Record | This information object represents the permanent statement for preserving the memory or knowledge of facts, activities or events. | UK_Defence.record |
| Activity | This information object represents the related activity for which the utility may be demanded. | UK_Defence.activity |
Table 2 — Business Objects to Template Mapping table

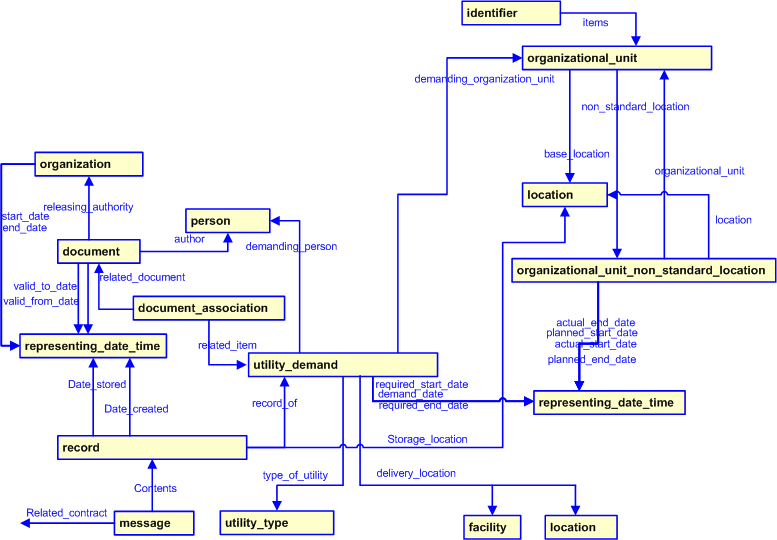

The key templates that this DEX comprises and the interrelations between those templates are illustrated below:
