| Business DEX (UK_Defence029):— support_environment | Date: 2009/04/16 21:04:46 Revision: 1.13 |

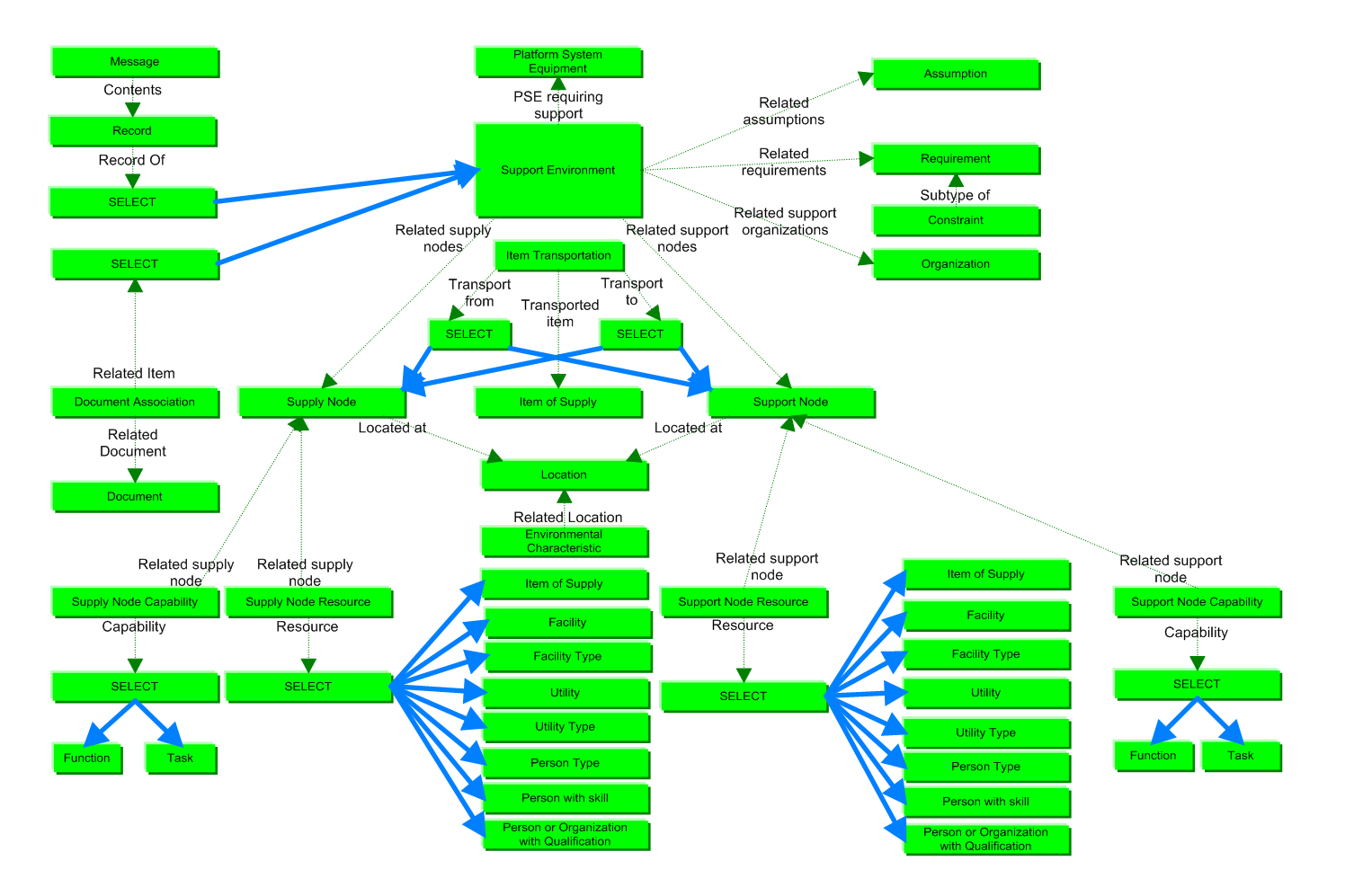

The information requirements table for the Support Environment DEX is shown below:
|
Information requirement |
Business Object(s) |
|---|---|
| Information that is used to define the message that performs the transmission of the Support Environment information between the source and destination UK_Defence processes. | Message, Record. |
| The identification of the Support Environment. | Support Environment |
| Identification of the platform, system and equipment (PSE) to be supported. | Support Environment, Platform System Equipment |
| Reference to the all relevant support requirements, objectives and constraints. | Support Environment, Requirement, Assumption, Constraint |
| Identification of the organizations that may support the PSE. | Support Environment, Organization |
| Identification of the locations in which the PSE may be supported. | Support Environment, Support Node, Supply Node, Location |
| The physical characteristics of the environments in which the PSE may be supported. | Support Environment, Support Node, Supply Node, Location, Environmental Characteristic |
| The capabilities of the support environment as derived from the quantification of the facilities, skill sets, spares, tools, test equipment and consumables typically available at each support node. | Support Environment, Support Node, Supply Node, Support Node Capability, Supply Node Capability, Function, Task, Support Node Resource, Supply Node Resource, Item of Supply, Facility, Facility Type, Utility, Utility Type, Person with Skill, Person Type, Person or Organization with Qualification |
| Specification of typical support node supply distances and times via each potential transportation mode. | Support Environment, Support Node, Supply Node, Location, Item Transportation, Item of Supply |
Table 1 — Support Environment information requirements
The Support Environment DEX will identify the specific PSE to be supported. It will include any assumptions made in the preparation of the DEX and any relevant requirements that affect it. It will show the related support organisations and explain their relationship .
The Support Environment DEX will detail the locations and associated physical environmental characteristics of fixed and (potential) mobile sites that may be part of the PSE’s final Support Solution; it will describe the capabilities and resources that could be expected to be found at these locations and explain the transportation characteristics of the supply and return systems of assets and spares between locations.
The resources identified as available at the various locations will include, but not be limited to, inventory items, facilities, utilities and personnel or organisations with particular skills and qualifications.
Not all relevant information is easily contained within the DEX framework and so associations to Documents will be established.
