| Business DEX (UK_Defence038):— platform_system_equipment | Date: 2009/05/13 14:11:31 Revision: 1.10 |
The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.
This section summarizes the mappings of the business objects to the corresponding templates. A diagramtic representation of
the AP239 templates used is shown below in Figure 2.
Please note that to improve understanding of the diagram, not all of the templates referenced in the table are shown.
|
Business Object |
Business Object Definition |
Business Templates |
|---|---|---|
| Document Association | This information object represents the association of a Document with another information object. Example uses of this may be to associate policy or standards documents with Task objects or to associate drawings with Product Design objects. |
UK_Defence.document_association |
| Message | This information object represents a communicated statement of events, activities, or outcomes that have happened.
The method by which the message is communicated is various. |
UK_Defence.message |
| Platform System Equipment | This information object describes how to represent the UK Defence concept of a platform, system and its equipment in terms of PLCS model elements. | UK_Defence.platform_system_equipment |
| Platform System Equipment Constituent | This information object describes how to represent the UK_Defence concept of the constituents of a platform, system and its equipment in terms of PLCS model elements. | UK_Defence.platform_system_equipment_constituent |
| Product | This information object represents the information about a physical instance of a Product Design, with individual products are typically identified by a serial number. | UK_Defence.product |
| Product Design | This information object represents the information about a Product Design. | UK_Defence.product_design |
| Product Specification | This information object represents the information about a Product Specification. | UK_Defence.product_specification |
| Record | This information object represents a permanent statement for preserving the memory or knowledge of facts, activities or events. | UK_Defence.record |
| Status Assignment | This information object represents the record of the assignment of a status to a subject. | UK_Defence.status_assignment |
Table 2 — Business Objects to Template Mapping table

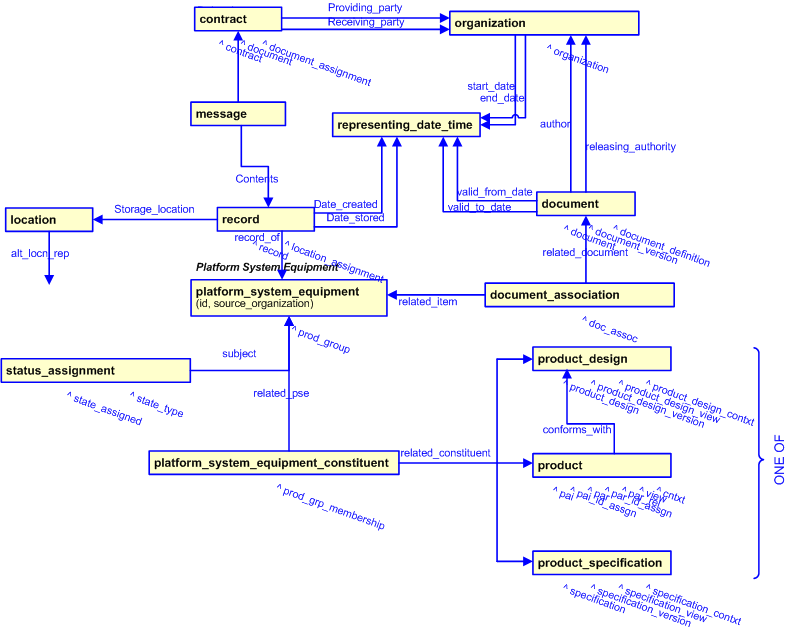

The key templates that this DEX comprises and the interrelations between those templates are illustrated below:
