platform_system_equipment Business Information Requirements

The information requirements table for the platform_system_equipment DEX is shown below:

Information requirement	Business Object(s)
The identification of the set of one or more items that will be the subject of support concept and support solution development activities. Items may be identified by part number, NSN or serial number.	Product Design, Product Specification, Product
Items may include whole platforms, test systems, training equipments, cross-platform equipment, for example, communications systems, pumps, engines.	Related Platform System Equipment and Platform, System, Equipment Constituent

Table 1 — platform_system_equipment information requirements

In terms of business objects, these information requirements are modelled as shown below in Figure 1.

NOTE For clarity, not all of the dependent business objects are included on the diagram.

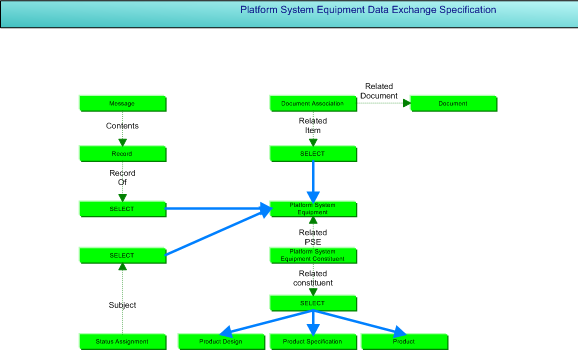

Figure 1 — Platform, System, Equipment, business objects

This information object represents the identification of a set of one or more items that will be the subject of support concept and support solution development activities. Each item is identified by a related platform system equipment constituent object.

Items may be identified by part number, NSN or serial number and may include whole platforms, test systems, training equipments, or cross-platform equipment such as communications systems, pumps, engines and so on.

It identifies any group of products (either Type or individual or mix) of interest in a given context.
