The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.
This section summarizes the mappings of the business objects to the corresponding templates. A diagramtic representation of
the AP239 templates used is shown below in Figure 2.
Please note that to enable a clear understanding of the diagram, not all of the templates referenced in the table are shown
in the diagram.
|
Business Object |
Business Object Definition |
Business Templates |
|---|---|---|
| Document | This information object represents reference material that follows a formal change approval mechanism. | UK_Defence.document |
| Electronic Document | This information object represents a document that is in electronic form. | UK_Defence.electronic_document |
| Electronic Document.logical_location | This information object attribute represents the path to, or the online location for the electronic version of the document. | UK_Defence.file_location |
| Hardcopy Document | This information object represents a document that is in hardcopy form. | UK_Defence.hardcopy_document |
| Location | This information object defines a location. | UK_Defence.location |
| Message | This information object represents a communicated statement of events, activities, or outcomes that have taken place. | UK_Defence.message |
| Organization | This information object represents an organized body, project, programme or society, which may or may not be a legal entity. | UK_Defence.organization |
| Person | This information object represents the information describing a human being. This represents the information describing a human being. | UK_Defence.person |
| Related Documents | This information object represents the relationship between two documents.There may be zero, one or many related Documents. | UK_Defence.related_documents |
| Representing Date Time | This template describes how to represent a Date_time. | representing_date_time |
| Status assignment | This information object represents the record of the assignment of a status to a subject. | UK_Defence.status_assignment |
Table 2 — Business Objects to Template Mapping table

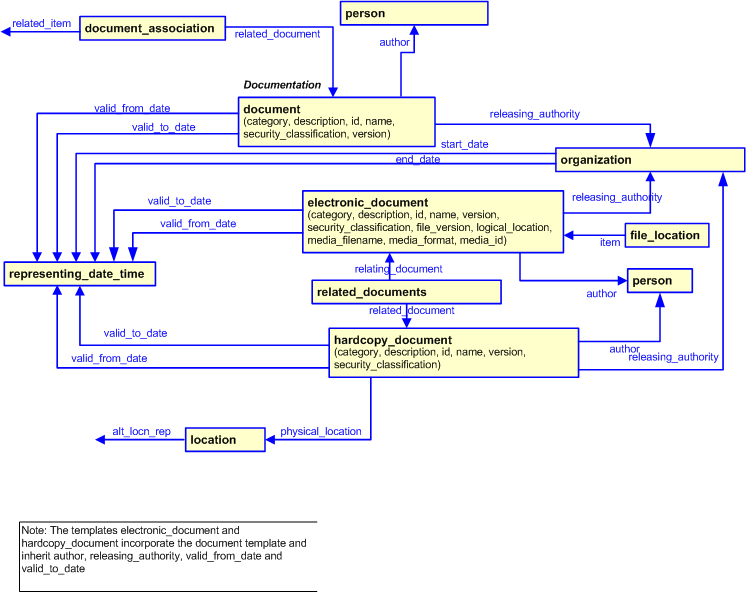

The key templates that this DEX comprises and the interrelations between those templates are illustrated below:
