documentation Business Information Requirements

The information requirements table for the documentation DEX is shown below:

Information requirement

Business Object(s)
The identification of the document. Document
The version of the document. Document
The security classification of the document. Document
The physical location of the document if in hard copy. Hardcopy document, Location
The URL or path of the document if available electronically. Electronic document, (logical) File location
The status of the document, for example ‘Draft’, ‘In Review’, or ‘Released’. Status Assignment
The validity period of the document. Document
The author of the document. Document, Person
A description of the content of the document or an indication of to what it relates. Document
The owner of the document. Document, organization
The category / class of the document. Document
The name of the document. Document
The document media filename, format, id and location. Document, Hardcopy Document, Electronic Document
Relationships to related document. Document association
The organization that releases the document. Organization

Table 1 — documentation information requirements

In terms of business objects, these information requirements are modelled as shown below in Figure 1.

NOTE    For clarity, not all of the dependent business objects are included on the diagram.

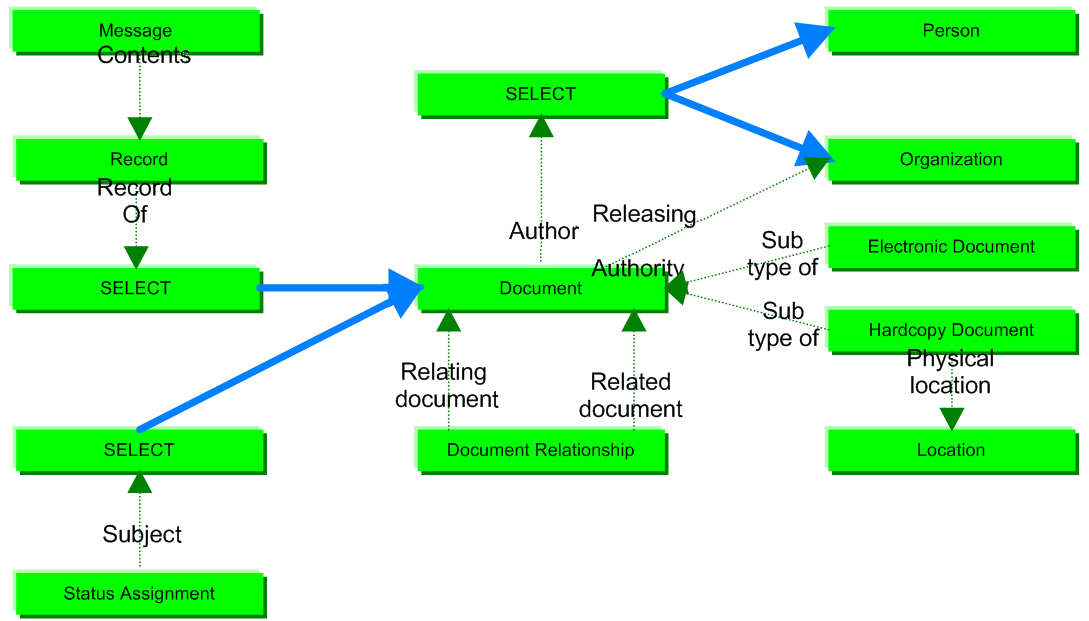

Figure 1 —  documentation business objects

Figure 1 —  documentation business objects
