asset_status

Information requirement	Business Object(s)
Information that is used to define the message that performs the transmission of the asset status information between the source and destination UK_Defence processes.	Message, Record.
Information that identifies the asset, either by the original manufacturers identifier, or by an alias identifier that is defined by another organization, such as the owning, operating, asset management or maintenance organization of the asset.	Asset, Asset Managed Product, Product, Product Design, NATO Item of Supply Specification
Information that relates the asset to the part information that defines the asset.	Asset, Asset Managed Product, Product, Product Design
Information that relates the asset to its NATO stock number, if that part is codified.	Asset, Asset Managed Product, Product, Product Design, NATO Item of Supply Specification
Information which records the change in state of an asset.	Asset, Asset Managed Product, Product, Work Requirement, Product Operational State, Product Operational State Change.
The physical properties of the asset, including incremental change to them.	Asset, Asset Managed Product, Product, Property, Property Change Relationship
Work Requirement information that may be created as a result of the change in state of the asset.	Asset, Asset Managed Product, Product, Work Requirement, Product Operational State, Product Operational State Change.
Information that records the operational state of an asset, including the associated date and time.	Asset, Asset Managed Product, Product, Product Operational State, Product Operational State Change.
Information that identifies the documentation that is associated with the asset.	Asset, Asset Managed Product, Product, Document, Document Association

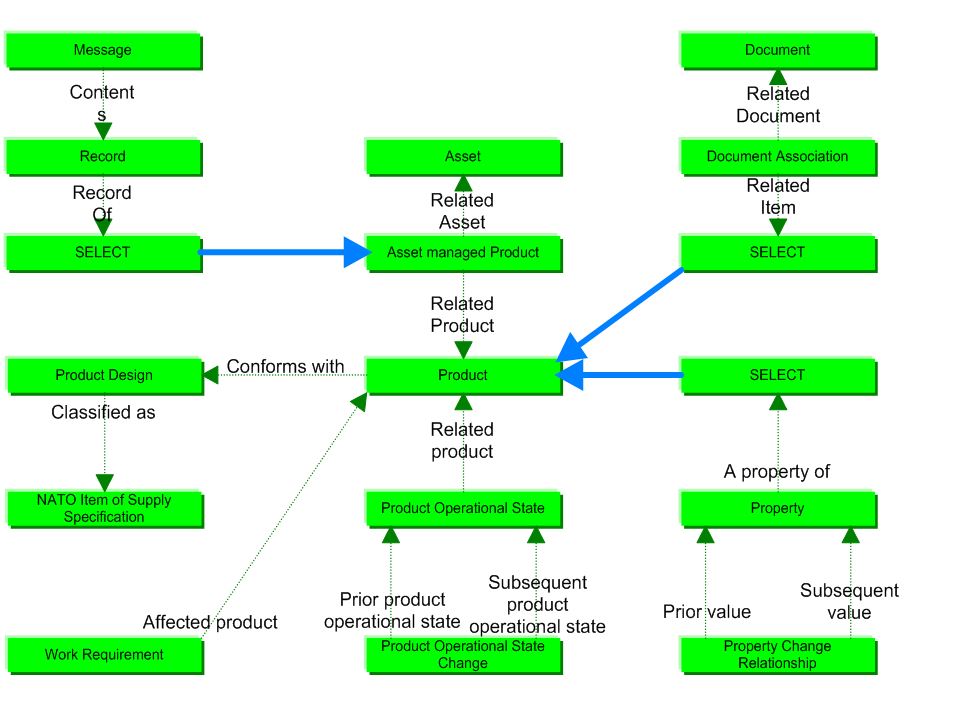

In terms of business objects, these information requirements are modelled as shown below in Figure 2.

NOTE For clarity, not all of the dependent business objects - those that will make the model referentially complete - have been included on the diagram.

asset_status Business Information Requirements
