reliability_and_failure

The following sections provide a detailed description on how to represent a Reliability and Failure Mode Data Exchange Set using ISO 10303-239 PLCS. The representation of the Reliability and Failure Mode DEX is defined using PLCS capabilities, PLCS templates and PLCS reference data.

This description may be further tailored by specific parties by extending the reference data defined in the PLCS reference data library.

This section contains a step by step description on how each business information requirement defined in Reliability and Failure Mode - Business Information Requirements is to be represented in PLCS, and is organized in accordance with the business information requirements.

Information related to Reliability and Failure Mode ISO 10303-239 representation - Table of content:

Reliability Availability and Maintainability Characteristics

The Reliability Availability and Maintainability Characteristics information is described in Figure 17

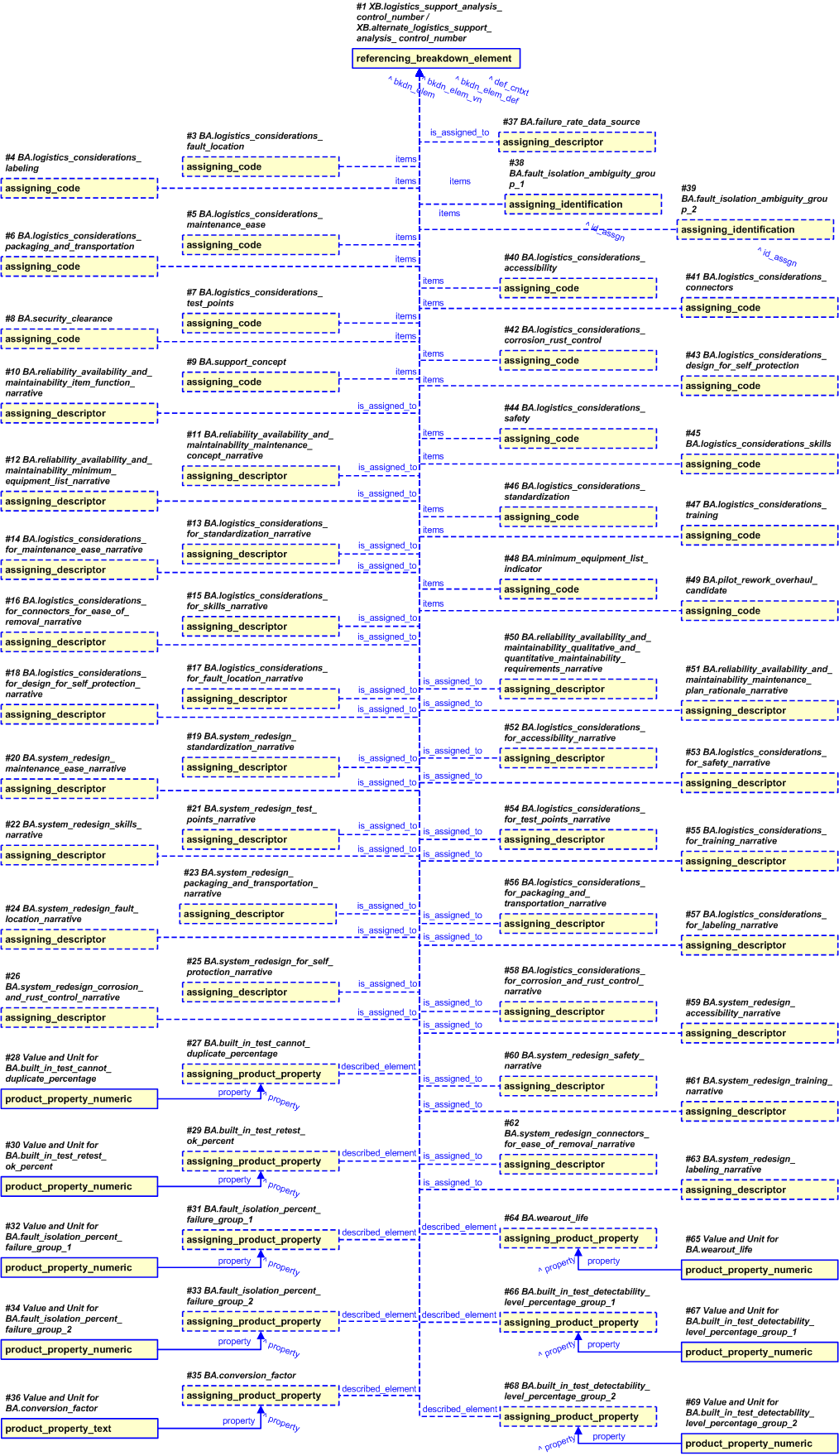

The basic representation of the Reliability Availability and Maintainability Characteristics and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 17): referencing_breakdown_element Show template parameters Hide all template parameters Show all template parameters
Description

Template #1 (Figure 17): referencing_breakdown_element Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	logistics_support_analysis_control_number	The identifier of the Breakdown_element .
id_class_name	Breakdown_element_identification_code	The name of the class being used to classify the (Identification_assignment) of the breakdown_element. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name class.
id_owner	/NULL	The name or identifier of the organization owning the id or name.
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name class
vn_id	/NULL	The identifier of the Breakdown_element_version.
vn_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the breakdown_element_version. This provides the role or reason for the identification.
vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name class.
vn_id_owner	/NULL	The name or identifier of the organization owning the version_id.
vn_id_owner_class_name	alternate_logistics_support_analysis_control_number	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
vn_id_owner_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @vn_id_owner_class_name class
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.

Template #3 (Figure 17): assigning_code Show template parameters Hide all template parameters Show all template parameters
Description

Template #3 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_fault_location?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #4 (Figure 17): assigning_code Show template parameters Hide all template parameters Show all template parameters
Description

Template #4 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_labeling?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #5 (Figure 17): assigning_code Show template parameters Hide all template parameters Show all template parameters
Description

Template #5 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_maintenance_ease?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #6 (Figure 17): assigning_code Show template parameters Hide all template parameters Show all template parameters
Description

Template #6 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_packaging_and_transportation?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #7 (Figure 17): assigning_code Show template parameters Hide all template parameters Show all template parameters
Description

Template #7 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_test_points?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #8 (Figure 17): assigning_code Show template parameters Hide all template parameters Show all template parameters
Description

Template #8 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?security_clearance?	The text representing the code.
code_class_name	[Security_clearance] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #9 (Figure 17): assigning_code Show template parameters Hide all template parameters Show all template parameters
Description

Template #9 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?support_concept?	The text representing the code.
code_class_name	[Support_concept] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #10 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #10 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?reliability_availability_and_maintainability_item_function_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #11 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #11 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?reliability_availability_and_maintainability_maintenance_concept_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #12 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #12 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?reliability_availability_and_maintainability_minimum_equipment_list_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #13 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #13 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_standardization_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #14 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #14 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_maintenance_ease_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #15 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #15 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_skills_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #16 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #16 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_connectors_for_ease_of_removal_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #17 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #17 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_fault_location_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #18 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #18 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_design_for_self_protection_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #19 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #19 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_standardization_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #20 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #20 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_maintenance_ease_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #21 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #21 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_test_points_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #22 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #22 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_skills_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #23 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #23 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_packaging_and_transportation_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #24 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #24 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_fault_location_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #25 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #25 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_for_self_protection_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #26 (Figure 17): assigning_descriptor Show template parameters Hide all template parameters Show all template parameters
Description

Template #26 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_corrosion_and_rust_control_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #27 (Figure 17): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	built_in_test_cannot_duplicate_percentage [Built_in_test_cannot_duplicate_percentage] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #28 (Figure 17): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #29 (Figure 17): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	built_in_test_retest_ok_percent [Built_in_test_retest_ok_percent] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #30 (Figure 17): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #31 (Figure 17): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Fault Isolation Percent Failure Group 1 is not allowed without Fault Isolation Ambiguity Group 1. Fault Isolation Percent Failure Group 1 and Fault Isolation Ambiguity Group 1 is not allowed without Built in Test Detection Level Percent group 1.
Parameter name:	Parameter value:	Parameter description:
property_class_name	fault_isolation_percent_failure_group_1 [Fault_isolation_percent_failure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #32 (Figure 17): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #33 (Figure 17): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Fault Isolation Percent Failure Group 2 is not allowed without Fault Isolation Ambiguity Group 2. And Fault Isolation Percent Failure Group 2 and Fault Isolation Ambiguity Group 2 is not allowed without Built in Test Detection Level Percent group 2.
Parameter name:	Parameter value:	Parameter description:
property_class_name	fault_isolation_percent_failure_group_2 [Fault_isolation_percent_failure] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #34 (Figure 17): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #35 (Figure 17): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	conversion_factor [Conversion_factor] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #36 (Figure 17): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #37 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?failure_rate_data_source?	The text representing the code.
code_class_name	[Failure_rate_data_source] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #38 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Fault Isolation Percent Failure Group 1 is not allowed without Fault Isolation Ambiguity Group 1. Fault Isolation Percent Failure Group 1 and Fault Isolation Ambiguity Group 1 is not allowed without Built in Test Detection Level Percent group 1.
Parameter name:	Parameter value:	Parameter description:
class_name	?fault_isolation_ambiguity_group_1?	The text representing the code.
code_class_name	[Fault_isolation_ambiguity_group] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #39 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?fault_isolation_ambiguity_group_1?	The text representing the code.
code_class_name	[Fault_isolation_ambiguity_group] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #40 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_accessibility?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #41 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_connectors?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #42 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_corrosion_rust_control?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #43 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_design_for_self_protection?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #44 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_safety?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #45 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_skills?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #46 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_standardization?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #47 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?logistics_considerations_training?	The text representing the code.
code_class_name	[Logistics_considerations] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #48 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?minimum_equipment_list_indicator?	The text representing the code.
code_class_name	[Minimum_equipment_list_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #49 (Figure 17): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?pilot_rework_overhaul_candidate?	The text representing the code.
code_class_name	[Pilot_rework_overhaul_candidate] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #50 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?reliability_availability_and_maintainability_qualitative_and_quantitative_maintainability_requirements_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #51 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?reliability_availability_and_maintainability_maintenance_plan_rationale_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #52 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_accessibility_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #53 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_safety_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #54 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_test_points_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #55 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_training_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #56 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_packaging_and_transportation_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #57 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_labeling_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #58 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?logistics_considerations_for_corrosion_and_rust_control_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #59 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_accessibility_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #60 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_safety_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #61 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_training_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #62 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_connectors_for_ease_of_removal_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #63 (Figure 17): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?system_redesign_labeling_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	breakdown_element_version	The entity to which the Document_assignment is assigned.

Template #64 (Figure 17): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Wearout Life and Wearout Life MB, both must be blank, or both must have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	wearout_life [Wearout_life] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #65 (Figure 17): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #66 (Figure 17): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Fault Isolation Percent Failure Group 1 and Fault Isolation Ambiguity Group 1 is not allowed without Built in Test Detection Level Percent group 1.
Parameter name:	Parameter value:	Parameter description:
property_class_name	built_in_test_detectability_level_percentage_1 [Built_in_test_detectability_level_percentage] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #67 (Figure 17): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #68 (Figure 17): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Fault Isolation Percent Failure Group 2 is not allowed without Fault Isolation Ambiguity Group 2. And Fault Isolation Percent Failure Group 2 and Fault Isolation Ambiguity Group 2 is not allowed without Built in Test Detection Level Percent group 2.
Parameter name:	Parameter value:	Parameter description:
property_class_name	built_in_test_detectability_level_percentage_2 [Built_in_test_detectability_level_percentage] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #69 (Figure 17): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Reliability Availability and Maintainability Indicator Characteristics

The Reliability Availability and Maintainability Indicator Characteristics information is described in Figure 18

The basic representation of the Reliability Availability and Maintainability Indicator Characteristics and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 18): referencing_breakdown_element Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	logistics_support_analysis_control_number	The identifier of the Breakdown_element .
id_class_name	Breakdown_element_identification_code	The name of the class being used to classify the (Identification_assignment) of the breakdown_element. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name class.
id_owner	/NULL	The name or identifier of the organization owning the id or name.
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name class
vn_id	/NULL	The identifier of the Breakdown_element_version.
vn_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the breakdown_element_version. This provides the role or reason for the identification.
vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name class.
vn_id_owner	/NULL	The name or identifier of the organization owning the version_id.
vn_id_owner_class_name	alternate_logistics_support_analysis_control_number	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
vn_id_owner_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @vn_id_owner_class_name class
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.

Template #70 (Figure 18): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: For a given LCN, ALC, and LCN Type combination, each different measurement base must remain constant for all RAM Indicator Codes.
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_availability_and_maintainability_indicator_code?	The text representing the code.
code_class_name	[Reliability_availability_and_maintainability_indicator_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #71 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Achieved Availability shall be calculated based on Mean Time Between Failure Technical (Entity BD), Mean Time Between Maintenance - No Defect (Entity BD), Mean Time Between Preventive Maintenance (Entity BD), Elapsed Time (Entity A), and Task Frequency (CA). A change in any of these variables shall result in an update of the Achieved Availability (Entity BD).
Parameter name:	Parameter value:	Parameter description:
property_class_name	achieved_availability [Achieved_availability] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #72 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #73 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Failure Rate and Failure Rate MB must either both be blank, or have entries. The Operating Time MB should be the same as the Failure Rate MB from entity BD for the calculations to be correct.
Parameter name:	Parameter value:	Parameter description:
property_class_name	failure_rate [Failure_rate_data_source] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #74 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #75 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Inherent Availability shall be calculated based on Mean Time Between Failures Technical (Entity BD) and Mean Time To Repair Technical (Entity BD). A change in any of these variables shall result in an update of the Inherent Availability (Entity BD).
Parameter name:	Parameter value:	Parameter description:
property_class_name	inherent_availability [Inherent_availability] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #76 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #77 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	inherent_maintenance_factor [Inherent_maintenance_factor] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #78 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #79 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Percentile is not allowed without a Maximum Time to Repair.
Parameter name:	Parameter value:	Parameter description:
property_class_name	maximum_time_to_repair [Maximum_time_to_repair] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #80 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #81 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Effective Function Failures and Mean Time Between Effective Function Failures MB must either both be blank, or both have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_effective_function_failures [Mean_time_between_effective_function_failures] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #82 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #83 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Failures Operational and Mean Time Between Failures Operational MB must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_failures_operational [Mean_time_between_failures] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #84 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #85 (Figure 18): assigning_product_property Show template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Failures Technical and Mean Time Between Failures Technical MB must either both be blank, or have entries. Inherent Availability shall be calculated based on Mean Time Between Failures Technical (Entity BD) and Mean Time To Repair Technical (Entity BD). A change in any of these variables shall result in an update of the Inherent Availability (Entity BD). Achieved Availability shall be calculated based on Mean Time Between Failure Technical (Entity BD), Mean Time Between Maintenance - No Defect (Entity BD), Mean Time Between Preventive Maintenance (Entity BD), Elapsed Time (Entity A), and Task Frequency (CA). A change in any of these variables shall result in an update of the Achieved Availability (Entity BD).

Template #85 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Failures Technical and Mean Time Between Failures Technical MB must either both be blank, or have entries. Inherent Availability shall be calculated based on Mean Time Between Failures Technical (Entity BD) and Mean Time To Repair Technical (Entity BD). A change in any of these variables shall result in an update of the Inherent Availability (Entity BD). Achieved Availability shall be calculated based on Mean Time Between Failure Technical (Entity BD), Mean Time Between Maintenance - No Defect (Entity BD), Mean Time Between Preventive Maintenance (Entity BD), Elapsed Time (Entity A), and Task Frequency (CA). A change in any of these variables shall result in an update of the Achieved Availability (Entity BD).
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_failures_technical [Mean_time_between_failures] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #86 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #87 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Maintenance Actions Operational and Mean Time Between Maintenance Actions Operational MB must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_maintenance_actions_operational [Mean_time_between_maintenance_actions] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #88 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #89 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Maintenance Actions Technical and Mean Time Between Maintenance Actions Technical MB must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_maintenance_actions_technical [Mean_time_between_maintenance_actions] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #90 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #91 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Maintenance Induced and Mean Time Between Maintenance Induced MB must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_maintenance_induced [Mean_time_between_maintenance_induced] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #92 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #93 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Maintenance Inherent and Mean Time Between Maintenance Inherent MB must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_maintenance_inherent [Mean_time_between_maintenance_inherent] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #94 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #95 (Figure 18): assigning_product_property Show template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Maintenance No Defect and Mean Time Between Maintenance No Defect MB must either both be blank, or have entries. Achieved Availability shall be calculated based on Mean Time Between Failure Technical (Entity BD), Mean Time Between Maintenance - No Defect (Entity BD), Mean Time Between Preventive Maintenance (Entity BD), Elapsed Time (Entity A), and Task Frequency (CA). A change in any of these variables shall result in an update of the Achieved Availability (Entity BD).

Template #95 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Maintenance No Defect and Mean Time Between Maintenance No Defect MB must either both be blank, or have entries. Achieved Availability shall be calculated based on Mean Time Between Failure Technical (Entity BD), Mean Time Between Maintenance - No Defect (Entity BD), Mean Time Between Preventive Maintenance (Entity BD), Elapsed Time (Entity A), and Task Frequency (CA). A change in any of these variables shall result in an update of the Achieved Availability (Entity BD).
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_maintenance_no_defect [Mean_time_between_maintenance_no_defect] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #96 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #97 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Noneffective Function Failures and Mean Time Between Nonffective Function Failures MB must either both be blank, or both have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_noneffective_function_failures [Mean_time_between_noneffective_function_failures] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #98 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #99 (Figure 18): assigning_product_property Show template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Preventive Maintenance and Mean Time Between Preventive Maintenance MB must either both be blank, or have entries. Achieved Availability shall be calculated based on Mean Time Between Failure Technical (Entity BD), Mean Time Between Maintenance - No Defect (Entity BD), Mean Time Between Preventive Maintenance (Entity BD), Elapsed Time (Entity A), and Task Frequency (CA). A change in any of these variables shall result in an update of the Achieved Availability (Entity BD).

Template #99 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Preventive Maintenance and Mean Time Between Preventive Maintenance MB must either both be blank, or have entries. Achieved Availability shall be calculated based on Mean Time Between Failure Technical (Entity BD), Mean Time Between Maintenance - No Defect (Entity BD), Mean Time Between Preventive Maintenance (Entity BD), Elapsed Time (Entity A), and Task Frequency (CA). A change in any of these variables shall result in an update of the Achieved Availability (Entity BD).
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_preventive_maintenance [Mean_time_between_preventive_maintenance] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #100 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #101 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between Removals and Mean Time Between Removals MB must either both be blank, or have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_removals [Mean_time_between_removals] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #102 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #103 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Mean Time Between System Aborts and Mean Time Between System Aborts MB must either both be blank, or both have entries.
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_between_system_aborts [Mean_time_between_system_aborts] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #104 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #105 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_to_repair_operational [Mean_time_to_repair] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #106 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #107 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Inherent Availability shall be calculated based on Mean Time Between Failures Technical (Entity BD) and Mean Time To Repair Technical (Entity BD). A change in any of these variables shall result in an update of the Inherent Availability (Entity BD).
Parameter name:	Parameter value:	Parameter description:
property_class_name	mean_time_to_repair_technical [Mean_time_to_repair] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #108 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #109 (Figure 18): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Percentile is not allowed without a Maximum Time to Repair.
Parameter name:	Parameter value:	Parameter description:
property_class_name	percentile [Packaging_category_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #110 (Figure 18): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

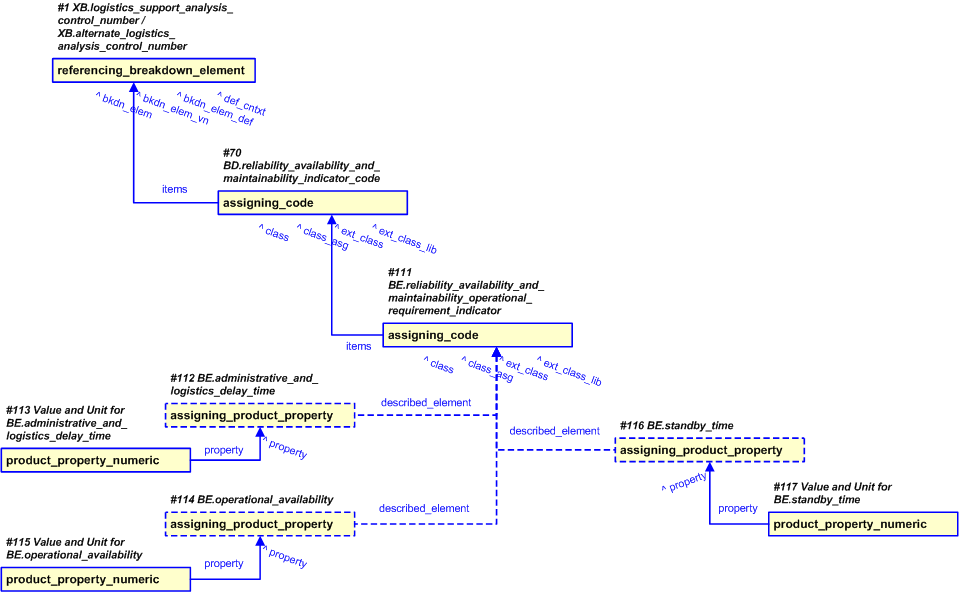

War Peace Reliability

The basic representation of the War Peace Reliability and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 17): referencing_breakdown_element Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	logistics_support_analysis_control_number	The identifier of the Breakdown_element .
id_class_name	Breakdown_element_identification_code	The name of the class being used to classify the (Identification_assignment) of the breakdown_element. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name class.
id_owner	/NULL	The name or identifier of the organization owning the id or name.
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name class
vn_id	/NULL	The identifier of the Breakdown_element_version.
vn_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the breakdown_element_version. This provides the role or reason for the identification.
vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name class.
vn_id_owner	/NULL	The name or identifier of the organization owning the version_id.
vn_id_owner_class_name	alternate_logistics_support_analysis_control_number	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
vn_id_owner_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @vn_id_owner_class_name class
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.

Template #70 (Figure 19): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_availability_and_maintainability_indicator_code?	The text representing the code.
code_class_name	[Reliability_availability_and_maintainability_indicator_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #111 (Figure 19): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_availability_and_maintainability_Operational_requirement_indicator?	The text representing the code.
code_class_name	[Operational_requirement_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	external_class	The items to which the Class is assigned.

Template #112 (Figure 19): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	administrative_and_logistics_delay_time [Administrative_and_logistics_delay_time] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	external_class	The item to which the property is assigned

Template #113 (Figure 19): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #114 (Figure 19): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	operational_availability [Operational_availability] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	external_class	The item to which the property is assigned

Template #115 (Figure 19): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #116 (Figure 19): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
property_class_name	standby_time [Standby_time] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	external_class	The item to which the property is assigned

Template #117 (Figure 19): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

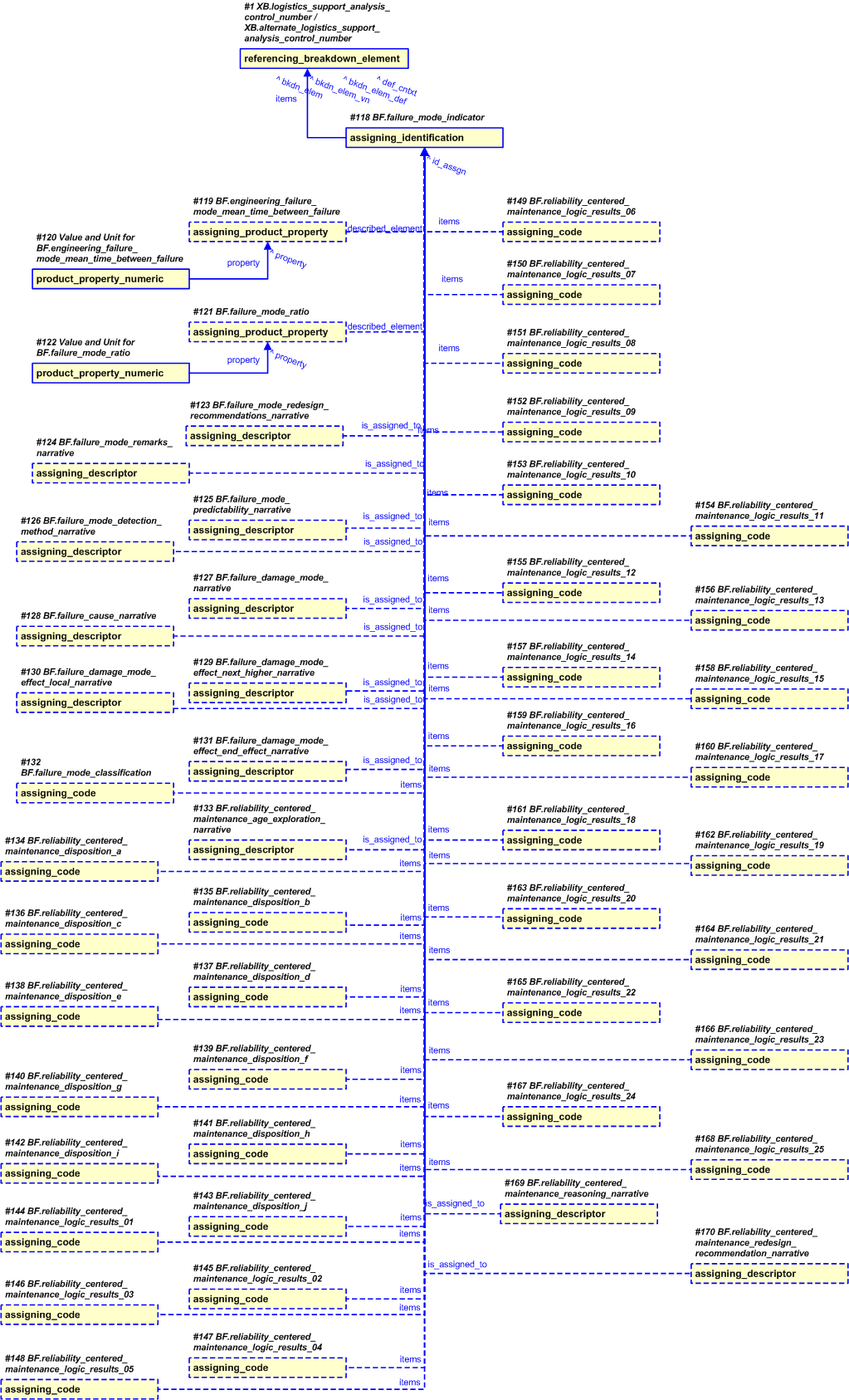

Failure Mode Reliability

The basic representation of the Failure Mode Reliability and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 17): referencing_breakdown_element Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	logistics_support_analysis_control_number	The identifier of the Breakdown_element .
id_class_name	Breakdown_element_identification_code	The name of the class being used to classify the (Identification_assignment) of the breakdown_element. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name class.
id_owner	/NULL	The name or identifier of the organization owning the id or name.
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name class
vn_id	/NULL	The identifier of the Breakdown_element_version.
vn_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the breakdown_element_version. This provides the role or reason for the identification.
vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name class.
vn_id_owner	/NULL	The name or identifier of the organization owning the version_id.
vn_id_owner_class_name	alternate_logistics_support_analysis_control_number	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
vn_id_owner_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @vn_id_owner_class_name class
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.

Template #118 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?failure_mode_indicator?	The text representing the code.
code_class_name	[Failure_mode_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #119 (Figure 20): assigning_product_property Show template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Engineering Failure Mode Mean Time Between Failure and Engineering Failure Mode Mean Time Between Failure MB must either both be blank, or have entries. Engineering Failure Mode Mean Time Between Failure shall be calculated based on Failure Mode Ratio (Entity BF) and Part Failure Rate (Entity BD). A change in any of these variables shall result in an update of the Engineering Failure Mode Mean Time Between Failure (Entity BF).

Template #119 (Figure 20): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Engineering Failure Mode Mean Time Between Failure and Engineering Failure Mode Mean Time Between Failure MB must either both be blank, or have entries. Engineering Failure Mode Mean Time Between Failure shall be calculated based on Failure Mode Ratio (Entity BF) and Part Failure Rate (Entity BD). A change in any of these variables shall result in an update of the Engineering Failure Mode Mean Time Between Failure (Entity BF).
Parameter name:	Parameter value:	Parameter description:
property_class_name	engineering_failure_mode_mean_time_between_failure [Mean_time_between_failures] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	identification_assignment	The item to which the property is assigned

Template #120 (Figure 20): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #121 (Figure 20): assigning_product_property Show template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Engineering Failure Mode Mean Time Between Failure shall be calculated based on Failure Mode Ratio (Entity BF) and Part Failure Rate (Entity BD). A change in any of these variables shall result in an update of the Engineering Failure Mode Mean Time Between Failure (Entity BF). Failure Mode Criticality Number shall be calculated based on Failure Effect Probability (Entity BI), Failure Mode Ratio (Entity BI), Part Failure Rate (Entity BD), and Operating Time (Entity BI). A change in any of these variables shall result in an update of the Failure Mode Criticality Number (Entity BI).

Template #121 (Figure 20): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Engineering Failure Mode Mean Time Between Failure shall be calculated based on Failure Mode Ratio (Entity BF) and Part Failure Rate (Entity BD). A change in any of these variables shall result in an update of the Engineering Failure Mode Mean Time Between Failure (Entity BF). Failure Mode Criticality Number shall be calculated based on Failure Effect Probability (Entity BI), Failure Mode Ratio (Entity BI), Part Failure Rate (Entity BD), and Operating Time (Entity BI). A change in any of these variables shall result in an update of the Failure Mode Criticality Number (Entity BI).
Parameter name:	Parameter value:	Parameter description:
property_class_name	failure_mode_ratio [Failure_mode_ratio] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	identification_assignment	The item to which the property is assigned

Template #122 (Figure 20): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #123 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_mode_redesign_recommendations_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #124 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_mode_remarks_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #125 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_mode_predictability_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #126 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_mode_detection_method_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #127 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_damage_mode_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #128 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_cause_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #129 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_damage_mode_effect_next_higher_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #130 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?Failure_damage_mode_effect_local_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #131 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_damage_mode_effect_end_effect_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #132 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?failure_mode_classification?	The text representing the code.
code_class_name	[Failure_mode_classification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #133 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?reliability_centered_maintenance_age_exploration_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #134 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_a?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #135 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_b?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #136 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_c?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #137 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_d?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #138 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_e?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #139 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_f?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #140 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_g?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #141 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_h?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #142 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_i?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #143 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_disposition_j?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_disposition] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #144 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_01?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #145 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_02?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #146 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_03?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #147 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_04?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #148 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_05?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #149 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_06?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #150 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_07?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #151 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_08?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #152 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_09?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #153 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_10?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #154 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_11?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #155 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_12?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #156 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_13?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #157 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_14?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #158 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_15?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #159 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_16?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #160 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_17?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #161 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_18?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #162 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_19?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #163 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_20?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #164 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_21?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #165 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_22?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #166 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_23?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #167 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_24?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #168 (Figure 20): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_centered_maintenance_logic_results_25?	The text representing the code.
code_class_name	[Reliability_centered_maintenance_logic_results] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	identification_assignment	The items to which the Class is assigned.

Template #169 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?reliability_centered_maintenance_reasoning_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

Template #170 (Figure 20): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?reliability_centered_maintenance_redesign_recommendation_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	identification_assignment	The entity to which the Document_assignment is assigned.

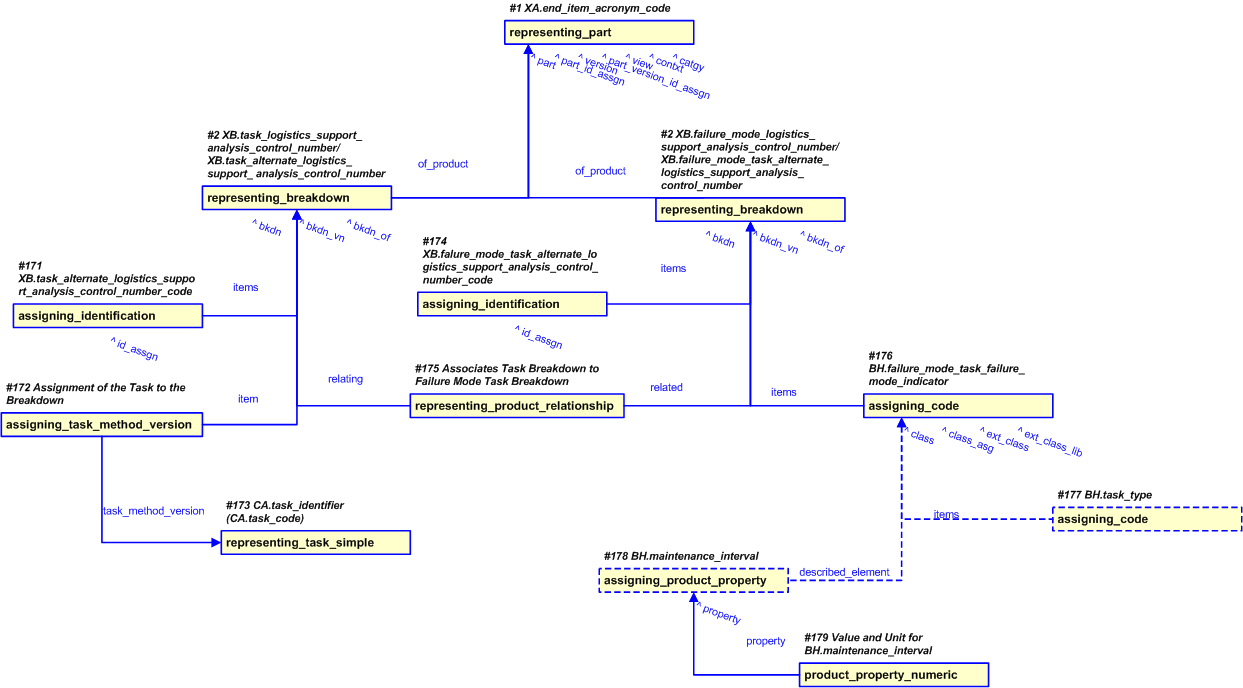

Failure Mode Task

The basic representation of the Failure Mode Task and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 21): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id		The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name		The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id		The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id		The identifier of the part version
part_vn_id_class_name		The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id		The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id		The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name		The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id		The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain		The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id		The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage		The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id		The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #2 (Figure 21): representing_breakdown Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: For a given LCN, ALC, and LCN Type combination, each different measurement base must remain constant for all RAM Indicator Codes.
Parameter name:	Parameter value:	Parameter description:
id	?logistics_support_analysis_control_number?	The identifier of the Breakdown.
id_class_name	logistics_support_analysis_control_number [Logistics_support_analysis_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name.
id_owner		The name or identifier of the organization owning the id or name (@id).
id_owner_class_name		The name of the class being used to classify the identification of the organization (@id_owner). For example CAGE code, or organization name.
id_owner_ecl_id		The id of the External_class_library storing the @id_owner_class_name.
bkdn_type	?logistics_support_analysis_control_number_type?[Logistics_support_analysis_control_number_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Breakdown.
bkdn_type_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @bkdn_type.
vn_id	?alternate_logistics_support_analysis_control_number?	The identifier of the Breakdown_version.
vn_id_class_name	alternate_logistics_support_analysis_control_number [Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown version. This provides the role or reason for the identification.
vn_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name.
vn_id_owner		The name or identifier of the organization owning the @vn_id.
vn_id_owner_class_name		The name of the class being used to classify the identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
vn_id_owner_ecl_id		The id of the External_class_library storing the @vn_id_owner_class_name.
of_product	part	The product that has been broken down.

Template #2 (Figure 21): representing_breakdown Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: For a given LCN, ALC, and LCN Type combination, each different measurement base must remain constant for all RAM Indicator Codes.
Parameter name:	Parameter value:	Parameter description:
id	?logistics_support_analysis_control_number?	The identifier of the Breakdown.
id_class_name	logistics_support_analysis_control_number [Logistics_support_analysis_control_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name.
id_owner		The name or identifier of the organization owning the id or name (@id).
id_owner_class_name		The name of the class being used to classify the identification of the organization (@id_owner). For example CAGE code, or organization name.
id_owner_ecl_id		The id of the External_class_library storing the @id_owner_class_name.
bkdn_type	?logistics_support_analysis_control_number_type?[Logistics_support_analysis_control_number_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Breakdown.
bkdn_type_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @bkdn_type.
vn_id	?alternate_logistics_support_analysis_control_number?	The identifier of the Breakdown_version.
vn_id_class_name	alternate_logistics_support_analysis_control_number [Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification (Identification_assignment) of the breakdown version. This provides the role or reason for the identification.
vn_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name.
vn_id_owner		The name or identifier of the organization owning the @vn_id.
vn_id_owner_class_name		The name of the class being used to classify the identification of the organization (@vn_id_owner). For example CAGE code, or organization name.
vn_id_owner_ecl_id		The id of the External_class_library storing the @vn_id_owner_class_name.
of_product	part	The product that has been broken down.

Template #171 (Figure 21): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?task_alternate_logistics_support_analysis_control_number_code?	The identifier being assigned.
id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id		The identifier of the organization that "owns" the identifier.
org_id_class_name		The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id		The id of the External_class_library storing the @org_id_class_name.
items	breakdown_version	The items to which the identification is assigned

Template #173 (Figure 21): representing_task_simple Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
task_id	?task_identifier?	The task identifier, e.g. the task number.
task_id_class_name	[Task_identification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier being assigned to the task (i.e. the @task_id)
task_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_id_class_name.
task_org_id		The name or identifier of the Organization that owns the @task_id.
task_org_id_class_name		The name of the class being used to classify the identification of the Organization responsible for creating the @task_id.
task_org_id_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_org_id_class_name.
task_ver_id		The task version identifier, for example, the sequence number of the version.
task_ver_id_class_name		The name of the class being used to classify the task version identifier (@tesk_ver_id) assigned to Task_method_version.
task_ver_id_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_ver_id_class_name.
task_ver_org_id		The name or identifier of the organization that owns the task version identifier.
task_ver_org_id_class_name		The name of the class being used to classify the identification of the Organization responsible for creating the @task_ver_id.
task_ver_org_id_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_ver_org_id_class_name.
task_name	?task_identification?	The textual identifier of the task.
task_name_class_name	[Task_identification] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the task name assigned to Task_method_version.
task_name_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_name_class_name.
task_name_org_id		The name or identifier of the organization that owns the task name.
task_name_org_id_class_name	Organization_name	The name of the class being used to classify the identification of the Organization responsible for creating the @task_name.
task_name_org_id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_name_org_id_class_name.
task_details		The detailed description of how to perform the task.

Template #174 (Figure 21): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	?failure_mode_task_alternate_logistics_support_analysis_control_number_code?	The identifier being assigned.
id_class_name	[Alternate_logistics_support_analysis_control_number_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library storing the @id_class_name.
org_id		The identifier of the organization that "owns" the identifier.
org_id_class_name		The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id		The id of the External_class_library storing the @org_id_class_name.
items	breakdown_version	The items to which the identification is assigned

Template #175 (Figure 21): representing_product_relationship Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
relating	associate task breakdown to failure mode task breakdown	The relating product.
related	failure_mode_logistics_support_analysis_control_number	The product that is being related.
rel_type_name		The name of the class being used to classify the Product_relationship. This provides the role or reason for the relationship.
rel_type_ecl_id		The identifier of the External_class_library storing the definition of the Class referenced by parameter @rel_type_name.

Template #176 (Figure 21): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?failure_mode_task_failure_mode_indicator?	The text representing the code.
code_class_name	[Failure_mode_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_version	The items to which the Class is assigned.

Template #177 (Figure 21): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?task_type?	GEIA-STD-0007 Business Rule: Task Type must be "P" or "U", if PMCS from the CA entity is "Y".
code_class_name	[Task_type] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	class	The items to which the Class is assigned.

Template #178 (Figure 21): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Maintenance Interval and Maintenance Interval MB must either both be blank, or have entries if Task Type is preventive.
Parameter name:	Parameter value:	Parameter description:
property_class_name	maintenance_interval [Maintenance_interval] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #179 (Figure 21): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

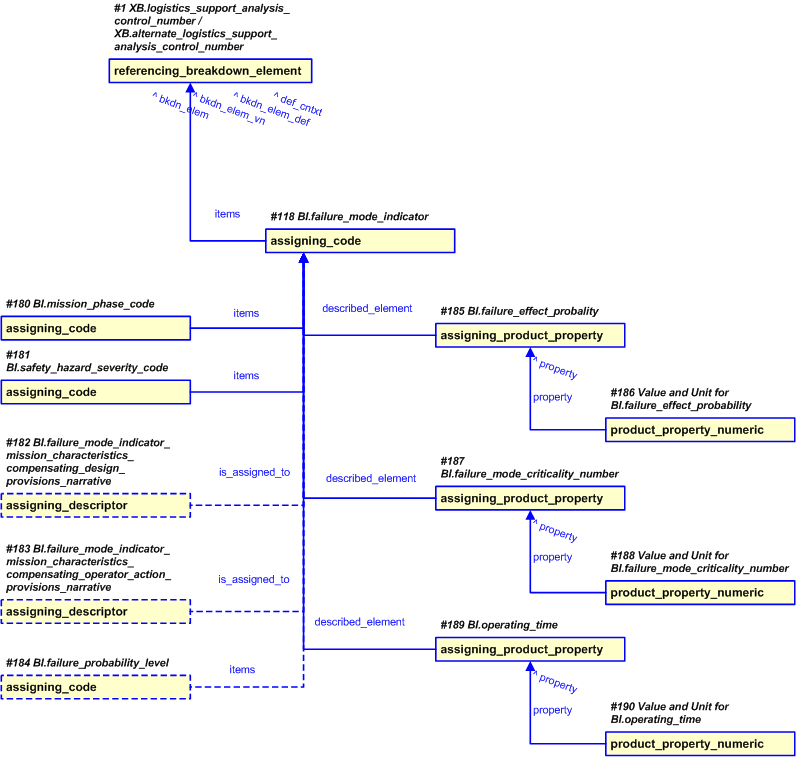

Mission Phase Code

The basic representation of the Mission Phase Code and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 17): referencing_breakdown_element Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	logistics_support_analysis_control_number	The identifier of the Breakdown_element .
id_class_name	Breakdown_element_identification_code	The name of the class being used to classify the (Identification_assignment) of the breakdown_element. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name class.
id_owner	/NULL	The name or identifier of the organization owning the id or name.
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name class
vn_id	/NULL	The identifier of the Breakdown_element_version.
vn_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the breakdown_element_version. This provides the role or reason for the identification.
vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name class.
vn_id_owner	/NULL	The name or identifier of the organization owning the version_id.
vn_id_owner_class_name	alternate_logistics_support_analysis_control_number	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
vn_id_owner_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @vn_id_owner_class_name class
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.

Template #118 (Figure 22): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?failure_mode_indicator?	The text representing the code.
code_class_name	[Failure_mode_indicator] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #180 (Figure 22): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?mission_phase_code?	The text representing the code.
code_class_name	[Mission_phase_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	class	The items to which the Class is assigned.

Template #181 (Figure 22): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Safety Hazard Severity Code must be established in entity BI prior to establishing a RAM Safety Hazard Severity Code in this entity.
Parameter name:	Parameter value:	Parameter description:
class_name	?safety_hazard_severity_code?	The text representing the code.
code_class_name	[Safety_hazard_severity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	class	The items to which the Class is assigned.

Template #182 (Figure 22): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_mode_indicator_mission_characteristics_compensating_design_provisions_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	class	The entity to which the Document_assignment is assigned.

Template #183 (Figure 22): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_mode_indicator_mission_characteristics_compensating_operator_action_provisions_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	class	The entity to which the Document_assignment is assigned.

Template #184 (Figure 22): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?failure_probability_level?	The text representing the code.
code_class_name	[Failure_probability_level] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	class	The items to which the Class is assigned.

Template #185 (Figure 22): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Failure Mode Criticality Number shall be calculated based on Failure Effect Probability (Entity BI), Failure Mode Ratio (Entity BI), Part Failure Rate (Entity BD), and Operating Time (Entity BI). A change in any of these variables shall result in an update of the Failure Mode Criticality Number (Entity BI).
Parameter name:	Parameter value:	Parameter description:
property_class_name	failure_effect_probability [Failure_effect_probability] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #186 (Figure 22): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #187 (Figure 22): assigning_product_property Show template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Failure Mode Criticality Number shall be calculated based on Failure Effect Probability (Entity BI), Failure Mode Ratio (Entity BI), Part Failure Rate (Entity BD), and Operating Time (Entity BI). A change in any of these variables shall result in an update of the Failure Mode Criticality Number (Entity BI). A change in any of the Failure Mode Criticality Numbers (Entity BI) shall result in an update of the Item Criticality Number (Entity BK).

Template #187 (Figure 22): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Failure Mode Criticality Number shall be calculated based on Failure Effect Probability (Entity BI), Failure Mode Ratio (Entity BI), Part Failure Rate (Entity BD), and Operating Time (Entity BI). A change in any of these variables shall result in an update of the Failure Mode Criticality Number (Entity BI). A change in any of the Failure Mode Criticality Numbers (Entity BI) shall result in an update of the Item Criticality Number (Entity BK).
Parameter name:	Parameter value:	Parameter description:
property_class_name	failure_mode_criticality_number [Failure_mode_criticality_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #188 (Figure 22): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #189 (Figure 22): assigning_product_property Show template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Operating Time and Operating Time MB must either both be blank, or have entries. The Operating Time MB should be the same as the Failure Rate MB from entity BD for the calculations to be correct. Failure Mode Criticality Number shall be calculated based on Failure Effect Probability (Entity BI), Failure Mode Ratio (Entity BI), Part Failure Rate (Entity BD), and Operating Time (Entity BI). A change in any of these variables shall result in an update of the Failure Mode Criticality Number (Entity BI).

Template #189 (Figure 22): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Operating Time and Operating Time MB must either both be blank, or have entries. The Operating Time MB should be the same as the Failure Rate MB from entity BD for the calculations to be correct. Failure Mode Criticality Number shall be calculated based on Failure Effect Probability (Entity BI), Failure Mode Ratio (Entity BI), Part Failure Rate (Entity BD), and Operating Time (Entity BI). A change in any of these variables shall result in an update of the Failure Mode Criticality Number (Entity BI).
Parameter name:	Parameter value:	Parameter description:
property_class_name	operating_time [Operating_time] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	class	The item to which the property is assigned

Template #190 (Figure 22): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Criticality Data

The basic representation of the Criticality Data and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

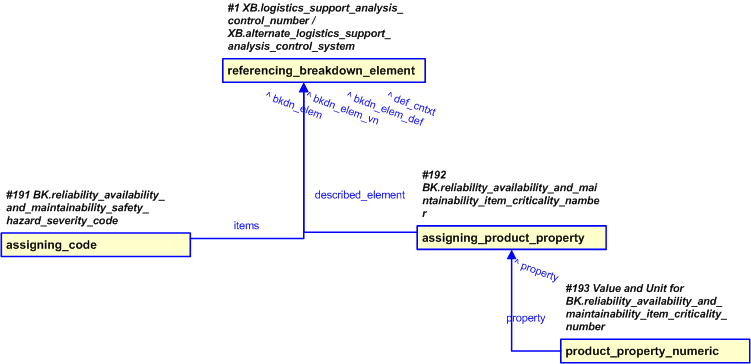

Template #1 (Figure 17): referencing_breakdown_element Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
id	logistics_support_analysis_control_number	The identifier of the Breakdown_element .
id_class_name	Breakdown_element_identification_code	The name of the class being used to classify the (Identification_assignment) of the breakdown_element. This provides the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name class.
id_owner	/NULL	The name or identifier of the organization owning the id or name.
id_owner_class_name	/NULL	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
id_owner_ecl_id	/NULL	The id of the External_class_library storing the @id_owner_class_name class
vn_id	/NULL	The identifier of the Breakdown_element_version.
vn_id_class_name	/NULL	The name of the class being used to classify the identification (Identification_assignment) of the breakdown_element_version. This provides the role or reason for the identification.
vn_id_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name class.
vn_id_owner	/NULL	The name or identifier of the organization owning the version_id.
vn_id_owner_class_name	alternate_logistics_support_analysis_control_number	The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
vn_id_owner_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @vn_id_owner_class_name class
life_cycle_stage	/NULL	The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.
domain	/NULL	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	/NULL	The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.

Template #191 (Figure 23): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?reliability_availability_and_maintainability_safety_harzard_severity_code?	GEIA-STD-0007 Business Rule: Safety Hazard Severity Code must be established in entity BI prior to establishing a RAM Safety Hazard Severity Code in this entity.
code_class_name	[Safety_hazard_severity_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	breakdown_element_version	The items to which the Class is assigned.

Template #192 (Figure 23): assigning_product_property Hide template parameters Hide all template parameters Show all template parameters
Description	GEIA-STD-0007 Business Rule: Item Criticality Number shall be calculated based on the summation of the Failure Mode Criticality Numbers (Entity BI). A change in any of the Failure Mode Criticality Numbers (Entity BI) shall result in an update of the Item Criticality Number (Entity BK).
Parameter name:	Parameter value:	Parameter description:
property_class_name	reliability_availability_and_maintainability_item_criticality_number [Item_criticality_number] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	breakdown_element_version	The item to which the property is assigned

Template #193 (Figure 23): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
value	?value?	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit		The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id		The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit		Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context		The name of the class being used to classify the Representation_context of the property.
context_ecl_id		The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	property	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Mission Operation Mode

The basic representation of the Mission Operation Mode and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

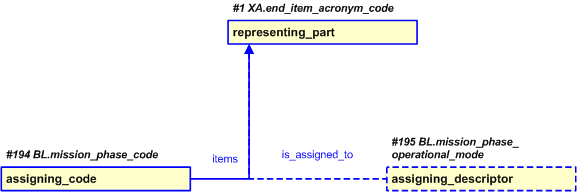

Template #1 (Figure 24): representing_part Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
part_id	?end_item_acronym_code?	The identifier of the part.
part_id_class_name	[End_item_acronym_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part (i.e. the @part.id)
part_id_ecl_id	urn:plcs:rdl:lsa	The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_id_class_name.
part_org_id		The name or identifier of the organization that owns the part id (@part_id).
part_org_id_class_name		The name of the class being used to classify the identification of the organization (@part_org_id) responsible for creating the part representation (@part_id).
part_org_id_ecl_id		The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier (@part_org_id).
part_vn_id		The identifier of the part version
part_vn_id_class_name		The name of the class being used to classify the identifier assigned ( Identification_assignment ) to the part version (i.e. the part_vn_id)
part_vn_id_ecl_id		The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @part_vn_id_class_name class..
part_vn_org_id		The name or identifier of the organization owns the part version id.
part_vn_org_id_class_name		The name of the class being used to classify the identification (Identification_assignment) of the organization responsible for providing the part version representation
part_vn_org_id_ecl_id		The identifier of the External_class_library storing the definition of the External_class used to classify the organization identifier.
domain		The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id		The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @domain class.
life_cycle_stage		The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id		The identifier of the External_class_library storing the definition of the External_class referenced by the parameter @life_cycle_stage class.

Template #194 (Figure 24): assigning_code Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
class_name	?mission_phase_code?	The text representing the code.
code_class_name	[Mission_phase_code] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the External_class given in @code_class_name.
items	part	The items to which the Class is assigned.

Template #195 (Figure 24): assigning_descriptor Hide template parameters Hide all template parameters Show all template parameters
Description
Parameter name:	Parameter value:	Parameter description:
descr	?failure_mode_indicator_mission_characteristics_compensating_design_provisions_narrative?	The text being assigned as a descriptor.
class_name	[Narrative] Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	urn:plcs:rdl:lsa	The id of the External_class_library that stores the class.
is_assigned_to	part	The entity to which the Document_assignment is assigned.

reliability_and_failure_mode ISO 10303-239 Representation
