operations_and_maintenance Business Information Requirements

Operations and Maintenance

Note: Information shown in the UML class diagram illustrates information represented by the DEX. Not all the information contained in the UML class diagram is required for every data exchange.

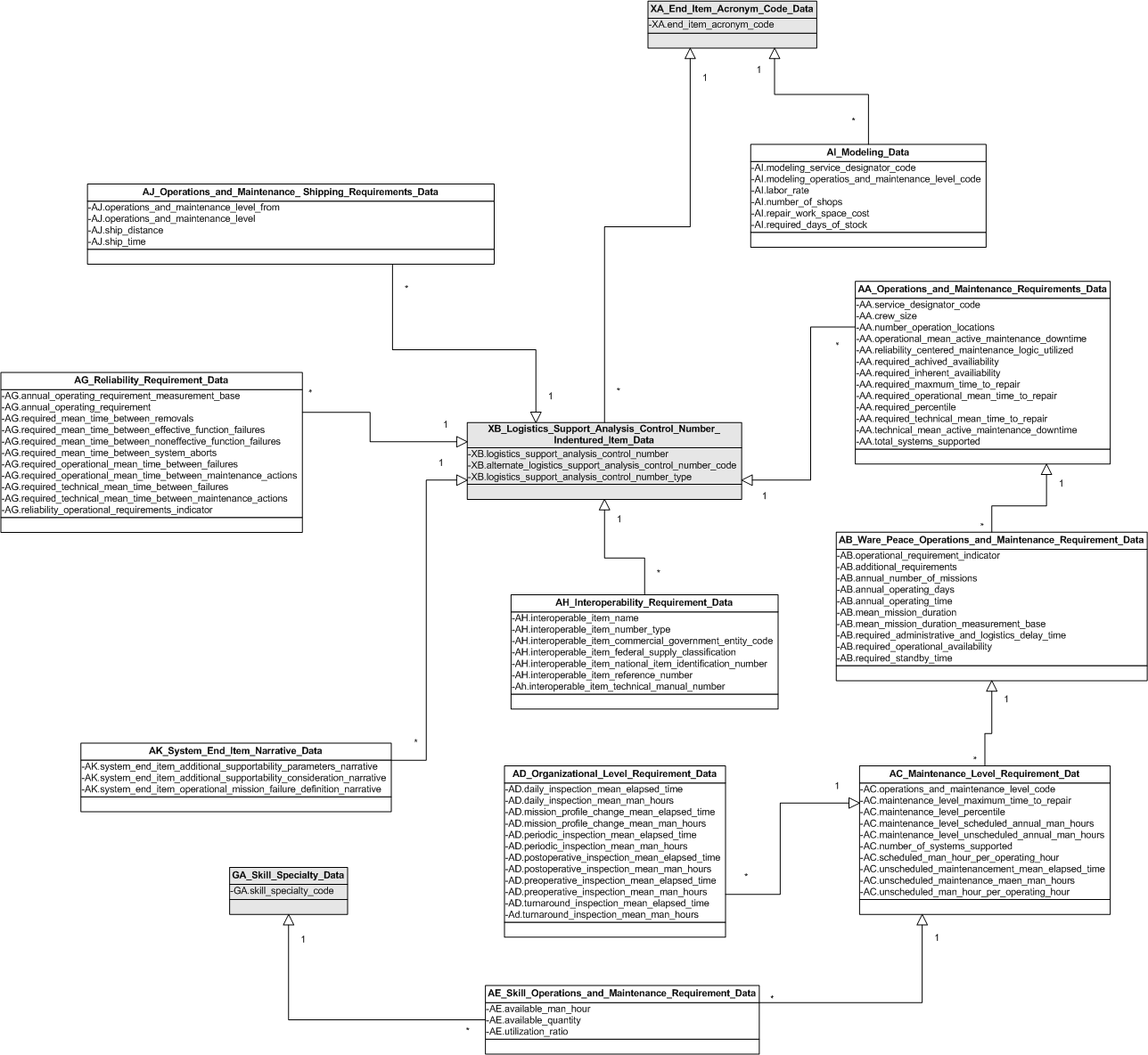

Figure 15 — UML Model of Operations and Maintenance

Information shown in the UML class diagram is as follows:

Operations and Maintenance Requirements identifies operations, maintenance, and reliability requirements for the new system/equipment by the service designator code.

War Peace Operations and Maintenance Requirement identifies O/M requirements for the new system/equipment based on its projected wartime and peacetime missions for a given service designator code.

Maintenance Level Requirement identifies O/M requirements for the new system/equipment by O/M level, wartime/peacetime scenario, and service designator code.

Organizational Level Requirement identifies organizational level O/M requirements for the new system/equipment by wartime/peacetime scenario, O/M level, and service designator code.

Skill Operations and Maintenance Requirement identifies operational maintenance manpower constraints by Skill Specialty Code at specific O/M levels given a wartime/peacetime scenario and service designator code.

Reliability Requirement identifies reliability requirement parameters for the new system/equipment that are dependent on measurement base.

Interoperability Requirement identifies item name, National Stock Number , and the TM of the system/equipment with which the new system/equipment must be able to be transported by/interoperate with.

Modeling Data documents maintenance level specific information to be used for logistics modeling.

Operations and Maintenance Shipping Requirements identifies the O/M level from which a spare/repair part is shipped and the O/M level that receives the part.

System End Item Narrative may be used to identify Additional Supportability Considerations, Additional Supportability Parameters, and Operational Mission Failure Definition.
