facility ISO 10303-239 Representation

The following sections provide a detailed description on how to represent a Facility Data Exchange Set using ISO 10303-239 PLCS. The representation of the Facility DEX is defined using PLCS capabilities, PLCS templates and PLCS reference data.

This description may be further tailored by specific parties by extending the reference data defined in the PLCS reference data library.

An overview of the information to be exchanged by the Facility DEX has been described in Facility - Business Information Overview. A more detailed definition of the type of information that can be exchanged using the Facility DEX is provided in Facility - Business Information Requirements.

This section contains a step by step description on how each business information requirement defined in Facility - Business Information Requirements is to be represented in PLCS, and is organized in accordance with the business information requirements.

Facility

The Facility information is described in Figure 4

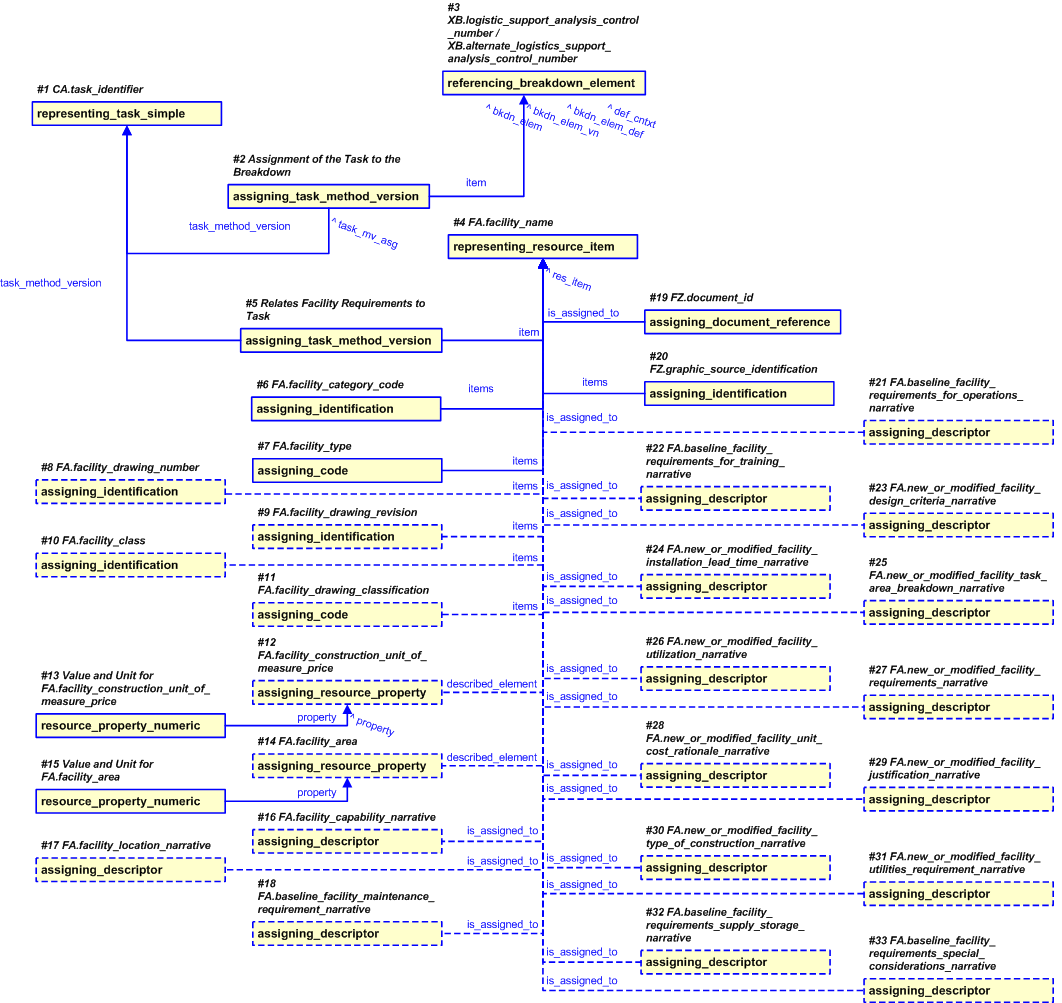

Figure 4 —  Representation of the Facility

Figure 4 —  Representation of the Facility

Facility

The basic representation of the Facility and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 4): representing_task_simple
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
task_id ?task_identification? The task identifier, e.g. the task number.
task_id_class_name [Task_identification]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class being used to classify the identifier being assigned to the task (i.e. the @task_id)
task_id_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_id_class_name.
task_org_id /NULL The name or identifier of the Organization that owns the @task_id.
task_org_id_class_name /NULL The name of the class being used to classify the identification of the Organization responsible for creating the @task_id.
task_org_id_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_org_id_class_name.
task_ver_id /NULL The task version identifier, for example, the sequence number of the version.
task_ver_id_class_name /NULL The name of the class being used to classify the task version identifier (@tesk_ver_id) assigned to Task_method_version.
task_ver_id_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_ver_id_class_name.
task_ver_org_id /NULL The name or identifier of the organization that owns the task version identifier.
task_ver_org_id_class_name /NULL The name of the class being used to classify the identification of the Organization responsible for creating the @task_ver_id.
task_ver_org_id_ecl_id urn:plcs_rdl_lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_ver_org_id_class_name.
task_name ?task_identification? The textual identifier of the task.
task_name_class_name [Task_identification]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class being used to classify the task name assigned to Task_method_version.
task_name_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_name_class_name.
task_name_org_id /NULL The name or identifier of the organization that owns the task name.
task_name_org_id_class_name /NULL The name of the class being used to classify the identification of the Organization responsible for creating the @task_name.
task_name_org_id_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_name_org_id_class_name.
task_details /NULL The detailed description of how to perform the task.

Template #2 (Figure 4): assigning_task_method_version
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
assignment_role   The role of the assignment.
role_ecl_id urn:plcs:rdl:lsa The External_class_library storing the definition of the class referenced by the parameter @assignment_role
item [Logistics_support_analysis_control_number]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The target element of the assignment.
task_method_version [Task_identification]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The Task_method_version that is assigned.

Template #3 (Figure 4): representing_breakdown_element
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id   logistics_support_analysis_control_number
id_class_name Breakdown_element_identification_code The name of the class being used to classify the (Identification_assignment) of the breakdown_element. This provides the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name class.
id_owner /NULL The name or identifier of the organization owning the id or name.
id_owner_class_name /NULL The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
id_owner_ecl_id /NULL The id of the External_class_library storing the @id_owner_class_name class
vn_id /NULL The identifier of the Breakdown_element_version.
vn_id_class_name /NULL The name of the class being used to classify the identification (Identification_assignment) of the breakdown_element_version. This provides the role or reason for the identification.
vn_id_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name class.
vn_id_owner /NULL The name or identifier of the organization owning the version_id.
vn_id_owner_class_name alternate_logistics_support_analysis_control_number The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
vn_id_owner_ecl_id urn:plcs:rdl:std The id of the External_class_library storing the @vn_id_owner_class_name class
life_cycle_stage /NULL The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.
domain /NULL The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.
bkdn_vn /NULL The Breakdown_version of which this Breakdown_element is a constituent.

Template #4 (Figure 4): representing_resource_item
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
res_item_id ?facility_name? Identification of the Resource_item
res_item_id_class [Facility_name]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@res_item_id) and to provide the role or reason for the identification
res_item_id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @res_item_id_class
res_item_id_org_id /NULL The identifier of the Organization that "owns" the identifier.
res_item_id_org_id_class /NULL The name of the class being used to classify the identification of the Organization. For example CAGE code.
res_item_id_org_id_ecl_id /NULL The id of the External_class_library storing the definition of the class used to classify the organization identifier.

Template #5 (Figure 4): assigning_task_method_version
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
assignment_role   The role of the assignment.
role_ecl_id urn:plcs:rdl:lsa The External_class_library storing the definition of the class referenced by the parameter @assignment_role
item   The target element of the assignment.
task_method_version [Task_identification]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The Task_method_version that is assigned.

Template #6 (Figure 4): assigning_identification
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id ?facility_category_code? The identifier being assigned.
id_class_name [Facility_category_code]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @id_class_name.
org_id /NULL The identifier of the organization that "owns" the identifier.
org_id_class_name /NULL The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id /NULL The id of the External_class_library storing the @org_id_class_name.
items resouce_item The items to which the identification is assigned

Template #7 (Figure 4): assigning_code
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
class_name ?facility_type? The text representing the code.
code_class_name [Facility_type]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the External_class given in @code_class_name.
items resouce_item The items to which the Class is assigned.

Template #8 (Figure 4): assigning_identification
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id ?facility_drawing_number? The identifier being assigned.
id_class_name [Drawing_number]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @id_class_name.
org_id /NULL The identifier of the organization that "owns" the identifier.
org_id_class_name /NULL The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id /NULL The id of the External_class_library storing the @org_id_class_name.
items resouce_item The items to which the identification is assigned

Template #9 (Figure 4): assigning_identification
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id ?facility_drawing_revision? The identifier being assigned.
id_class_name [Revision]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @id_class_name.
org_id /NULL The identifier of the organization that "owns" the identifier.
org_id_class_name /NULL The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id /NULL The id of the External_class_library storing the @org_id_class_name.
items resouce_item The items to which the identification is assigned

Template #10 (Figure 4): assigning_identification
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id ?facility_class? The identifier being assigned.
id_class_name [Facility_class]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @id_class_name.
org_id /NULL The identifier of the organization that "owns" the identifier.
org_id_class_name /NULL The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id /NULL The id of the External_class_library storing the @org_id_class_name.
items resouce_item The items to which the identification is assigned

Template #11 (Figure 4): assigning_code
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
class_name ?facility_drawing_classification? The text representing the code.
code_class_name [Drawing_classification]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the External_class given in @code_class_name.
items resouce_item The items to which the Class is assigned.

Template #12 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
Facility Construction Unit of Measure Price and Construction Unit of Measure must either both be blank, or both have entries.
Parameter name: Parameter value: Parameter description:
property_class_name facility_construction_unit_of_measure_price[Price]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resouce_item The item to which the property is assigned

Template #13 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #14 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
Facility Area and Facility Area Unit of Measure (UM) must either both be blank, or both have entries.
Parameter name: Parameter value: Parameter description:
property_class_name [Facility_area]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resouce_item The item to which the property is assigned

Template #15 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #16 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?facility_capability_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #17 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?facility_location_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #18 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?baseline_facility_maintenance_requirement_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #19 (Figure 4): assigning_document_reference
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
doc_id ?document_id? The identification of the Document being referenced.
doc_id_class_name [Document_id]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the External_class that determines the type of identifier given by the input parameter @doc_id.
doc_id_ecl_id urn:plcs:rdl:lsa The identification of the External_class_library storing the External_class given by the input parameter @doc_id_class_name.
doc_ver_id /NULL The identification of the Document_version being referenced.
doc_ver_id_class_name /NULL The name of the External_class that determines the type of identifier given by the input parameter @doc_ver_id.
doc_ver_id_ecl_id /NULL The identification of the External_class_library storing the External_class given by the input parameter @doc_ver_id_class_name.
org_id /NULL The identification or name of the Organization that "owns" the Document and Document_version identifiers (@doc_id and @doc_ver_id).
org_id_class_name /NULL The name of the External_class that determines the type of organization identification (@org_id) being used. For example CAGE code.
org_id_ecl_id /NULL The identification of the External_class_library storing the External_class given by the input parameter @org_id_class_name
doc_asg_class_name /NULL The name of the External_class that determines the role of Document_assignment, i.e. providing the role of the referenced Document
doc_asg_ecl_id /NULL The identification of the External_class_library storing the External_class given by the input parameter @doc_asg_class_name.
is_assigned_to resouce_item The items to which the referenced document is assigned.

Template #20 (Figure 4): assigning_identification
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id ?graphic_source_identification? The identifier being assigned.
id_class_name [Graphic_source_identification]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @id_class_name.
org_id /NULL The identifier of the organization that "owns" the identifier.
org_id_class_name /NULL The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id /NULL The id of the External_class_library storing the @org_id_class_name.
items resource_item The items to which the identification is assigned

Template #21 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?baseline_facility_requirements_for_operations_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #22 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?baseline_facility_requirements_for_training_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #23 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_design_criteria_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #24 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_installation_lead_time_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #25 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_task_area_breakdown_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #26 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_utilization_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #27 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_requirements_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #28 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_unit_cost_rationale_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #29 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_justification_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #30 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_type_of_construction_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #31 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_facility_utilities_requirement_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #32 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?baseline_facility_requirements_supply_storage_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

Template #33 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?baseline_facility_requirements_special_considerations_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to resouce_item The entity to which the Document_assignment is assigned.

© OASIS 2010 — All rights reserved
