| Business DEX (LOGSA008):— facility | Date: 2010/12/23 19:33:10 Revision: 1.20 |
The facility data exchange set provides the specification for the transfer of facility characteristics and requirements related to tasks that support the end product in focus.

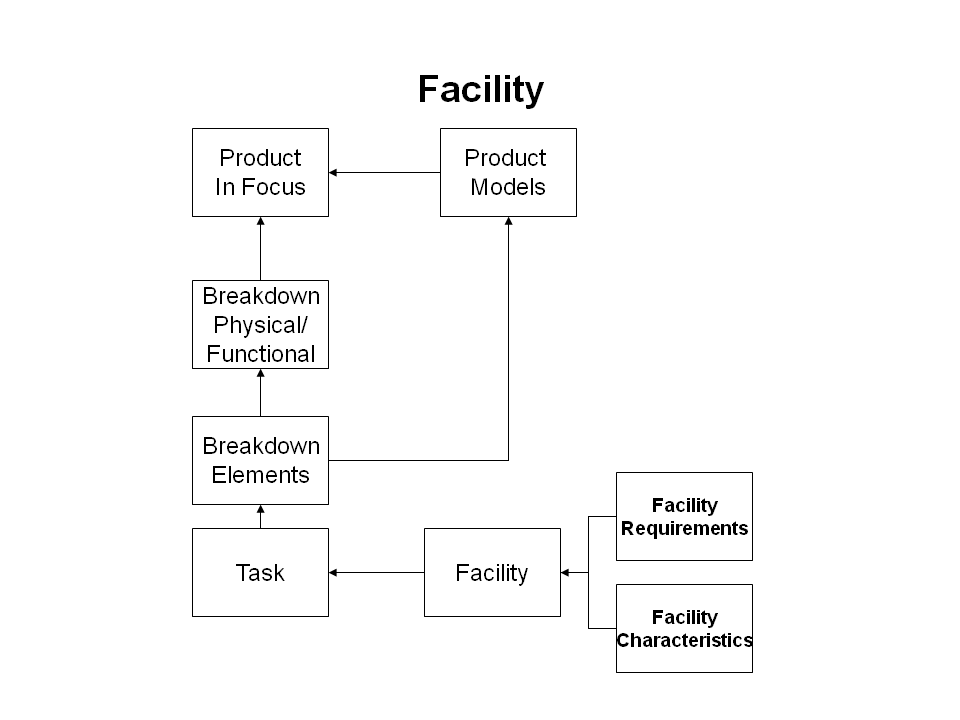

Facility information is summarized in Figure 2 below.
The product in scope and its component assemblies and parts. Can be either a part, or an element in a logical breakdown structure of a defined end item. This is normally defined by an End Item Acronym Code.
The product in focus can have different versions of the product, each of which, has a different breakdown. Models are normally identified by a Usable on Code.
The product in focus and its product model breakdowns can be represented via a physical breakdown (e.g. follows the design drawing structure) or a functional breakdown (e.g. represents functions of the product, propulsion, fuel, communications, etc). Breakdowns may also be hybrid or zonal.
A maintenance task is a defined maintenance procedure that is to be performed on a defined product.
A maintenance task is a defined maintenance procedure that is to be performed on a defined product.
Identification of existing, new or modified facilities required to accomplish the maintenance task.
Identification of new or modified facility requirements needed to support maintenance tasks.
Identification of the capabilities of an existing facility in terms of area, power, plant equipment, storage and location.
