Item_of_supply_information ISO 10303-239 Representation

This section contains a detailed description on how to represent the Swedish Defence item of supply master data in PLCS, using defined PLCS capabilities, PLCS templates and PLCS reference data.

The primary PLCS capabilities required to represent an item of supply are:

• C052: representing_resource;
• C002: representing_parts.

Overall representation of an item of supply

An item of supply within the Swedish Defence can be either of the following types of objects:

• "Real" item, e.g. a vehicle, tool, bolt, tin of oil etc;
• Facility;
• Project;
• Packing;
• Function;
• Specification for a group of items with certain properties;
• Publication;
• Group of items for accounting/reporting purposes;
• Kit (e.g. tool kit);
• "Real" item with accessories.

NOTE    Type of item of supply is defined by classification, as described under "Swedish Defence Item of Supply Classification" above.

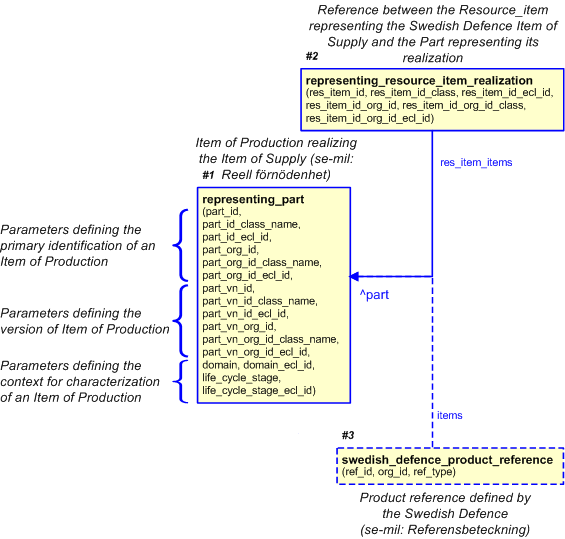

The realization ("items of production") of the respective type of object ("items of supply") has different representations in the PLCS entity model:

• The realization of "real" items, packing, "real" items with accessories, and kits, are represented as Parts;
• Facilities, project, and functions are often used to identify an non-realized product during its early life cycle stages (e.g. during systems engineering). Its final realization often results in "real" items, and is therefore best represented as Parts;
• Publications should be represented as Documents;

  NOTE    Due to input rules in legacy applications, realizations of publications will be represented as Part in this business DEX;

• Detailed information on the realization of groups of items for accounting/reporting purposes should be represented as Product_groups;

  NOTE    Product_group will never be instantiated due to the fact that, no information will be exchanged that describes the realization of groups of items.

Whilst detailed representation on the physical realization for the respective type of item of supply shall be represented as different types of entities in PLCS, the generic concept of a Swedish Defence "Item of Supply" shall be represented as a Resource_item.

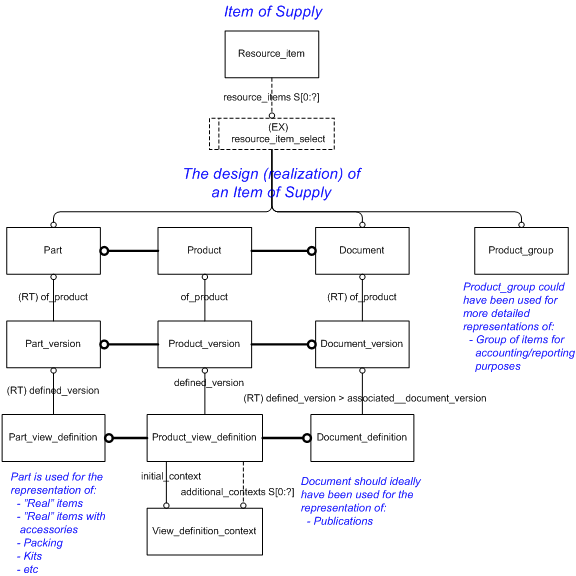

Figure 2 —  An information model overview for the ideal representation of a Swedish Defence item of supply and its associated Items of Production

NOTE    The Document and Product_group entities will never be instantiated by this Business DEX.

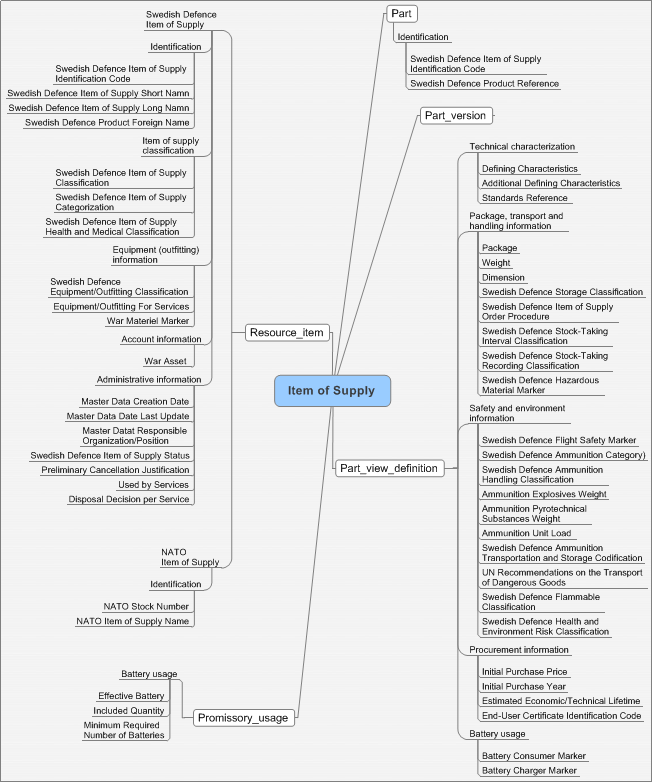

An overview on the mappings of the identifications, classifications and characterizations associated with an item of supply, are shown as a mind map in Figure 3 below. The main topics in the mind map illustrates the entities to which the representation of the respective FREJ Term is being assigned.

Figure 3 —  Representing an item of supply information model overview

Resource_item representing the Swedish Defence item of supply

The following information is assigned to the Resource_item representing the generic concept of an item of supply within the Swedish Defence (i.e. the information is generic and applies to any type of item of supply regardless of its realization):

• Identifications:
  • Swedish Defence Item of Supply Identification Code (se-mil: Förrådsbeteckning);
  • Swedish Defence Item of Supply Short Name (se-mil: Förrådsbenämning);
  • Swedish Defence Item of Supply Long Name (se-mil: Oförkortad förrådsbenämning);
  • Swedish Defence Item of Supply Foreign Name (se-mil: Utländsk benämning);
• Classifications:
  • Swedish Defence Item of Supply Classification (se-mil: Förrådsbeteckningssignal);
  • Swedish Defence Item of Supply Categorization (se-mil: Förnödenhetsslag);
  • Swedish Defence Item of Supply Health and Medical Classification (se-mil: Materielkategorikod);
• Equipment (outfitting) information:
  • Swedish Defence Item of Supply Equipment/Outfitting Classification (se-mil: Materielgrupp);
  • Equipment/Outfitting For Services (se-mil: Utrustningsartikel);
  • War Materiel Marker (se-mil: Krigsmaterielkod);
• Account information:
  • War Asset (se-mil: Kod för krigsorganisatorisk anläggningstillgång);
• Administrative information:
  • Master Data Creation Date (se-mil: Datum för registrering);
  • Master Data Date Last Update (se-mil: Datum för ändring);
  • Master Data Responsible Organization/Position (se-mil: Förnödenhetsansvar);
  • Swedish Defence Item of Supply Status (se-mil: Aktualitetssignal);
  • Preliminary Cancellation Justification (se-mil: Preliminärannullering - sign);
  • Disposal Decision per Service (se-mil: Utgallring);
  • Used by Services (se-mil: Försvarsgrensanvändare).

Swedish Defence Item of Supply Identifications and Classifications

The representation of an item of supply along with its mandatory identifications and classifications is defined in the FMV business template FMV.swedish_defence_item_of_supply_definition. This business template requires the following input parameters:

• Swedish Defence Item of Supply Identification Code (se-mil: Förrådsbeteckning);
• Swedish Defence Item of Supply Short Name (se-mil: Förrådsbenämning);
• Swedish Defence Item of Supply Classification (se-mil: Förrådsbeteckningssignal);
• Swedish Defence Item of Supply Categorization (se-mil: Förnödenhetsslag).

An item of supply in the Swedish Defence may also have the following optional identifications and classifications:

• Swedish Defence Item of Supply Long Name (se-mil: Oförkortad förrådsbenämning);
• Swedish Defence Item of Supply Foreign Name (se-mil: Utländsk benämning);
• Swedish Defence Item of Supply Health and Medical Classification (se-mil: Materielkategorikod).

These additional identifications and classifications are represented as additional optional characterizations of the Resource_item being created within the FMV.swedish_defence_item_of_supply_definition business template. The Resource_item is referenced by the reference parameter ^resource_id, as shown in Figure 4 below.

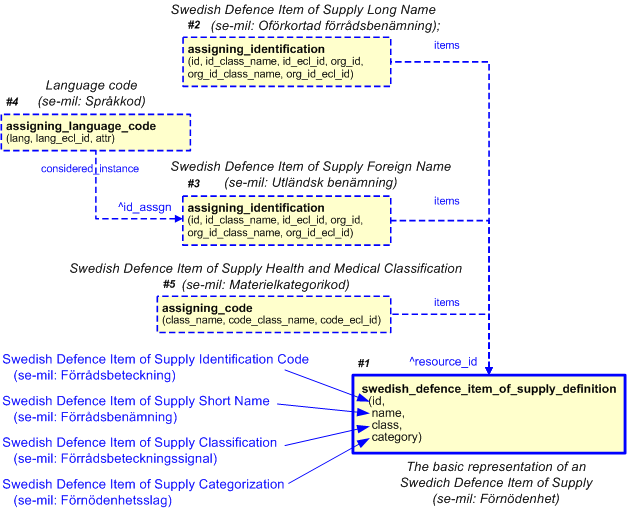

Figure 4 —  A template representation of the identifications and classifications associated with the resource_item representing the item of supply

Template 2 (Figure 4): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Item of Supply Long Name (se-mil: Oförkortad förrådsbenämning) Assignment of an optional "Swedish Defence Item of Supply Long Name" to the Resource_item representing the Swedish Defence item of supply..
Parameter name:	Parameter value:	Parameter description:
id	(FREJ Term number 144) Value is provided by the sending application.	The Swedish Defence Item of Supply Long Name as described in [Oförkortad_förrådsbenämning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml .
id_class_name	[Oförkortad_förrådsbenämning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library storing the @id_class_name.
org_id	"FMV"	The identifier of the organization that "owns" the identifier.
org_id_class_name	"Organization_name"	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	"urn:plcs:rdl:std"	The id of the External_class_library storing the @org_id_class_name.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the identification is assigned

Template 3 (Figure 4): assigning_identification Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Item of Supply Foreign Name (se-mil: Utländsk benämning); Assignment of an optional "Swedish Defence Item of Supply Foreign Name" to the Resource_item representing the Swedish Defence item of supply..
Parameter name:	Parameter value:	Parameter description:
id	(FREJ Term number 137) Value is provided by the sending application.	The Swedish Defence Item of Supply Foreign Name as described in [Utländsk_benämning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml .
id_class_name	[Utländsk_benämning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library storing the @id_class_name.
org_id	"FMV"	The identifier of the organization that "owns" the identifier.
org_id_class_name	"Organization_name"	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	"urn:plcs:rdl:std"	The id of the External_class_library storing the @org_id_class_name.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the identification is assigned

Template 5 (Figure 4): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Item of Supply Health and Medical Classification (se-mil: Materielkategorikod) Items of supply defined by the Swedish Health and Medical Care Executive Board (sv: Sjukvardsstyrelsen) may also have this optional classification of the Resource_item representing the item of supply within the Swedish Defence.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 219) Value is provided by the sending application.	The text representing the Swedish Defence Item of Supply Health and Medical Classification code. Valid codes are described in the class [Materielkategorikod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Materielkategorikod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the Class is assigned.

Swedish Defence Item of Supply Equipment (outfitting) information

Equipment (outfitting) information for an item of supply includes the following information:

• Swedish Defence Item of Supply Equipment/Outfitting Classification (se-mil: Materielgrupp);
• Equipment/Outfitting For Services (se-mil: Utrustningsartikel);
• War Materiel Marker (se-mil: Krigsmaterielkod).

All equipment (outfitting) information is assigned to the Resource_item representing the item of supply within the Swedish Defence.

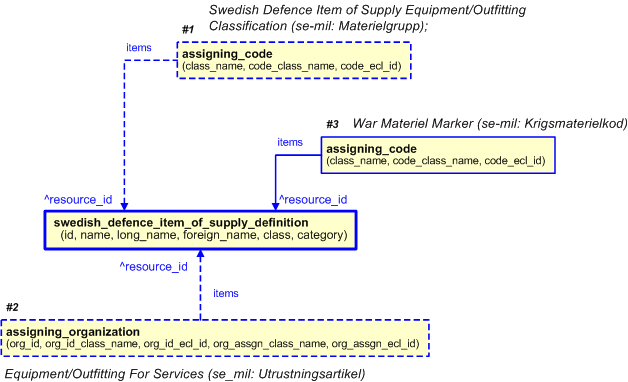

Figure 5 —  A template representation for the equipment (outfitting) information associated with the resource_item representing the item of supply

Template 1 (Figure 5): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Item of Supply Equipment/Outfitting Classification (se-mil: Materielgrupp) The assignment of Swedish Defence Item of Supply Equipment/Outfitting Classification (se-mil: Materielgrupp) to the Resource_item representing the item of supply within the Swedish Defence.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 206) Value is provided by the sending application.	The text representing the Swedish Defence Item of Supply Equipment/Outfitting Classification code. Valid codes are described in the class [Materielgrupp] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Materielgrupp] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the Class is assigned.

Template 2 (Figure 5): assigning_organization Hide template parametersHide all template parametersShow all template parameters
Description	Equipment/Outfitting For Services (se-mil: Utrustningsartikel) The assignment of one or many organization(s) that utilizes the item of supply to equip/outfit an individual or organization. The organization(s) is assigned to the Resource_item representing the item of supply within the Swedish Defence.
Parameter name:	Parameter value:	Parameter description:
org_id	(FREJ Term number 220) Value is provided by the sending application.	The name or identifier of the organization. Valid organization id's are A, M, or F.
org_id_class_name	"Organization abbreviated name" (urn:plcs:rdl:std:Organization abbreviated name)	Classification of the organization identification defined in the @org_id parameter, i.e. type of identifier being used.
org_id_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_id_class_name.
org_assgn_class_name	[Utrustningsartikel] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the assignment of the organization. This provides the role or reason for the assignment.
org_assgn_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_assgn_class_name.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the organization is assigned

Template 3 (Figure 5): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	War Materiel Marker (se-mil: Krigsmaterielkod) Assignment of a War Materiel Marker (se-mil: Krigsmaterielkod) to the Resource_item representing the an item of supply within the Swedish Defence.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 263) Value is provided by the sending application.	The text representing the War Materiel Marker code. Valid codes are described in the class [Krigsmaterielkod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Krigsmaterielkod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the Class is assigned.

Account information

Account information for an item of supply indicates whether an item of supply should be defined as an asset for a war situation.

If the Resource_item representing the generic concept of an item of supply within the Swedish Defence is defined as a War Asset, then shall it be classified accordingly.

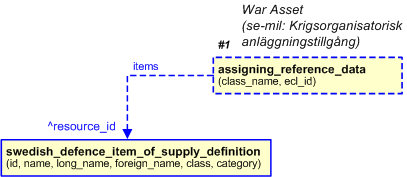

Figure 6 —  A template representation for the account information associated with the resource_item representing the item of supply

Template 1 (Figure 6): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	War Asset (se-mil: Kod för krigsorganisatorisk anläggningstillgång) Optional classification of the Resource_item, representing the generic concept of an item of supply within the Swedish Defence, as an asset for a war situation. NOTE    Classified if FREJ Term number 282 = "1".
Parameter name:	Parameter value:	Parameter description:
class_name	[Krigsorganisatorisk_anläggningstillgång] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the definition for the class being used.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the External_class is assigned.

Administrative information

Administrative information for an Swedish Defence item of supply consists of:

• Master Data Creation Date (se-mil: Datum för registrering);
• Master Data Date Last Update (se-mil: Datum för ändring);
• Master Data Responsible Organization/Position (se-mil: Förnödenhetsansvar);
• Swedish Defence Item of Supply Status (se-mil: Aktualitetssignal);
• Preliminary Cancellation Justification (se-mil: Preliminärannullering - sign);
• Used by Services (se-mil: Försvarsgrensanvändare).
• Disposal Decision per Service (se-mil: Utgallring);

Administrative information is assigned to the Resource_item representing the generic concept of an item of supply within the Swedish Defence.

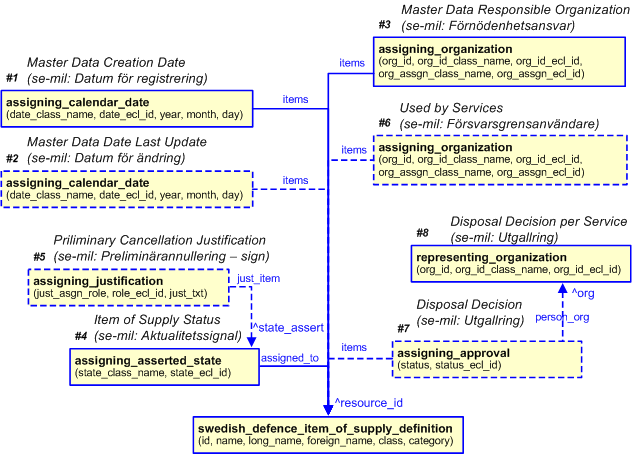

Figure 7 —  A template representation for the administrative information associated with the resource_item representing the item of supply

Template 1 (Figure 7): assigning_calendar_date Hide template parametersHide all template parametersShow all template parameters
Description	Master Data Creation Date (se-mil: Datum för registrering) Date when the item of supply was initially registered in the Swedish Defence master application for item of supply information.
Parameter name:	Parameter value:	Parameter description:
date_class_name	[Date_actual_master_data_creation] Error RDL1: The class Date_actual_master_data_creation does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the "External class" (urn:plcs:rdl:std:External class) being used to classify the date being assigned.
date_ecl_id	"urn:plcs:rdl:std"	The id of the "External class library" (urn:plcs:rdl:std:External class library) in which the @date_class_name is defined.
year	(FREJ Term number 170) Value is provided by the sending application.	The year component of FREJ Term number 170
month	(FREJ Term number 170) Value is provided by the sending application	The month component of FREJ Term number 170
day	(FREJ Term number 170) Value is provided by the sending application	The day component of FREJ Term number 170
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the date is assigned.

Template 2 (Figure 7): assigning_calendar_date Hide template parametersHide all template parametersShow all template parameters
Description	Master Data Date Last Update (se-mil: Datum för ändring) Date when any information associated with the item of supply was latest updated in the Swedish Defence master application for item of supply information.
Parameter name:	Parameter value:	Parameter description:
date_class_name	[Date_actual_master_data_modified] Error RDL1: The class Date_actual_master_data_modified does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the "External class" (urn:plcs:rdl:std:External class) being used to classify the date being assigned.
date_ecl_id	"urn:plcs:rdl:std"	The id of the "External class library" (urn:plcs:rdl:std:External class library) in which the @date_class_name is defined.
year	(FREJ Term number 171) Value is provided by the sending application	The year component of FREJ Term number 171
month	(FREJ Term number 171) Value is provided by the sending application	The month component of FREJ Term number 171
day	(FREJ Term number 171) Value is provided by the sending application	The day component of FREJ Term number 171
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the date is assigned.

Template 3 (Figure 7): assigning_organization Hide template parametersHide all template parametersShow all template parameters
Description	Master Data Responsible Organization/Position (se-mil: Förnödenhetsansvar) Assignment of the organization/position being responsible for the item of supply information (master data).
Parameter name:	Parameter value:	Parameter description:
org_id	(FREJ Term number 106) Value is provided by the sending application	The name or identifier of the organization.
org_id_class_name	"Organization name" (urn:plcs:rdl:std:Organization name)	Classification of the organization identification defined in the @org_id parameter, i.e. type of organization identifier being used.
org_id_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_id_class_name.
org_assgn_class_name	[Förnödenhetsansvar] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the assignment of the organization. This provides the role or reason for the assignment.
org_assgn_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_assgn_class_name.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the organization is assigned

Template 4 (Figure 7): assigning_asserted_state Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Item of Supply Status (se-mil: Aktualitetssignal) The assignment of the status for the item of supply as being in one of the following states; "in-use", "preliminary cancellation", "withdrawn" or "historic". NOTE    Each of the valid codes for FREJ Term number 142 "Aktualitetssignal" are explicitly mapped as separate classes in the "urn:rdl:plcs:se-mil" reference data library. This means that status will be exchanged by its class name rather than by code.
Parameter name:	Parameter value:	Parameter description:
state_class_name	One of the following subclasses of [Aktualitetssignal] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml ; [Aktuell_förnödenhet] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml (If FREJ Term number 142 = "0") [Preliminärannullerad_förnödenhet] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml (If FREJ Term number 142 = "1") [Avregistrerad_förnödenhet] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml (If FREJ Term number 142 = "8") [Historikregistrerad] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml (If FREJ Term number 142 = "9")	The class name of the External_class corresponding to the State_definition name.
state_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @state_class_name.
assigned_to	The Swedish Defence item of supply under consideration, referenced via the ^resource_item parameter.	The activity, product, individual, task_method, etc to which the state is assigned

Template 5 (Figure 7): assigning_justification Hide template parametersHide all template parametersShow all template parameters
Description	Preliminary Cancellation Justification (se-mil: Preliminärannullering - sign) Assignment of a reference to a letter of memorandum (FREJ Term number 174), which justifies the status "preliminary cancellation" for the item of supply. NOTE    In cases where the reference to a letter of memorandum is contained within FREJ Term "ID-FÄLT", due to string length, this should be included in the @just_txt string as well.
Parameter name:	Parameter value:	Parameter description:
just_asgn_role	[State_justification] Error RDL1: The class State_justification does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The type of Justification_assignment. The type allows the explicit representation of the reason for something to be represented by reference data.
role_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @just_asgn_role.
just_txt	(FREJ Term number 174. The just_txt input parameter may also contain the value in FREJ Term "ID-FÄLT") Value set by the sending application	The text describing the purpose of or reason for the justification.
just_item	The State_assertion (representing the assertion of a State_observed that complies with a State_definition) via the ^state_assert reference parameter.	The item to which the Justification_assignment is assigned.

Template 6 (Figure 7): assigning_organization Hide template parametersHide all template parametersShow all template parameters
Description	Used by Services (se-mil: Försvarsgrensanvändare). The assignment of one or many organization(s) in the role of User Organizations (Försvarsgrensanvändare) to the Resource_item representing the generic concept of an item of supply within the Swedish Defence. NOTE    There might be one, or many assigned user organizations.
Parameter name:	Parameter value:	Parameter description:
org_id	(FREJ Term number 210) Value is provided by the sending application.	The name or identifier of the organization. Valid organization id's are A, C, M, or F.
org_id_class_name	"Organization abbreviated name" (urn:plcs:rdl:std:Organization abbreviated name)	Classification of the organization identification defined in the @org_id parameter, i.e. type of identifier being used.
org_id_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_id_class_name.
org_assgn_class_name	[Försvarsgrensanvändare] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the assignment of the organization. This provides the role or reason for the assignment.
org_assgn_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @org_assgn_class_name.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the organization is assigned

Template 7 (Figure 7): assigning_approval Hide template parametersHide all template parametersShow all template parameters
Description	Disposal Decision per Service (se-mil: Utgallring) A disposal decision (i.e. approval) being assigned to the Resource_item representing the generic concept of an item of supply within the Swedish Defence. NOTE    There is one disposal decision (Approval) per organization that authorizes the disposal of the item of supply within the Swedish Defence. There might be one, or many assigned disposal decisions (approvals) per item of supply.
Parameter name:	Parameter value:	Parameter description:
status	[Utgallring] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the status (Approval_status) of the approval.
status_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @status.
items	The Swedish Defence item of supply under consideration, referenced via the ^resource_id reference parameter.	The items to which the approval is assigned
person_org	The organization defined in template table: Template 8(Figure 7)	The person or organization responsible for the approval

Resource_item representing the NATO item of supply

Information defining a NATO stock item is represented as a separate instance of Resource_item, since an item of supply within the Swedish Defence and a NATO stock item are resources defined in different contexts (see figure 2 below).

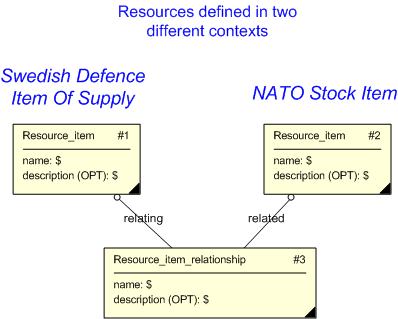

Figure 8 —   Representation of Swedish Defence item of supply and NATO stock item as two separate instances of Resource_item.

The following information is related to the Resource_item representing the NATO stock item:

• NATO Stock Number (NSN), made up from;
  • NATO Supply Classification Code (se-mil: NATO klassificeringskod);
  • National Codification Bureau (se-mil: NATO landkod);
  • NATO Non-Significant Number (se-mil: NATO artikellöpnummer);
• NATO Item Of Supply Name (se-mil: NATO benämning);

The representation of an NATO item of supply follows the guidelines described in the FMV business template FMV.nato_item_of_supply_definition.

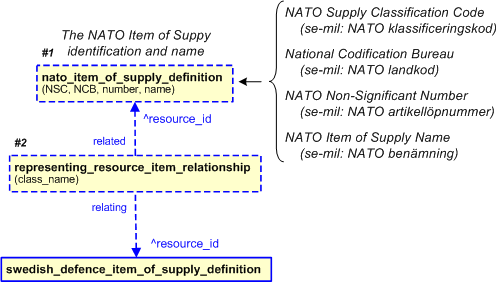

Figure 9 —  A template representation for the resource_item representing the NATO item of supply and its association with the resource_item representing the Swedish Defence item of supply.

Template 2 (Figure 9): representing_resource_item_relationship Hide template parametersHide all template parametersShow all template parameters
Description	The template used to establish an association between the Resource_item representing the Swedish Defence item of supply and the Resource_item representing the generic concept of a NATO item of supply.
Parameter name:	Parameter value:	Parameter description:
class_name	[Complies_with] Error RDL1: The class Complies_with does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the External_class used to describe the role of the relationship.
ecl_id	"urn:plcs:rdl:std"	The id of the External_class_library storing the @class_name
relating	The Resource_item representing the Swedish Defence item of supply, referenced via the ^resource_id reference parameter.	The Resource_item entity which relates to another Resource_item .
related	The Resource_item representing the NATO item of supply, referenced via the ^resource_id reference parameter.	The Resource_item entity which is related to from another Resource_item .

Part representing items of production

Part definition

The majority of items of supply defined within the Swedish Defence are; "real" items, "real" items with accessories, and kits (items of production).

NOTE    Facilities, project, and functions are often used to identify an non-realized product during its early life cycle stages (e.g. during systems engineering). Its final realization often results in "real" items, and is therefore best represented as Part. Publications should ideally been represented as Document; Due to input rules in legacy applications, realizations of publications will be represented as Part in this business DEX.

An item of production which realizes an item of supply is represented as Part, along with its associated Part_versions and Part_view_definitions. The representation of items of production realizing an item of supply follows the guidelines described in the template representing_part.

The Part representing the item of production may also have zero, one or many Swedish Defence Product References. A Swedish Defence Product Reference is made up from:

• Supplier Product Reference Identification Code (se-mil: Ritningsnummer);
• Swedish Defence Supplier Organization Identification Code (se-mil: Firmabokstavskod);
• Swedish Defence Product Reference Type Code (se-mil: Referensbeteckningskod);

The representation of an Swedish Defence Product Reference follows the guidelines described in the template FMV.swedish_defence_product_reference.

Figure 10 —  A template representation for an item of production realizing an item of supply

Template 1 (Figure 10): representing_part Hide template parametersHide all template parametersShow all template parameters
Description	Item of Production realizing the item of supply (se-mil: Reell förnödenhet) The template used to define the basic information for the Part representing the item of production. NOTE    The primary identification for an item of production (se-mil: Förnödenhet) is the same as the one that previously has been assigned to the Resource_item representing the item of supply.
Parameter name:	Parameter value:	Parameter description:
part_id	(FREJ Term number 103) Value is provided by the sending application.	The same Swedish Defence Item of Supply Identification Code (se-mil: Förrådsbeteckning) that is assigned to the Resource_item representing the Swedish Defence item of supply.
part_id_class_name	[Förrådsbeteckning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the part identifier (i.e. the @part_id).
part_id_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @part_id_class_name.
part_org_id	"FMV".	The name of the organization that owns the @part_id.
part_org_id_class_name	"Organization name" (urn:plcs:rdl:std:Organization name)	Classification of the organization identification defined in the @part_org_id parameter.
part_org_id_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @part_org_id_class_name.
part_vn_id	"1"	There is no versioning of Swedish Defence items of supply. @part_vn_id shall always set to "1"
part_vn_id_class_name	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the part_version identifier (i.e. the @part_vn_id).
part_vn_id_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @part_vn_id_class_name.
part_vn_org_id	"FMV"	The name of the organization that owns the @part_vn_id.
part_vn_org_id_class_name	"Organization name" (urn:plcs:rdl:std:Organization name)	Classification of the organization identification defined in the @part_vn_org_id parameter.
part_vn_org_id_ecl_id	urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @part_vn_org_id_class_name.
domain	Depending on which types of characterizations that is available in the sending application, zero, one or many of the following domains may be defined: [Technical_characterization] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml [Procurement] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id	urn:plcs:rdl:se-mil.	The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain.
life_cycle_stage	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	There is no life_cycle_stage information available for Swedish Defence items of supply. Life cycle stage shall always set to "Unknown"
life_cycle_stage_ecl_id	urn:plcs:rdl:std	The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage.

Template 2 (Figure 10): representing_resource_item_realization Hide template parametersHide all template parametersShow all template parameters
Description	Association between the Swedish Defence item of supply and the Part representing its realization (i.e. the item of production). The template used to define the association between the Resource_item representing the item of supply, and the Part representing the item of production.
Parameter name:	Parameter value:	Parameter description:
res_item_id	(FREJ Term number 103) Value is provided by the sending application.	The primary identification for the Resource_item representing the item of supply.
res_item_id_class	[Förrådsbeteckning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the item of supply identifier (i.e. the @res_item_id).
res_item_id_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @res_item_id_class.
res_item_id_org_id	"FMV".	The name of the organization that owns the @res_item_id.
res_item_id_org_id_class	"Organization name" (urn:plcs:rdl:std:Organization name)	Classification of the organization identification defined in the @res_item_id_org_id.
res_item_id_org_id_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @res_item_id_org_id_class.
res_item_items	The item of production (Part) realizing the item of supply, referenced via the ^part reference parameter.	Item that shall be added to the SET of resource items that realizes the resource item under consideration.

Technical characterization of the Part representing an item of production

Each Part representing an item of production may have the following technical characterization:

• Defining Characteristics (se-mil: Identifierande uppgifter);
• Additional Defining Characteristics (se-mil: Kompletterande uppgifter);
• Standards Reference;
  • Swedish Standards Institute (SIS) Standard Identification (se-mil: Standardblad för svensk standard);
  • Type of Standard (se-mil: Standardtypbeteckning);
  • Deviation from Standard Marker (se-mil: Avvikande standard);
  • Standards Technical Data (se-mil: Standardteknisk uppgift);

Technical characterizations are not assigned directly to the Part representing an item of production, but to the Part_view_definition representing the domain [Technical_characterization]
Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
.

Figure 11 —  A template representation for the technical characterizations associated with an item of supply

Template 1 (Figure 11): assigning_product_property Show template parametersHide all template parametersShow all template parameters
Description	Assignment of defining characteristics (se-mil: Identifierande uppgifter) Assignment of defining characteristics to the Part_view_definition representing the [Technical_characterization] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml domain.

Template 1 (Figure 11): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Assignment of defining characteristics (se-mil: Identifierande uppgifter) Assignment of defining characteristics to the Part_view_definition representing the [Technical_characterization] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml domain.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Identifierande_uppgifter] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Technical_characterization] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 2 (Figure 11): product_property_text Hide template parametersHide all template parametersShow all template parameters
Description	The text containing the defining characteristics Template holding the value for defining characteristics.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 120) Text provided by the sending application.	The text containing the Defining Characteristics as described in [Identifierande_uppgifter] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing the Defining Characteristics (se-mil: Identifierande uppgifter), referenced via the ^property reference parameter..	The property to which the text representation is assigned

Template 3 (Figure 11): assigning_product_property Show template parametersHide all template parametersShow all template parameters
Description	Assignment of additional defining characteristics (se-mil: Kompletterande uppgifter) Assignment of additional defining characteristics to the Part_view_definition representing the [Technical_characterization] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml domain.

Template 3 (Figure 11): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Assignment of additional defining characteristics (se-mil: Kompletterande uppgifter) Assignment of additional defining characteristics to the Part_view_definition representing the [Technical_characterization] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml domain.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Kompletterande_uppgifter] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Technical_characterization] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 4 (Figure 11): product_property_text Hide template parametersHide all template parametersShow all template parameters
Description	The text containing the defining characteristics Template holding the value for additional defining characteristics.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 130) Text provided by the sending application.	The text containing the Additional Defining Characteristics as described in [Kompletterande_uppgifter] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing the Additional Defining Characteristics (se-mil: Kompletterande uppgifter), referenced via the ^property reference parameter..	The property to which the text representation is assigned

Template 5 (Figure 11): swedish_defence_assigning_document_reference Hide template parametersHide all template parametersShow all template parameters
Description	Standards reference Template defining a referenced standard.
Parameter name:	Parameter value:	Parameter description:
id	(FREJ Term number 184) Value provided by the sending application.	The identifier for the document being referenced. (Swedish Standards Institute (SIS) Standard Identification as described in [Standardblad_för_svensk_standard] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml )
id_class_name	[Standardblad_för_svensk_standard] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the document identifier.
id_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library storing the @id_class_name class
org_id	"Swedish Standards Institute"	The identifier of the organization that "owns" the document identifier.
org_id_class_name	"Organization name" (urn:plcs:rdl:std:Organization name)	The name of the class being used to classify the identification of the organization. For example CAGE code.
org_id_ecl_id	"urn:plcs:rdl:std"	The id of the External_class_library storing the @org_id_class_name class
doc_asg_class_name	[Standards_reference] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Document_assignment, i.e. providing the role of the referenced Document
doc_asg_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library storing the @doc_asg_class_name class
is_assigned_to	The [Technical_characterization] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the document is assigned

Template 6 (Figure 11): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Type of standard (se-mil Standardtypbeteckning) Defines the type of standard being referenced. Type of standard is determined by a set of predefined codes. NOTE    Type of standard shall not be assigned If FREJ Term number 183 = "A".
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 183) Value is provided by the sending application.	The text representing the code. Valid codes are described in the class [Standardtypbeteckning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml . NOTE    Type of standard shall not be assigned If FREJ Term number 183 = "A".
code_class_name	[Standardtypbeteckning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The Document representing the referenced standards document. The Document is referenced via the ^doc reference parameter.	The items to which the Class is assigned.

Template 7 (Figure 11): assigning_descriptor Hide template parametersHide all template parametersShow all template parameters
Description	Standards Technical Data (se-mil: Standardteknisk uppgift) Summarized description of the technical data content in the standard which is relevant for the Part (item of production) under consideration.
Parameter name:	Parameter value:	Parameter description:
descr	(FREJ Term number 185) Value is provided by the sending application.	The Standards Technical Data as described in [Standardteknisk_uppgift] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml .
class_name	[Standardteknisk_uppgift] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class (External_class) being used to determine type of descriptor.
ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the class.
is_assigned_to	The Document_assignment representing the association between the referenced standards document and the item of production. The Document_assignment is referenced via the ^doc_asg reference parameter.	The items to which the descriptor is assigned.

Template 8 (Figure 11): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Deviation from Standard Marker (se-mil: Avvikande standard); Classifies the Document_assignment with respect to whether the item of production in some respect deviates from the referenced standard. NOTE    Classified if FREJ Term number 183 has value ="A".
Parameter name:	Parameter value:	Parameter description:
class_name	[Avvikande_standard] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the definition for the class being used.
items	The Document_assignment representing the association between the referenced standards document and the item of production. The Document_assignment is referenced via the ^doc_asg reference parameter.	The items to which the External_class is assigned.

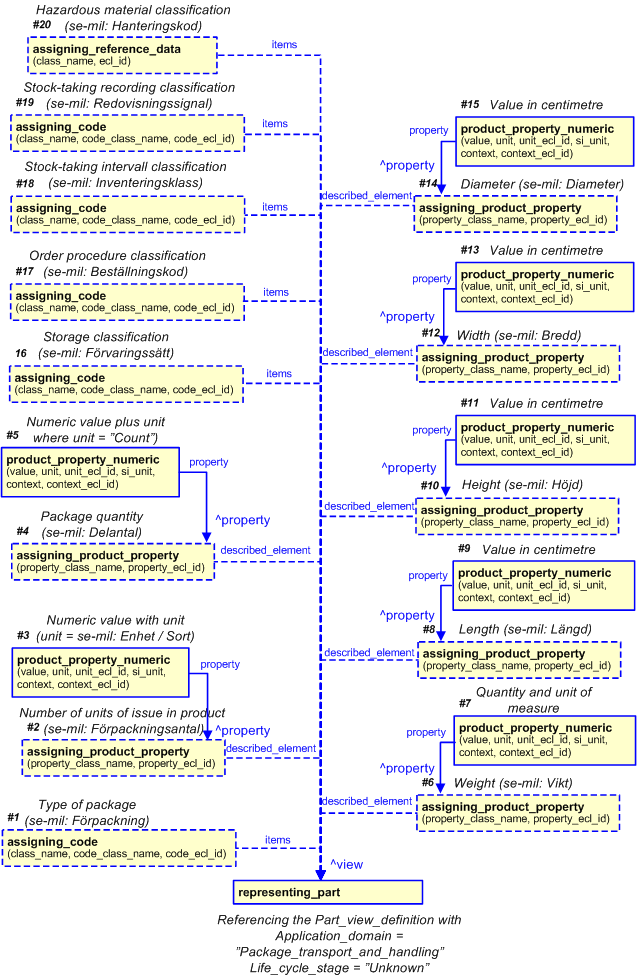

Package, transport and handling information for the Part representing an item of production

Each Part representing an item of production may have the following information regarding package, transport and handling:

• Package;
  • Type of Package (se-mil: Förpackning);
  • Unit of Issue Quantity and Unit of Measure (se-mil: Förpackningsantal och enhet/sort);
  • Package Quantity (se-mil: Delantal);
• Weight (se-mil: Vikt och viktenhet);
• Dimension;
  • Length (se-mil: Längd) ;
  • Height (se-mil: Höjd) ;
  • Width(se-mil: Bredd) ;
  • Diameter (se-mil: Diameter) ;
• Swedish Defence Storage Classification (se-mil: Förvaringssätt);
• Swedish Defence Item of Supply Order Procedure (se-mil: Beställningskod);
• Swedish Defence Stock-Taking Interval Classification (se-mil: Inventeringsklass);
• Swedish Defence Stock-Taking Recording Classification (se-mil: Redovisningssignal);
• Swedish Defence Hazardous Material Marker (se-mil: Hanteringskod);

Package, transport and handling information are assigned to the Part_view_definition representing the domain [Package_transport_and_handling]
Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
.

Figure 12 —  A template representation for the package, transport and handling information assigned to an item of supply

Template 1 (Figure 12): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Type of Package (se-mil: Förpackning) If the item of production is delivered in some kind of package, this code defines the type of package . Type is determined by a set of predefined codes.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 146) Value is provided by the sending application.	The text representing the Type of Package code. Valid codes are described in the class [Förpackning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml .
code_class_name	[Förpackning] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 2 (Figure 12): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Unit of Issue Quantity (se-mil: Förpackningsantal) Items of production where the item of production is a package has an associated unit of issue quantity and unit of measure.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Förpackningsantal] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 3 (Figure 12): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Unit of Issue Quantity (se-mil: Förpackningsantal) and Unit (se-mil: Enhet / Sort) Template holding the value for unit of issue quantity along with the type of unit.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 147) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	(FREJ Term number 149) Value is provided by the sending application, and shall be the subclass of [Enhetsstorlek] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml which has the same name as the value in FREJ Term number 149.	The class name of the unit in which the value is expressed.
unit_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing the Unit of Issue Quantity (se-mil: Förpackningsantal), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Add subclasses of [Enhetsstorlek]
Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
.

Template 4 (Figure 12): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Package Quantity (se-mil: Delantal) A package may have an additional quantification of the unit of issue being included in each package.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Delantal] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 5 (Figure 12): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	The numeric representation containing the package quantity (se-mil: Delantal) Template holding the value for package quantity. The unit is defaulted to count.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 139) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[Count] Error RDL1: The class Count does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The class name of the unit in which the value is expressed.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing the Package Quantity (se-mil: Delantal), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 6 (Figure 12): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Weight (se-mil: Vikt ) The weight of an item of production or package of items of production.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Förnödenhetsvikt] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 7 (Figure 12): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Weight and its Unit of Measure (se-mil: Vikt och viktenhet) Template holding the value for weight along with the type of unit.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 204) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	(FREJ Term number 250) Value is provided by the sending application and the class shall correspond with value in FREJ Term number 250. Valid classes are [kilogram] Error RDL1: The class kilogram does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml , [hectogram] Error RDL1: The class hectogram does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml , or [gram] Error RDL1: The class gram does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml .	The class name of the unit in which the value is expressed.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	TRUE if Unit is classified as [kilogram] Error RDL1: The class kilogram does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml , otherwise FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing Weight (se-mil: Förnödenhetsvikt), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 8 (Figure 12): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Length (se-mil: Längd) The length of an item of production or package of items of production.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Förnödenhetslängd] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 9 (Figure 12): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Length and its Unit of Measure (se-mil: Längd) Template holding the value for length along with the type of unit.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 223) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[centimetre] Error RDL1: The class centimetre does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The class name of the unit in which the value is expressed.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing Length (se-mil: Förnödenhetslängd), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 10 (Figure 12): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Height (se-mil: Höjd) The height of an item of production or pack of items of production.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Förnödenhetshöjd] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 11 (Figure 12): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Height and its Unit of Measure (se-mil: se-mil: Höjd) Template holding the value for height along with the type of unit.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 229) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[centimetre] Error RDL1: The class centimetre does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The class name of the unit in which the value is expressed.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing Height (se-mil: Förnödenhetshöjd), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 12 (Figure 12): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Width (se-mil: Bredd) The width of an item of production or pack of items of production.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Förnödenhetsbredd] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 13 (Figure 12): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Width and its Unit of Measure (se-mil: Bredd) Template holding the value for width along with the type of unit.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 224) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[centimetre] Error RDL1: The class centimetre does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The class name of the unit in which the value is expressed.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing Width (se-mil: Förnödenhetsbredd), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 14 (Figure 12): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Diameter (se-mil: Diameter) The diameter of an item of production or pack of items of production.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Förnödenhetsdiameter] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class that determines the type of property being assigned.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 14 (Figure 12): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Diameter and its Unit of Measure (se-mil: se-mil: Diameter) Template holding the value for diameter along with the type of unit.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 231) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[centimetre] Error RDL1: The class centimetre does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The class name of the unit in which the value is expressed.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing Diameter (se-mil: Förnödenhetsdiameter), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 16 (Figure 12): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Storage Classification (se-mil: Förvaringssätt) The item of production shall or may be stored according to predefined conditions. Type is storage condition is determined by a set of predefined codes.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 217) Value is provided by the sending application.	The text representing the Swedish Defence Storage Classification. Valid codes are described in the class [Förvaringssätt] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Förvaringssätt] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 17 (Figure 12): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Item of Supply Order Procedure (se-mil: Beställningskod) The item of supply shall be ordered according to predefined conditions. Type is ordering procedure is determined by a set of predefined codes.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 205) Value is provided by the sending application.	The text representing the Swedish Defence Item of Supply Order Procedure. Valid codes are described in the class [Beställningskod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Beställningskod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 18 (Figure 12): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Stock-Taking Interval Classification (se-mil: Inventeringsklass) Items of supply may have different principles for stock-taking. Type is stock-taking is determined by a set of predefined codes.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 215) Value is provided by the sending application.	The text representing the Swedish Defence Stock-Taking Interval Classification. Valid codes are described in the class [Inventeringsklass] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Inventeringsklass] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 19 (Figure 12): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Stock-Taking Recording Classification (se-mil: Redovisningssignal) Items of supply may have different principles for recording the balance for the item of supply. Type is stock-taking recording principles is determined by a set of predefined codes.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 212) Value is provided by the sending application.	The text representing the Swedish Defence Stock-Taking Recording Classification. Valid codes are described in the class [Redovisningssignal] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Redovisningssignal] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 20 (Figure 12): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Hazardous Material Marker (se-mil: Hanteringskod); Indicates than the item of production is hazardous and requires a safety folder to be handed out along with the item of supply. NOTE    Classified if FREJ Term number 218 has value ="F".
Parameter name:	Parameter value:	Parameter description:
class_name	[Hanteringskod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the definition for the class being used.
items	The [Package_transport_and_handling] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the External_class is assigned.

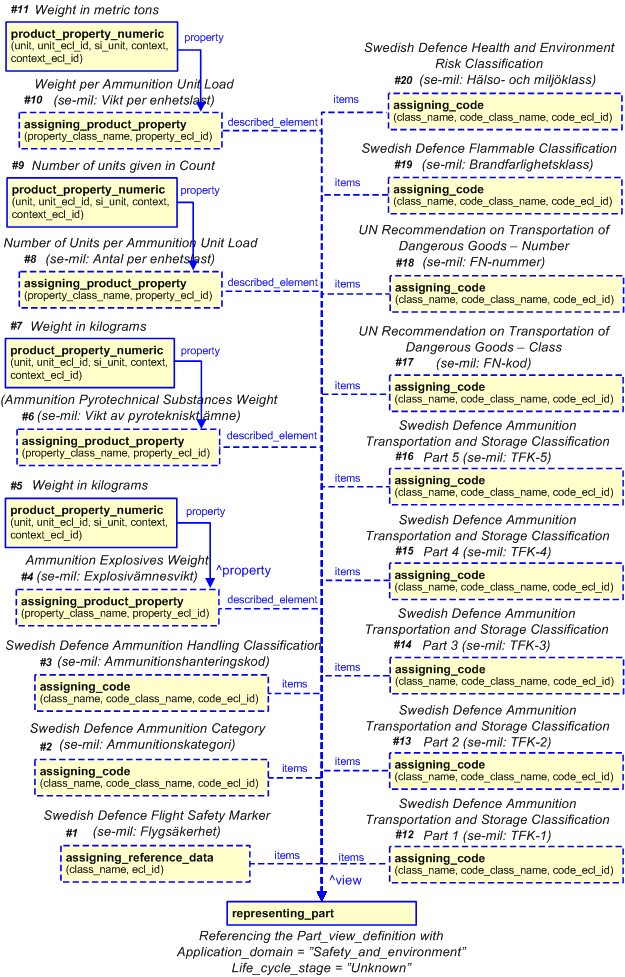

Safety and environment information for the Part representing an item of production

Each Part representing an item of production may have the following safety and environment information:

• Flight safety information;
  • Swedish Defence Flight Safety Marker (se-mil: Flygsäkerhet);
• Ammunition related safety information;
  • Swedish Defence Ammunition Category (se-mil: Ammunitionskategori);
  • Swedish Defence Ammunition Handling Classification (se-mil: Ammunitionshanteringskod);
  • Ammunition Explosives Weight (se-mil: Explosivämnesvikt);
  • Ammunition Pyrotechnical Substances Weight (se-mil: Vikt av pyrotekniskt ämne);
  • Number of Units per Ammunition Unit Load (se-mil: Antal per enhetslast);
  • Weight per Ammunition Unit Load (se-mil: Vikt per enhetslast);
  • Swedish Defence Ammunition Transportation and Storage Codification Part 1 (se-mil: TFK1);
  • Swedish Defence Ammunition Transportation and Storage Codification Part 2 (se-mil: TFK2);
  • Swedish Defence Ammunition Transportation and Storage Codification Part 3 (se-mil: TFK3);
  • Swedish Defence Ammunition Transportation and Storage Codification Part 4 (se-mil: TFK4);
  • Swedish Defence Ammunition Transportation and Storage Codification Part 5 (se-mil: TFK5);
  • UN Recommendations on Transport of Dangerous Goods - Class (se-mil: FN-kod);
  • UN Recommendations on Transport of Dangerous Goods - Number (se-mil: FN-nummer).
• Risk for fire, health and environment information;
  • Swedish Defence Flammable Classification (se-mil: Brandfarlighetsklass);
  • Swedish Defence Health and Environment Risk Classification (se-mil: Hälso- och miljöklass) ;

The safety and environment information is assigned to the Part_view_definition representing the domain [Safety_and_environment]
Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
.

Figure 13 —  A template representation for the safety information assigned to an item of supply

Template 1 (Figure 13): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Flight Safety Marker (se-mil: Flygsäkerhet) Classifies the item of production with to respect to whether it may affect flight safety. NOTE    Classified if FREJ Term number 109 has value ="X".
Parameter name:	Parameter value:	Parameter description:
class_name	[Flygsäkerhet] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the definition for the class being used.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the External_class is assigned.

Template 2 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Ammunition Category (se-mil: Ammunitionskategori) Specialized categorization of ammunition items of production.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 230) Value is provided by the sending application.	The text representing the Swedish Defence Ammunition Category. Valid codes are described in the class [Ammunitionskategori] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Ammunitionskategori] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 3 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Ammunition Handling Classification (se-mil: Ammunitionshanteringskod) Describes how to handle e.g. ammunition packages, damaged ammunition and used ammunition.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 234) Value is provided by the sending application.	The text representing the Swedish Defence Ammunition Handling Classification. Valid codes are described in the class [Ammunitionshanteringskod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Ammunitionshanteringskod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 4 (Figure 13): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Ammunition Explosives Weight (se-mil: Explosivämnesvikt) Net weight of all explosive substances per ammunition item.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Explosivämnesvikt] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 5 (Figure 13): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Ammunition Explosives Weight in kilograms. (se-mil: Explosivämnesvikt) Template holding the value for Ammunition Explosives Weight along with the unit kilogram.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 232) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[kilogram] Error RDL1: The class kilogram does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	TRUE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing the [Explosivämnesvikt] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml (Ammunition Explosives Weight), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 6 (Figure 13): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Ammunition Pyrotechnical Substances Weight (se-mil: Vikt av pyrotekniskt ämne) Weight of pyrotechnical substances per ammunition item.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Vikt_av_pyrotekniskt_ämne] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 7 (Figure 13): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Ammunition Pyrotechnical Substances Weight in kilograms. (se-mil: Vikt av pyrotekniskt ämne) Template holding the value for Ammunition Pyrotechnical Substances Weight along with the unit kilogram.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 233) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[kilogram] Error RDL1: The class kilogram does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	TRUE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing the [Vikt_av_pyrotekniskt_ämne] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml (Ammunition Pyrotechnical Substances Weight), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 8 (Figure 13): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Number of Units per Ammunition Unit Load (se-mil: Antal per enhetslast) Number of units of ammunition per ammunition unit load.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Antal_per_enhetslast] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 9 (Figure 13): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Number of Units per Ammunition Unit Load given in count. (se-mil: Antal per enhetslast) Template holding the value for Number of Units per Ammunition Unit Load along with the unit count.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 235) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[Count] Error RDL1: The class Count does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing the [Antal_per_enhetslast] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml (Number of Units per Ammunition Unit Load), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 10 (Figure 13): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Weight per Ammunition Unit Load (se-mil: Vikt per enhetslast) Weight per ammunition unit load.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Vikt_per_enhetslast] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 11 (Figure 13): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Numeric representation of Weight per Ammunition Unit Load given in count. (se-mil: Vikt per enhetslast) Template holding the value for Weight per Ammunition Unit Load along with the unit metric tons.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 236) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[metric_ton] Error RDL1: The class metric_ton does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing the [Vikt_per_enhetslast] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml (Weight per Ammunition Unit Load), referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 12 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Ammunition Transportation and Storage Codification Part 1 (se-mil: TFK1) Ammunition transportation classification.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 241) Value is provided by the sending application.	The text representing the Swedish Defence Ammunition Transportation and Storage Codification Part 1. Valid codes are described in the class [Transport-_och_förvaringskod_1] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Transport-_och_förvaringskod_1] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 13 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Ammunition Transportation and Storage Codification Part 2 (se-mil: TFK2) Classification of ammunition sensitivity to external damage.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 242) Value is provided by the sending application.	The text representing the Swedish Defence Ammunition Transportation and Storage Codification Part 2. Valid codes are described in the class [Transport-_och_förvaringskod_2] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Transport-_och_förvaringskod_2] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 14 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Ammunition Transportation and Storage Codification Part 3 (se-mil: TFK3) Classification of ammunition non-intentional iginition criticallity.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 243) Value is provided by the sending application.	The text representing the Swedish Defence Ammunition Transportation and Storage Codification Part 3. Valid codes are described in the class [Transport-_och_förvaringskod_3] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Transport-_och_förvaringskod_3] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 15 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Ammunition Transportation and Storage Codification Part 4 (se-mil: TFK4) Classification of ammunition ignition consequence.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 244) Value is provided by the sending application.	The text representing the Swedish Defence Ammunition Transportation and Storage Codification Part 4. Valid codes are described in the class [Transport-_och_förvaringskod_4] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Transport-_och_förvaringskod_4] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 16 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Ammunition Transportation and Storage Codification Part 5 (se-mil: TFK5) Classification of ammunition storage restrictions.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 245) Value is provided by the sending application.	The text representing the Swedish Defence Ammunition Transportation and Storage Codification Part 5. Valid codes are described in the class [Transport-_och_förvaringskod_5] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Transport-_och_förvaringskod_5] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 17 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	UN Recommendations on the Transport of Dangerous Goods - Class (se-mil: FN-kod) Substances (including mixtures and solutions) and articles subject to UN Regulations are assigned to one of nine classes according to the hazard or the most predominant of the hazards they present.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 246) Value is provided by the sending application.	The text representing the UN Recommendations on the Transport of Dangerous Goods - Class. Valid codes are described in the class [FN-kod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[FN-kod] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 18 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	UN Recommendations on the Transport of Dangerous Goods - Number (se-mil: FN-nummer) Dangerous goods are assigned to UN numbers and proper shipping names according to their hazard classification and their composition.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 247) Value is provided by the sending application.	The text representing the UN Recommendations on the Transport of Dangerous Goods - Number. Valid codes are described in the class [FN-nummer] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[FN-nummer] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 19 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Flammable Classification (se-mil: Brandfarlighetsklass) Classification of the item flammable / non-flammable properties.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 225) Value is provided by the sending application.	Swedish Defence Flammable Classification. Valid codes are described in the class [Brandfarlighetsklass] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Brandfarlighetsklass] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

Template 20 (Figure 13): assigning_code Hide template parametersHide all template parametersShow all template parameters
Description	Swedish Defence Health and Environment Risk Classification (se-mil: Hälso- och miljöklass) Classification of risk for health and environment.
Parameter name:	Parameter value:	Parameter description:
class_name	(FREJ Term number 226) Value is provided by the sending application.	Swedish Defence Health and Environment Risk Classification. Valid codes are described in the class [Hälso-_och_miljöklass] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
code_class_name	[Hälso-_och_miljöklass] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the External_class given in @code_class_name.
items	The [Safety_and_environment] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the Class is assigned.

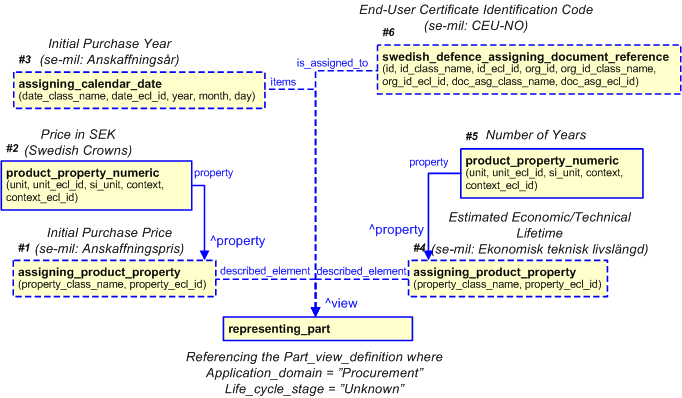

Procurement information for the Part representing an item of production

Each Part representing an item of production may have the following procurement information:

• Initial Purchase Price (se-mil: Anskaffningspris);
• Initial Purchase Year (se-mil: Anskaffningsår);
• Estimated Economic/Technical Lifetime (se-mil: Ekonomisk teknisk livslängd);
• End-User Certificate Identification Code (se-mil: CEU-NO).

Procurement information is assigned to the Part_view_definition representing the application domain [Procurement]
Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml
.

Figure 14 —  A template representation for procurement information, assigned to an item of production

Template 1 (Figure 14): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Initial Purchase Price (se-mil: Anskaffningspris) The item initial purchase price.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Anskaffningspris] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Procurement] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 2 (Figure 14): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Price in SEK (Swedish crowns). (se-mil: Anskaffningspris) Template holding the value for Initial Purchase Price in Swedish crowns (SEK).
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 260) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[Swedish_crowns] Error RDL1: The class Swedish_crowns does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing [Anskaffningspris] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml , referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 3 (Figure 14): assigning_calendar_date Hide template parametersHide all template parametersShow all template parameters
Description	Initial Purchase Year (se-mil: Anskaffningsår) Calendar year for the initial purchase of the item under consideration.
Parameter name:	Parameter value:	Parameter description:
date_class_name	[Anskaffningsår] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the "External class" (urn:plcs:rdl:std:External class) being used to classify the year being assigned.
date_ecl_id	"urn:plcs:rdl:se-mil"	The id of the "External class library" (urn:plcs:rdl:std:External class library) in which the @date_class_name is defined.
year	(FREJ Term number 261) Value is provided by the sending application.	Calendar_date year_component
month	"/NULL"	Initial Purchase Year does not contain any month component
day	"/NULL"	Initial Purchase Year does not contain any day component
items	The [Procurement] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the date is assigned.

Template 4 (Figure 14): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Estimated Economic/Technical Lifetime (se-mil: Ekonomisk teknisk livslängd) Estimated lifetime for the item under consideration, based on both economical and technical characteristics.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Ekonomisk_teknisk_livslängd] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The [Procurement] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The item to which the property is assigned

Template 5 (Figure 14): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Number of years Template holding the value for Estimated Economic/Technical Lifetime given in years.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 262) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[year] Error RDL1: The class year does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing [Ekonomisk_teknisk_livslängd] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml , referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 6 (Figure 14): swedish_defence_assigning_document_reference Hide template parametersHide all template parametersShow all template parameters
Description	End-User Certificate Identification Code (se-mil: CEU-NO) Identification of any end-user certificate for the item under consideration.
Parameter name:	Parameter value:	Parameter description:
id	(FREJ Term number 278) Value provided by the sending application.	The identifier for the document being referenced. (End-User Certificate Identification Code as described in [CEU-NO] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml )
id_class_name	[CEU-NO] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the class used to classify the document identifier.
id_ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library storing the @id_class_name class
org_id	"/NULL"	The identifier of the organization that "owns" the document identifier.
org_id_class_name	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the identification of the organization. For example CAGE code.
org_id_ecl_id	"urn:plcs:rdl:std"	The id of the External_class_library storing the @org_id_class_name class
doc_asg_class_name	"Document reference" (urn:plcs:rdl:std:Document reference)	The name of the class being used to classify the Document_assignment, i.e. providing the role of the referenced Document
doc_asg_ecl_id	"urn:plcs:rdl:std"	The id of the External_class_library storing the @doc_asg_class_name class
is_assigned_to	The [Procurement] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Part_view_definition, for the item of production under consideration where life cycle stage is [Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml . Referenced via the ^view reference parameter.	The items to which the document is assigned

Item of supply and Battery usage

The following information is used to describe battery related information for an item of supply;

• Battery Consumer Marker (se-mil: Batteriförbrukare);
• Battery Charger Marker (se-mil: Laddningsfunktion).
• Effective Battery (se-mil: Tillhör förrådsbeteckning);
• Included Quantity (se-mil: Beståndsdelens antal) ;
• Minimum Required Number of Batteries (se-mil: Batterikrav).

Relationships between the item of supply under consideration and effective batteries are represented as a resource item relationship Resource_item_relationship. The Resource_item_relationship entity relates the Resource_item representing the item under consideration with the Resource_items representing the effective batteries.

NOTE    There is one Resource_item_relationship per effective battery. There is no explicit relationship between alternative batteries.

Figure 15 —  A template representation for battery usage information

Template 1 (Figure 15): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Battery Consumer Marker (se-mil: Batteriförbrukare) Indicates that the item under consideration requires batteries in order to function. NOTE    Classified if FREJ Term number 160 has value ="1".
Parameter name:	Parameter value:	Parameter description:
class_name	[Batteriförbrukare] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the definition for the class being used.
items	The [Battery_usage] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Resource_item, for the item of supply under consideration.	The items to which the External_class is assigned.

Template 2 (Figure 15): assigning_reference_data Hide template parametersHide all template parametersShow all template parameters
Description	Battery Charger Marker (se-mil: Laddningsfunktion) Indicates that the item under consideration has a built in battery charger. NOTE    Classified if FREJ Term number 228 has value ="2".
Parameter name:	Parameter value:	Parameter description:
class_name	[Laddningsfunktion] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class being used.
ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library that stores the definition for the class being used.
items	The [Battery_usage] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml   Resource_item, for the item of supply under consideration.	The items to which the External_class is assigned.

Template 3 (Figure 15): representing_resource_item_relationship Hide template parametersHide all template parametersShow all template parameters
Description	Effective Battery Relationship (se-mil: Tillhör förrådsbeteckning) Relationship between the item of supply under consideration and an effective battery. NOTE    If FREJ Term number 160 = "1", i.e. the item under consideration is classified as Battery Consumer, then shall the relationship be established according to the value in FREJ Term number 221. The value in FREJ term number 221 is a reference to the relating element (i.e. the item under consideration) from the related element (i.e. the battery).
Parameter name:	Parameter value:	Parameter description:
class_name	[Battery_usage] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The name of the External_class used to describe the role of the relationship.
ecl_id	"urn:plcs:rdl:se-mil"	The id of the External_class_library storing the @class_name
relating	Resource_item	The Resource_item representing the Item of supply under consideration.
related	Resource_item	The Resource_items representing the effective battery.

Template 4 (Figure 15): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Included Quantity (se-mil: Beståndsdelens antal) Number of batteries included in the item of supply under consideration.
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Beståndsdelens antal] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The Resource_item_relationship representing the Effective Battery Relationship (se-mil: Tillhör förrådsbeteckning).	The item to which the property is assigned

Template 5 (Figure 15): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Number with unit Count Template holding the value for the number of batteries included in the item of supply under consideration.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 216) Value provided by the sending application.	Number of included batteries (se-mil: Beståndsdelens antal)
unit	[Count] Error RDL1: The class Count does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing [Beståndsdelens antal] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml , referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template 6 (Figure 15): assigning_product_property Hide template parametersHide all template parametersShow all template parameters
Description	Minimum Required Number of Batteries (se-mil: Batterikrav) Minimum number of batteries required to make the item under consideration function
Parameter name:	Parameter value:	Parameter description:
property_class_name	[Batterikrav] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml	The class name corresponding to the property name.
property_ecl_id	"urn:plcs:rdl:se-mil"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @property_class_name.
described_element	The Resource_item_relationship representing the Effective Battery Relationship (se-mil: Tillhör förrådsbeteckning).	The item to which the property is assigned

Template 7 (Figure 15): product_property_numeric Hide template parametersHide all template parametersShow all template parameters
Description	Number with unit Count Template holding the value for Minimum Required Number of Batteries given in count.
Parameter name:	Parameter value:	Parameter description:
value	(FREJ Term number 214) Value provided by the sending application	The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit	[Count] Error RDL1: The class Count does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the unit in which the value is expressed, referenced through an External_class.
unit_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	FALSE	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	[Unknown] Error RDL1: The class Unknown does not exist in RDL at URI urn:plcs:rdl:std. Check the dexlib/data/refdata/rdl_index.xml	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property representing [Batterikrav] Error RDL4: The URI urn:plcs:rdl:se-mil is not listed in dexlib/data/refdata/rdl_index.xml , referenced via the ^property reference parameter.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

FREJ Attached Information

© OASIS 2010 — All rights reserved
