| Business DEX (UK_Defence050):— support_solution_performance | Date: 2010/03/12 12:19:26 Revision: 1.7 |

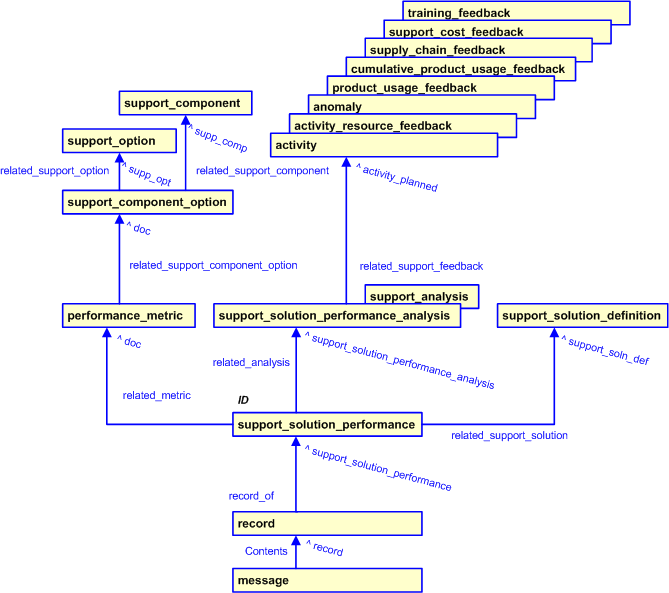

The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.
This section summarizes the mappings of the business objects to the corresponding templates.
|
Business Object |
Business Object Definition |
Business Templates |
|---|---|---|
| Message | This information object represents a communicated statement of events, activities, or outcomes that have happened. The method by which the message is communicated is various. | UK_Defence.message |
| Record | This information object represents a permanent statement for preserving the memory or knowledge of facts, activities or events. | UK_Defence.record |
| Activity Feedback | This information object represents feedback from an actual activity that is performed on specific dates. | UK_Defence.activity_feedback |
| Activity Resource Feedback | This information object represents feedback from an actual activity that is performed on specific dates. | UK_Defence.activity_resource_feedback |
| Anomaly | This information object represents information about an actual anomaly of an individual product. | UK_Defence.anomaly |
| Cumulative Product Usage Feedback | This information object represents the cumulative product usage at a particular point in time. | UK_Defence.cumulative_product_usage_feedback |
| Performance Metric | This information object represents the specification of a performance metric which, when quantified, will be used to measure the performance of a support component that has been defined with respect to a support concept. | UK_Defence.performance_metric |
| Product Usage Feedback | This object represents information related to the operation of the PSE. | UK_Defence.product_usage_feedback |
| Supply Chain Feedback | This information object represents support feedback that contains the raw information that is necessary to be able to analyse the performance of the Supply Chain, with respect to specific Support Solutions. | UK_Defence.supply_chain_feedback |
| Support Component | This information object represents the specification of a component of the support domain. | UK_Defence.support_component |
| Support Component Option | This information object represents the support option recommended for further investigation for the related support component within the context of the related support concept. | UK_Defence.support_component_option |
| Support Cost Feedback | This information object represents cost feedback from activity resources used within a specific period. | UK_Defence.support_cost_feedback |
| Support Option | This information object represents the specification of recognized support option categories for UK MoD support activities. | UK_Defence.support_option |
| Support Solution Definition | This information object represents the results of analysing the support need for the related platform, system and equipment, in terms of the planned tasks that are required to support it through life. | UK_Defence.support_solution_definition |
| Support Analysis | This information object represents the record of an analysis process having been conducted. | UK_Defence.support_solution_performance_analysis |
| Support Solution Performance Analysis | This information object represents an analysis that has been performed on support feedback for the purposes of determining whether specific performance metrics have been met. | UK_Defence.support_solution_performance_analysis |
| Support Solution Performance | This information object represents the performance a support solution with respect to the related metric, that has been determined from analysis of support feedback. | UK_Defence.support_solution_performance |
| Training Feedback | This information object represents feedback from the training course delivery and/or training course design. | UK_Defence.training_feedback |
