| Business DEX (UK_Defence050):— support_solution_performance | Date: 2010/03/12 12:19:26 Revision: 1.7 |
The information requirements table for the Support Solution Performance DEX is shown below:
|
Information requirement |
Business Object(s) |
|---|---|
| Analysis Reference. | Support Analysis |
| Identification of Data sets used (source, period). | Support Analysis |
| Performance metric being assessed and standard to be achieved. | Performance metric |
| Assessment of achievement against performance metric. | Support Solution Performance |
| Conclusions. | Support Solution Definition |
| Recommendations (for change). | Support Solution Performance |
| Security classification of included information. | Security Classification Assignment -> Support Analysis |
| Reference to the Support Solution being assessed. | Support Solution Performance -> Support Solution Definition |
| Identification of an individual revision of the Support Solution Performance decisions; | Support Solution Performance |
| Status such as draft, issued etc; | Support Analysis |
| Author; | Support Analysis |
| Dates (of creation, status changes, etc.); | Support Analysis |
Table 1 — Support Solution Performance information requirements

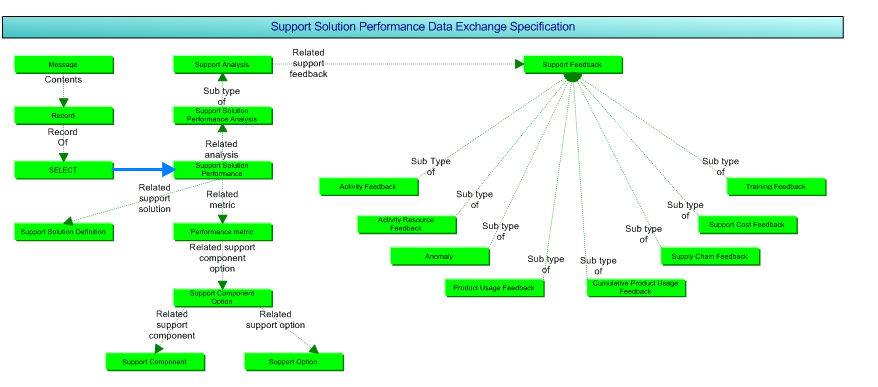

In terms of business objects, these information requirements are modelled as shown below in Figure 1.
NOTE For clarity, not all of the dependent business objects are included on the diagram.
