| Business DEX (UK_Defence047):— supply_chain_feedback | Date: 2010/03/12 11:42:48 Revision: 1.16 |
The information requirements table for the Supply Chain Feedback DEX and corresponding business objects are provided below:
|
Information requirement |
Business Object(s) |
|---|---|
| Information that is used to define the message for supply chain feedback for UK_Defence processes. | Message, Record. |
| Reference for feedback report. | Supply Chain Feedback |
| Identification of person reporting (may include rank, role and organisation represented, etc). | Support Feedback |
| Qualitative observations on Supply Chain shortfalls/successes, including, as necessary, recommendations for improvements. | Supply Chain Feedback |
| Period of reporting (start date and end date). | Supply Chain Feedback |
| Documentation or reference to documentation associated with the reporting period. | Document, Document Association, Supply Chain Feedback |
| Security classification of included information. | Security Classification Assignment, Support Feedback, Supply Chain Feedback |
| Cross references to demands, issues, returns and receipts. | Inventory Item Demand, Inventory Item Issue, Activity, Facility, Product, Stockholding, Inventory Item Demand Response, Inventory Item Return, Inventory Item Receipt, Resources Allocation, |
| Raw Transactional data for Forward Supply Chain – covering: demand raised date/time; demand transmission time; demand processing time; materiel handling time; time for distribution – at each stage of distribution; receipt date/time; date/time taken on to account. | Dues In, Inventory Item Demand, Inventory Item Issue, Activity, Facility, Product, Stockholding, Inventory Item Demand Response,Inventory Item Return, Inventory Item Receipt, Location, Transportation, Activity, Consignment, Consignment Content |
| Raw Transactional data for Reverse Supply Chain to DSDA warehouse – for repair, return of obsolete items, or return of items surplus to requirements. | Dues In, Inventory Item Demand, Inventory Item Issue, Activity, Facility, Product, Stockholding, Inventory Item Demand Response,Inventory Item Return, Inventory Item Receipt, Location, Transportation, Activity, Consignment, Consignment Content |
| Discrepancy reports – for reasons such as: the wrong quantity delivered; the wrong item delivered; or items lost in transit. | Discrepancy Report |
| Inventory managed by MoD and Industry Partners on behalf of MoD. | Inventory, Inventory Item, Item of Supply |
Table 1 — Supply Chain Feedback information requirements

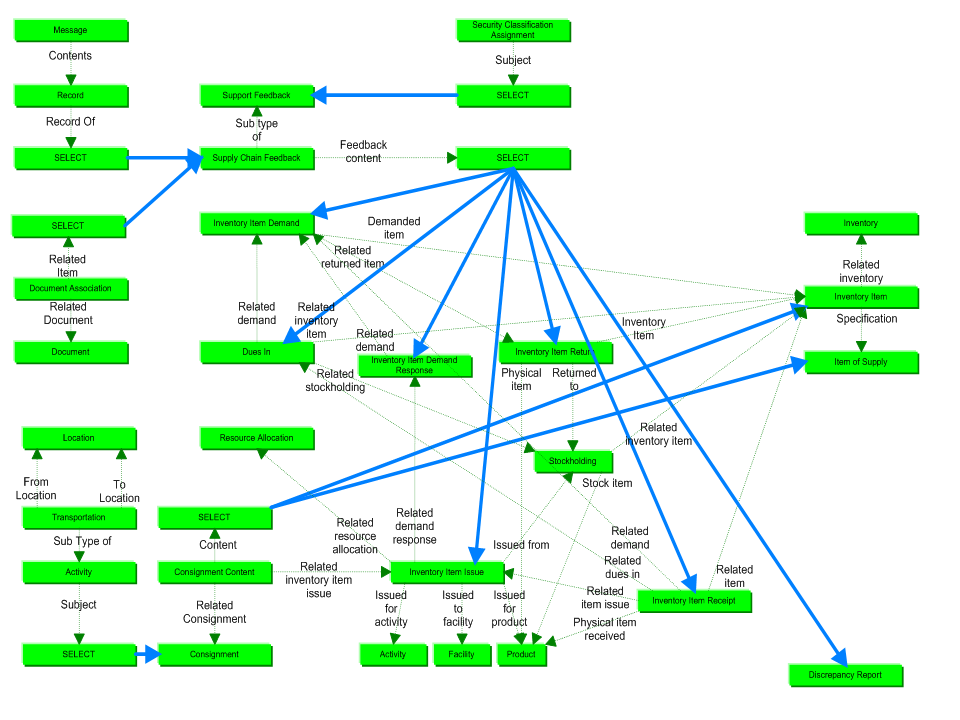

In terms of business objects, these information requirements are modelled as shown below in Figure 1.
NOTE For clarity, not all of the dependent business objects - those that will make the model referentially complete - have been included on the diagram.
