| Business DEX (UK_Defence036):— recommended_human_resources | Date: 2009/04/16 21:03:25 Revision: 1.9 |
The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.
This section summarizes the mappings of the business objects to the corresponding templates. A diagramatic representation of the AP239 templates used is shown below in Figure 2.
NOTE that to improve understanding of the diagram, not all of the templates referenced in the table are shown.
|
Business Object |
Business Object Definition |
Business Templates |
|---|---|---|
| Assumption | This information object describes how to represent an assumption that has been made by a person. An assumption may be referenced from other information objects that have been developed, based on it. | UK_Defence.assumption |
| Constraint | This information object describes how to represent a requirement that sets specific limits that must be complied with. | UK_Defence.constraint |
| Document | This information object represents reference material that follows a formal change approval mechanism. | UK_Defence.document |
| Document Association | This information object represents the association of a Document with another information object. Example uses of this may be to associate policy or standards documents with Task objects or to associate drawings with Product Design objects. |
UK_Defence.document_association |
| Facility | This information object describes how to represent an installation providing one or more functional capabilities necessary to provide support to one or more equipment programmes. | UK_Defence.facility |
| Location | This information object defines a location. | UK_Defence.location |
| Message | This information object represents a communicated statement of events, activities, or outcomes that have taken place. | UK_Defence.message |
| Person Type | This information object represents the information describing a human being. This represents the information describing a human being. | UK_Defence.person_type |
| Property | The property business object is used by those UK_Defence Data Exchange Specifications that require information about a functional or physical aspect of the information object that it is a property of. | UK_Defence.property |
| Qualification | This infromation object describes This information object represents a formally assessed ability, technique or expetise to
do something well.
A qualification may be physically or mentally based. A qualification may be possessed be a person or an organization. |
UK_Defence.qualification |
| Record | This information object represents a permanent statement for preserving the memory or knowledge of facts, activities or events. | UK_Defence.record |
| Representing Date Time | This information object represents the record of the assignment of a status to a subject. | representing_date_time |
| Skill | The skill business object is used by those UK_Defence Data Exchange Specifications that require information about an informally defined ability, technique or expertise to do something well. | UK_Defence.skill |
| Status Assignment | This information object represents the record of the assignment of a status to a subject. | UK_Defence.status_assignment |
Table 2 — Business Objects to Template Mapping table

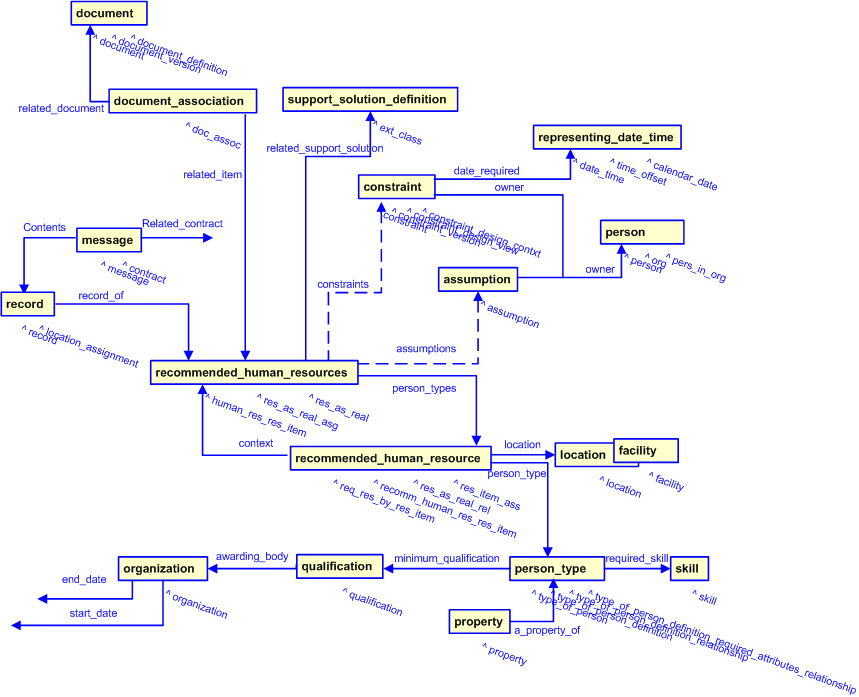

The key templates that this DEX comprises and the interrelations between those templates are illustrated below:
