| Business DEX (UK_Defence036):— recommended_human_resources | Date: 2009/04/16 21:03:25 Revision: 1.9 |
The information requirements table for the recommended human resources DEX is shown below:
|
Information requirement |
Business Object(s) |
|---|---|
| The reference to the Support Solution Definition for which the resources are recommended. | Support Solution Definition |
| The specification of the time period for which the resource recommendations are made. | Recommended Human Resources |
| Reference to the underlying assumptions, constraints and risks (such as resupply times, provisioning methods, transportation times, budgets, required availability, Health and Safety legislation) on which the recommendations are made. | Assumption, Constraint |
| Identification of any schedules and activities from which the resource recommendations were derived. | Recommended Human Resources |
| Identification of the recommended personnel types (including their grade, authority, skill, qualification, experience, security clearances) to support the Platforms, system and equipment for which the associated Support Solution Definition was developed, including location, quantity, and any relevant availability information. | Recommended Human Resource |
| The cost properties associated with each resource. | Property |
| Versioning of the recommendation. | Document |
| The status of the recommendation. | Status Assignment |
| The information that references to the organizations that make the recommendation. | Reccomended Human Resources |
| The information that references to the organizations that receive the recommendation. | Message |
Table 1 — recommended_human_resources information requirements

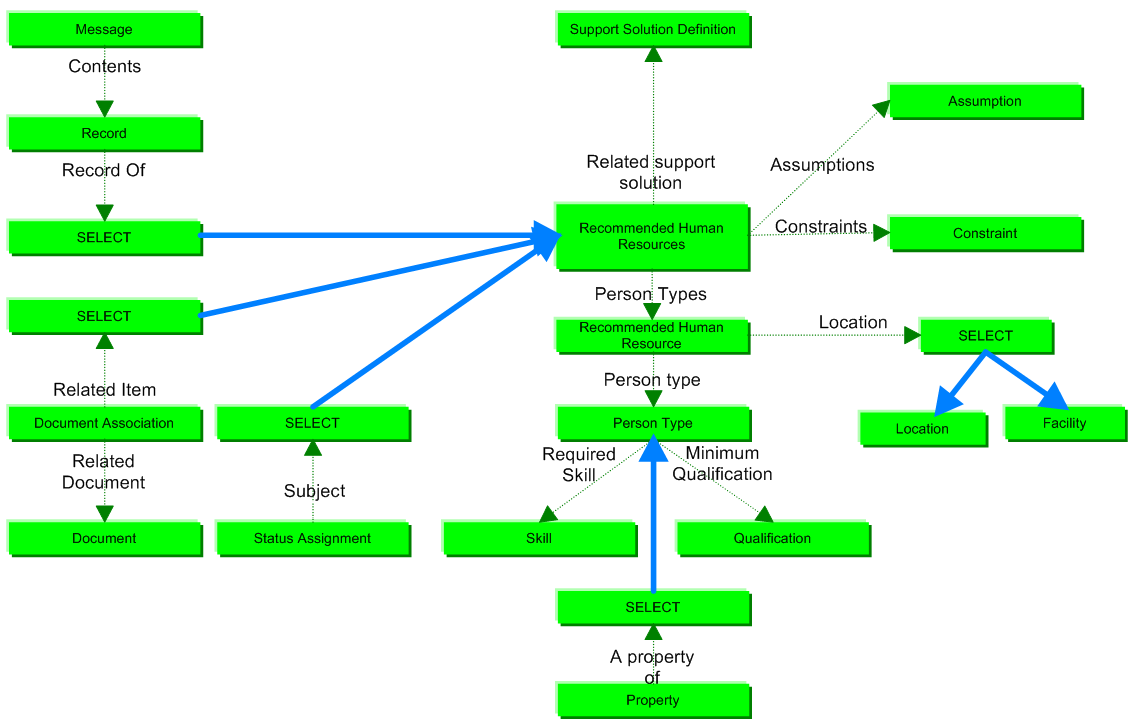

In terms of business objects, these information requirements are modeled as shown below in Figure 1.
