ISO 10303-239 Activity Model

ISO 10303-239 Activity Model Coverage

The ISO 10303-239 PLCS Application Activity Model (AAM) is an IDEF0 representation of the business activities that set the scope and information requirements for the PLCS standard. The model is composed of a set of figures and a set of definitions of these business activities and their associated information flows.

IDEFØ provides a graphical notation for function modeling of an organization or system. Activities can be described by their inputs, outputs, controls and mechanisms (ICOMs).

This DEX supports a subset of these business activities and information flows. These are highlighted in yellow in the figures Figure 1 and Figure 2.

The information flows marked with an asterisk are not explicitly represented within PLCS. This information is instead transferred by other means, e.g., handled by a document.

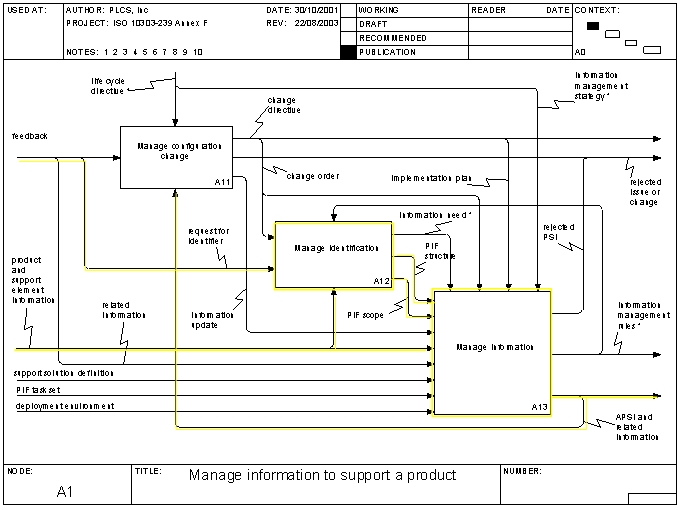

Figure 1 —  A1 Manage Information to support a product

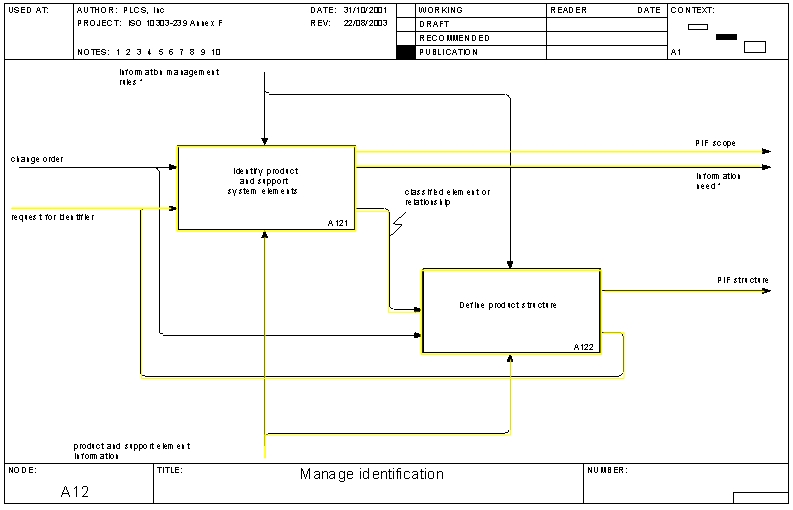

Figure 2 —  A12 Manage Identification

ISO 10303-239 Activity Model Definitions

ISO 10303-239 Activity Definitions

The activity labels in the AAM views above have the following definitions:

Define product structure

action to develop the required views of each relevant product, in the form of assembly structures or breakdowns built from classified elements and to establish necessary relationships between the different views to provide navigation between views

NOTE    The managed set of product views (the PIF structure) provides unambiguous identification of the PIF for support management purposes and a key mechanism for navigating and managing the effectivity of all related information, including that specified by the information need providing the product definition and support solution.

Identify product & support system elements

action to provide both unambiguous identification and classification of all elements forming part of the PIF and its support system to which reference needs to be made, including interfaces and other relationships between such elements to which configuration management shall apply

NOTE    Classification of elements and interfaces can be used to assist in defining information needs.

Manage identification

action to provide unambiguous identification of all elements, and versions, of the product or support system to which reference needs to be made, identification of interfaces between elements, the necessary assembly, and other breakdowns structures, required to manage the product through life and definition of the information to be held for each type of product and support system element

NOTE

This activity occurs throughout the product life cycle and is the basis of management of configuration change and configuration status accounting of a product and all constituent configuration items. The purposes and benefits of this activity include:

• determining the structure (hierarchy) of a product and the organization and relationships of configuration documentation and other product information;
• documentation of the performance, interface and other attributes of a product;
• determination of the appropriate level of identification marking of product and documentation;
• unique identification of a product or component part of a product;
• unique identification of the technical documents describing the product;
• modification of identification of product and documents to reflect incorporation of change;
• distinction between product versions;
• correlation of document revision level to product version;
• correlation of a PIF to related user or maintenance instructions at the configuration item level.

ISO 10303-239 ICOM Definitions

The ICOM arrow labels in the AAM views above have the following definitions:

APSI and related information

set of assured and related information used to develop and deliver support for a product in focus, including feedback from using and supporting the product over its life cycle

NOTE    Related information includes records of the history of the usage or support of realized products, design and support analysis results and reasons why decisions were taken. Such information includes design and failure analysis records, logistic support analyses, running hours, environment descriptions, operating profiles; test results, records of maintenance activities, resources used, and faults found plus any other content deemed relevant to life cycle support.

classified element or relationship

element of the PIF or its support system and that has been identified and assigned to one or more classes of element, plus any relationships between elements needing to be tracked for support purposes

NOTE    Unambiguous identification includes the assignment of a name (for use by humans) and an alphanumeric identifier (for use within computers) that are unique within a context. The context for a name or identifier is the organization that provides the name and identification. Elements can have more than one name and identifier assigned by different organizations. The classification of an element can include a class that helps identify the APSI that is required for this element type. Relationships can include any of those specified by the information model of this part of ISO 10303.

information need *

specification of the information that shall be developed and maintained within the APSI for any PIF or support system element or class of elements

PIF scope

identification of the group of actual or potential operational products and related items that require support during their life cycle

NOTE

The PIF scope can include:

• many versions of a product design;
• many operational products, used by different users in different ways;
• any part of the operational product needing support;
• any related item that requires support.

PIF structure

integrated set of classified elements and interfaces, product structure views and relationships between product structure views required to provide life cycle support

NOTE

The PIF structure comprises:

• the set of breakdown and assembly views being maintained for the product in focus including effectivity statements on the current, required and permitted configurations of each individual planned or realized product;
• relationships between breakdown and assembly views such as functional to physical links for both design and individual structures;
• identification of interfaces between elements.

product & support element information

any information about the product in focus and related support elements that is required by participants in life cycle support

NOTE

This information may include:

• product definition information;
• product performance information;
• predicted failures;
• diagnostic data;
• descriptions of the product or support element;
• manufacturing records;
• product characteristics of relevance to support;
• descriptions of people and organizations;
• the operating and maintenance history of individual acquired items if relevant to future support.

request for identifier

request to provide identification for new elements of the product or support system element

NOTE    Requests may arise from new product concepts, developing breakdowns of existing products, or from changes.
