Business overview

This section provides a business level overview of this capability.

A work request is an issue that has been raised by someone and requires that some work be done to address it. In order to manage the progress of the issue, it is identified, approved and has an associated state.

The basic business model for requesting and authorizing work that is supported by ISO 10303-239 PLCS is shown in Figure 1.

First an issue is identified that requires some work to be undertaken to resolve - a work request - This is the subject of this capability. When the issue is identified a number of potential solutions may be proposed. Having requested some work, the work is then authorized - the work_order. Having authorized work to take place, an authorized activity is established and a series of activities are planned. The changes that are expected as a result of the work are related to the planned activities. The planned activities are then executed and a record of each activity undertaken is maintained as well as any results of the work.

Figure 1 — Requesting and authorizing work

Information model overview

This section provides an overview of the information model that supports this capability.

The information required to represent a request for work, the resulting work authorization and consequent work, is summarized in the EXPRESS-G diagram in Figure 2 below and described in the following sections.

The shading on the diagram indicates which parts of the model are covered by which capabilities. Namely:

NOTE The EXPRESS-G is not complete. For the complete EXPRESS see the modules: Work request, Work request characterized, Work order, Work order characterized, Activity and Activity as realized.

The EXPRESS-G diagram in Figure 3 shows the information required to represent the request for work.

Figure 2 — EXPRESS-G for requesting, authorizing and doing work

Figure 3 — EXPRESS-G for requesting work

Representing a Work request

Identification

An issue is represented by the entity: Work_request.

The Work_request is identified by using the template assigning_identification to assign an identifier as described in C001: assigning_identifiers. The parameters used are given in template table: Template @1(Figure 3)

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param id in assigning_identification has not been defined in the template_table

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param org_id in assigning_identification has not been defined in the template_table

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param org_id_class_name in assigning_identification has not been defined in the template_table

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param org_id_ecl_id in assigning_identification has not been defined in the template_table

Template @1 (Figure 3): assigning_identification Show template parameters Hide all template parameters Show all template parameters
Description	The following parameters are set to represent the assignment of an identifier to a Work_request.

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param items in assigning_identification has not been defined in the template_table

Template @1 (Figure 3): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description	The following parameters are set to represent the assignment of an identifier to a Work_request.
Parameter name:	Parameter value:	Parameter description:
id_class_name	Work_request_identification_code	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @id_class_name.
id	?	The identifier being assigned.
org_id	?	The identifier of the organization that "owns" the identifier.
org_id_class_name	?	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	?	The id of the External_class_library storing the @org_id_class_name.
items	?	The items to which the identification is assigned

The version of the Work_request is identified by using the template assigning_identification to assign a version identifier. The identification is classified as a "Version identification code" (urn:plcs:rdl:std:Version identification code) The parameters used are given in template table: Template @1(Figure 3)

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param id in assigning_identification has not been defined in the template_table

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param org_id in assigning_identification has not been defined in the template_table

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param org_id_class_name in assigning_identification has not been defined in the template_table

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param org_id_ecl_id in assigning_identification has not been defined in the template_table

Template @2 (Figure 3): assigning_identification Show template parameters Hide all template parameters Show all template parameters
Description	The following parameters are set to represent the assignment of a version identifier to a Work_request.

Error T7a: Template_table name="assigning_identification" figure_id="expressg_char"
Param items in assigning_identification has not been defined in the template_table

Template @2 (Figure 3): assigning_identification Hide template parameters Hide all template parameters Show all template parameters
Description	The following parameters are set to represent the assignment of a version identifier to a Work_request.
Parameter name:	Parameter value:	Parameter description:
id_class_name	Version_identification_code	The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id	urn:plcs:rdl:std	The id of the External_class_library storing the @id_class_name.
id	?	The identifier being assigned.
org_id	?	The identifier of the organization that "owns" the identifier.
org_id_class_name	?	The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id	?	The id of the External_class_library storing the @org_id_class_name.
items	?	The items to which the identification is assigned

Affected items

If the issue is against a given item, such as a Product_as_realized then the Affected_items_assignment relationship is used to relate the Work_request to the Product_as_realized.

NOTE The method for referencing a Product_as_realized is described in the capability referencing_product_as_individual
Error C1: Capability referencing_product_as_individual not in dex_index.xml
.

If a potential solution to the issue is to be recorded when it is raised, then the approach is recorded using an instantiation of Activity_method.

NOTE Details of Activity_method are provided in C032: representing_activity.

Raised by

The person or organization that raised the issue is represented by assigning a Person_in_organization or Organization (using the relationship Organization_or_person_in_organization_assignment) to the Work_request. The assignment is defined by the templates assigning_organization and assigning_person_in_organization respectively.

Date

The date when the Work_request was raised can be represented by assigning a date (using the relationship Date_or_date_time_assignment) to the Work_request.

NOTE The assignment of dates is described the template assigning_calendar_date and assigning_time.

Purpose

The purpose of the Work_request, is represented by reference data. For example, the issue being raised may be due to cost, safety, process improvement, each of which would be represented by reference data.

Work request life cycle

There are two aspects to the life cycle of a Work_request. The first is its approval status. The second is the state of the Work_request.

The approval and state stages are dependent on the business processes deployed within an enterprise. An example is the Work_request may be approved as a valid issue, and then have the state, "raised as an issue". Once the issue has been addressed it may have the state "addressed".

The approval status of the Work_request is represented by assigning_approval.

The precise meaning of a state is represented by assigning reference data to the State as described in the capability C010: assigning_reference_data and template assigning_asserted_state.

A Work_request is approved by assigning an approval to it using the template assigning_approval.

There are two mechanisms for associating states with a Work_request in the model. Namely by using State and State_definition as described in the capabilities C007: representing_state_type and C041: representing_state_observed, or by using Work_request_status.

In order to only have a single approach to associating a state is recommended to only use C007: representing_state_type and C041: representing_state_observed. The Work_request_status is included for compatibility with the PDM Schema. If a PDM Schema file is read containing instances Work_request_status they should be mapped to C041: representing_state_observed.

Work request example

An example showing an issue raised against an individual product, such as a bike built from that design is shown in Figure 2 below.

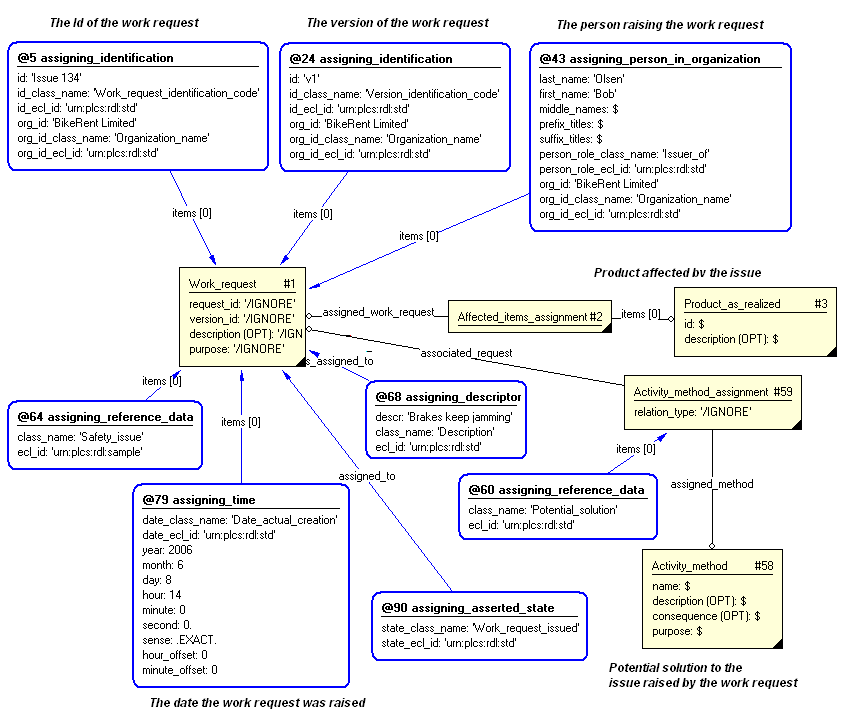

The issue is represented by an instance of Work_request (#1) and has been raised against a bike, represented by an instance of Product_as_realized (#3). In order to simply the diagram, the details of the using an instance of Product_as_realized (#3) have not been shown. Details are provided in the capability C045: representing_product_as_individual. The Work_request (#1) is related to the bike by an instance of Affected_items_assignment (#2).

A potential solution to the issue has been identified, Activity_method (#58), and related to the Work_request (#1) by an instance of Activity_method_assignment (#59). In order to simply the diagram, the details of the using an instance of Activity_method_assignment (#59) have not been shown. Details are provided in the capability C032: representing_activity.

Figure 2 — Identifying an issue

Model Characterization

This section specifies how the information model can be further characterized by the assignment of additional information such as dates, approvals and people or organizations.

The following characterizations may apply.

Characterization: Assigning documentation

A text string providing a description of the Work_request is represented by the template assigning_descriptor. If more documentation is necessary to describe the issue, documents can be assigned using the Document_assignment relationship as described in capability referencing_documents
Error C1: Capability referencing_documents not in dex_index.xml
and template assigning_document.

Capability templates

The following sections define a set of templates for the capability, where a template is a specification of a set of entities that need to be instantiated to represent a given set of information.

Template: representing_work_request (Short name: rep_wrk_req)

This section specifies the template representing_work_request.

NOTE An explanation of a template and the associated instantiation path is provided in the Template overview section.

Description

This template describes how to represent a work request.

Model diagrams

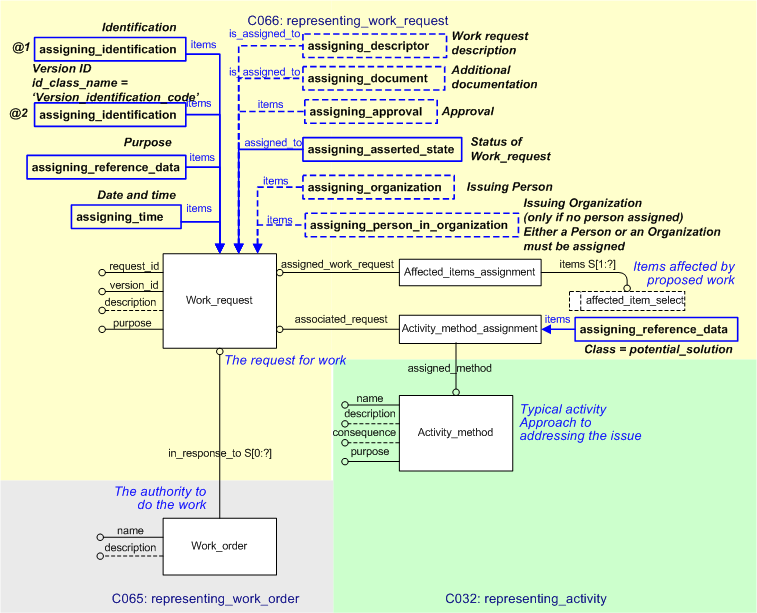

The EXPRESS-G diagram in Figure 1 shows the templates and EXPRESS entities that are required to represent the template "representing_work_request". The text highlighted in blue shows the template parameters.

Figure 1 — An EXPRESS-G representation of the Information model for representing_work_request

The graphic for the template to be used in other EXPRESS-G diagrams is shown in Figure 2 below.

Note, either a person or an organization must be associated with the Work_request using the templates assigning_person_in_organization or assigning_organization respectively.

Figure 2 — The graphical representation of representing_work_request template

Input parameters

The following input parameters are defined for this template:

id (Type='STRING')

The identifier being assigned to the Work_request.

id_class_name (Default=Work_request_identification_code,Type='CLASS')

The name of the class used to classify the identifier and so provide the role or reason for the identification.

The following classes and their sub-classes can be used:

classifications: "Work_request_identification_code" (urn:plcs:rdl:std:Work_request_identification_code)

id_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the id_class_name class

org_id (Type='STRING')

The identifier of the organization that "owns" the identifier.

org_id_class_name (Type='CLASS')

The name of the class being used to classify the identification of the organization. For example CAGE code.

The following classes and their sub-classes can be used:

classifications: "Organization_identification_code" (urn:plcs:rdl:std:Organization_identification_code), "Organization_name" (urn:plcs:rdl:std:Organization_name)

org_id_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the org_id_class_name class

version_id (Default=/NULL,Type='STRING')

The version identifier being assigned to the Work_request.

NOTE If the version is not known use /NULL.

version_id_class_name (Default=Version_identification_code,Type='CLASS')

The name of the class used to classify the identifier and so provide the role or reason for the identification.

The following classes and their sub-classes can be used:

classifications: "Version_identification_code" (urn:plcs:rdl:std:Version_identification_code)

version_id_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the class provide by the input parameter @version_id_class_name

version_org_id (Type='STRING')

The identifier of the organization that "owns" the version identifier.

version_org_id_class_name (Type='CLASS')

The name of the class being used to classify the identification of the organization that "owns" the version identifier. For example CAGE code.

The following classes and their sub-classes can be used:

classifications: "Organization_identification_code" (urn:plcs:rdl:std:Organization_identification_code), "Organization_name" (urn:plcs:rdl:std:Organization_name)

version_org_id_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the class provide by the input parameter @version_org_id_class_name.

date_class_name (Type='CLASS')

The name of the class defining the role of the date assigned to the Work_request E.g. the date the Work_request was raised.

The following classes and their sub-classes can be used:

classifications: "Work_request_issue_date" (urn:plcs:rdl:std:Work_request_issue_date)

date_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the class provide by the input parameter @date_class_name.

year (Type= 'TYPE (year_number)' )

The year component of the date and time the work request was raised.

month (Type= 'TYPE (month_in_year_number)' )

The month component of the date and time the work request was raised.

day (Type= 'TYPE (day_in_month_number)' )

The day component of the date and time the work request was raised.

hour (Type= 'TYPE (hour_in_day)' )

The hour component of the date and time the work request was raised.

minute (Type= 'TYPE (minute_in_hour)' , Optional)

The minute component of the date and time the work request was raised. This parameter is optional. If not given, it will remain unset.

second (Type= 'TYPE (second_in_minute)' , Optional)

The second component of the date and time the work request was raised. This parameter is optional. If not given, it will remain unset.

sense (Type= 'ENUMERATION (offset_orientation)' )

The direction that the time the work request was raised is offset from Coordinated Universal Time. Enumeration values are: 'ahead', 'exact' or 'behind'.

hour_offset (Type='INTEGER')

The number of hours by which the time the work request was raised is offset from Coordinated Universal Time.

minute_offset (Type='INTEGER', Optional)

The number of minutes by which the time the work request was raised is offset from Coordinated Universal Time. The value of this attribute need not be specified. This parameter is optional. If not given, it will remain unset.

state_class_name (Type='CLASS')

The class name of the External_class corresponding to the State_definition name.

The following classes and their sub-classes can be used:

classifications: "State_of_work_request" (urn:plcs:rdl:std:State_of_work_request)

state_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the definition of the class referenced by the parameter @state_class_name.

purpose (Type='CLASS')

The name of the class in the reference data library (External_class) being used to define the purpose of the Work_request.

The following classes and their sub-classes can be used:

classifications: "Work_request_purpose" (urn:plcs:rdl:std:Work_request_purpose)

purp_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the definition of the class referenced by the parameter @purpose.

Reference parameters

The following reference parameters are defined for this template:

work_req(Type='ENTITY (Work_request)')

Allow the Work_request entity instantiated in this path to be referenced when this template is used.

Note: The Work_request entity can be referenced in a template path by:

%^target = $representing_work_request.work_req%

where target is the parameter to which the Work_request is bound.

Uniqueness constraints

The following parameter combinations specify a uniqueness constraint:

Unique constraint: Unique work request

Each instance of the entity (Work_request) within the data set shall be uniquely identified by a combination of the following parameters on this template (representing_work_request) namely: id, id_class_name, id_ecl_id, org_id, org_id_class_name, org_id_ecl_id.
The instance is referenced by the following template parameter: work_req.

Unique constraint: Unique work request version

Each instance of the entity (Work_request) within the data set shall be uniquely identified by a combination of the following parameters on this template (representing_work_request) namely: id, id_class_name, id_ecl_id, org_id, org_id_class_name, org_id_ecl_id, version_id, version_id_class_name, version_id_ecl_id, version_org_id, version_org_id_class_name, version_org_id_ecl_id.
The instance is referenced by the following template parameter: work_req.

Instantiation path

The instantiation path shown below specifies the entities that are to be instantiated by the template.

A description of templates and the syntax for the instantiation path is provided in the Reading Capability Templates help section.

-- Instantiate a Work_request
Work_request

-- Bind the Work_request to the parameter ^work_req.
-- The parameter is a reference parameter so the Work_request
-- entity can be referred to when this template is used.
%^work_req = Work_request%
^work_req.description = '/IGNORE'
^work_req.purpose = '/IGNORE'
^work_req.request_id = '/IGNORE'
^work_req.version_id = '/IGNORE'

-- Identify the Work_request
/assigning_identification(
    id=@id,
    id_class_name=@id_class_name,
    id_ecl_id=@id_ecl_id,
    org_id=@org_id,
    org_id_class_name=@org_id_class_name,
    org_id_ecl_id=@org_id_ecl_id,
    items=^work_req)/

-- Identify the Work_request version
/assigning_identification(
    id=@version_id,
    id_class_name=@version_id_class_name,
    id_ecl_id=@version_id_ecl_id,
    org_id=@version_org_id,
    org_id_class_name=@version_org_id_class_name,
    org_id_ecl_id=@version_org_id_ecl_id,
    items=^work_req)/

-- Classify the work_request
/assigning_reference_data(
    class_name=@purpose,
    ecl_id=@purp_ecl_id,
    items=^work_req)/

-- Assign a date to the Work_request
/assigning_time(
    date_class_name=@date_class_name,
    date_ecl_id=@date_ecl_id,
    year=@year,
    month=@month,
    day=@day,
    hour=@hour,
    minute=@minute,
    second=@second,
    sense=@sense,
    hour_offset=@hour_offset,
    minute_offset=@minute_offset,
    items=^work_req)/

-- Assign a state to the Work_request
/assigning_asserted_state(
    state_class_name=@state_class_name,
    state_ecl_id=@state_ecl_id,
    assigned_to=^work_req)/

The following entities are instantiated with attributes as specified:

Entity in path	Value	Inherited from
Work_request.description	'/IGNORE'	—
Work_request.purpose	'/IGNORE'	—
Work_request.request_id	'/IGNORE'	—
Work_request.version_id	'/IGNORE'	—

Instance diagrams

The instance diagram in Figure 3 shows an example of the EXPRESS entities and templates that are instantiated by the template:

/representing_work_request(id='Issue 134', id_class_name='Work_request_identification_code', id_ecl_id='urn:plcs:rdl:std', org_id='BikeRent Limited', org_id_class_name='Organization_name', org_id_ecl_id='urn:plcs:rdl:std', version_id='v1', version_id_class_name='Version_identification_code', version_id_ecl_id='urn:plcs:rdl:std', version_org_id='BikeRent Limited', version_org_id_class_name='Organization_name', version_org_id_ecl_id='urn:plcs:rdl:std', date_class_name='Date_actual_creation', date_ecl_id='urn:plcs:rdl:std', year='2006', month='6', day='8', hour='14', minute='0', second='0', sense='EXACT', hour_offset='0', minute_offset='0', state_class_name='Work_request_issued', state_ecl_id='urn:plcs:rdl:std', purpose='Safety_issue', purp_ecl_id='urn:plcs:rdl:sample')/

(an illustration of the consolidated representing_work_request template is shown in Figure 4 below.)

Note that the mandatory characterization by the templates assigning_descriptor and assigning_person_in_organization is shown in the diagram. Namely:

@43 /assigning_person_in_organization(last_name='Olsen', first_name='Bob', person_role_class_name='Issuer_of', person_role_ecl_id='urn:plcs:rdl:std', org_id='BikeRent Limited', org_id_class_name='Organization_name', org_id_ecl_id='urn:plcs:rdl:std')/

and:

@68 /assigning_descriptor(descr='Brakes keep jamming', class_name='descr', ecl_id='urn:plcs:rdl:std')/

Figure 3 — Entities instantiated by representing_work_request template

The instance diagram in Figure 4 shows the graphic symbol for the template that is to be used in other instance diagrams. The example template is:

Figure 4 — Instantiation of representing_work_request template

Characterizations

The following section details how the representing_work_request template can be optionally characterized by assigning other constructs to it. These are characterizations commonly applied to the template. The ISO 10303-239 EXPRESS model may enable other assignments to the entities instantiated by the template.

The EXPRESS-G diagram in Figure 5 shows the possible characterizations of the template "representing_work_request".

Figure 5 — Characterizations for representing_work_request template

The following characterizations may apply:

Characterization Assigning person or organization

NOTE this characterization is mandatory.

The person or organization that raised the issue must be assigned to the Work_request by Person_in_organization or Organization (using the relationship Organization_or_person_in_organization_assignment) The assignment is defined by the templates assigning_organization and assigning_person_in_organization respectively.

Characterization Assigning documentation

NOTE this characterization is optional.

Characterization Assigning dates

NOTE this characterization is optional.

Dates can be associated with the work request by using the template assigning_calendar_date.

Characterization Approvals

NOTE this characterization is optional.

The approval status of the Work_request is represented by assigning_approval.

Template: referencing_work_request (Short name: ref_wrk_req)

This section specifies the template referencing_work_request.

NOTE An explanation of a template and the associated instantiation path is provided in the Template overview section.

Description

This template describes how to represent a reference to a work request.

Model diagrams

The EXPRESS-G diagram in Figure 1 shows the templates and EXPRESS entities that are required to represent the template "referencing_work_request". The text highlighted in blue shows the template parameters.

Figure 1 — An EXPRESS-G representation of the Information model for referencing_work_request

The graphic for the template to be used in other EXPRESS-G diagrams is shown in Figure 2 below.

Figure 2 — The graphical representation of the referencing_work_request template

Input parameters

The following input parameters are defined for this template:

id (Type='STRING')

The identifier being assigned to the Work_request.

id_class_name (Default=Work_request_identification_code,Type='CLASS')

The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.

The following classes and their sub-classes can be used:

classifications: "Work_request_identification_code" (urn:plcs:rdl:std:Work_request_identification_code)

id_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the @id_class_name.

org_id (Type='STRING')

The identifier of the organization that "owns" the identifier (@id).

org_id_class_name (Type='CLASS')

The name of the class being used to classify the identification of the organization (@org_id). For example CAGE code.

The following classes and their sub-classes can be used:

classifications: "Organization_identification_code" (urn:plcs:rdl:std:Organization_identification_code), "Organization_name" (urn:plcs:rdl:std:Organization_name)

org_id_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the org_id_class_name

version_id (Default=/NULL,Type='STRING')

The version identifier being assigned to the Work_request.

NOTE If the version is not known use /NULL.

version_id_class_name (Default=Version_identification_code,Type='CLASS')

The name of the class used to classify the version identifier (@version_id)and so provide the role or reason for the identification.

The following classes and their sub-classes can be used:

classifications: "Version_identification_code" (urn:plcs:rdl:std:Version_identification_code)

version_id_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the class provided by the input parameter @version_id_class_name

version_org_id (Type='STRING')

The identifier of the organization that "owns" the version identifier (@version_id).

version_org_id_class_name (Type='CLASS')

The name of the class being used to classify the identification of the organization (@version_org_id) that "owns" the version identifier. For example CAGE code.

The following classes and their sub-classes can be used:

classifications: "Organization_identification_code" (urn:plcs:rdl:std:Organization_identification_code), "Organization_name" (urn:plcs:rdl:std:Organization_name)

version_org_id_ecl_id (Default=urn:plcs:rdl:std,Type='URN')

The identifier of the External_class_library storing the class provide by the input parameter @version_org_id_class_name.

Reference parameters

The following reference parameters are defined for this template:

work_req(Type='ENTITY (Work_request)')

Allow the Work_request entity instantiated in this path to be referenced when this template is used.

Note: The Work_request entity can be referenced in a template path by:

%^target = $referencing_work_request.work_req%

where target is the parameter to which the Work_request is bound.

Uniqueness constraints

The following parameter combinations specify a uniqueness constraint:

Unique constraint: Unique work request

Each instance of the entity (Work_request) within the data set shall be uniquely identified by a combination of the following parameters on this template (referencing_work_request) namely: id, id_class_name, id_ecl_id, org_id, org_id_class_name, org_id_ecl_id.
The instance is referenced by the following template parameter: work_req.

Unique constraint: Unique work request version

Each instance of the entity (Work_request) within the data set shall be uniquely identified by a combination of the following parameters on this template (referencing_work_request) namely: id, id_class_name, id_ecl_id, org_id, org_id_class_name, org_id_ecl_id, version_id, version_id_class_name, version_id_ecl_id, version_org_id, version_org_id_class_name, version_org_id_ecl_id.
The instance is referenced by the following template parameter: work_req.

Instantiation path

The instantiation path shown below specifies the entities that are to be instantiated by the template.

A description of templates and the syntax for the instantiation path is provided in the Reading Capability Templates help section.

The following entities are instantiated with attributes as specified:

Entity in path	Value	Inherited from
Work_request.description	'/IGNORE'	—
Work_request.purpose	'/IGNORE'	—
Work_request.request_id	'/IGNORE'	—
Work_request.version_id	'/IGNORE'	—

Instance diagrams

The instance diagram in Figure 3 shows an example of the EXPRESS entities and templates that are instantiated by the template:

/referencing_work_request(id='Issue 134', id_class_name='Work_request_identification_code', id_ecl_id='urn:plcs:rdl:std', org_id='BikeRent Limited', org_id_class_name='Organization_name', org_id_ecl_id='urn:plcs:rdl:std', version_id='v1', version_id_class_name='Version_identification_code', version_id_ecl_id='urn:plcs:rdl:std', version_org_id='BikeRent Limited', version_org_id_class_name='Organization_name', version_org_id_ecl_id='urn:plcs:rdl:std')/

(an illustration of the consolidated referencing_work_request template is shown in Figure 4 below.)

Figure 3 — Entities instantiated by referencing_work_request template

The instance diagram in Figure 4 shows the graphic symbol for the template that is to be used in other instance diagrams. The example template is:

Figure 4 — Instantiation of referencing_work_request template

Characterizations

No common characterizations of the template referencing_work_request have been identified. However, the ISO 10303-239 EXPRESS model may enable other assignments to the entities instantiated by the template.

Template: assigning_potential_solution (Short name: asg_sol)

This section specifies the template assigning_potential_solution.

NOTE An explanation of a template and the associated instantiation path is provided in the Template overview section.

Description

This template describes how to represent a proposed solution for a work request.

Model diagrams

The EXPRESS-G diagram in Figure 1 shows the templates and EXPRESS entities that are required to represent the template "assigning_potential_solution". The text highlighted in blue shows the template parameters.

Figure 1 — An EXPRESS-G representation of the Information model for assigning_potential_solution

The graphic for the template to be used in other EXPRESS-G diagrams is shown in Figure 2 below.

Figure 2 — The graphical representation of assigning_potential_solution template

Input parameters

The following input parameters are defined for this template:

associated_request (Type= 'ENTITY (Work_request)' )

assigned_method (Type= 'ENTITY (Activity_method)' )

Reference parameters

The following reference parameters are defined for this template:

act_mthd_assgn(Type='ENTITY (Activity_method_assignment)')

Allow the Activity_method_assignment entity instantiated in this path to be referenced when this template is used.

Note: The Activity_method_assignment entity can be referenced in a template path by:

%^target = $assigning_potential_solution.act_mthd_assgn%

where target is the parameter to which the Activity_method_assignment is bound.

Instantiation path

The instantiation path shown below specifies the entities that are to be instantiated by the template.

A description of templates and the syntax for the instantiation path is provided in the Reading Capability Templates help section.

-- Instantiate the Activity_method_assignment
Activity_method_assignment
Activity_method_assignment.relation_type = '/IGNORE'

-- Bind the Activity_method_assignment to the parameter ^act_mthd_assgn.
-- The parameter is a reference parameter so the Activity_method_assignment
-- entity can be referred to when this template is used.
%^act_mthd_assgn = Activity_method_assignment%

-- Assign the Activity_method_assignment to the
-- to the instances passed into the template through the @associated_request
-- input parameter namely a Work_request
Activity_method_assignment.associated_request -> @associated_request

-- Assign the Activity_method_assignment to the
-- to the instances passed into the template through the @assigned_method
-- input parameter namely an Activity_method
Activity_method_assignment.assigned_method -> @assigned_method

-- Set the status
/assigning_reference_data(
    items=Activity_method_assignment,
    class_name='Potential_solution',
    ecl_id='urn:plcs:rdl:std')/

The following entities are instantiated with attributes as specified:

Entity in path	Value	Inherited from
Activity_method_assignment.relation_type	'/IGNORE'	—

Instance diagrams

The instance diagram in Figure 3 shows an example of the EXPRESS entities and templates that are instantiated by the template:

/assigning_potential_solution(value='Bike must be light-weight')/

(an illustration of the consolidated assigning_potential_solution template is shown in Figure 4 below.)

Figure 3 — Entities instantiated by assigning_potential_solution template

The instance diagram in Figure 4 shows the graphic symbol for the template that is to be used in other instance diagrams. The example template is:

/assigning_potential_solution(value='Bike must be light-weight')/

Figure 4 — Instantiation of assigning_potential_solution template

Characterizations

No common characterizations of the template assigning_potential_solution have been identified. However, the ISO 10303-239 EXPRESS model may enable other assignments to the entities instantiated by the template.

Related capabilities

This capability "Representing a work request" is related to the following capabilities:

Dependent capabilities

This capability "Representing a work request" is dependent on the following capabilities:

C019: assigning_approvals
C036: assigning_date_time
Error C1: Capability referencing_documents not in dex_index.xml
C001: assigning_identifiers
C010: assigning_reference_data
Error C1: Capability referencing_product_as_individual not in dex_index.xml
C016: representing_person_organization
C007: representing_state_type
C041: representing_state_observed
