The information requirements for zonal breakdown structures has been defined within the UK_Defence Scoping Document (Version X). The following table lists the correspondance of Business Objects to those requirements:
|
Information requirement |
Business Object(s) |
|---|---|
| The information that defines a zonal breakdown | Zonal Breakdown |
| The information that identifies a position in the zonal breakdown | Zone Relationship.id |
| The information that identifies the type of zonal breakdown | Zonal Breakdown.type |
| The information that identifies the parent of an element in the zonal breakdown | Zone Relationship.parent |
| The information that identifies the children of an element in the zonal breakdown | Zone Relationship.child |
| The information that identifies the items within a zone | Zone_content (available with the Product Information DEX) |
| The information that characterizes the elements of the zonal breakdown | Zone.related product design |
| The information that characterizes the relationships between the elements of the zonal breakdown | Zone Relationship |
| The information that characterizes additional identifiers for the elements of the zonal breakdown | Zone.id |
| The information that describes the zone of elements in a zonal breakdown | Zone.description |
| The information that characterizes the documents associated with the elements of the zonal breakdown | Document Association.related document, Document, Document Association.related item, Zone |
| The information that characterizes the properties associated with elements of the zonal breakdown | Zone.related product design |
| The information that characterizes the approval of zonal breakdowns and their elements | Status Assignment.assigned status.State, Status Assignment.subject, Zone |
Table 1 — Zonal breakdown information requirements

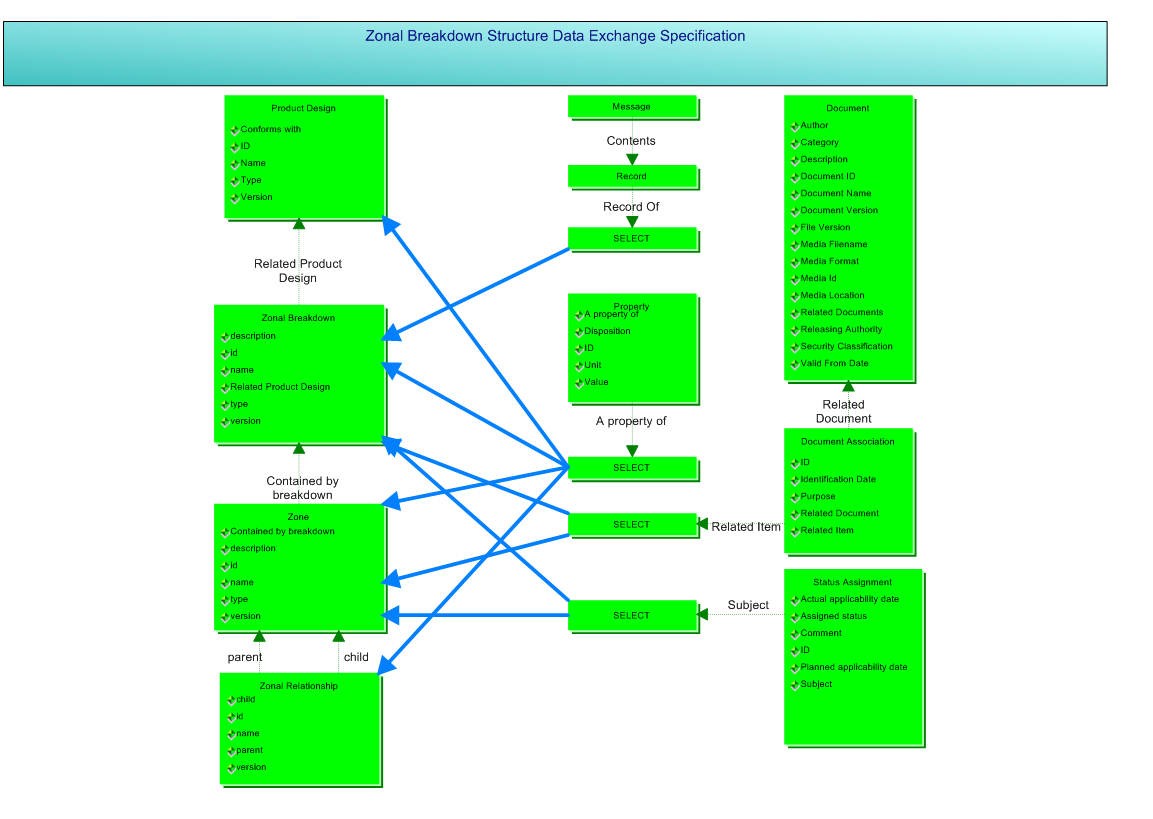

In terms of business objects, these information requirements are modelled as shown previously in Figure 2.
From the information model there are four main objects required to represent a Zonal breakdown structure;
There are a number of other objects which may be associated to a breakdown structure;
