The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.
A diagramtic representation of the AP239 templates used is shown below in Figure 2.
Please note that to improve understanding of the diagram, not all of the templates referenced in the table are shown.
This section summarizes the mappings of the business objects to the corresponding templates.
|
Business Object |
Business Object Definition |
Business Template(s) |
|---|---|---|
| Message | This information object represents a communication of the Product Assembly Structure. The method by which the message is communicated is various. | UK_Defence.message |
| Record | This information object represents the content of the message and is a record of the work order . | UK_Defence.record |
| Work Order | This information object represents the directive to carry out a scheme of work in response to a work requirement. | UK_Defence.work_order |
| Work Requirement | This information object represents the requirement for work to be done. | UK_Defence.work_requirement |
| Document | This information object represents reference material that follows a formal change approval mechanism. It can also be a required deliverable from a specified work order. |
UK_Defence.document
and UK_Defence.related_documents |
| Document Association | This information object represents the association of a Document with another information object. Example uses of this may be to associate policy or standards documents with Task objects or to associate drawings with Product Design objects. | |
| Product | This information object represents the information about a required deliverable | UK_Defence.product |
| Activity | This information object represenst the actual procedures defined in the Work Order that are performed on one or more items. | UK_Defence.activity |
| Schedule | This information object represenst an instantiation of a plan, detailing specific dates for the performance of defined activities on specific products using specific resources. | UK_Defence.schedule |
| Status Assignment | This information object represents the assignment of a status to a subject - such as a Work Order. This can also be used for example to assign approvals to documents, status to deliveries, or dispositions to design changes (requested, proposed, authorized etc). | |
| Organization | This information object represents the information about the responsible organization supplying or issuing the Work Order. | UK_Defence.organization |
| Person | This information object represents the information about the responsible person supplying or issuing the Work Order. | UK_Defence.person |
Table 2 — Business Objects to Template Mapping table

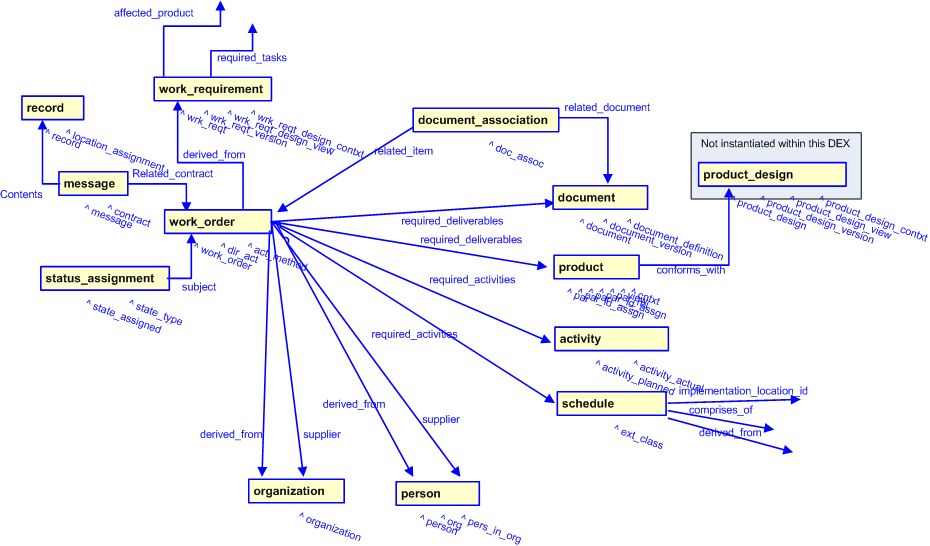

The key templates that this DEX comprises and the interrelations between those templates are illustrated below:
