| Business DEX (UK_Defence040):— support_context | Date: 2009/04/16 21:04:13 Revision: 1.10 |
The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.

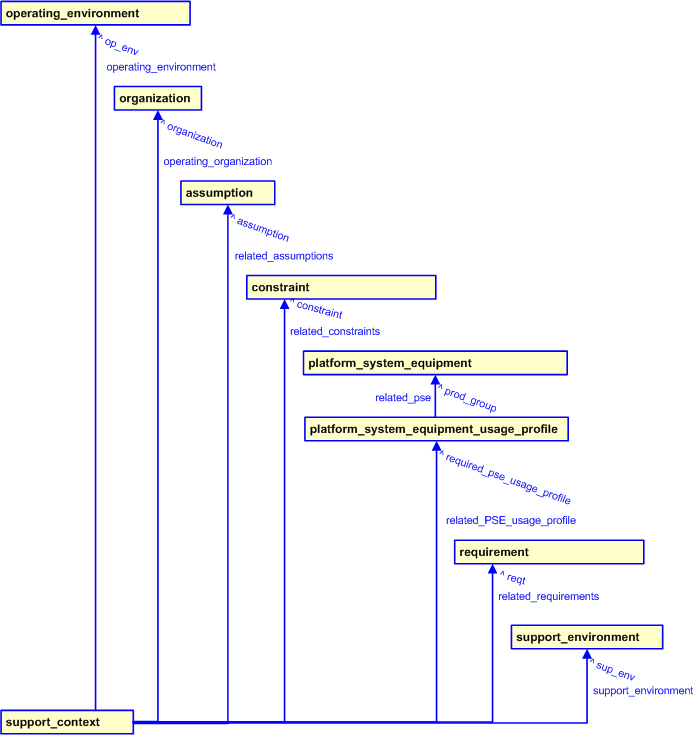

This section summarizes the mappings of the business objects to the corresponding templates.
|
Business Object |
Business Object Definition |
Business Templates |
|---|---|---|
| Message | This information object represents a communicated statement of events, activities, or outcomes that have happened. The method by which the message is communicated is various. | UK_Defence.message |
| Record | This information object represents a permanent statement for preserving the memory or knowledge of facts, activities or events. | UK_Defence.record |
| Support Context | This information object represents the usage profile of the Platforms, Systems and Equipment by a specific operating organization. A separate Support Context exists for each combination of Product, usage profile, and operating organization. | UK_Defence.support_context |
| Status Assignment | This information object represents the record of the assignment of a status to a subject. This can be used for example to assign approvals to documents, status to deliveries, or dispositions to design changes (requested, proposed, authorized etc). | UK_Defence.status_assignment |
| Platform System Equipment Usage Profile | This information object represents the intended usage profile of the related platform, system and equipment. | UK_Defence.platform_system_equipment_usage_profile |
| Platform System Equipment | This information object represents the identification of a set of one or more items that will be the subject of support concept and support solution development activities. Each item is identified by a related platform system equipment constituent object. Items may be identified by part number, NSN or serial number. Items may include whole platforms, test systems, training equipments, or cross-platform equipment such as communications systems, pumps, engines and so on. | UK_Defence.platform_system_equipment |
| Operating Environment | This information object represents a set of locations in which a product may operate or an activity may be carried out. This information is important from the viewpoint of the likely impact of the environment of those locations, on the requirements for support and on the execution of support processes. | UK_Defence.operating_environment |
| Support Environment | This information object represents the collection of information that defines the support environment for the related platform, systems and equipment, including references to the assumptions and requirements from which it was derived. | UK_Defence.support_environment |
| Organization | This information object represents an organized body, project, programme or society, which may or may not be a legal entity. | UK_Defence.organization |
| Requirement | This information object represents a statement of need by a person or organization. | UK_Defence.requirement |
| Assumption | This information object represents an assumption that has been made by a person. An assumption may be referenced from other information objects that have been developed, based on it. | UK_Defence.assumption |
| Constraint | This information object represents a requirement that is a specific limit that must be complied with. | UK_Defence.constraint |
