| Business DEX (UK_Defence040):— support_context | Date: 2009/04/16 21:04:13 Revision: 1.10 |
The information requirements table for the Support Context DEX is shown below:
|
Information requirement |
Business Object(s) |
|---|---|
| Information that is used to define the message that performs the transmission of the Support Context information between the source and destination UK_Defence processes. | Message, Record. |
| The identification, naming, versioning and status of the Support Context. | Support Context, Status Assignment |
| Identification of the platform, system and equipment (PSE) requiring support. | Support Context, Platform System Equipment Usage Profile, Platform System Equipment |
| Identification of the PSE’s intended usage profile. | Support Context, Platform System Equipment Usage Profile, Platform System Equipment, Operating Environment |
| Identification of the intended environments and theatres in which the PSE will be supported. | Support Context, Platform System Equipment Usage Profile, Platform System Equipment, Support Environment |
| Identification of intended operating organisation(s). | Support Context, Organization |
| Reference to the all relevant support requirements, objectives and constraints. | Support Context, Requirement, Assumption, Constraint |
Table 1 — Support Context information requirements

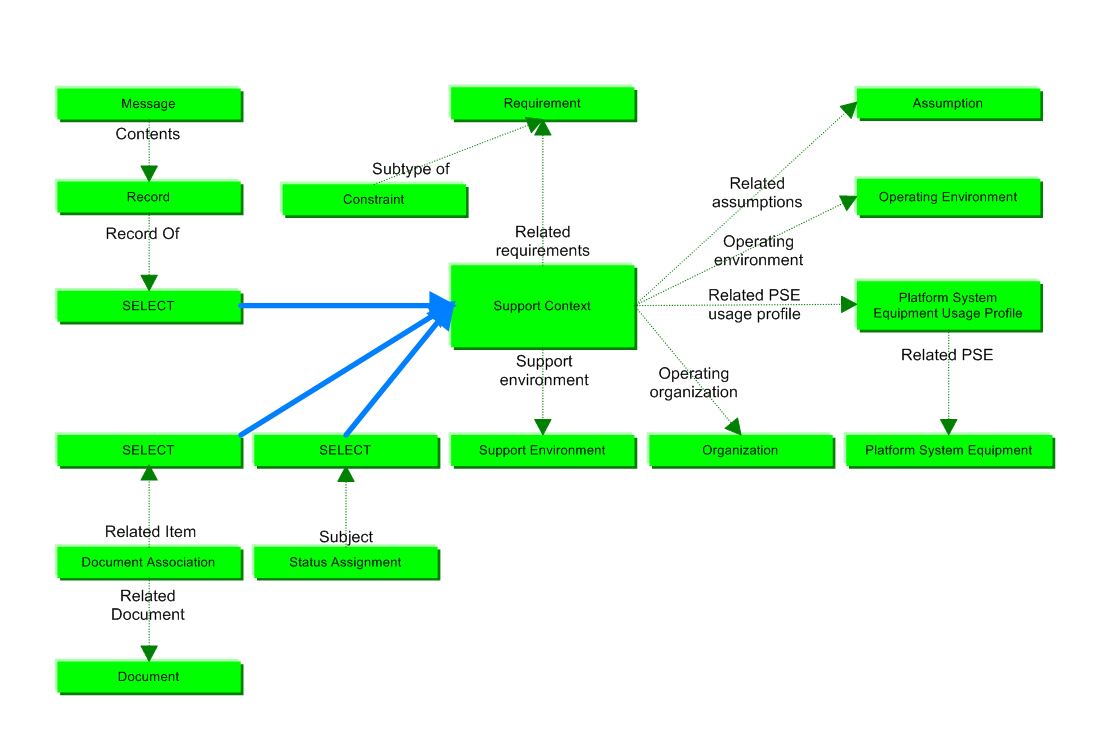

As stated above, the DEX will have as main elements: the PSE, its usage profile and the Operating Environment and the operating organization, with a reference to the appropriate elements of the existing or envisaged support environment, such as facilities, bases, training organisations, etc.
Whilst covering the man-made physical and organisational aspects of the environment within which the PSE will operate and be supported, the Support Context will also include characteristics, such as temperature and humidity, of the natural environment.
In defining the Support Context, a number of Assumptions will be made and these will be recorded an available for completeness within the DEX. Similarly, the relevant Requirements from which the Support Context is derived will also be included.
Not all relevant information is easily contained within the DEX framework and so associations to Documents will be established.
