| Business DEX (UK_Defence022):— change_information | Date: 2009/04/16 15:26:42 Revision: 1.3 |
The information requirements table for the change_information DEX is shown below:
|
Information requirement |
Business Object(s) |
|---|---|
| Information that is used to define the message that performs the transmission of the change information between the source and destination UK_Defence processes. | Message, Record. |
| Identification of all configuration items that are subject to formal configuration change management processes. This includes Requirements, Documents, Product Designs and Specifications, Product Breakdowns, Product Assembly Structures, Products, Support Concepts, Support Solution Definitions and Support System information.. | Configuration Item. |
| Requirements for change to a configuration item. | Change Definition, Justification, Requirement, Failure, Health Hazard, Record. |
| The information that defines a change to a configuration item. | Change Definition, Configuration Item. |
| The information which raises, authorizes or accepts a configuration change. | Change Definition, Configuration Item, Status Assignment. |
| The information that defines the impacts of a configuration change. | Change Definition, Change Impact, Configuration Item. |
| The information that defines the effectivity of a product assembly structure configuration change with respect to a realized product. | Change Effectivity, Change Definition, Product, Configuration Item, Status Assignment. |
| The information that defines the effectivity of a breakdown configuration change with respect to a realized product. | Change Effectivity, Change Definition, Product, Configuration Item, Status Assignment. |
| The information that defines the effectivity of an individual part configuration change with respect to a realized product. | Change Effectivity, Change Definition, Product, Configuration Item, Status Assignment. |
| The information that defines the documents associated with a configuration change. | Change Definition, Document, Document Association |
| The information that defines the cause / effect relationship between two configuration changes – ie. that one change causes another change. | Change Definition, Change Relationship |
Table 1 — change_information information requirements

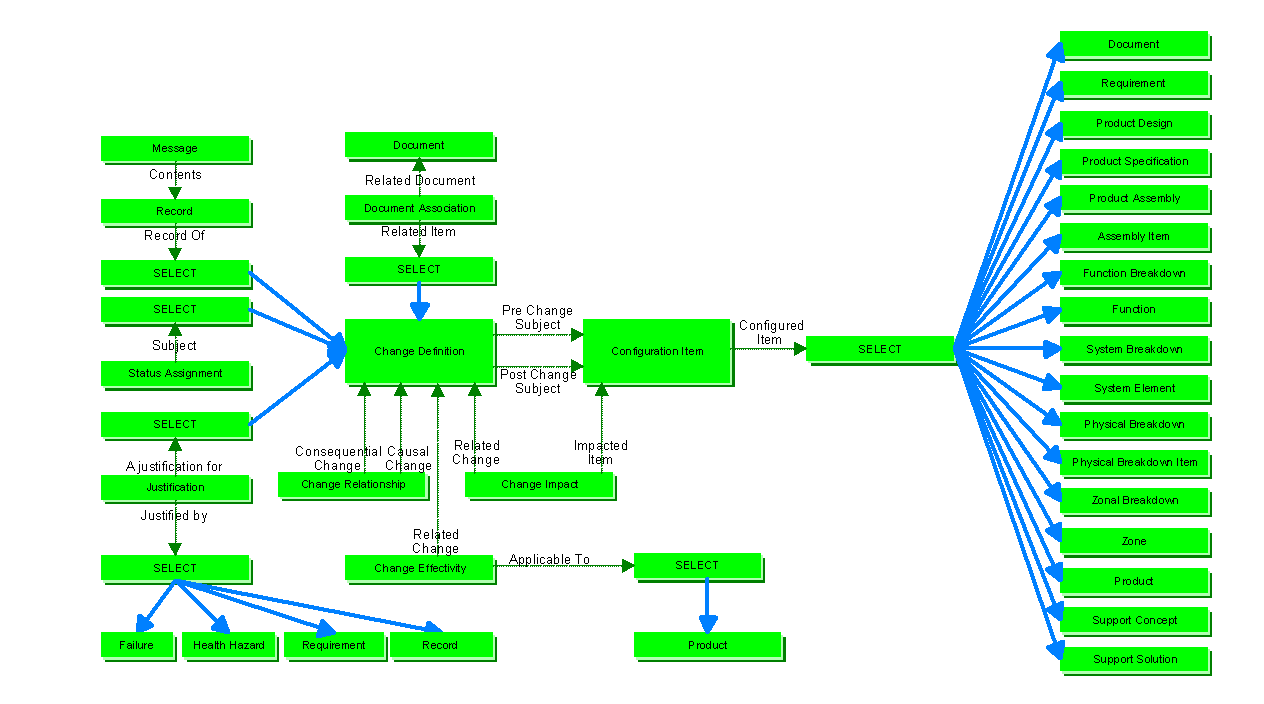

In terms of business objects, these information requirements are modelled as shown below in Figure 1.
NOTE For clarity, not all of the dependent business objects - those that will make the model referentially complete - have been included on the diagram.
