| Business DEX (UK_Defence013):— change_effectivity | Date: 2009/04/16 15:24:37 Revision: 1.4 |
The information requirements table for the change_effectivity DEX is shown below:
|
Information requirement |
Business Object(s) |
|---|---|
| Information that is used to define the message that performs the transmission of the change effectivity information between the source and destination UK_Defence processes. | Message, Record. |
| The information that defines a configuration change (to an individual part, a product assembly structure or a breakdown) | Change Definition, Configuration Item, Status Assignment. |
| The information that defines the impacts of a configuration change. | Change Definition, Change Impact, Configuration Item. |
| The information that defines the effectivity of a product assembly structure configuration change with respect to a realized product. | Change Effectivity, Change Definition, Product, Configuration Item, Status Assignment. |
| The information that defines the effectivity of a breakdown configuration change with respect to a realized product. | Change Effectivity, Change Definition, Product, Configuration Item, Status Assignment. |
| The information that defines the effectivity of an individual part configuration change with respect to a realized product. | Change Effectivity, Change Definition, Product, Configuration Item, Status Assignment. |
| The information that defines the documents associated with a configuration change. | Change Definition, Document, Document Association |
Table 1 — change_effectivity information requirements

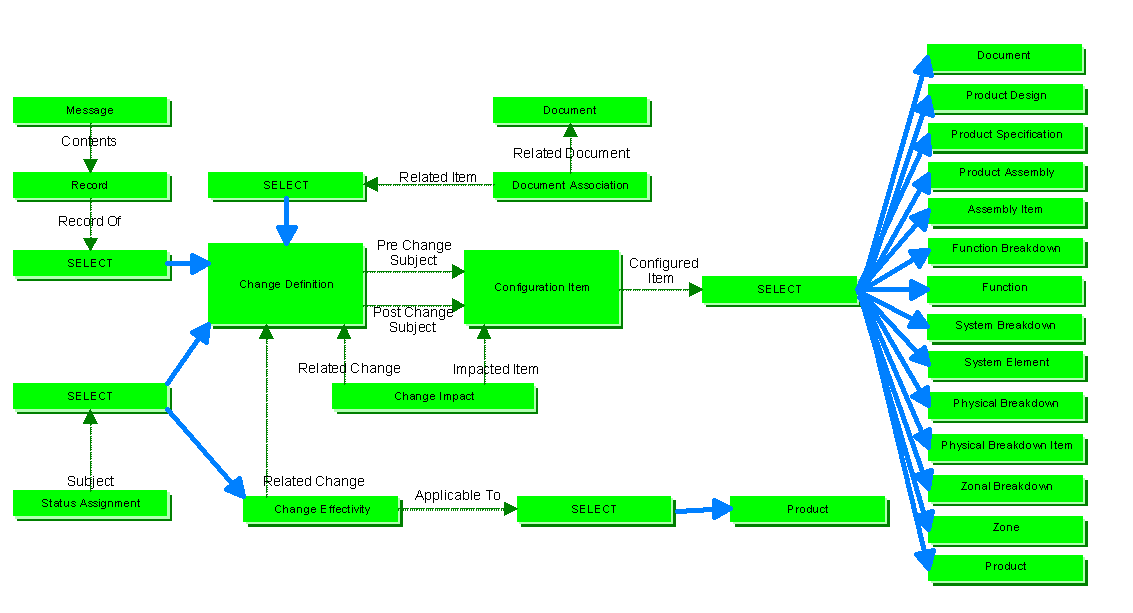

In terms of business objects, these information requirements are modelled as shown below in Figure 2.
NOTE For clarity, not all of the dependent business objects - those that will make the model referentially complete - have been included on the diagram.
