product_breakdown_structure ISO 10303-239 Representation

Zone breakdown

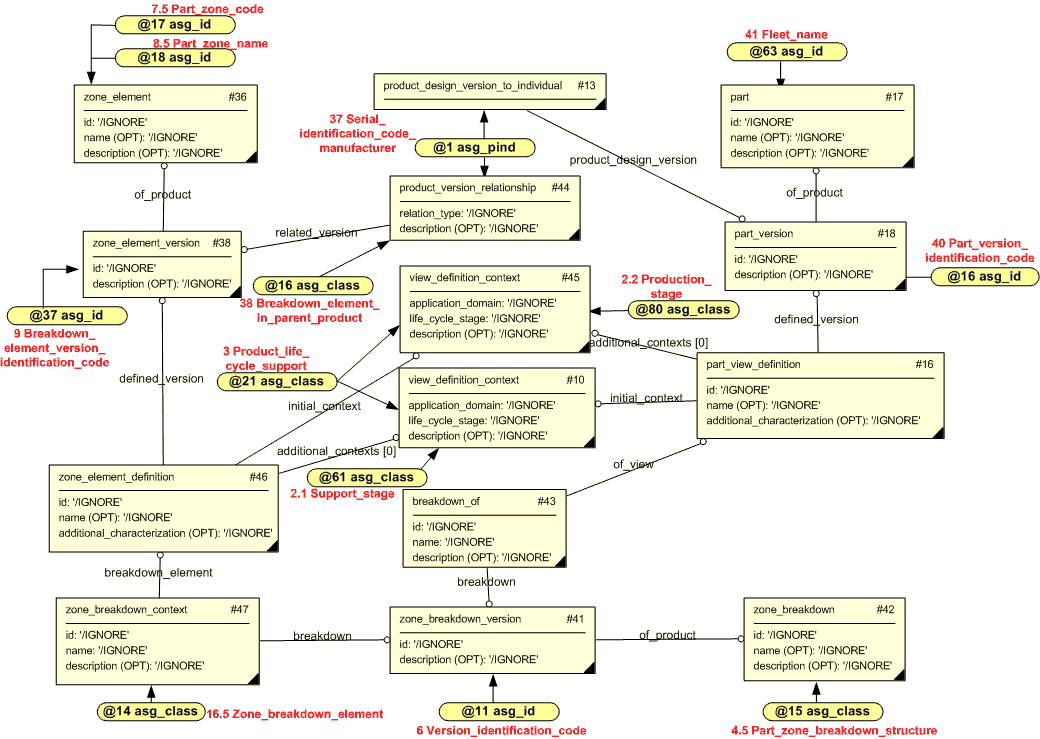

Figure 2 — Zone breakdown

The tables below give an overview of capability template parameters and their instances for the business DEX "Zone breakdown".

NOTE. The parameters representing the external class library are not shown in the tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
11 asg_id	The identifier being assigned	Version_identification_code (BF 6)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 40)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
17 asg_id	The identifier being assigned	Part_zone_code (BF 7.5)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
18 asg_id	The identifier being assigned	Part_zone_name (BF 8.5)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
37 asg_id	The identifier being assigned	Breakdown_element_version_identification_code (BF 9)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
63 asg_id	The identifier being assigned	Fleet_name (BF 41)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference

Table 1.0 — Instances of capability assigning_identifiers (C001) related to 'Zone breakdown'

Instance #	'class_name'
14 asg_class	Zone_breakdown_element (BF 16.5)
15 asg_class	Part_zone_breakdown_structure (BF 4.5)
16 asg_class	Breakdown_element_in_parent_product (BF 38)
21 asg_class	Product_life_cycle_support (BF 3)
61 asg_class	Support_stage (BF 2.1)
80 asg_class	Production_stage (BF 2.2)

Table 1.1 — Instances of capability assigning_reference_data (C010) related to 'Zone breakdown'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 37)

Table 1.2 — Instances of capability representing_product_as_individual (C045) related to 'Zone breakdown'

Block breakdown

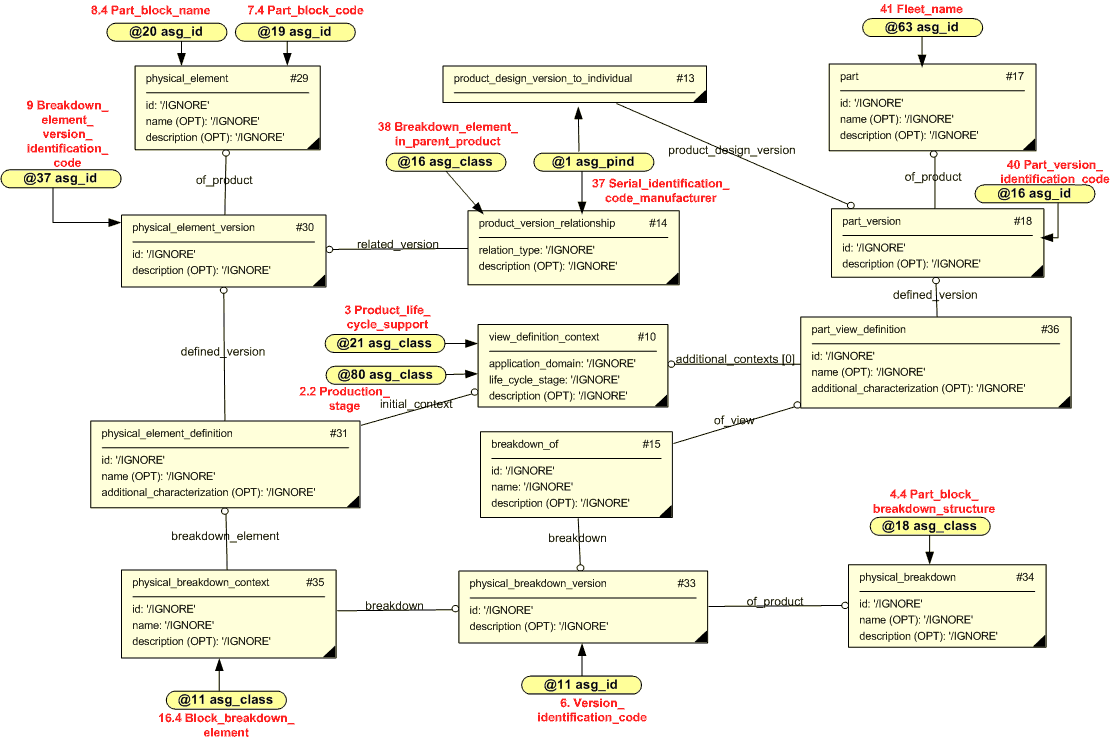

Figure 3 — Block breakdown

The tables below give an overview of capability template parameters and their instances for the business DEX "Block breakdown".

NOTE. The parameters representing the external class library are not shown in the tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
11 asg_id	The identifier being assigned	Version_identification_code (BF 6)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 40)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
19 asg_id	The identifier being assigned	Part_block_code (BF 7.4)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
20 asg_id	The identifier being assigned	Part_block_name (BF 8.4)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
37 asg_id	The identifier being assigned	Breakdown_element_version_identification_code (BF 9)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
63 asg_id	The identifier being assigned	Fleet_name (BF 41)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference

Table 2.0 — Instances of capability assigning_identifiers (C001) related to 'Block breakdown'

Instance #	'class_name'
11 asg_class	Block_breakdown_element (BF 16.4)
16 asg_class	Breakdown_element_in_parent_product (BF 41)
18 asg_class	Part_block_breakdown_structure (BF 4.4)
21 asg_class	Product_life_cycle_support (BF 3)
80 asg_class	Production_stage (BF 2.2)

Table 2.1 — Instances of capability assigning_reference_data (C010) related to 'Block breakdown'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 37)

Table 2.2 — Instances of capability representing_product_as_individual (C045) related to 'Block breakdown'

Module breakdown

Figure 4 — Module breakdown

The tables below give an overview of capability template parameters and their instances for the business DEX "Module breakdown".

NOTE. The parameters representing the external class library are not shown in the tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
11 asg_id	The identifier being assigned	Version_identification_code (BF 6)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 40)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
21 asg_id	The identifier being assigned	Part_module_name (BF 8.3)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
21 asg_id	The identifier being assigned	Part_module_code (BF 7.2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
37 asg_id	The identifier being assigned	Breakdown_element_version_identification_code (BF 9)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
63 asg_id	The identifier being assigned	Fleet_name (BF 41)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference

Table 3.0 — Instances of capability assigning_identifiers (C001) related to 'Module breakdown'

Instance #	'class_name'
16 asg_class	Breakdown_element_in_parent_product (BF 38)
17 asg_class	Module_breakdown_element (BF 16.3)
21 asg_class	Product_life_cycle_support (BF 3)
24 asg_class	Part_module_breakdown_structure (BF 4.3)
80 asg_class	Production_stage (BF 2.2)

Table 3.1 — Instances of capability assigning_reference_data (C010) related to 'Module breakdown'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 37)

Table 3.2 — Instances of capability representing_product_as_individual (C045) related to 'Module breakdown'

Work breakdown

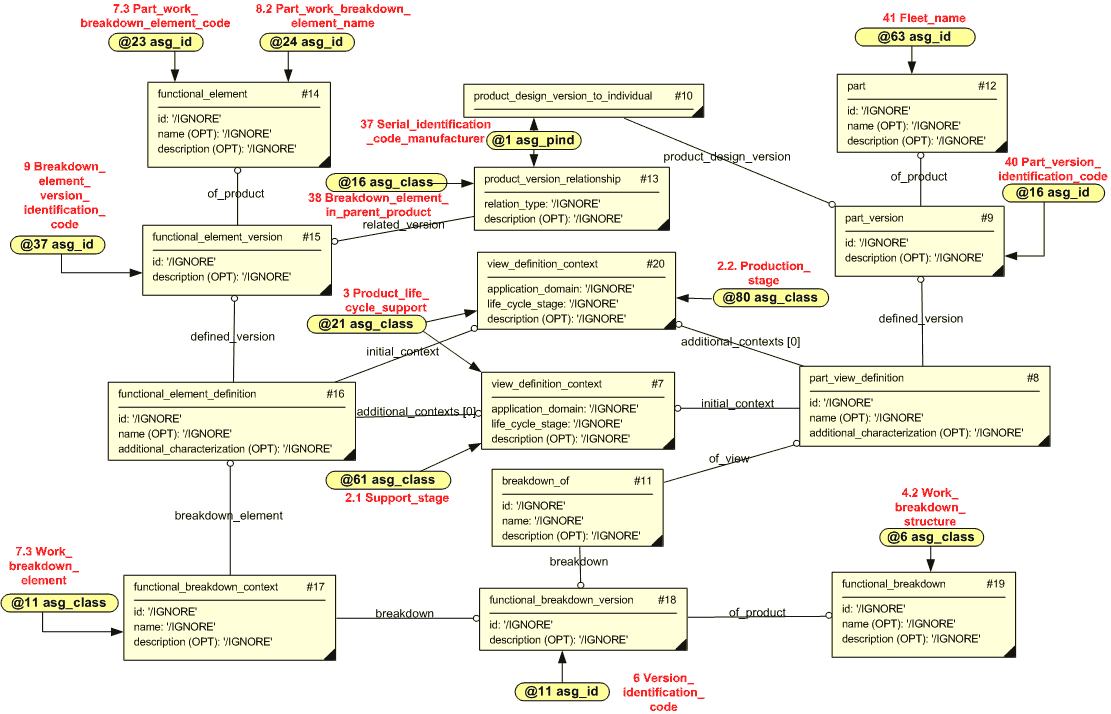

Figure 5 — Work breakdown

The tables below give an overview of capability template parameters and their instances for the business DEX "Work breakdown".

NOTE. The parameters representing the external class library are not shown in the tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 40)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
23 asg_id	The identifier being assigned	Part_work_breakdown_element_code (BF 7.3)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
24 asg_id	The identifier being assigned	Part_work_breakdown_element_name (BF 8.2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
37 asg_id	The identifier being assigned	Breakdown_element_version_identification_code (BF 9)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
63 asg_id	The identifier being assigned	Fleet_name (BF 41)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference

Table 4.1 — Instances of capability assigning_identifiers (C001) related to 'Work breakdown'

Instance #	'class_name'
6 asg_class	Work_breakdown_structure (BF 4.2)
11 asg_class	Work_breakdown_element (BF 7.3)
16 asg_class	Breakdown_element_in_parent_product (BF 38)
21 asg_class	Product_life_cycle_support (BF 3)
61 asg_class	Support_stage (BF 2.1)
80 asg_class	Production_stage (BF 2.2)

Table 4.2 — Instances of capability assigning_reference_data (C010) related to 'Work breakdown'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 37)

Table 4.3 — Instances of capability representing_product_as_individual (C045) related to 'Work breakdown'

Configuration item

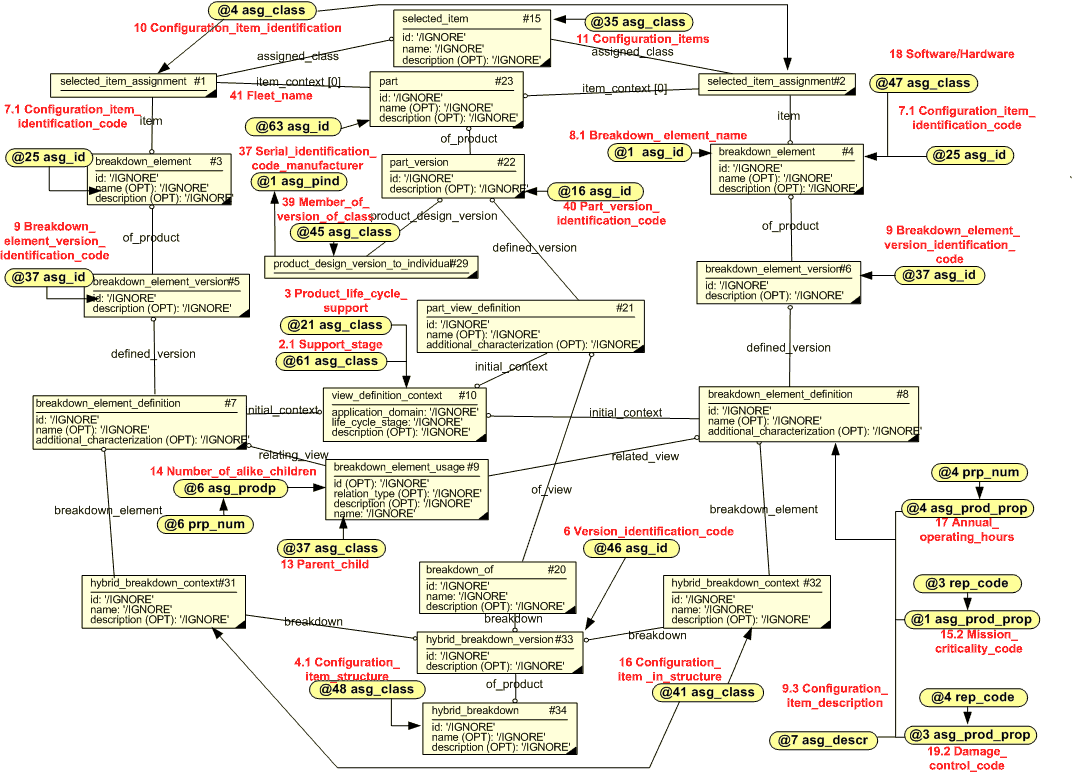

Figure 7 — Configuration item

The tables below give an overview of capability template parameters and their instances for the business DEX 'Configuration item'.

NOTE. The parameters representing the external class library are not shown in the tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
1 asg_id	The identifier being assigned	Breakdown_element_name (BF 8.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 40)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
25 asg_id	The identifier being assigned	Configuration_item_identification_code (BF 7.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
37 asg_id	The identifier being assigned	Breakdown_element_version_identification_code (BF 9)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
46 asg_id	The identifier being assigned	Version_identification_code (BF 6)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
63 asg_id	The identifier being assigned	Fleet_name (BF 41)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference

Table 5.0 — Instances of capability assigning_identifiers (C001) related to 'Configuration item'

Instance #	'class_name'
4 asg_class	Configuration_item_identification (BF 10)
21 asg_class	Product_life_cycle_support (BF 3)
35 asg_class	Configuration_items (BF 11)
37 asg_class	Parent_child (BF 13)
41 asg_class	Configuration_item_in_structure (BF 16)
45 asg_class	Member_of_version_of_class (BF 39)
47 asg_class	Software (BF 18)
47 asg_class	Hardware (BF 18)
48 asg_class	Configuration_item_structure (BF 4.1)
61 asg_class	Support_stage (BF 2.1)

Table 5.1 — Instances of capability assigning_reference_data (C010) related to 'Configuration item'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 37)

Table 5.2 — Instances of capability representing_product_as_individual (C045) related to 'Configuration item'

Instance #	'prop_name_class_name'
1 asg_prod_prop	Mission_critical_code (BF 15.2)
3 asg_prod_prop	Damage_control_code (BF 19.2)
4 asg_prod_prop	Annual_operating_hours (BF 17)
6 asg_prodp	Number_of_alike_children (BF 14)

Table 5.3 — Instances of capability assigning_product_properties (C076) related to 'Configuration item'

Instance #	'prop_value'	'prop_name'	'prop_def_method'	'representation_context'	'unit_id'
4 prp_num	The value of the item reference	Annual_operating_hours (BF 17)	Required_value (BF 19.3)	Contractor_data (BF...)	The value of the item reference
6 prp_num	The value of the item reference	Number_of_alike_children (BF 14)	Measured_value (BF 14.1)	Contractor_data (BF...)	The value of the item reference

Table 5.4 — Instances of capability representing_properties_numerically (C079) related to 'Configuration item'

Instance #	'description'	'class_name'
7 asg_descr	The value of the item reference	Configuration_item_description (BF 9.3)

Table 5.5 — Instances of capability assigning_descriptor (C095) related to 'Configuration item'

Instance #	'code'	'name'	'prop_name'	'prop_code'	'doc_assignment'	'document_version'	'document'	'document_class'
3 rep_code	The value of the item reference	The value of the item reference	Mission_criticality_name (BF 15.1)	Mission_criticality_code (BF 15.2)	Encoding_system (BF 15.3)	The value of the item reference	The value of the item reference	Encoding_system_document (BF 15.6)
4 rep_code	The value of the item reference	-	Damage_control_name (BF 19.1)	Damage_control_code (BF 19.2)	Encoding_system (BF 15.3)	The value of the item reference	The value of the item reference	Encoding_system_document (BF 15.6)

Table 5.6 — Instances of capability assigning_code_and_encoding_system (C152) related to 'Configuration item'

Breakdown element realisation

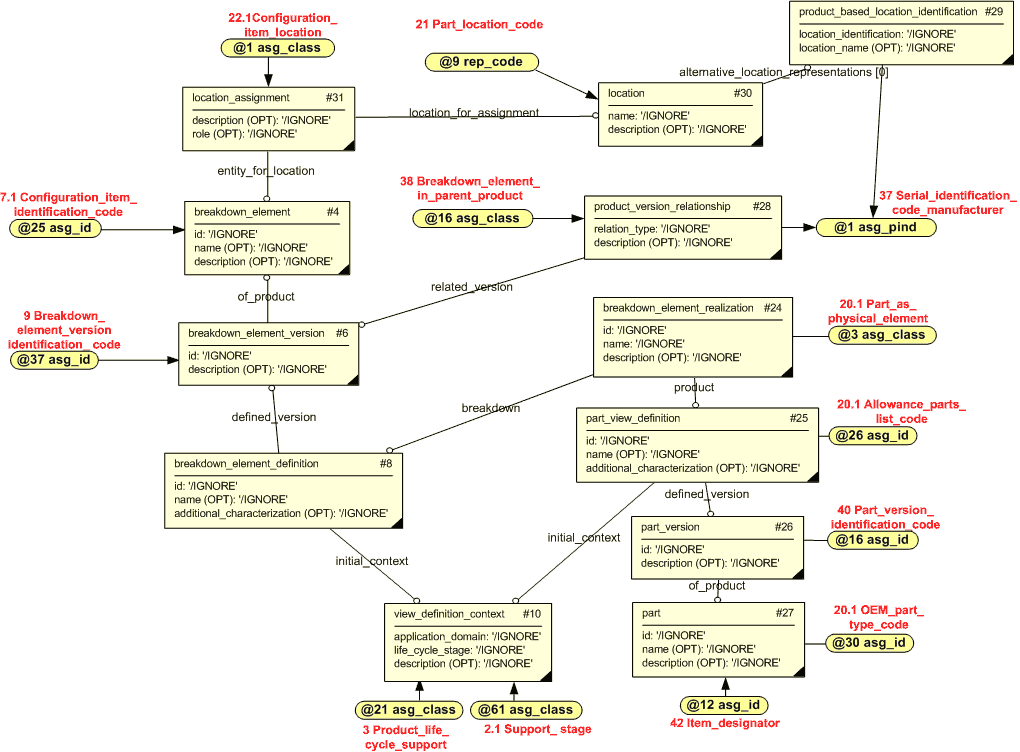

Figure 8 — Breakdown element realisation

The tables below below give an overview of capability template parameters and their instances for the business DEX "Breakdown element realisation".

NOTE. The parameters representing the external class library are not shown in the tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
12 asg_id	The identifier being assigned	Item_designator (BF 42)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 40)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
25 asg_id	The identifier being assigned	Configuration_item_identification_code (BF 7.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
26 asg_id	The identifier being assigned	Allowance_parts_list_code (BF 20.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
30 asg_id	The identifier being assigned	OEM_part_type_code (BF 20.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference
37 asg_id	The identifier being assigned	Breakdown_element_version_identification_code (BF 9)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1.1)	The value of the item reference

Table 6.0 — Instances of capability assigning_identifiers (C001) related to 'Breakdown element realisation'

Instance #	'class_name'
1 asg_class	Configuration_item_location (BF 22.1)
3 asg_class	Part_as_physical_element (BF 20.1)
16 asg_class	Breakdown_element_in_parent_product (BF 38)
21 asg_class	Product_life_cycle_support (BF 3)
61 asg_class	Support_stage (BF 2.1)

Table 6.1 — Instances of capability assigning_reference_data (C010) related to 'Breakdown element realisation'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 37)

Table 6.2 — Instances of capability representing_product_as_individual (C045) related to 'Breakdown element realisation'

Instance #	'code'	'name'	'prop_name'	'prop_code'	'doc_assignment'	'document_version'	'document'	'document_class'
9 rep_code	The value of the item reference	The value of the item reference	Part_location_name (BF 21)	Part_location_code (BF 21.1)	Encoding_system (BF 15.3)	The value of the item reference	The value of the item reference	Encoding_system_document (BF 15.6)

Table 6.3 — Instances of capability assigning_code_and_encoding_system (C152) related to 'Breakdown element realisation'
