part_characterization ISO 10303-239 Representation

Characterize maintainable part

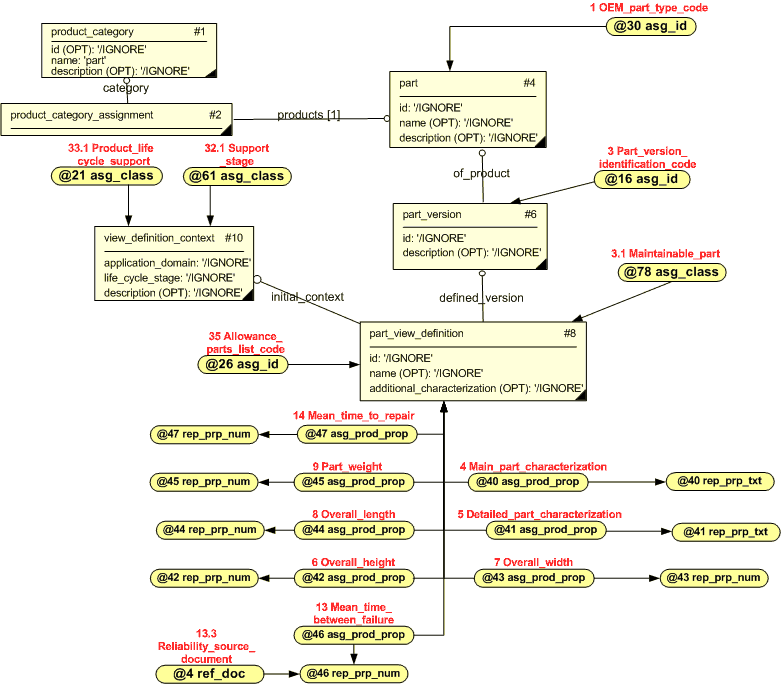

Figure 3 — Part characterization

The tables below give an overview of capability template parameters and their instances for the business DEX 'Part characterization'.

NOTE. The parameters representing the external class library are not shown in the tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 3)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 2)	The value of the item reference
26 asg_id	The identifier being assigned	Allowance_parts_list_code (BF 35)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 2)	The value of the item reference
30 asg_id	The identifier being assigned	OEM_part_type_code (BF 1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 2)	The value of the item reference

Table 1.0 — Instances of capability assigning_identifiers (C001) related to 'Characterize maintainable part'

Instance #	'class_name'
21 asg_class	Product_life_cycle_support (BF 33.1)
61 asg_class	Support_stage (BF 32.1)
78 asg_class	Maintainable_part (BF 3.1)

Table 1.1 — Instances of capability assigning_reference_data (C010) related to 'Characterize maintainable part'

Instance #	'class_name'
4 ref_doc	Reliablility_source_document (BF 13.3)

Table 1.2 — Instances of capability reference_document (C037) related to 'Characterize maintainable part'

Instance #	'prop_name_class_name'
40 asg_prod_prop	Main_part_characterization (BF 4)
41 asg_prod_prop	Detailed_part_characterization (BF 5)
42 asg_prod_prop	Overall_height (BF 6)
43 asg_prod_prop	Overall_width (BF 7)
44 asg_prod_prop	Overall_length (BF 8)
45 asg_prod_prop	Part_weight (BF 9)
46 asg_prod_prop	Periodicity (BF 13)
47 asg_prod_prop	Mean_time_to_repair (BF 14)

Table 1.3 — Instances of capability assigning_product_properties (C076) related to 'Characterize maintainable part'

Instance #	'prop_value'	'prop_name'	'prop_def_method'	'representation_context'	'unit_id'
42 rep_prp_num	The value of the item reference	Overall_height (BF 6)	Measured_value (BF 10.1)	Contractor_data (BF 10.2)	The value of the item reference
43 rep_prp_num	The value of the item reference	Overall_width (BF 7)	Measured_value (BF 10.1)	Contractor_data (BF 10.2)	The value of the item reference
44 rep_prp_num	The value of the item reference	Overall_length (BF 8)	Measured_value (BF 10.1)	Contractor_data (BF 10.2)	The value of the item reference
45 rep_prp_num	The value of the item reference	Part_weight (BF 9)	Measured_value (BF 10.1)	Contractor_data (BF 10.2)	The value of the item reference
46 rep_prp_num	The value of the item reference	Periodicity (BF 13)	Mean_time_between_failure (BF 13)	Contractor_data (BF 10.2)	The value of the item reference
47 rep_prp_num	The value of the item reference	Mean_time_to_repair (BF 14)	Maintainability_data (BF 14.1)	Contractor_data (BF 10.2)	The value of the item reference

Table 1.4 — Instances of capability representing_properties_numerically (C079) related to 'Characterize maintainable part'

Instance #	'prop_value'	'prop_name'	'prop_def_method'	'class_name'
40 rep_prp_txt	The Identifier being assigned	Main_part_characterization (BF 4)	Descriptive_text (BF 4.1)	Part_description (BF 5)
41 rep_prp_txt	The Identifier being assigned	Detailed_part_characterization (BF 5)	Descriptive_text (BF 4.1)	Part_description (BF 5)

Table 1.5 — Instances of capability representing_properties_textually (C080) related to 'Characterize maintainable part'

Characterize material list item

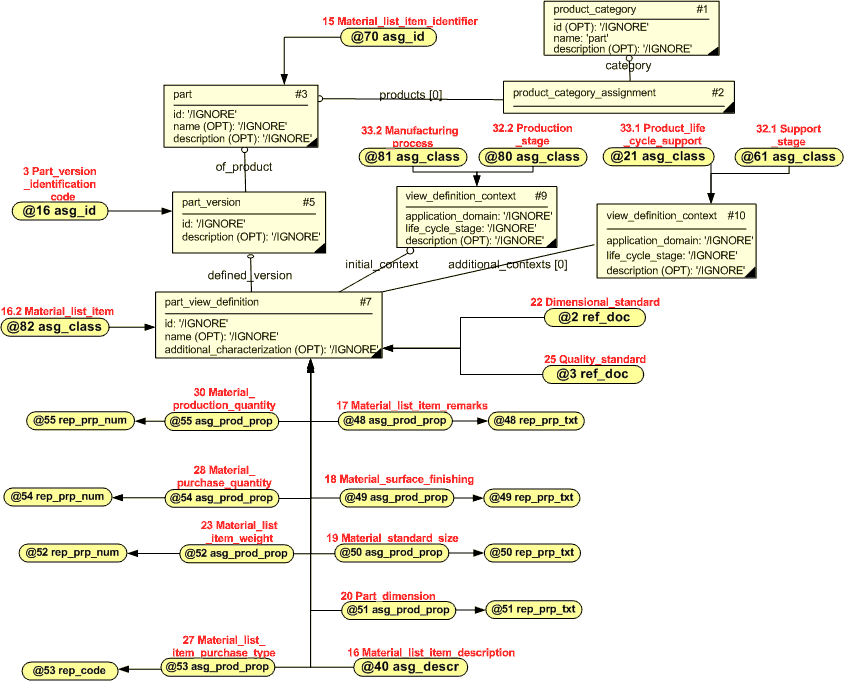

Figure 4 — Material list item characterization

The tables below give an overview of capability parameters and their instances for the business DEX 'Material list item characterization'.

NOTE. The parameters representing the external class library are not shown in the tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 3)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 2)	The value of the item reference
70 asg_id	The identifier being assigned	Material_list_item_identifier (BF 15)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 2)	The value of the item reference

Table 2.0 — Instances of capability assigning_identifiers (C001) related to 'Characterize material list item'

Instance #	'class_name'
21 asg_class	Product_life_cycle_support (BF 33.1)
61 asg_class	Support_stage (BF 32.1)
80 asg_class	Production_stage (BF 32.2)
81 asg_class	Manufacturing_process (BF 33.2)
82 asg_class	Material_list_item (BF 16.2)

Table 2.1 — Instances of capability assigning_reference_data (C010) related to 'Characterize material list item'

Instance #	'class_name'
2 ref_doc	Dimensional_standard (BF 22)
3 ref_doc	Quality_standard (BF 25)

Table 2.2 — Instances of capability reference_document (C037) related to 'Characterize material list item'

Instance #	'prop_name_class_name'
48 asg_prod_prop	Material_list_item_remarks (BF 17)
49 asg_prod_prop	Material_surface_finishing (BF 18)
50 asg_prod_prop	Material_standard_size (BF 19)
51 asg_prod_prop	Part_dimension (BF 20)
52 asg_prod_prop	Material_list_item_weight (BF 23)
53 asg_prod_prop	Material_list_item_purchase_type (BF 27)
54 asg_prodp	Material_purchase_quantity (BF 28)
55 asg_prodp	Material_production_quantity (BF 30)

Table 2.3 — Instances of capability assigning_product_properties (C076) related to 'Characterize material list item'

Instance #	'prop_value'	'prop_name'	'prop_def_method'	'representation_context'	'unit_id'
52 rep_prp_num	The value of the item reference	Material_list_item_weight (BF 23)	Measured_value (BF 10.1)	Contractor_data (BF 10.2)	The value of the item reference
54 rep_prp_num	The value of the item reference	Material_purchase_quantity (BF 28)	Calculated_value (BF 10.3)	Contractor_data (BF 10.2)	The value of the item reference
55 rep_prp_num	The value of the item reference	Material_production_quantity (BF 30)	Calculated_value (BF 10.3)	Contractor_data (BF 10.2)	The value of the item reference

Table 2.4 — Instances of capability representing_properties_numerically (C079) related to 'Characterize material list item'

Instance #	'prop_value'	'prop_name'	'prop_def_method'	'class_name'
48 rep_prp_txt	The Identifier being assigned	Material_list_item_remarks (BF 17)	Descriptive_text (BF 4.1)	Part_description (BF 5)
49 rep_prp_txt	The Identifier being assigned	Material_surface_finishing (BF 18)	Descriptive_text (BF 4.1)	Part_description (BF 5)
50 rep_prp_txt	The Identifier being assigned	Material_standard_size (BF 19)	Nominal_size (BF 19.1)	Standard_dimensions (BF 20.2)
51 rep_prp_txt	The Identifier being assigned	Part_dimension (BF 20)	Nominal_size (BF 19.1)	Standard_dimensions (BF 20.2)

Table 2.5 — Instances of capability representing_properties_textually (C080) related to 'Characterize material list item'

Instance #	'description'	'class_name'
40 asg_descr	The value of the item reference	Material_list_item_description (BF 16)

Table 2.6 — Instances of capability assigning_descriptor (C095) related to 'Characterize material list item'

Instance #	'code'	'name'	'prop_name'	'prop_code'	'doc_assignment'	'document_version'	'document'	'document_class'
53 rep_code	-	-	Material_list_item_purchase_type_name (BF 27.2)	Material_list_item_purchase_type_code (BF 27.1)	-	-	-	-

Table 2.7 — Instances of capability assigning_code_and_encoding_system (C152) related to 'Characterize material list item'
