skill_resources ISO 10303-239 Representation

The following sections provide a detailed description on how to represent a Skill Resources Data Exchange Set using ISO 10303-239 PLCS. The representation of the Skill Resources DEX is defined using PLCS capabilities, PLCS templates and PLCS reference data.

This description may be further tailored by specific parties by extending the reference data defined in the PLCS reference data library.

An overview of the information to be exchanged by the Skill Resources DEX has been described in Skill Resources - Business Information Overview. A more detailed definition of the type of information that can be exchanged using the Skill Resources DEX is provided in Skill Resources - Business Information Requirements.

This section contains a step by step description on how each business information requirement defined in Skill Resources - Business Information Requirements is to be represented in PLCS, and is organized in accordance with the business information requirements.

Skill Specialty Information

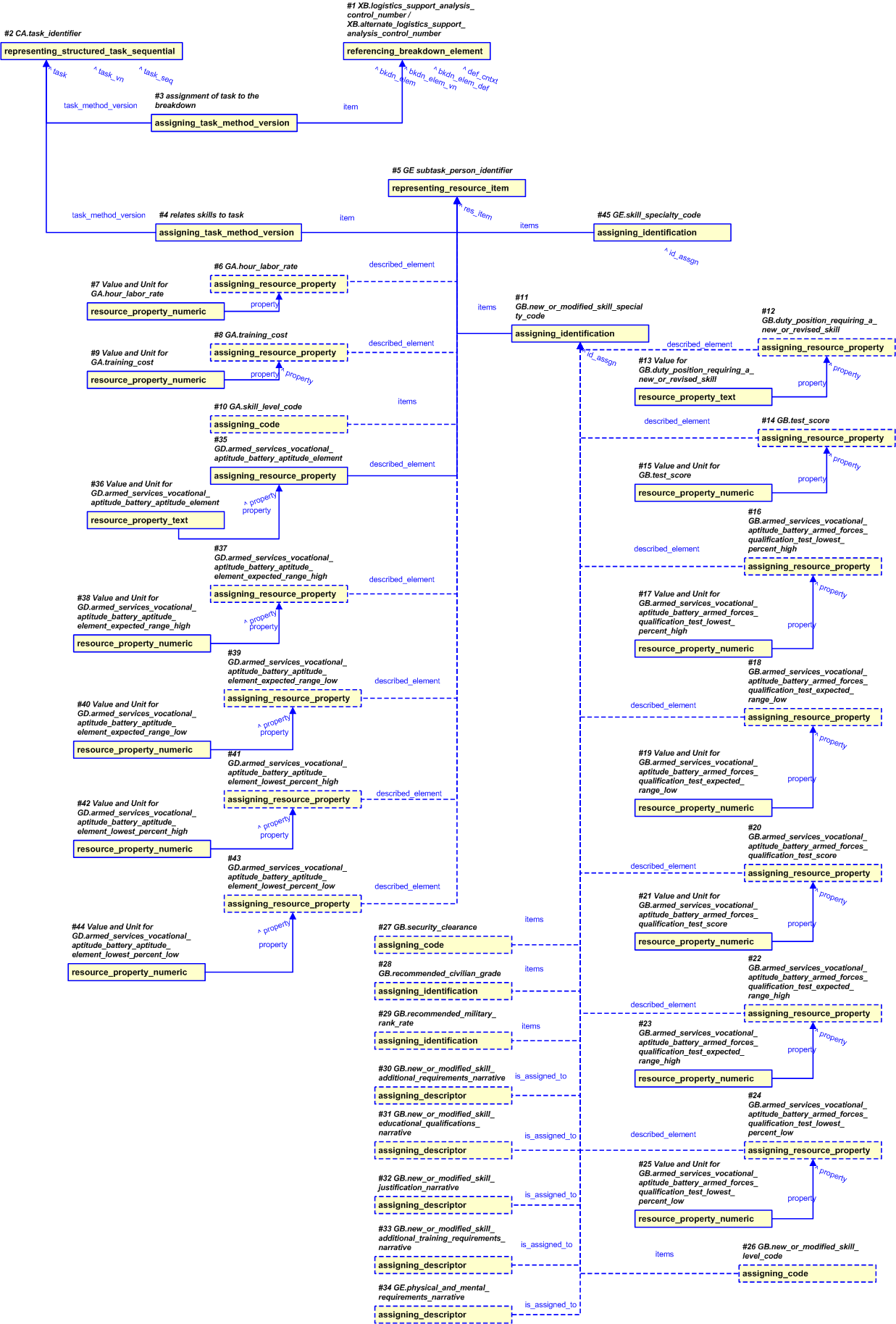

The Skill Specialty Information information is described in Figure 4



Figure 4 —  Representation of the Skill Specialty Information

Figure 4 —  Representation of the Skill Specialty Information

Skill Specialty Information

The basic representation of the Skill Specialty Information and its identification is done in accordance with the following templates:

Instantiation of the respective template for this Business DEX must follow the rules defined in the respective template table below:

Template #1 (Figure 4): referencing_breakdown_element
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id logistics_support_analysis_control_numer The identifier of the Breakdown_element .
id_class_name Breakdown_element_identification_code The name of the class being used to classify the (Identification_assignment) of the breakdown_element. This provides the role or reason for the identification.
id_ecl_id urn:plcs:rdl:std The identifier of the External_class_library storing the definition of the class referenced by the parameter @id_class_name class.
id_owner /NULL The name or identifier of the organization owning the id or name.
id_owner_class_name /NULL The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
id_owner_ecl_id /NULL The id of the External_class_library storing the @id_owner_class_name class
vn_id /NULL The identifier of the Breakdown_element_version.
vn_id_class_name /NULL The name of the class being used to classify the identification (Identification_assignment) of the breakdown_element_version. This provides the role or reason for the identification.
vn_id_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @vn_id_class_name class.
vn_id_owner /NULL The name or identifier of the organization owning the version_id.
vn_id_owner_class_name alternate_logistics_support_analysis_control_number The name of the class being used to classify the identification of the organization. For example CAGE code, or organization name.
vn_id_owner_ecl_id urn:plcs:rdl:std The id of the External_class_library storing the @vn_id_owner_class_name class
life_cycle_stage /NULL The identifier of the External_class_library used to describe the type of life cycle stage of the View_definition_context instance.
life_cycle_stage_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @life_cycle_stage class.
domain /NULL The identifier of the External_class_library used to describe the type of application domain of the View_definition_context instance.
domain_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @domain class.

Template #2 (Figure 4): representing_structured_task_sequential
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
task_id ?task_identifier? The task identifier, e.g. the task number.
task_id_class_name Task_method_identification_code The name of the class being used to classify the identifier being assigned to the task (i.e. the @task_id)
task_id_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_id_class_name.
task_org_id   The name or identifier of the Organization that owns the @task_id.
task_org_id_class_name Organization_name The name of the class being used to classify the identification of the Organization responsible for creating the @task_id.
task_org_id_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_org_id_class_name.
task_ver_id   The task version identifier, for example, the sequence number of the version.
task_ver_id_class_name Version_identification_code The name of the class being used to classify the task version identifier (@tesk_ver_id) assigned to Task_method_version.
task_ver_id_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_ver_id_class_name.
task_ver_org_id   The name or identifier of the organization that owns the task version identifier.
task_ver_org_id_class_name Organization_name The name of the class being used to classify the identification of the Organization responsible for creating the @task_ver_id.
task_ver_org_id_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_ver_org_id_class_name.
task_name   The task name.
task_name_class_name Task_method_name The name of the class being used to classify the task name assigned to Task_method.
task_name_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_name_class_name.
task_name_org_id   The name or identifier of the organization that owns the task name.
task_name_org_id_class_name Organization_name The name of the class being used to classify the identification of the Organization responsible for creating the @task_name.
task_name_org_id_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @task_name_org_id_class_name.
task_step   The details on how to perform the task.

Template #3 (Figure 4): assigning_task_method_version
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
assignment_role   The role of the assignment.
role_ecl_id urn:plcs:rdl:std The External_class_library storing the definition of the class referenced by the parameter @assignment_role
item assignment of task to the breakdown The target element of the assignment.
task_method_version task_identifier The Task_method_version that is assigned.

Template #4 (Figure 4): assigning_task_method_version
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
assignment_role   The role of the assignment.
role_ecl_id urn:plcs:rdl:std The External_class_library storing the definition of the class referenced by the parameter @assignment_role
item relates skills to task The target element of the assignment.
task_method_version task_identifier The Task_method_version that is assigned.

Template 5 (Figure 4): representing_resource_item
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
res_item_id subtask_person_identifier Identification of the Resource_item
res_item_id_class Resource_item_identification_code The name of the class used to classify the identifier (@res_item_id) and to provide the role or reason for the identification
res_item_id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @res_item_id_class
res_item_id_org_id   The identifier of the Organization that "owns" the identifier.
res_item_id_org_id_class Organization_name The name of the class being used to classify the identification of the Organization. For example CAGE code.
res_item_id_org_id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the definition of the class used to classify the organization identifier.
res_item_items   Item that is added to the SET of resource items that realizes the resource item under consideration.

Template #6 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
property_class_name hour_labor_rate [Hour_labor_rate]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resource_item The item to which the property is assigned

Template #7 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit   The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id   The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit   Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context   The name of the class being used to classify the Representation_context of the property.
context_ecl_id   The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #8 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
property_class_name training_cost [Training_cost]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resource_item The item to which the property is assigned

Template #9 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #10 (Figure 4): assigning_code
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
class_name ?skill_level_code? The text representing the code.
code_class_name [Skill_level_code]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the External_class given in @code_class_name.
items resource_item The items to which the Class is assigned.

Template #11 (Figure 4): assigning_code
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
class_name ?new_or_modified_skill_specialty_code? The text representing the code.
code_class_name "new_or_modified_skill_specialty_code"urn="urn:plcs:rdl:lsa" The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the External_class given in @code_class_name.
items resource_item The items to which the Class is assigned.

Template #12 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
property_class_name duty_position_requiring_a_new_or_revised_skill [Duty_position_requiring_a_new_or_revised_skill]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element identification_assignment The item to which the property is assigned

Template #13 (Figure 4): resource_property_text
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The text value of the property.
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The property to which the text representation is assigned

Template #14 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
property_class_name test_score [Test_score]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element identification_assignment The item to which the property is assigned

Template #15 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #16 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
ASVAB AFQT Lowest Percent Low and High are required for each ASVAB AFQT Score.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_aptitude_battery_armed_forces_qualification_test_lowest_percent_high [Armed_services_vocational_aptitude_battery_lowest_percent]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element identification_assignment The item to which the property is assigned

Template #17 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #18 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
Armed Services Vocational Aptitude Battery (ASVAB) Armed Forces Qualification Test (AFQT) Expected Range Low and High are required for each ASVAB AFQT Score.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_aptitude_battery_armed_forces_qualification_test_expected_range_low [Armed_services_vocational_aptitude_battery_expected_range]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element identification_assignment The item to which the property is assigned

Template #19 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #20 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
ASVAB AFQT Lowest Percent Low and High are required for each ASVAB AFQT Score.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_aptitude_battery_armed_forces_qualification_test_score [Armed_services_vocational_aptitude_battery_test_score]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element identification_assignment The item to which the property is assigned

Template #21 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #22 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
Armed Services Vocational Aptitude Battery (ASVAB) Armed Forces Qualification Test (AFQT) Expected Range Low and High are required for each ASVAB AFQT Score.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_aptitude_battery_armed_forces_qualification_test_expected_range_high [Armed_services_vocational_aptitude_battery_expected_range]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element identification_assignment The item to which the property is assigned

Template #23 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #24 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
ASVAB AFQT Lowest Percent Low and High are required for each ASVAB AFQT Score.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_aptitude_battery_armed_forces_qualification_test_lowest_percent_low [Armed_services_vocational_aptitude_battery_lowest_percent]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element identification_assignment The item to which the property is assigned

Template #25 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #26 (Figure 4): assigning_code
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
class_name ?new_or_modified_skill_level_code? The text representing the code.
code_class_name [Skill_level_code]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the External_class given in @code_class_name.
items identification_assignment The items to which the Class is assigned.

Template #27 (Figure 4): assigning_code
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
A Security Clearance is required for each New or Modified Skill Speciality Code (SSC).
Parameter name: Parameter value: Parameter description:
class_name ?security_clearance? The text representing the code.
code_class_name security_clearance [Security_clearance]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class in the reference data library (External_class) being used to determine type of code.
code_ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the External_class given in @code_class_name.
items identification_assignment The items to which the Class is assigned.

Template #28 (Figure 4): assigning_identification
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id ?recommended_civilian_grade? The identifier being assigned.
id_class_name [Recommended_military_rank_rate]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @id_class_name.
org_id /NULL The identifier of the organization that "owns" the identifier.
org_id_class_name /NULL The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id /NULL The id of the External_class_library storing the @org_id_class_name.
items identification_assignment The items to which the identification is assigned

Template #29 (Figure 4): assigning_identification
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
id ?recommended_military_ rank_rate? The identifier being assigned.
id_class_name [Recommended_military_rank_rate]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @id_class_name.
org_id /NULL The identifier of the organization that "owns" the identifier.
org_id_class_name /NULL The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id /NULL The id of the External_class_library storing the @org_id_class_name.
items identification_assignment The items to which the identification is assigned

Template #30 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_skill_additional_requirements_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to identification_assignment The entity to which the Document_assignment is assigned.

Template #31 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_skill_educational_qualifications_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:lsa:lsa The id of the External_class_library that stores the class.
is_assigned_to identification_assignment The entity to which the Document_assignment is assigned.

Template #32 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_skill_justification_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:std The id of the External_class_library that stores the class.
is_assigned_to identification_assignment The entity to which the Document_assignment is assigned.

Template #33 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?new_or_modified_skill_additional_training_requirements_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to identification_assignment The entity to which the Document_assignment is assigned.

Template #34 (Figure 4): assigning_descriptor
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
descr ?physical_and_mental_requirements_narrative? The text being assigned as a descriptor.
class_name [Narrative]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class (External_class) being used to determine type of descriptor.
ecl_id urn:plcs:rdl:lsa The id of the External_class_library that stores the class.
is_assigned_to identification_assignment The entity to which the Document_assignment is assigned.

Template #35 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
ASVAB Aptitude Element Expected Range Low and High are required for each ASVAB Aptitude Element.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_aptitude_battery_aptitude_element [Armed_services_vocational_aptitude_battery_aptitude_element]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resource_item The item to which the property is assigned

Template #36 (Figure 4): resource_property_text
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The text value of the property.
context   The name of the class being used to classify the Representation_context of the property.
context_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The property to which the text representation is assigned

Template #37 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
ASVAB Aptitude Element Expected Range Low and High are required for each ASVAB Aptitude Element.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_aptitude_battery_aptitude_element_expected_range_high [Armed_services_vocational_aptitude_battery_expected_range]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:std The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resource_item The item to which the property is assigned

Template #38 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #39 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
ASVAB Aptitude Element Expected Range Low and High are required for each ASVAB Aptitude Element.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_ aptitude_battery_aptitude_ element_expected_range_low [Armed_services_vocational_aptitude_battery_expected_range]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resource_item The item to which the property is assigned

Template #40 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #41 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
ASVAB Aptitude Element Lowest Percent Low and High are required for each ASVAB Aptitude Element.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_aptitude_battery_aptitude_ element_lowest_percent_high [Armed_services_vocational_aptitude_battery_lowest_percent]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:lsa The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resource_item The item to which the property is assigned

Template #42 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #43 (Figure 4): assigning_resource_property
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
ASVAB Aptitude Element Lowest Percent Low and High are required for each ASVAB Aptitude Element.
Parameter name: Parameter value: Parameter description:
property_class_name armed_services_vocational_ aptitude_battery_aptitude_ element_lowest_percent_low [Armed_services_vocational_aptitude_battery_lowest_percent]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The class name of the property type corresponding to the property name.
property_ecl_id urn:plcs:rdl:std The identifier of the External_class_library storing the definition of the class referenced by the parameter @property.
described_element resource_item The item to which the property is assigned

Template #44 (Figure 4): resource_property_numeric
Hide template parametersHide all template parametersShow all template parameters
Description
Parameter name: Parameter value: Parameter description:
value ?value? The value of the property. The datatype is always 'any_number_value' and should not be registered together with the value, i.e. enter the value as a number, without datatype.
unit /NULL The name of the unit in which the value is expressed, referenced by an External_class.
unit_ecl_id /NULL The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit /NULL Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false.
Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context /NULL The name of the class being used to classify the Representation_context of the property.
context_ecl_id /NULL The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property property The target of the template, i.e. the Resource_property (or template assigning_resource_property) to which the Resource_property_representation is related.

Template #45 (Figure 4): assigning_identification
Hide template parametersHide all template parametersShow all template parameters
Description GEIA-STD-0007 Business Rule:
A Security Clearance is required for each New or Modified Skill Specialty Code (SSC).
Parameter name: Parameter value: Parameter description:
id ?skill_specialty_code? The identifier being assigned.
id_class_name [Skill_specialty_code]
[warning:]Error RDL4: The URI urn:plcs:rdl:lsa is not listed in dexlib/data/refdata/rdl_index.xml
 The name of the class used to classify the identifier (@id) and so provide the role or reason for the identification.
id_ecl_id urn:plcs:rdl:lsa The id of the External_class_library storing the @id_class_name.
org_id /NULL The identifier of the organization that "owns" the identifier.
org_id_class_name /NULL The name of the class being used to classify the identification of the organization, or the organization name (@org_id). For example CAGE code.
org_id_ecl_id /NULL The id of the External_class_library storing the @org_id_class_name.
items resource_item The items to which the identification is assigned

© OASIS 2010 — All rights reserved
