Business DEX (UK_Defence031):— support_solution_definition Date: 2010/03/12 12:14:49
Revision: 1.14

support_solution_definition Business Information Requirements

The information requirements table for the Support Solution Definition DEX is shown below:

Information requirement

Business Object(s)

Information that is used to define the message that performs the transmission of the Support Solution Definition information between the source and destination UK_Defence processes. Message, Record.
The identification, naming, versioning and status of the Support Solution Definition. Support Solution Definition, Status Assignment
Identification of the Support Concept from which the support solution is developed. Support Solution Definition, Support Concept
Updates to all support context and support concept data items as they have been refined during support solution development. Support Solution Definition, Support Concept, Requirement, Assumption, Constraint
The PSE information. Support Solution Definition, Platform System Equipment, Platform System Equipment Constituent, Product, Product Design, Product Specification
The PSE usage profile information. Support Solution Definition, Platform System Equipment, Platform System Equipment Usage Profile
Reference to the support analyses from which the support solution has been derived. Support Solution Definition, Support Analysis
The PSE Support Plan, which defines all the support tasks and their resource requirements to support the PSE through life. Support Solution Definition, Plan
The Support Solution Definition Resource Recommendation. Support Solution Definition, Support Solution Definition Resource Recommendation

Table 1 — Support Solution Definition information requirements

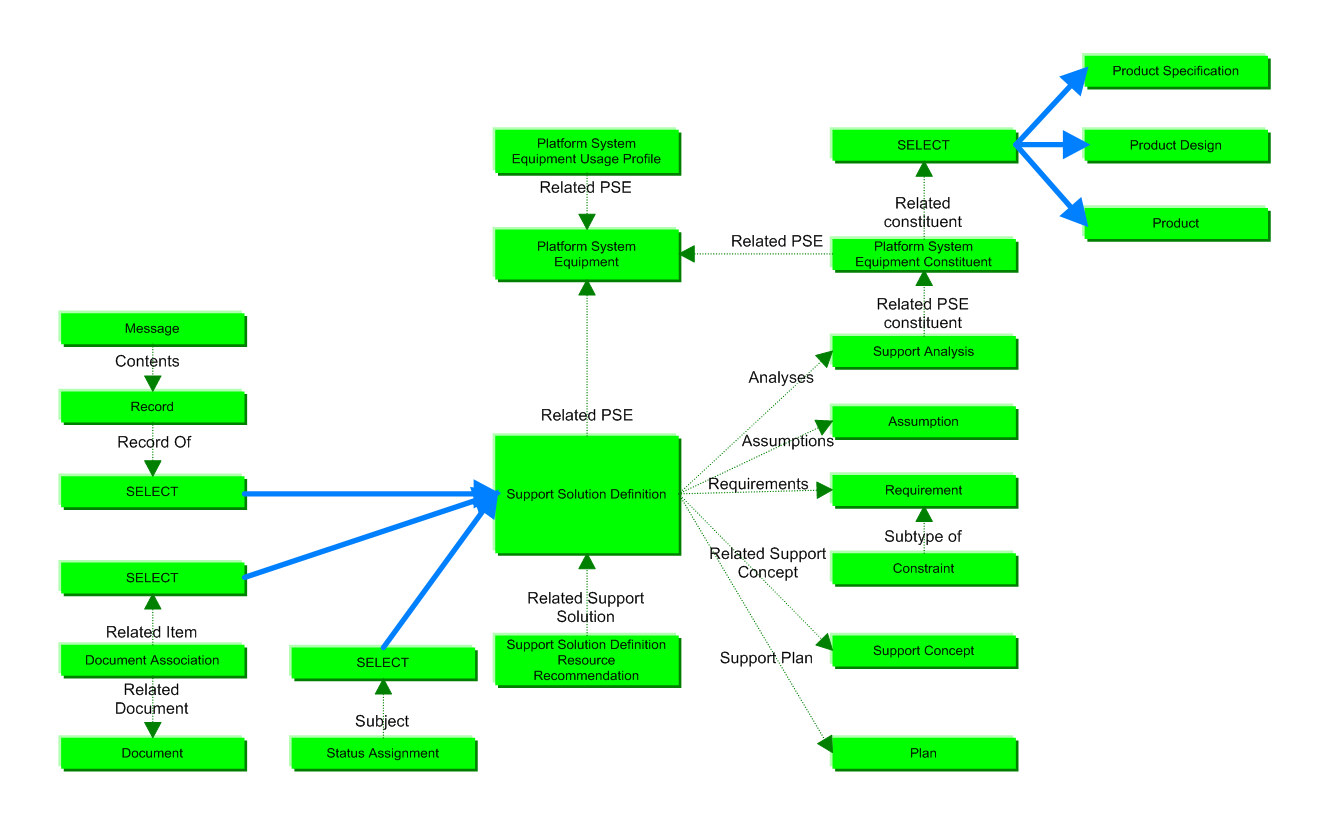

Figure 1 —  Support solution definition, business objects

Figure 1 —  Support solution definition, business objects
