| Business DEX (UK_Defence048):— support_cost_feedback | Date: 2009/04/16 21:04:29 Revision: 1.6 |
The information requirements table for the Support Cost Feedback DEX and corresponding business objects are provided below:
|
Information requirement |
Business Object(s) |
|---|---|
| Identification of person reporting (may include rank, role and organisation represented, etc). | Support Feedback -> Person |
| Period under consideration. | Support Cost Feedback |
| Documentation or reference to documentation associated with the reporting period– managed at Support Feedback level. | Document -> Support Cost Feedback |
| Security classification of included information – managed at Support Feedback level. | Security Classification Assignment -> Support Feedback |
| Cost of Manpower (wages) related to Support Activities (crew & maintainers). | Resource Usage Cost |
| Cost of Victualling. | Resource Usage Cost |
| Cost of Infrastructure (facilities & utilities) usage related to Support Activities. | Resource Usage Cost |
| Cost of Spares used related to Support Activities. | Resource Usage Cost |
| Cost of Consumables related to Support Activities. | Resource Usage Cost |
| Cost of PHS&T related to Support Activities. | Resource Usage Cost |
| Cost of STTE (and common range tools) related to Support Activities. | Resource Usage Cost |
| Cost of Documentation usage related to Support Activities. | Resource Usage Cost |
Table 1 — Support Cost Feedback information requirements

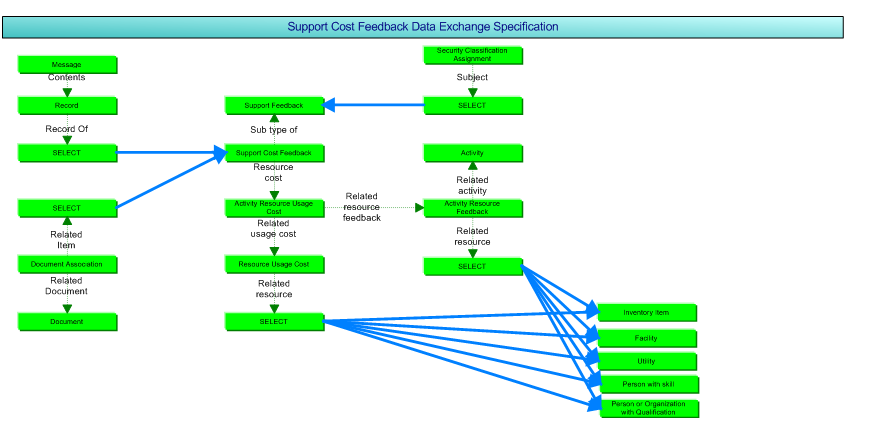

In terms of business objects, these information requirements are modelled as shown below in Figure 1.
NOTE For clarity, not all of the dependent business objects - those that will make the model referentially complete - have been included on the diagram.
