The business objects introduced in the Business Information Overview section are modelled in PLCS through a set of business templates. Most business templates are based upon one or more generic PLCS templates. They may be specializations of a PLCS template using one or more classifications or characterizations to capture the required information, whilst some rename and use restricted parameters.
This section summarizes the mappings of the business objects to the corresponding templates. A diagramatic representation of the AP239 templates used is shown below in Figure 2.
NOTE that to improve understanding of the diagram, not all of the templates referenced in the table are shown.
|
Business Object |
Business Object Definition |
Business Templates |
|---|---|---|
| Document | This information object represents reference material that follows a formal change approval mechanism. | UK_Defence.document |
| Document Association | This information object represents the association of a Document with another information object. Example uses of this may be to associate policy or standards documents with Task objects or to associate drawings with Product Design objects. |
UK_Defence.document_association |
| Message | This information object represents a communicated statement of events, activities, or outcomes that have taken place. | UK_Defence.message |
| Person | This information object represents the information describing a human being. This represents the information describing a human being. | UK_Defence.person |
| Representing Date Time | This information object represents the record of the assignment of a status to a subject. | representing_date_time |
| Requirement | This information object represents a statement of need by a person or organization. | UK_Defence.requirement |
| Requirement Composition | This information object represent the relationship between parent and child requirements in a requirement decomposition hierarchy. | UK_Defence.requirement_composition |
| Requirement Derivation | This information object represents the relationship between two requirements where the child has been derived from the parent. | UK_Defence.requirement_derivation |
| Status Assignment | This information object represents the record of the assignment of a status to a subject. | UK_Defence.status_assignment |
Table 2 — Business Objects to Template Mapping table

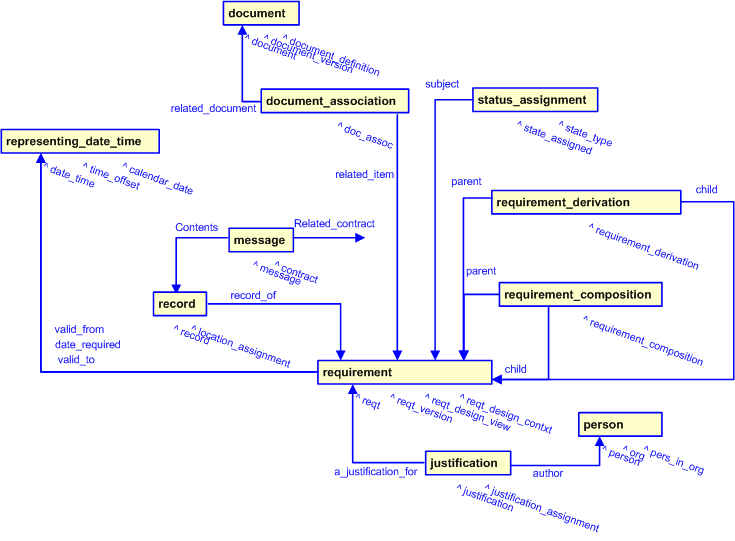

The key templates that this DEX comprises and the interrelations between those templates are illustrated below:
