asset_details

Information requirement	Business Object(s)
Information that is used to define the message that performs the transmission of the asset detail information between the source and destination UK_Defence processes.	Message, Record.
Information that identifies the asset, either by the original manufacturers identifier, or by an alias identifier that is defined by another organization, such as the owning, operating, asset management or maintenance organization of the asset.	Asset, Asset Managed Product, Product
Information that relates the asset to the part information that defines the asset.	Asset, Asset Managed Product, Product, Product Design
Information that relates the asset to its NATO stock number, if that part is codified.	Asset, Asset Managed Product, Product, Product Design, Product Specification, NATO Item of Supply Specification
Information regarding the properties associated with the asset.	Asset, Asset Managed Product, Product, Property, Property Change Relationship
Information that relates documentation to the asset.	Asset, Asset Managed Product, Product, Document, Document Association

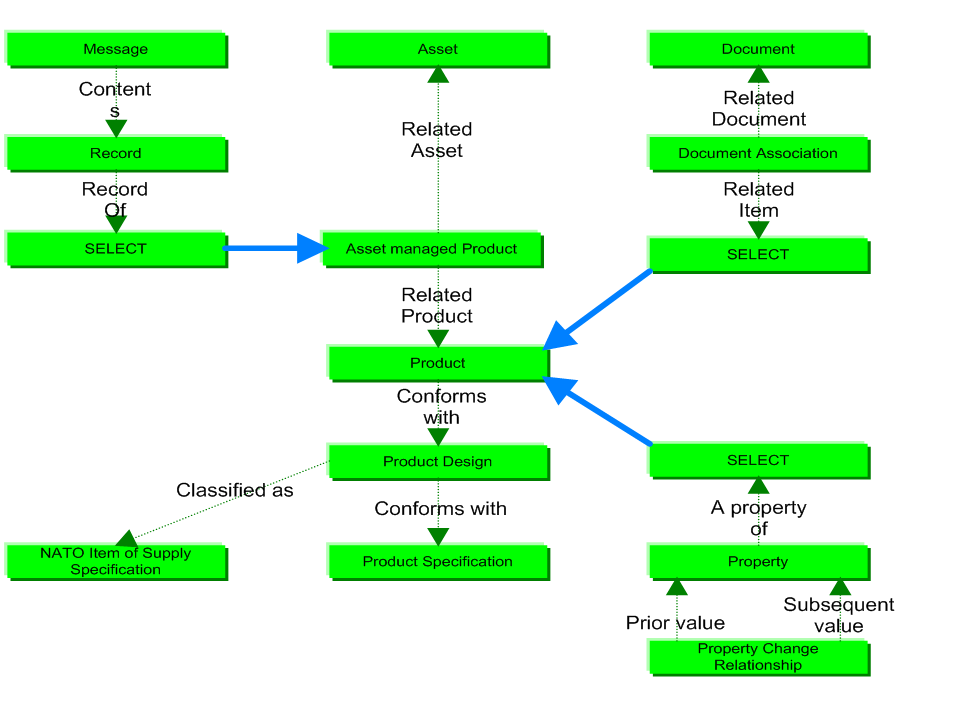

In terms of business objects, these information requirements are modelled as shown below in Figure 2.

NOTE For clarity, not all of the dependent business objects - those that will make the model referentially complete - have been included on the diagram.

asset_details Business Information Requirements
