Represent_documents_and_their_applicability ISO 10303-239 Representation

Document Identification

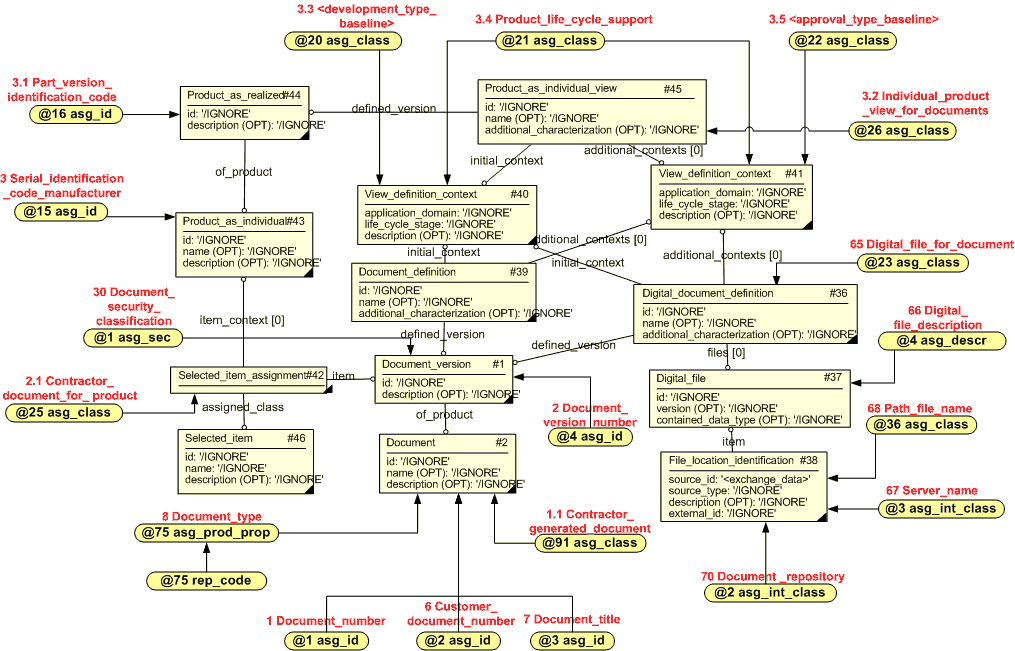

Figure 2 — Document identification

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
1 asg_id	The identifier being assigned	Document_number (BF 1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
2 asg_id	The identifier being assigned	Customer_document_number (BF 6)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
3 asg_id	The identifier being assigned	Document_title (BF 7)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
4 asg_id	The identifier being assigned	Document_version_number (BF 2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
15 asg_id	The identifier being assigned	Serial_identification_code_manufacturer (BF 3)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 3.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference

Table 1.0 — Instances of capability assigning_identifiers (C001) related to 'Document identification'

Instance #	'class_name'
20 asg_class	Development_type_baseline (BF 3.3)
21 asg_class	Product_life_cycle_support (BF 3.4)
22 asg_class	Approval_type_baseline (BF 3.5)
23 asg_class	Digital_file_for_document (BF 65)
25 asg_class	Contractor_documents_for_product (BF 2.1)
26 asg_class	Individual_product_view_for_documents (BF 3.2)
36 asg_class	Path_file_name (BF 68)
91 asg_class	Contractor_generated_document (BF 1.1)

Table 1.1 — Instances of capability assigning_reference_data (C010) related to 'Document identification'

Instance #	'class_name'
2 asg_int_class	Document_repository (BF 70)
3 asg_int_class	Server_name (BF 67)

Table 1.2 — Instances of capability assigning_reference_data_2 (C010_2) related to 'Document identification'

Instance #	'prop_name'	'external_class'
75 asg_prod_prop	The value of the item reference	Document_type (BF 8)

Table 1.3 — Instances of capability assigning_product_properties (C076) related to 'Document identification'

Instance #	'description'	'class_name'
4 asg_descr	The value of the item reference	Digital_file_description (BF 66)

Table 1.4 — Instances of capability assigning_descriptor (C095) related to 'Document identification'

Instance #	'classification_level'	'description'	'class_name'
1 asg_sec	The value of the item reference	The value of the item reference	Document_security_classification (BF 30)

Table 1.5 — Instances of capability assigning_security (C096) related to 'Document identification'

Instance #	'code'	'name'	'prop_name'	'prop_code'
75 rep_code	The value of the item reference	The value of the item reference	Document_type_name (BF 8.2)	Document_type_code (BF 8.1)

Table 1.6 — Instances of capability assigning_code_and_encoding_system (C152) related to 'Document identification'

Document Revisions

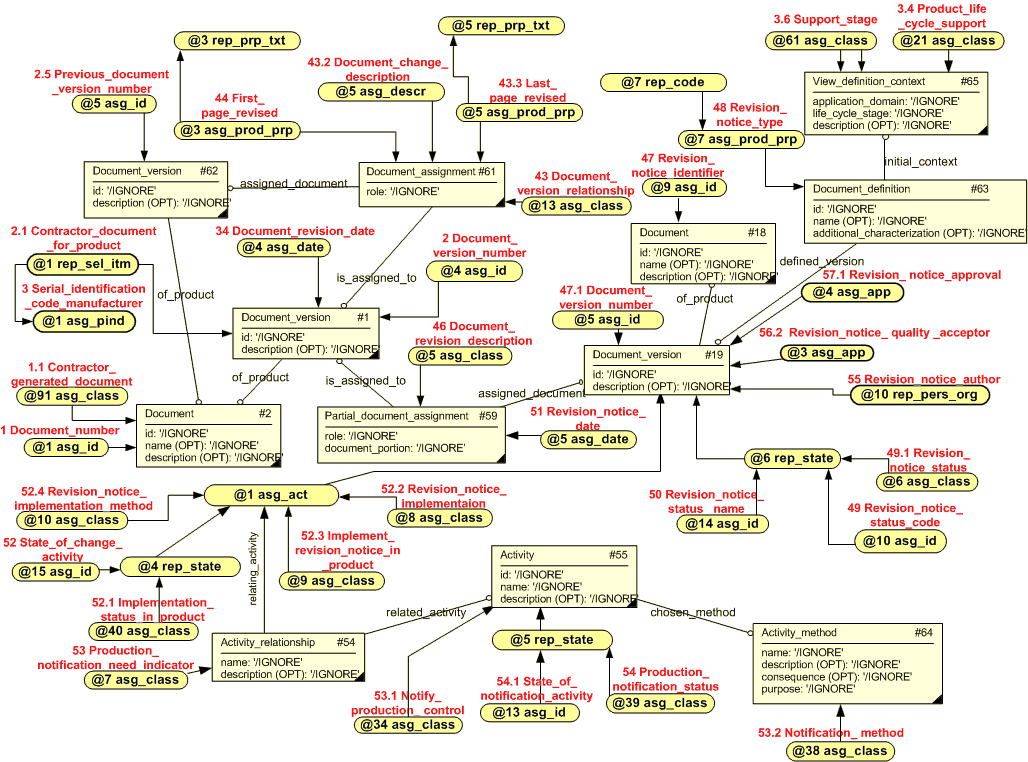

Figure 3 — Document revisions

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
1 asg_id	The identifier being assigned	Document_number (BF 1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
4 asg_id	The identifier being assigned	Document_version_number (BF 2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
5 asg_id	The identifier being assigned	Document_version_number (BF 47.1) and Previous_document_version_number (BF 2.5)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
9 asg_id	The identifier being assigned	Revision_notice_identifier (BF 47)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
10 asg_id	The identifier being assigned	Revision_notice_status_code (BF 49)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
13 asg_id	The identifier being assigned	Production_notification_status (BF 54.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
14 asg_id	The identifier being assigned	Revision_notice_status_name (BF 50)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
15 asg_id	The identifier being assigned	Implementation_status_in_product (BF 52)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference

Table 2.0 — Instances of capability assigning_identifiers (C001) related to 'Document revisions'

Instance #	'class_name'
1 rep_sel_itm	The value of the item reference

Table 2.1 — Instances of capability Representing_parts (C002) related to 'Document revisions'

Instance #	'class_name'
5 asg_class	Document_revision_description (BF 46)
6 asg_class	Revision_notice_status (BF 49.1)
7 asg_class	Production_notification_need_indicator (BF 53)
8 asg_class	Revision_notice_implementation (BF 52.2)
9 asg_class	Implement_revision_notice_in_product (BF 52.3)
10 asg_class	Revision_notice_implementation_method (BF 52.4)
13 asg_class	Document_version_relationship (BF 43)
21 asg_class	Product_life_cycle_support (BF 3.4)
34 asg_class	Notify_production_control (BF 53.1)
38 asg_class	Notification_method (BF 53.2)
39 asg_class	Production_notification_status (BF 54)
40 asg_class	Implementation_status_in_project (BF 52.1)
61 asg_class	Support_stage (BF 3.6)
91 asg_class	Contractor_generated_document (BF 1.1)

Table 2.2 — Instances of capability assigning_reference_data (C010) related to 'Document revisions'

Instance #	'org_id'	'org_id_type'	'org_name'	'org_role'	'org_address'	'person_role'
10 rep_pers_org	The value of the item reference	Organization_identification_code (BF 5.1)	The value of the item reference	Revision_notice_author (BF 55)	-	-

Table 2.3 — Instances of capability representing_person_organization_2 (C016_2) related to 'Document revisions'

Instance #	'assign_role'	'appr_purpose'	'appr_status'	'person_or_org_role'
3 asg_app	Revision_notice_quality_acceptance (BF 56)	Revision_notice_quality_check (BF 56.1)	-	Revision_notice_quality_acceptor (BF 56.2)
4 asg_app	Revision_notice_approval (BF 57)	Revision_notice_approval (BF 57.1)	-	Revision_notice_approving_person (BF 57.2)

Table 2.4 — Instances of capability assigning_approvals (C019) related to 'Document revisions'

Instance #	'description'
1 asg_act	The value of the item reference

Table 2.5 — Instances of capability representing_activity (C032) related to 'Document revisions'

Instance #	'role_of_date'	'calendar_date'
4 asg_date	Document_revision_date (BF 34)	The value of the item reference
5 asg_date	Revision_notice_date (BF 51)	The value of the item reference

Table 2.6 — Instances of capability Assigning_date_time (C036) related to 'Document revisions'

Instance #	'state_name'	'state_role'	'state_description'
4 rep_state	State_of_change_activity (BF 52)	Implementation_status_in_product (BF 52.1)	-
5 rep_state	State_of_notification_activity (BF 54.1)	Production_notification_status (BF 54)	-
6 rep_state	Revision_notice_status_code (BF 49)	Revision_notice_status (BF 49.1)	Revision_notice_status_name (BF 50)

Table 2.7 — Instances of capability representing_state_observed (C041) related to 'Document revisions'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 3)

Table 2.8 — Instances of capability representing_product_as_individual (C045) related to 'Document revisions'

Instance #	'prop_name'
3 asg_prod_prp	The value of the item reference
5 asg_prod_prp	The value of the item reference
7 asg_prod_prp	The value of the item reference

Table 2.9 — Instances of capability assigning_product_properties (C076) related to 'Document revisions'

Instance #	'prop_value'	'prop_name'	'prop_def_method'	'class_name'
3 rep_prp_txt	The Identifier being assigned	First_page_revised (BF 44)	Document_page_number (BF 44)	Document_index (BF 45)
5 rep_prp_txt	The Identifier being assigned	Last_page_revised (BF 43.3)	Document_page_number (BF 44)	Document_index (BF 45)

Table 2.10 — Instances of capability representing_properties_textually (C080) related to 'Document revisions'

Instance #	'description'	'class_name'
5 asg_descr	The value of the item reference	Digital_file_description (BF 66)

Table 2.11 — Instances of capability assigning_descriptor (C095) related to 'Document revisions'

Instance #	'code'	'name'	'prop_name'	'prop_code'
7 rep_code	The value of the item reference	The value of the item reference	Revision_notice_type_name (BF 48.2)	Revision_notice_type_code (BF 48.1)

Table 2.12 — Instances of capability assigning_code_and_encoding_system (C152) related to 'Document revisions'

Document References

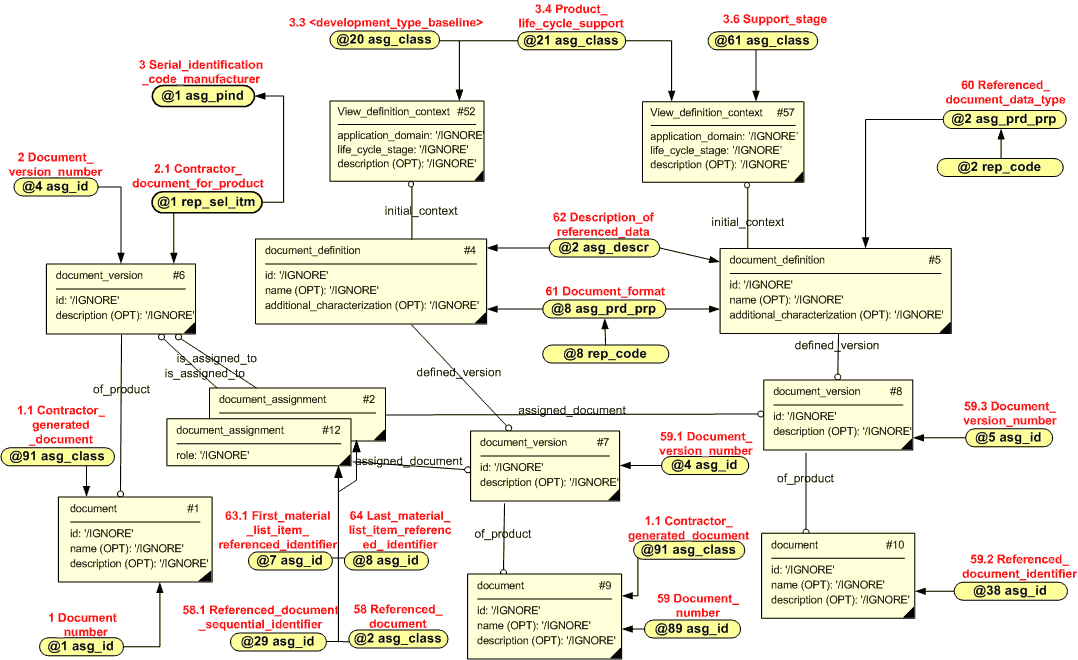

Figure 4 — Document references

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
1 asg_id	The identifier being assigned	Document_number (BF 1)(BF 59)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
4 asg_id	The identifier being assigned	Document_version_number (BF 2)(BF 59.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
5 asg_id	The identifier being assigned	Document_version_number (BF 59.3)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
7 asg_id	The identifier being assigned	First_item_referenced_identifier (BF 63.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
8 asg_id	The identifier being assigned	Last_item_referenced_identifier (BF 64)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
29 asg_id	The identifier being assigned	Referenced_document_sequential_identifier (BF 58.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
38 asg_id	The identifier being assigned	Referenced_document_number(BF 59.2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
89 asg_id	The identifier being assigned	Document_number (BF 1)(BF 59)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference

Table 3.0 — Instances of capability assigning_identifiers (C001) related to 'Document references'

Instance #	'class_name'
1 rep_sel_itm	The value of the item reference

Table 3.1 — Instances of capability Representing_parts (C002) related to 'Document references'

Instance #	'class_name'
2 asg_class	Referenced_document (BF 58)
20 asg_class	Development_type_baseline (BF 3.3)
21 asg_class	Product_life_cycle_support (BF 3.4)
22 asg_class	Approval_type_baseline (BF 3.5)
61 asg_class	Support_stage (BF 3.6)
91 asg_class	Contractor_generated_document (BF 1.1)

Table 3.2 — Instances of capability assigning_reference_data (C010) related to 'Document references'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 3)

Table 3.3 — Instances of capability representing_product_as_individual (C045) related to 'Document references'

Instance #	'prop_name'
2 asg_prd_prp	The value of the item reference
8 asg_prd_prp	The value of the item reference

Table 3.4 — Instances of capability assigning_product_properties (C076) related to 'Document references'

Instance #	'description'	'class_name'
2 asg_descr	The value of the item reference	Description_of_referenced_data (BF 62)

Table 3.5 — Instances of capability assigning_description (C095) related to 'Document references'

Instance #	'code'	'name'	'prop_name'	'prop_code'
2 rep_code	The value of the item reference	The value of the item reference	Referenced_document_data_type_name (BF 60.2)	Referenced_document_data_type_code (BF 60.1)
8 rep_code	The value of the item reference	The value of the item reference	Document_format_name (BF 61.2)	Document_format_code (BF 61.1)

Table 3.6 — Instances of capability assigning_code_and_encoding_system (C152) related to 'Document references'

Document Stakeholders and Control

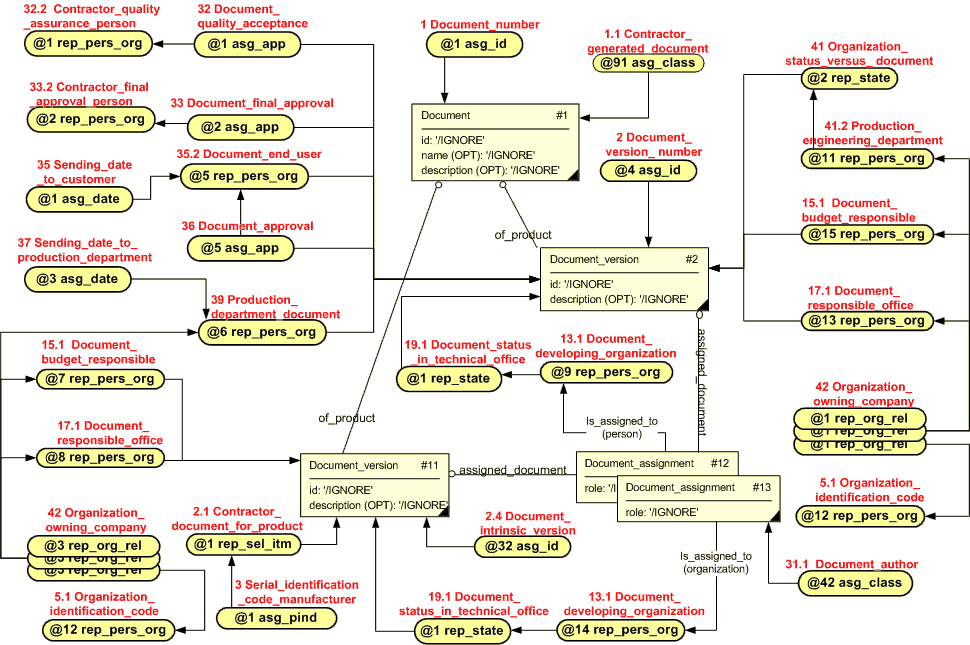

Figure 5 — Document stakeholders and control

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
1 asg_id	The identifier being assigned	Document_number (BF 1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
4 asg_id	The identifier being assigned	Document_version_number (BF 2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
32 asg_id	The identifier being assigned	Document_intrinsic_version (BF 2.4)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference

Table 4.0 — Instances of capability assigning_identifiers (C001) related to 'Document stakeholders and control'

Instance #	'class_name'
1 rep_sel_itm	The value of the item reference

Table 4.1 — Instances of capability Representing_parts (C002) related to 'Document stakeholders and control'

Instance #	'class_name'
42 asg_class	Document_author (BF 31.1)
91 asg_class	Contractor_generated_document (BF 1.1)

Table 4.2 — Instances of capability assigning_reference_data (C010) related to 'Document stakeholders and control'

Instance #	'org_id'	'org_id_type'	'org_name'	'org_role'	'org_address'
6 rep_pers_org	The value of the item reference	Production_department_code (BF 38)	The value of the item reference	Production_department_document (BF 39)	-
7 rep_pers_org	The value of the item reference	Budget_responsible_organization_code (BF 16)	The value of the item reference	Document_budget_responsible (BF 15.1)	-
8 rep_pers_org	The value of the item reference	Document_responsible_office_code (BF 17)	The value of the item reference	Document_responsible_office (BF 17.1)	-
11 rep_pers_org	The value of the item reference	Organization_identification_code (BF 5.1)	Production_engineering_department (BF 41.2)	Work_status_in_production_engineering (BF 41.1)	-
12 rep_pers_org	The value of the item reference	Organization_identification_code (BF 5.1)	The value of the item reference	Organization_owning_company (BF 42)	-
13 rep_pers_org	The value of the item reference	Document_responsible_office_code (BF 17)	The value of the item reference	Document_responsible_office (BF 17.1)	-
14 rep_pers_org	The value of the item reference	Document_developing_organization_code (BF 13)	The value of the item reference	Document_developing_organization (BF 13.1)	-
15 rep_pers_org	The value of the item reference	Budget_responsible_organization_code (BF 15)	The value of the item reference	Document_budget_responsible (BF 15.1)	-

Table 4.3 — Instances of capability representing_person_organization_1 (C016_1) related to 'Document stakeholders and control'

Instance #	'org_id'	'org_id_type'	'org_name'	'org_role'	'org_address'	'person_role'
9 rep_pers_org	The value of the item reference	Document_developing_organization_code (BF 13)	The value of the item reference	Document_developing_organization (BF 13.1)	-	-

Table 4.3 — Instances of capability representing_person_organization_2 (C016_2) related to 'Document stakeholders and control'

Instance #	'relating_organization'	'related_organization'	'type_of_relation'
1 rep_org_rel	The value of the item reference	The value of the item reference	The value of the item reference
3 rep_org_rel	The value of the item reference	The value of the item reference	The value of the item reference

Table 4.4 — Instances of variant of capability representing_person_Organization_3 (C016_3) related to 'Document stakeholders and control'

Instance #	'org_id'	'org_id_type'	'org_name'	'org_addr'	'person_role'
1 rep_pers_org	The value of the item reference	Organization_identification_code (BF 5.1)	-	-	-
2 rep_pers_org	The value of the item reference	Organization_identification_code (BF 5.1)	-	-	-

Table 4.3 — Instances of capability representing_person_organization_4 (C016_4) related to 'Document stakeholders and control'

Instance #	'assign_role'	'appr_purpose'	'appr_status'	'person_or_org_role'
1 asg_app	Document_quality_acceptance (BF 32)	Quality_assurance_by_contractor (BF 32.1)	-	Contractor_quality_assurance_person (BF 32.2)
2 asg_app	Document_final_approval (BF 33)	Final_approval_at_contractor (BF 33.1)	-	Contractor_final_approval_person (BF 33.2)
5 asg_app	Document_approval (BF 36)	Approval_by_customer (BF 36.1)	-	-

Table 4.5 — Instances of capability assigning_approvals (C019) related to 'Document stakeholders and control'

Instance #	'role_of_date'	'calendar_date'
1 asg_date	Sending_date_to_customer (BF 35)	The value of the item reference
3 asg_date	Sending_date_to_production_department (BF 37)	The value of the item reference

Table 4.6 — Instances of capability Assigning_date_time (C036) related to 'Document stakeholders and control'

Instance #	'state_name'	'state_role'	'state_description'
1 rep_state	Document_status_code (BF 19)	Document_status_in_technical_office (BF 19.1)	Document_status_name (BF 20)
2 rep_state	Production_engineering_department_state (BF 40)	Organization_status_versus_document (BF 41)	-

Table 4.7 — Instances of capability representing_state_observed (C041) related to 'Document stakeholders and control'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 3)

Table 4.8 — Instances of capability representing_product_as_individual (C045) related to 'Document stakeholders and control'

Document Applicability

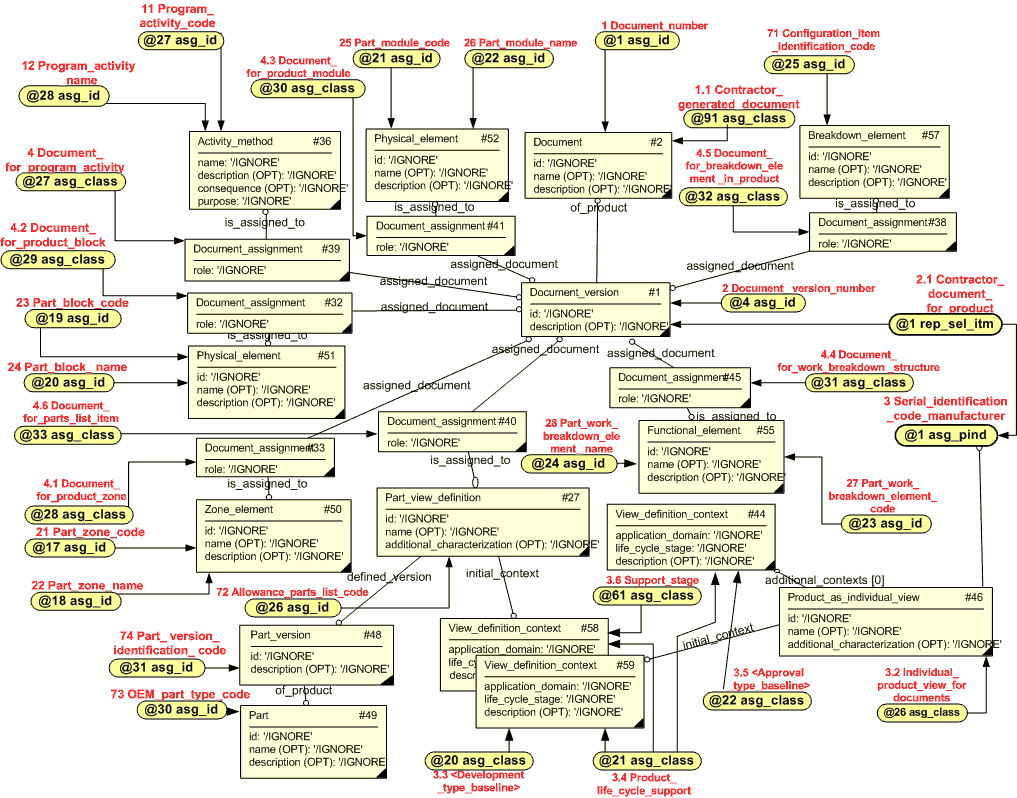

Figure 6 — Document applicability

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
1 asg_id	The identifier being assigned	Document_number (BF 1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
4 asg_id	The identifier being assigned	Document_version_number (BF 2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
17 asg_id	The identifier being assigned	Part_zone_code (BF 21)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
18 asg_id	The identifier being assigned	Part_zone_name (BF 22)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
19 asg_id	The identifier being assigned	Part_block_code (BF 23)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
20 asg_id	The identifier being assigned	Part_block_name (BF 24)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
21 asg_id	The identifier being assigned	Part_module_code (BF 25)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
22 asg_id	The identifier being assigned	Part_module_name (BF 26)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
23 asg_id	The identifier being assigned	Part_work_breakdown_element_code (BF 27)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
24 asg_id	The identifier being assigned	Part_work_breakdown_element_name (BF 28)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
25 asg_id	The identifier being assigned	Configuration_item_identification_code (BF 71)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
26 asg_id	The identifier being assigned	Allowance_parts_list_code (BF 72)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
27 asg_id	The identifier being assigned	Program_activity_code (BF 11)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
28 asg_id	The identifier being assigned	Program_activity_name (BF 12)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
30 asg_id	The identifier being assigned	OEM_part_type_code (BF 73)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference
31 asg_id	The identifier being assigned	Part_version_identification_code (BF 74)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 5.1)	The value of the item reference

Table 5.0 — Instances of capability assigning_identifiers (C001) related to 'Document applicability'

Instance #	'class_name'
1 rep_sel_itm	The value of the item reference

Table 5.1 — Instances of capability Representing_parts (C002) related to 'Document applicability'

Instance #	'class_name'
20 asg_class	Development_type_baseline (BF 3.3)
21 asg_class	Product_life_cycle_support (BF 3.4)
22 asg_class	Approval_type_baseline (BF 3.5)
26 asg_class	Individual_product_view_for_documents (BF 3.2)
27 asg_class	Document_for_program_activity (BF 4)
28 asg_class	Document_for_product_zone (BF 4.1)
29 asg_class	Document_for_product_block (BF 4.2)
30 asg_class	Document_for_product_module (BF 4.3)
31 asg_class	Document_for_work_breakdown_structure (BF 4.4)
32 asg_class	Document_for_breakdown_element_in_product (BF 4.5)
33 asg_class	Document_for_parts_list_item (BF 4.6)
61 asg_class	Support_stage (BF 3.6)
91 asg_class	Contractor_generated_document (BF 1.1)

Table 5.2 — Instances of capability assigning_reference_data (C010) related to 'Document applicability'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 3)

Table 5.3 — Instances of capability representing_product_as_individual (C045) related to 'Document applicability'
