individual_product_data ISO 10303-239 Representation

Product as realised

The figure illustrates the business DEX.

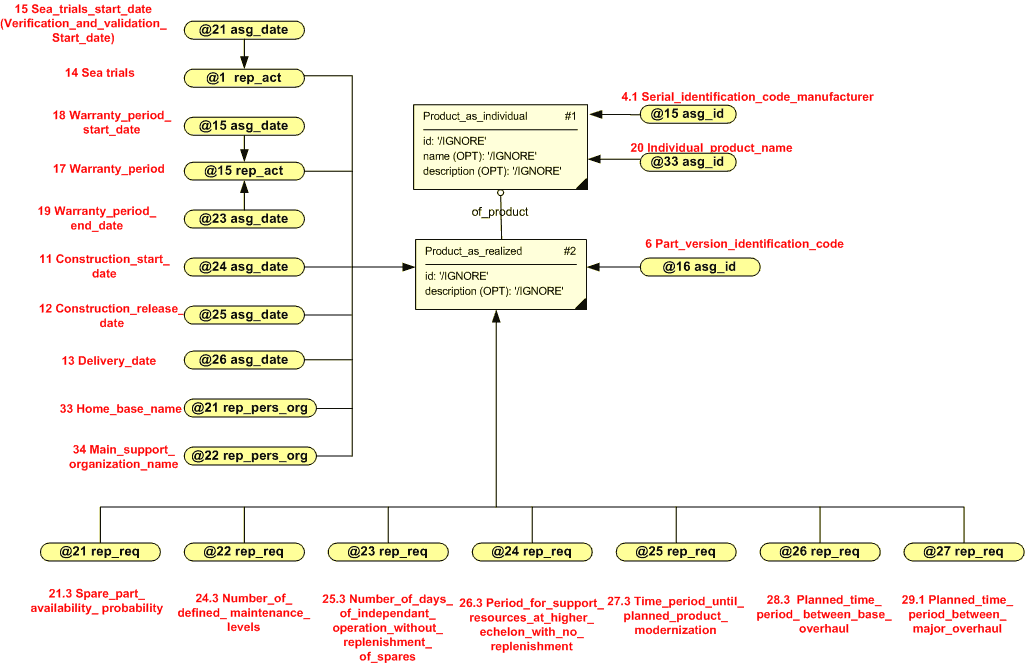

Figure 2 — Product as realized - Instance diagram

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
15 asg_id	The identifier being assigned	Serial_identification_code_manufacturer (BF 4.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 6)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
33 asg_id	The identifier being assigned	Individual_product_name (BF 20)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference

Table 1.0 — Instances of capability 'assigning_identifier' (C001) related to 'Product as realized'

Instance #	'org_id'	'org_id_type'	'org_name'	'org_role'	'org_address'
21 rep_pers_org	The value of the item reference	Norwegian_MOD_code (BF ...)	The value of the item reference	Home_base_name (BF 33)	-
22 rep_pers_org	The value of the item reference	Organization_identification_code (BF 1.1)	The value of the item reference	Main_support_organization_name (BF 34)	-

Table 1.1 — Instances of capability representing_person_organization (C016_1) related to 'Product as realized'

Instance #	'class_name'
1 rep_act	Sea_trials (BF 14)
15 rep_act	Warranty_period (BF 17)

Table 1.2 — Instances of capability 'represent_activities' (C032) related to 'Product as realized'

Instance #	'role_of_date'	'calendar_date'
15 asg_date	Warranty_period_start_date (BF 18)	The value of the item reference
21 asg_date	Verification_and_validation_start_date (BF 15)	The value of the item reference
23 asg_date	Warranty_period_end_date (BF 19)	The value of the item reference
24 asg_date	Construction_start_date (BF 11)	The value of the item reference
25 asg_date	Construction_release_date (BF 12)	The value of the item reference
26 asg_date	Delivery_date (BF 13)	The value of the item reference

Table 1.3 — Instances of capability 'assigning_date_time' (C036) related to 'Product as realized'

Instance #	'class_name'
21 rep_req	Spare_part_availability_probability (BF 21.3)
22 rep_req	Number_of_defined_maintenance_levels (BF 24.3)
23 rep_req	Number_of_days_of_independant_operation_without_replenishment_of_spares (BF 25.3)
24 rep_req	Period_for_support_resources_at_higher_echelon_with_no_replenishment (BF 26.3)
25 rep_req	Time_period_until_planned_product_modernization (BF 27.3)
26 rep_req	Planned_time_period_between_base_overhaul (BF 28.3)
27 rep_req	Planned_time_period_between_major_overhaul (BF 29.1)

Table 1.4 — Instances of capability 'represent_requirements' (C092) related to 'Product as realized'

Parent product identification

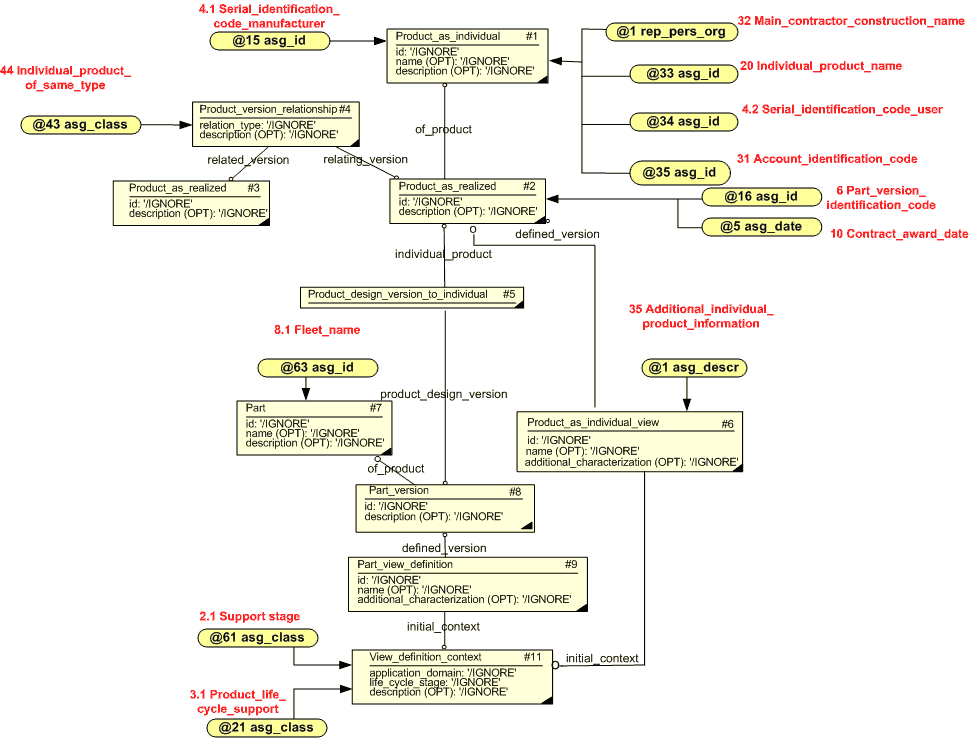

Figure 3 — Parent product identification - Instance diagram

NOTE. The parameters representing the external class library are not shown in tables below since all classes in this business DEX refer to the URN "urn:plcs:rdl:std".

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
15 asg_id	The identifier being assigned	Serial_identification_code_manufacturer (BF 4.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 6)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
33 asg_id	The identifier being assigned	Individual_product_name (BF 20)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
34 asg_id	The identifier being assigned	Serial_identification_code_user (BF 4.2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
35 asg_id	The identifier being assigned	Account_identification_code (BF 31)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
63 asg_id	The identifier being assigned	Fleet_name (BF 8.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference

Table 2.0 — Instances of capability 'Assigning_identifiers' (C001) related to 'Parent product identification'

Instance #	'class_name'
21 asg_class	Product_life_cycle_support (BF 3.1)
43 asg_class	Sister_ship (BF 44)
61 asg_class	Support_stage (BF 2.1)

Table 2.1 — Instances of capability 'Assigning_reference_data' (C010) related to 'Parent product identification'

Instance #	'org_id'	'org_id_type'	'org_name'	'org_role'	'org_address'
1 rep_pers_org	The value of the item reference	Human_readable_code (BF ...)	The value of the item reference	Main_contractor_construction_name (BF 32)	-

Table 2.2 — Instances of capability representing_person_organization (C016_1) related to 'Parent product identification'

Instance #	'role_of_date'	'calendar_date'
5 asg_date	Contract_award_date (BF 10)	The value of the item reference

Table 2.3 — Instances of capability 'assigning_date_time' (C036) related to 'Parent product identification'

Instance #	'Description'	'Class_name'
1 asg_descr	The value of the item reference	Additional_individual_product_information (BF 35)

Table 2.4 — Instances of capability assigning_descriptor (C095) related to 'Parent product identification'

Component usage

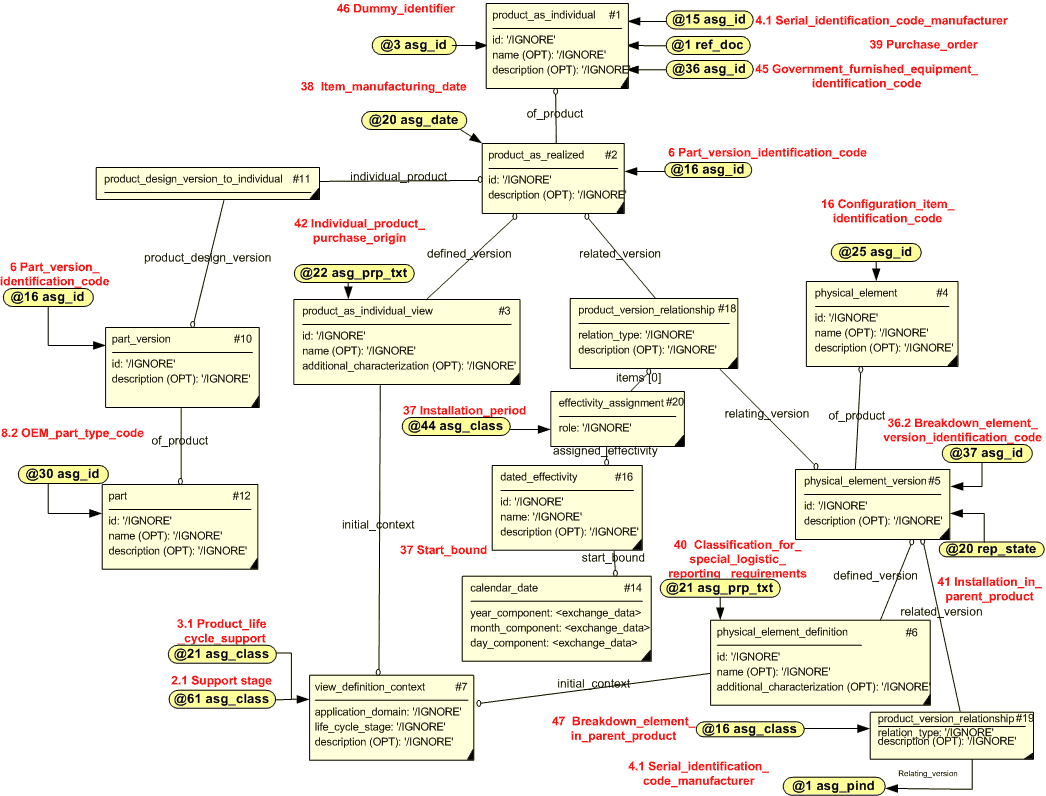

Figure 4 — Component - Instance diagram

Instance #	'id'	'id_role'	'owner_org_id'	'org_id_type'	'external_class_name'
3 asg_id	The identifier being assigned	Dummy_identifier (BF 46)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
15 asg_id	The identifier being assigned	Serial_identification_code_manufacturer (BF 4.1)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
16 asg_id	The identifier being assigned	Part_version_identification_code (BF 6)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
25 asg_id	The identifier being assigned	Configuration_item_identification_code (BF 16)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
30 asg_id	The identifier being assigned	OEM_part_type_code (BF 8.2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
36 asg_id	The identifier being assigned	Government_furnished_equipement_identification_code (BF 45)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference
37 asg_id	The identifier being assigned	Breakdown_element_version_identification_code (BF 36.2)	The identifier of the organization that "owns" the identifier	Organization_identification_code (BF 1)	The value of the item reference

Table 3.0 — Instances of capability 'assigning_identifier' (C001) related to 'Component usage'

Instance #	'class_name'
16 asg_class	Breakdown_element_in_parent_product (BF 47)
21 asg_class	Product_life_cycle_support (BF 3.1)
44 asg_class	Installation_period (BF 37)
61 asg_class	Support_stage (BF 2.1)

Table 3.1 — Instances of capability 'assigning_reference_data' (C010) related to 'Component usage'

Instance #	'role_of_date'	'calendar_date'
20 asg_date	Item_manufacturing_date (BF 38)	The value of the item reference

Table 3.2 — Instances of capability 'assigning_date_time' (C036) related to 'Component usage'

Instance #	'class_name'
1 ref_doc	Purchase_order (BF 39)

Table 3.3 — Instances of capability 'referencing_documents' (C037) related to 'Component usage'

Instance #	'state_name'	'state_role'	'state_description'
20 rep_state	The value of the item referenced	Installation_in_parent_product (BF 41)	-

Table 3.4 — Instances of capability 'representing_state_observed' (C041) related to 'Component usage'

Instance #	'class_name'
1 asg_pind	Serial_identification_code_manufacturer (BF 4.1)

Table 3.5 — Instances of capability 'representing_product_as_individual' (C045) related to 'Component usage'

Instance #	'prop_value'	'prop_name'	'prop_def_method'	'class_name'
21 asg_prp_txt	Classification_for_special_logistic_reporting_requirements (BF 40)	-	-	-
22 asg_prp_txt	Individual_product_purchase_origin (BF 42)	-	-	-

Table 3.6 — Instances of capability 'representing_properties_textually' (C080) related to 'Component usage'
