This template describes how to represent the properties of a reportable item, using

The properties are frequently changed as a consequence of using the reportable item.

For further information about the representation of properties of a reportable item, see Aviation Maintenance DEX: Representing properties on a reportable item.

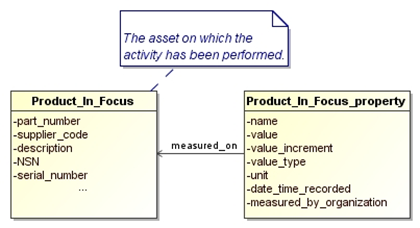

Figure 1 —

The following input parameters are defined for this template:

The following reference parameters are defined for this template:

The instantiation path shown below specifies the entities that are to be instantiated by the template.

A description of templates and the syntax for the instantiation path is provided in the Templates Help/Information section.

/assigning_product_property(
    property_class_name=@property_name,
    property_ecl_id='urn:plcs:rdl:LITS',
    described_element=@described_element)/
%^property = $assigning_product_property.property%
/product_property_numeric(
    value=@property_value,
    unit=@property_unit,
    unit_ecl_id=@unit_ecl_id,
    si_unit=@si_unit,
    context='Numerical_representation_context',
    context_ecl_id='urn:plcs:rdl:std',
    property=^property)/
%^prop_val_rep = $product_property_numeric.representation%
/assigning_time(
    date_class_name='Date_actual_observation',
    date_ecl_id='urn:plcs:rdl:std',
    year=@year,
    month=@month,
    day=@day,
    hour=@hour,
    minute=@minute,
    second=@second,
    sense='.EXACT.',
    hour_offset='0',
    minute_offset='0',
    items=^prop_val_rep)/
/assigning_organization(
    org_id=@org_id,
    org_id_class_name='Organization_name',
    org_id_ecl_id='urn:plcs:rdl:std',
    org_assgn_class_name='Measurer_of',
    org_assgn_ecl_id='urn:plcs:rdl:std',
    items=^prop_val_rep)/
/assigning_reference_data(
    class_name=@value_type,
    ecl_id='urn:plcs:rdl:LITS',
    items=^prop_val_rep)/

The following section details how the reportable_item_property template can be optionally characterized by assigning other constructs to it. These are characterizations commonly applied to the template. The ISO 10303-239 EXPRESS model may enable other assignments to the entities instantiated by the template.

The following characterizations may apply:

Characterization Assigning property increment

NOTE this characterization is optional.

The incremental change of a property can be assigned to the reportable item property using product_property_numeric and property_value_relationship.

When assigning the increment the template product_property_numeric should be used as follows:

/product_property_numeric(value='?increment_value?', unit='?increment_unit?', unit_ecl_id='urn:plcs:rdl:std', si_unit='?increment_si_unit?', context='Numerical_representation_context'', context_ecl_id='urn:plcs:rdl:std', property='#1')/

and template property_value_relationship should be used as follows:

/property_value_relationship(rel_type='Increment_relationship', rel_type_ecl_id='urn:plcs:rdl:LITS', relating='#1', related='#2')/

The above are examples of the types of values that can be used.

An alternative view is:

Template #2 (Figure 4): product_property_numeric Show template parameters Hide all template parameters Show all template parameters
Description	Representing the property's increment.'

Template #2 (Figure 4): product_property_numeric Hide template parameters Hide all template parameters Show all template parameters
Description	Representing the property's increment.'
Parameter name:	Parameter value:	Parameter description:
value	?increment_value?	The increment value
unit	?increment_unit?	The unit that the increment value is measured in
unit_ecl_id	?urn:plcs:rdl:LITS? - the URN for the reference data library storing the class.	The identifier of the External_class_library storing the definition of the unit name referenced by the parameter @unit.
si_unit	"True" or "False"	Value should be set to true if the unit is a SI base unit defined by ISO, i.e. kilogram (kg) for Mass, second (s) for Time, metre (m) for Displacement, ampere (A) for Electrical current, kelvin (K) for Temperature, mole (mol) for Amount of substance, and candela (cd) for Luminous intensity. If this is not the case it should be set to false. Note that the representation of true and false depends on exchange format. In Part 11 (a STEP file) true is represented by the string ".T.", and false by ".F.", while in Part 28 (XML) they are represented by text strings "true" and "false".
context	"Numerical representation context" (urn:plcs:rdl:std:Numerical representation context)	The name of the class being used to classify the Representation_context of the property.
context_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @context.
property	The Assigned_property entity.	The target of the template, i.e. the Assigned_property (or template assigning_product_property) to which the Property_representation is related.

Template #3 (Figure 4): property_value_relationship Show template parameters Hide all template parameters Show all template parameters
Description	Relationship between two property values.

Template #3 (Figure 4): property_value_relationship Hide template parameters Hide all template parameters Show all template parameters
Description	Relationship between two property values.
Parameter name:	Parameter value:	Parameter description:
rel_type	[Increment_relationship] Error RDL4: The URI urn:plcs:rdl:LITS is not listed in dexlib/data/refdata/rdl_index.xml	Type of relation between property value representations.
rel_type_ecl_id	"urn:plcs:rdl:std"	The identifier of the External_class_library storing the definition of the class referenced by the parameter @rel_type.
relating	Property_value_representation	TheProperty_value_representation within the representing_reportable_item_property identified at template #1
related	Property_value_representation	TheProperty_value_representation represented by template product_property_numeric identified at template #2
